Bag Wheels
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 20% infill
Designer
3 h
2 plates
Open in Bambu Studio
Boost
42
103
5
2
67
36
Released
Description

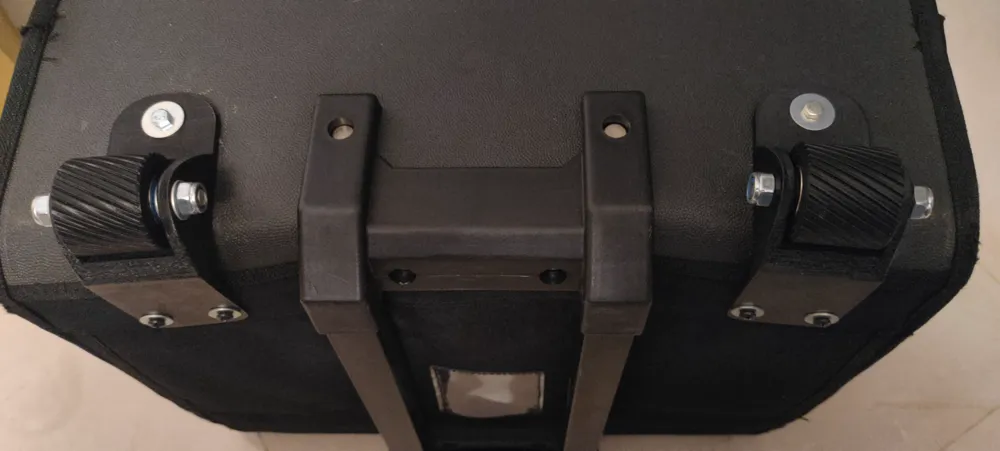

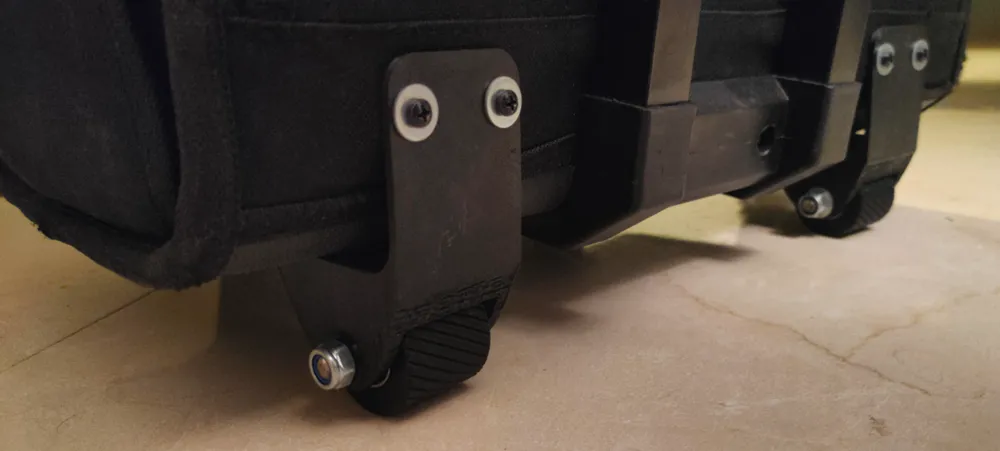

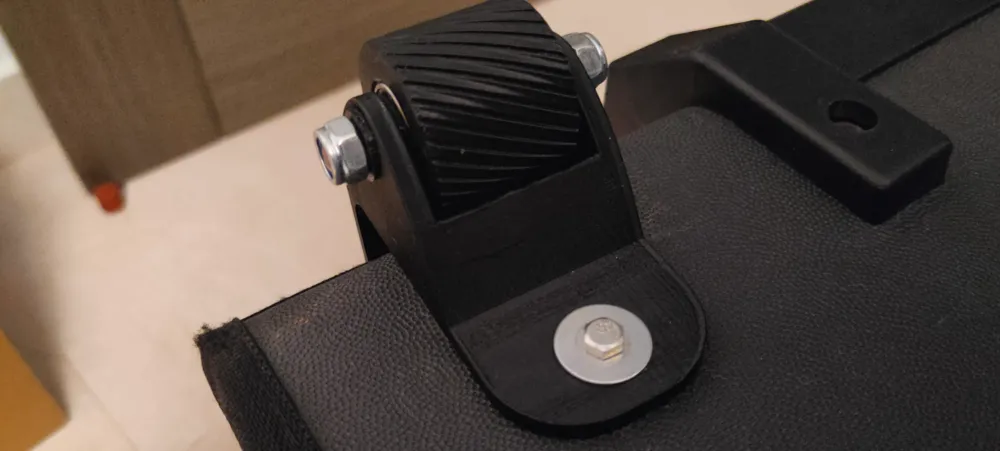

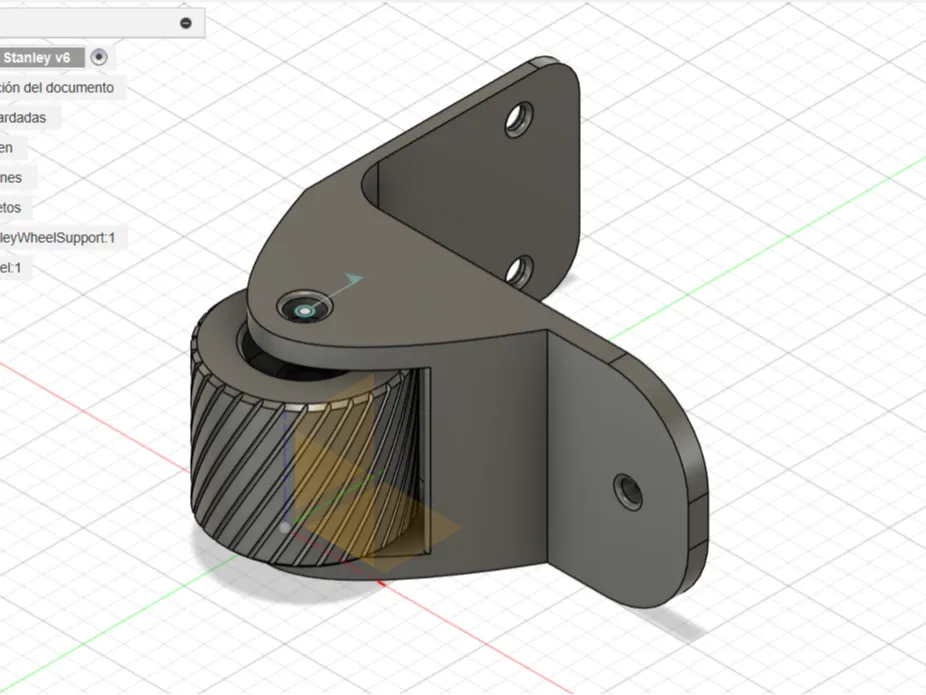

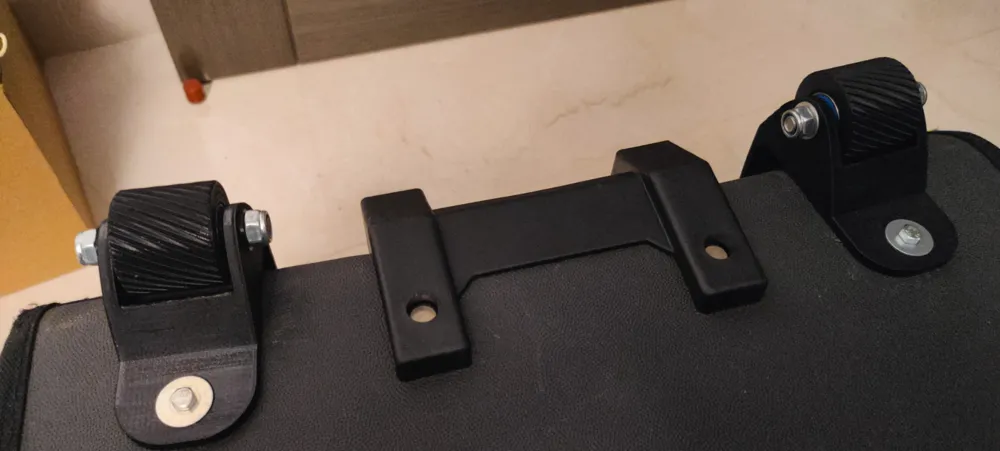

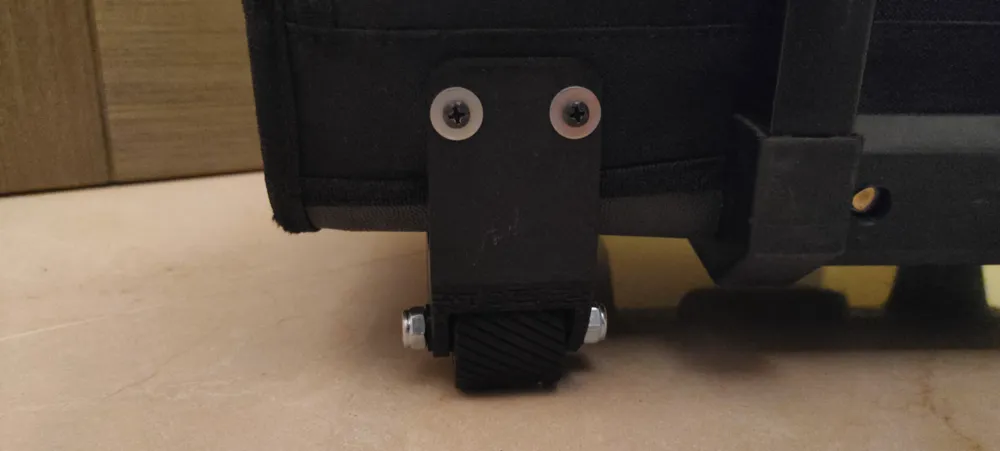

Recently, one of the wheels on my Stanley backpack broke, so I decided to design a replacement based on the original model of the backpack. I printed the entire model with 5 perimeters and 20% infill. So far, I haven't had any issues with this configuration, but feel free to add more strength if you wish. Adapter piece is designed to be printed withuot supports, but i recomend to use supports in both to obtain better quality pieces. Wheel needs supports fot the bearing area.
Required materials:
- 2x Threaded rods with an 8mm diameter and 67mm length
- 8x 8mm washers
- 4x 8mm nuts
- 6x 3-5mm screws for assembly
- 4x 22mm bearings
