Description

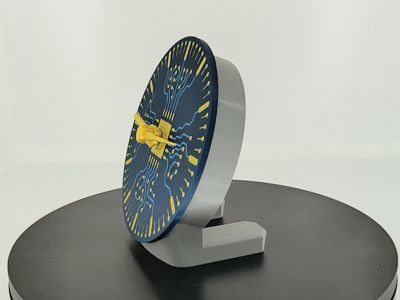

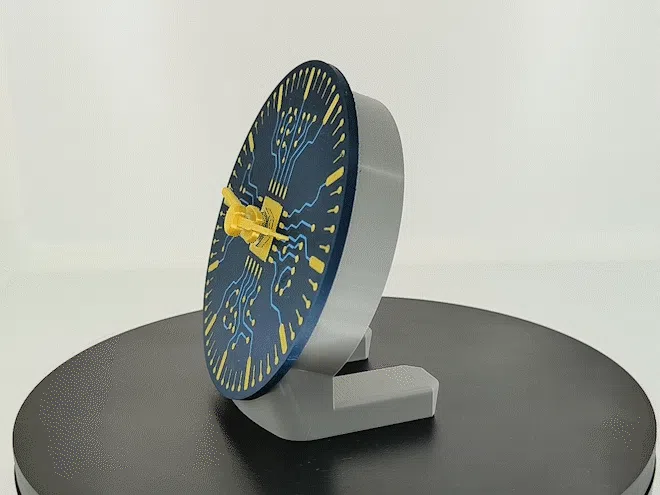

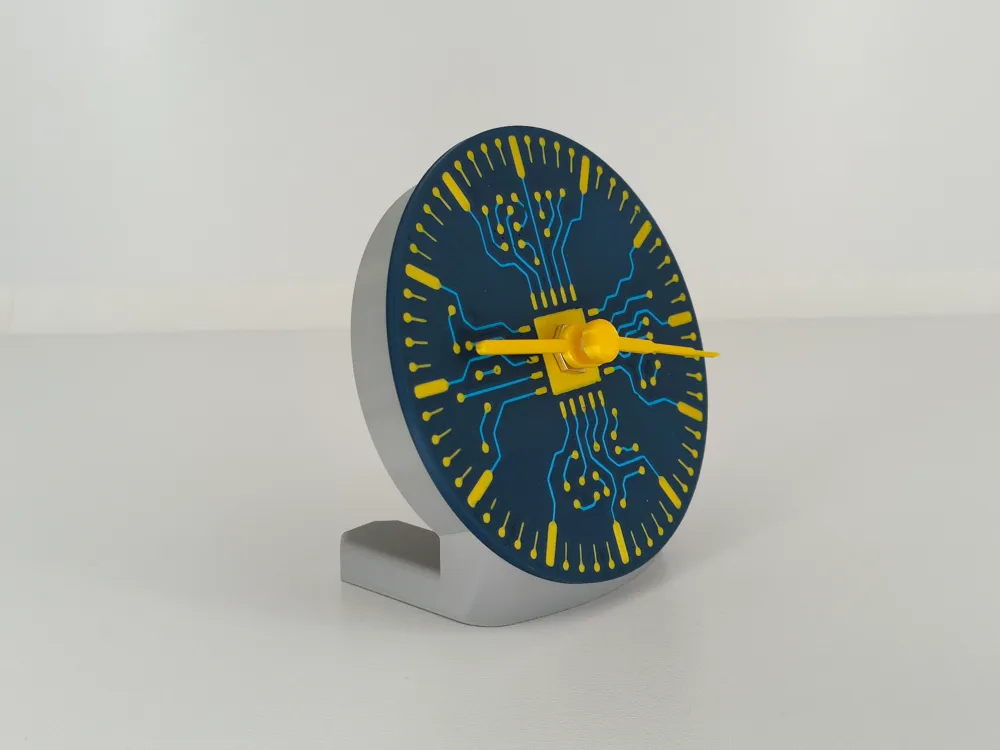

A table clock in the style of a PCB board.

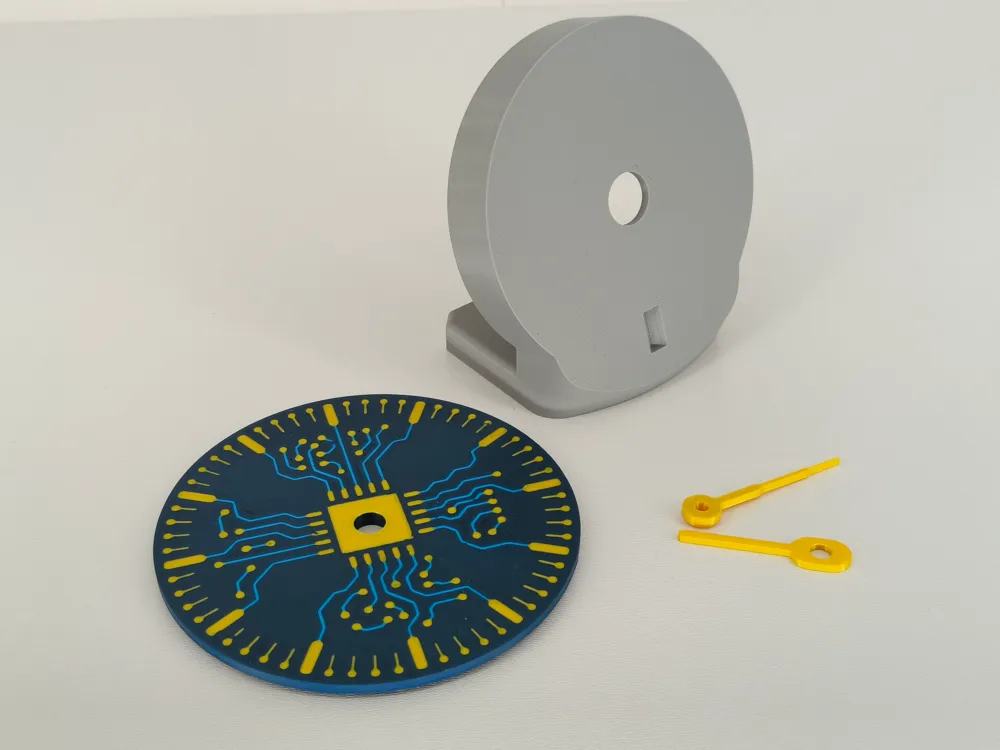

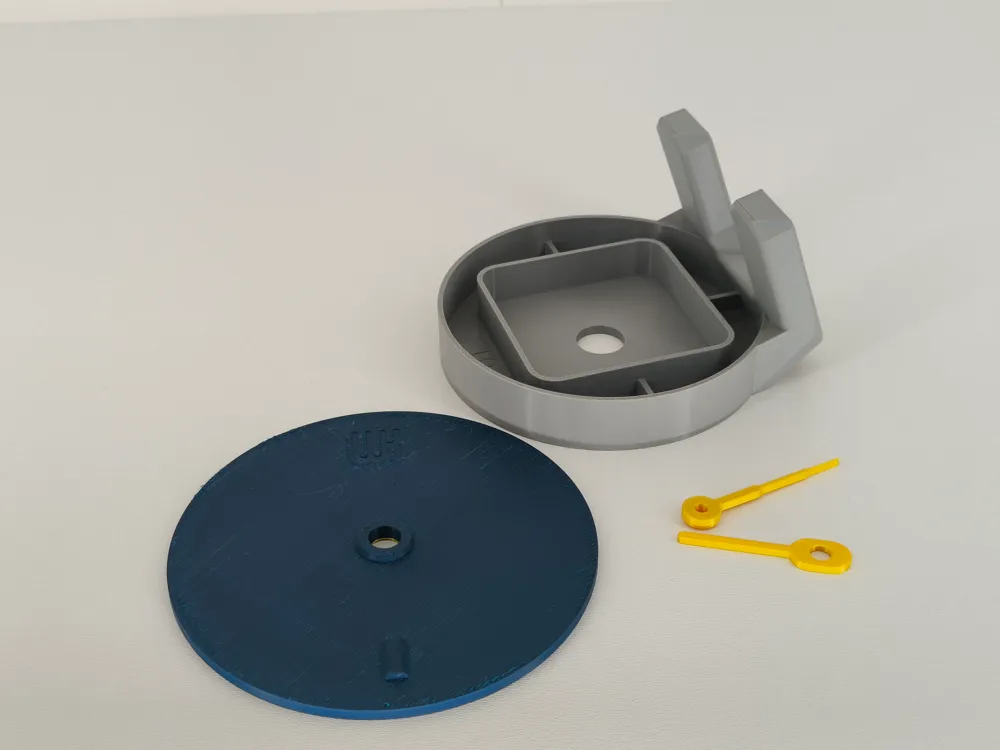

The clock has been designed so that the casing and the dial are printed separately to make printing easier and I plan to add more dials, in which case you will just need to print a new dial to change the look of your watch.
If you have already printed a watch from me, you do not need to print the casing again, just print the dial (plate 1).
I find printing difficult so I remind you of the basic rule for such prints:
Before you start printing, make sure you have a clean board (Wash it in warm soapy water or IPA). The first layer has many small elements that must adhere well to the board.
The project requires a shelf mechanism: Clock Components Kit 011
See other watch designs I have created here.

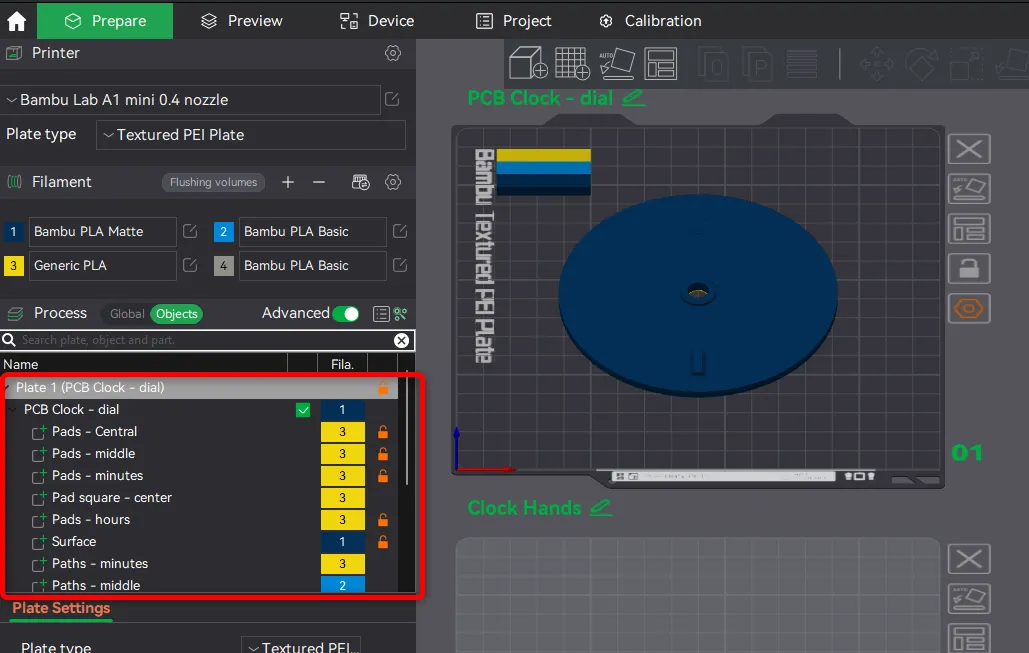

The project has been divided into separate groups of individual elements so you can color the dial however you want.
I tested two sets of colors which are shown in the pictures:

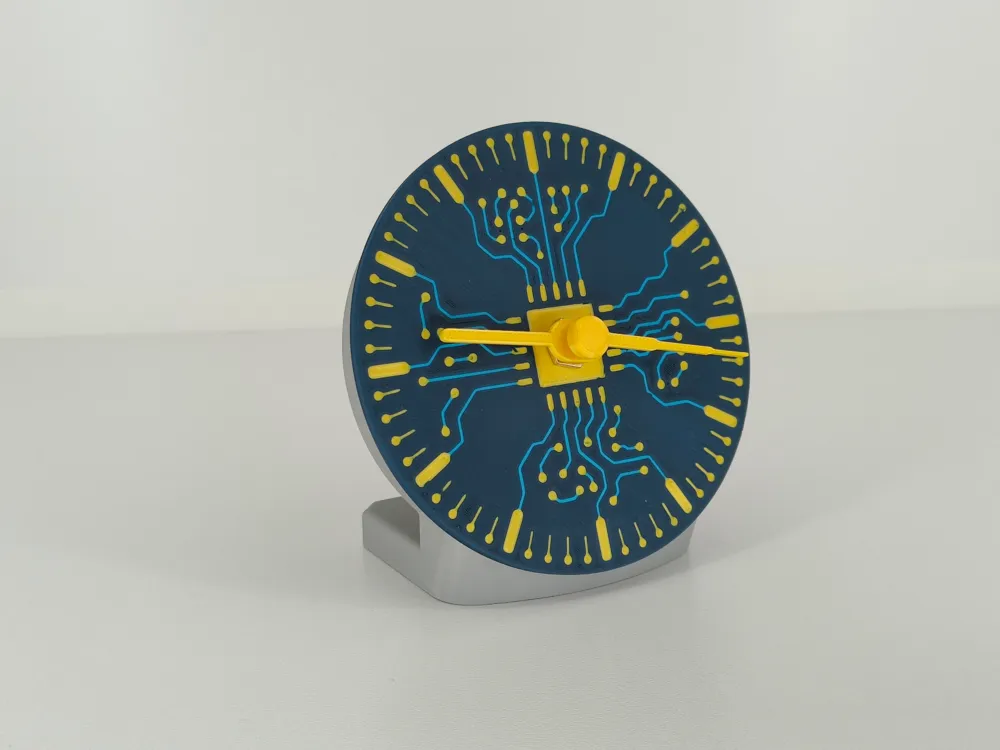

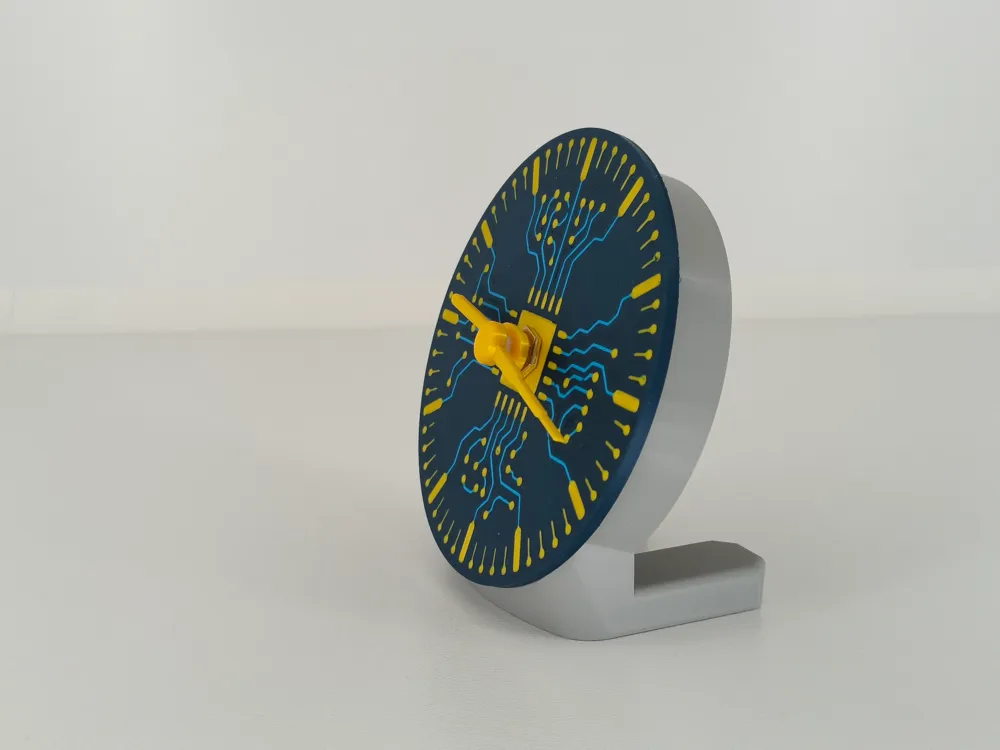

Set 1 colors:
- Matte Dark Blue
- Basic Cyan
- Gold

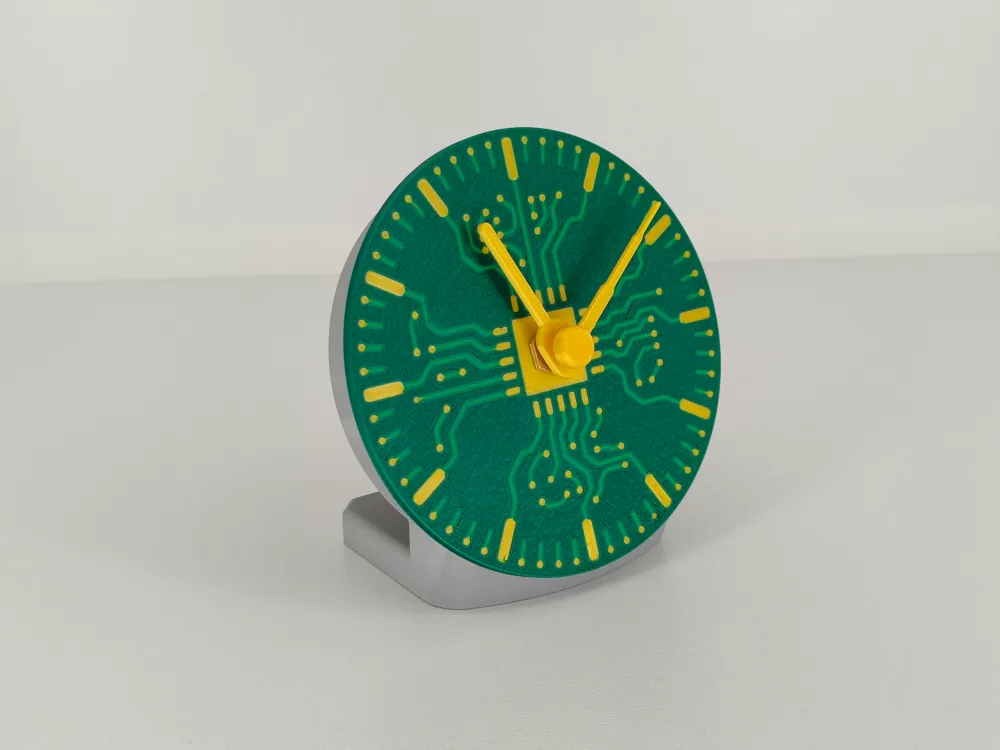

Set 2:
- Dark Green
- Green
- Gold
I printed the case in gray.
