JAM3D | Joel Macário

cover


80MM 14 Slot


Slider and Insert

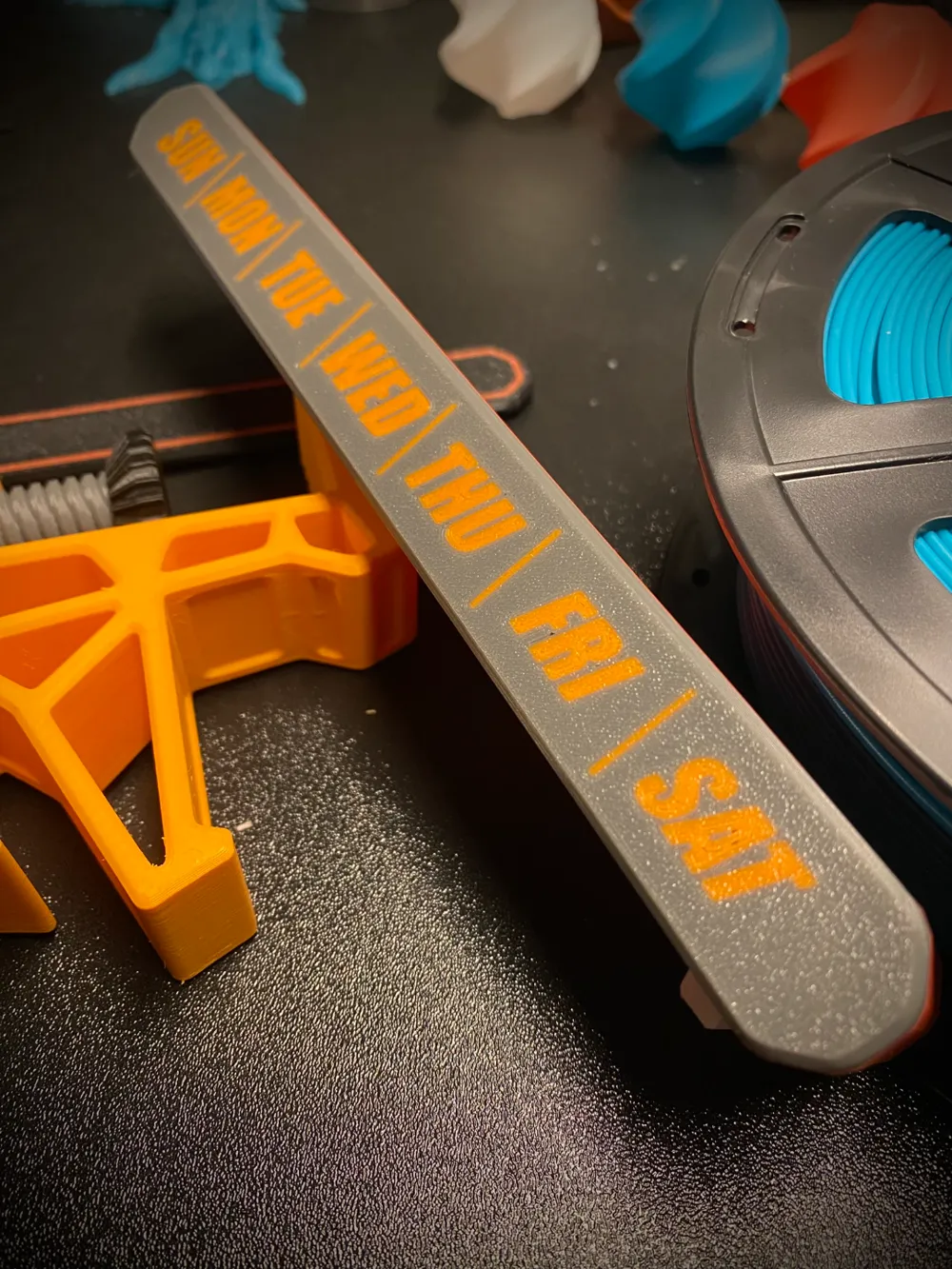

ENG Week Days

Insert

80mm 14 Slot Side Frame


Slider (iron after Print under the hot plat for 2 minutes)


TierParkToni



Sliding+Box+80MM A1mini.jpg

Sliding+Box+80MM A1mini plate 4.jpg

Sliding+Box+80MM A1mini plate 1.jpg

Sliding+Box+80MM A1mini plate 2.jpg

Sliding+Box+80MM A1mini plate 3.jpg

Platte 1-3 wie im Original-Profil hinterlegt, Platte 4 mit Support, Rand und max. 100mm/s mit dem “Generic PETG”-Profil gedruckt (wichtig!).Unmittelbar nach dem Druck das Model zwischen dem noch heißen Druckbett und der Platte für ca 2 Minuten “bügeln” - das ist wichtig, da beim vertikalem Druck leiche Verwerfungen im Modell entstehen, die damit geglättet werden können.&nbsp;Es kann ggfs. notwendig sein, den Slider (Platte 4) etwas weniger hoch zu drucken (Höhe ggfs. auf 99-97% skalieren), da dieser sehr streng in der Führung läuft - jedoch NICHT komplett skalieren (x+y+z), da dann das Modell zum Drucken zu dünn wird und der Druck auf dem A1mini dann fehlschlägt.&nbsp;Generell empfehle ich bei beweglichen Teilen aus PLA, PETG oder ABS/ASA in dem bewegten Kontaktbereich ein Gleitfett mit PTFE-Anteil zu verwenden, so auch hier. Dadurch wird die Materialreibung auf max. 1-2% reduziert und die Beweglichkeit deutlich besser.

Print plates 1-3 as specified in the original profile, plate 4 with support, brim and at a maximum speed of 100mm/s using the “Generic PETG” profile (important!)Immediately after printing, “iron” the model between the still-hot print bed and the plate for approximately 2 minutesthis is crucial, as slight warping can occur during vertical printing, which can be smoothed out this way&nbsp;It may be necessary to print the slider (plate 4) slightly less high (scale the height to approximately 99-97%), as this runs very tightly in its guide – however, DO NOT scale it completely (x+y+z), as the model would then become too thin for printing and the print on the A1 mini would fail&nbsp;Generally, I recommend using a lubricating grease with a PTFE content in the moving contact area of moving parts made of PLA, PETG or ABS/ASA, as is the case here. This reduces material friction to a maximum of 1-2% and significantly improves mobility

0.2mm layer, 2 walls, 15% infill, vertical slider, support

Slider and sloped insert

madsb


Added a sloped surface to the insert (plate 3), making it easier to remove pills.

Sloped insert

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/1205844-sliding-pill-box-am-pm#profileId-1219725">UPDATED VERSION AVAILABLE</a> As Requested! 14 Slot 7 Day AM/PM This one is a bit on the Thick side, Feels quite Solid in hand! Happy Printing <boostme><boosttitle>Boost Me</boosttitle><boostcontent>Keeps me going!</boostcontent></boostme>

Sliding Pill Box 14 Day
