42

Collection - Wallart

https://makerworld.com/en/collections/2655531

Available sizes

100x100, 150x150, 200x200, 300x300

How to print

This is a two (as in my picture) or three-color print. You do not need an MMU / ERCF / AMS / IDX to print this model. All 4 color changes can be done by hand and occur during the first three layers. The model is very beginner-friendly and available in many sizes for small or larger printers. To print one of the other sizes, import the 4 STL files with the same starting number as PARTS of ONE object. Do not import parts as single objects, as that will not work.

Naming system

The first 3 numbers indicate the size of the model. For example, the four files starting with 100_ contain the parts for the 100 x 100 mm model. It's as simple as that.

Print settings

global

• layer height: 0.2 mm all layers
• infill: 15% gyroid
• bottom layer infill: concentric
• top layer infill aligned rectilinear
• perimeters / wall count: 3
• bottom layers: 5
• top layers: 5
• color: black default

part frame

• top layer infill: concentric
• color: black default

part plate

• color: black default

part big

• color: red

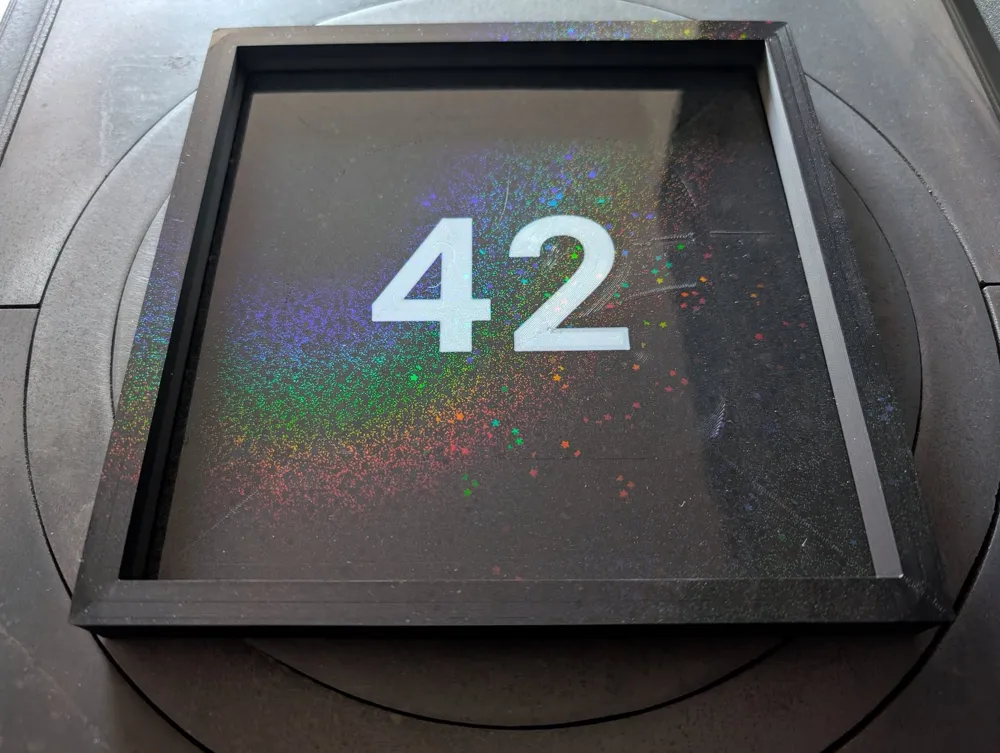

My print

I used black PLA and printed on a color illusion plate.
