Description

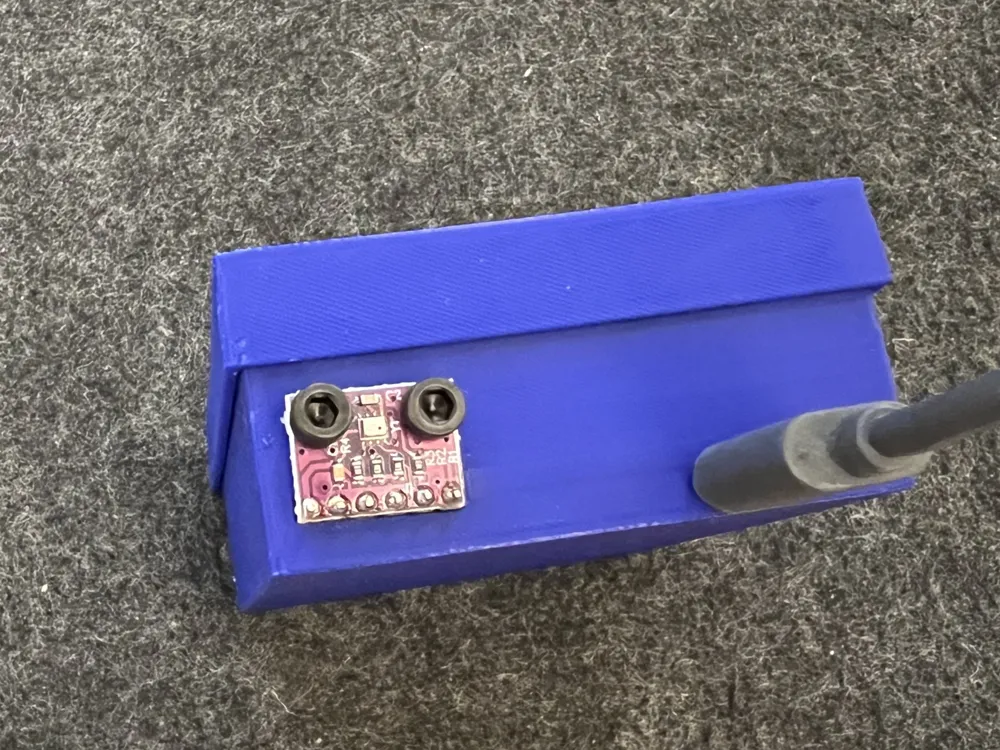

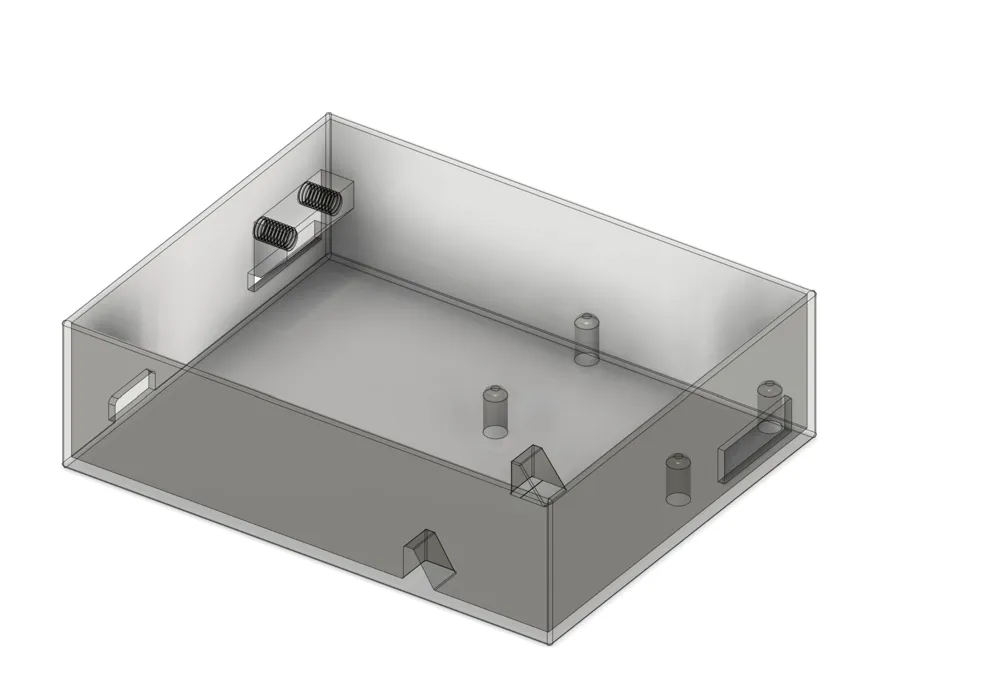

Simple box with room for an ESP32 (In this case a 40 pin freenove wroom model). A single channel relay and a BMP280 sensor mounted on the outside for more accurate readings. The pins on the BMP-sensor sticks in trough the side minimizing the need for a cable outlet.

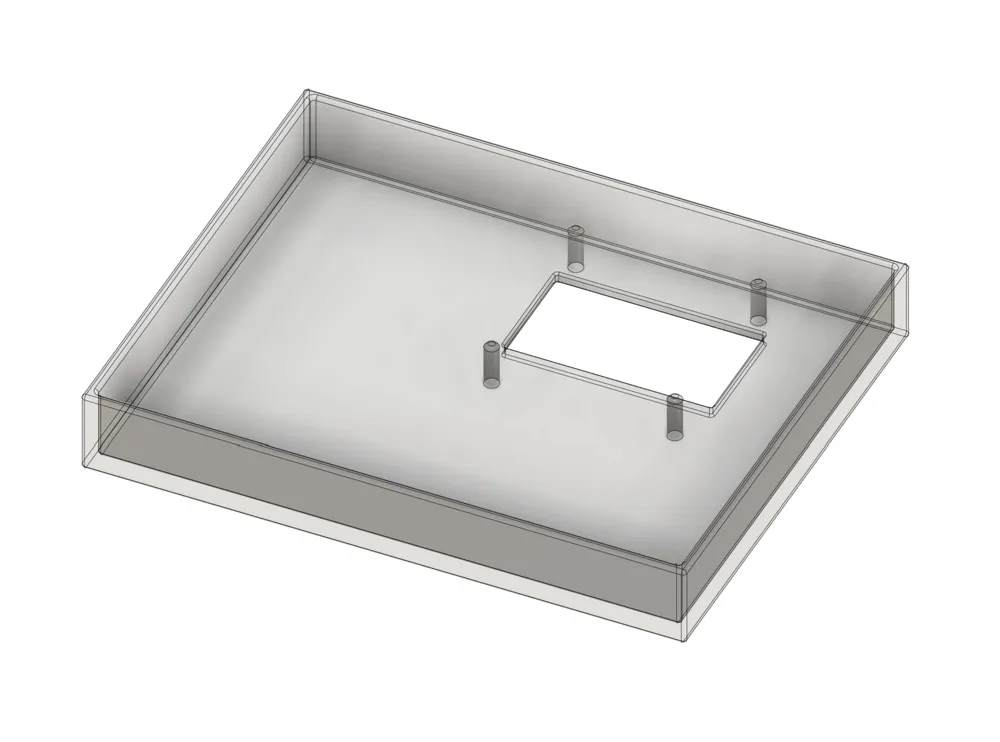

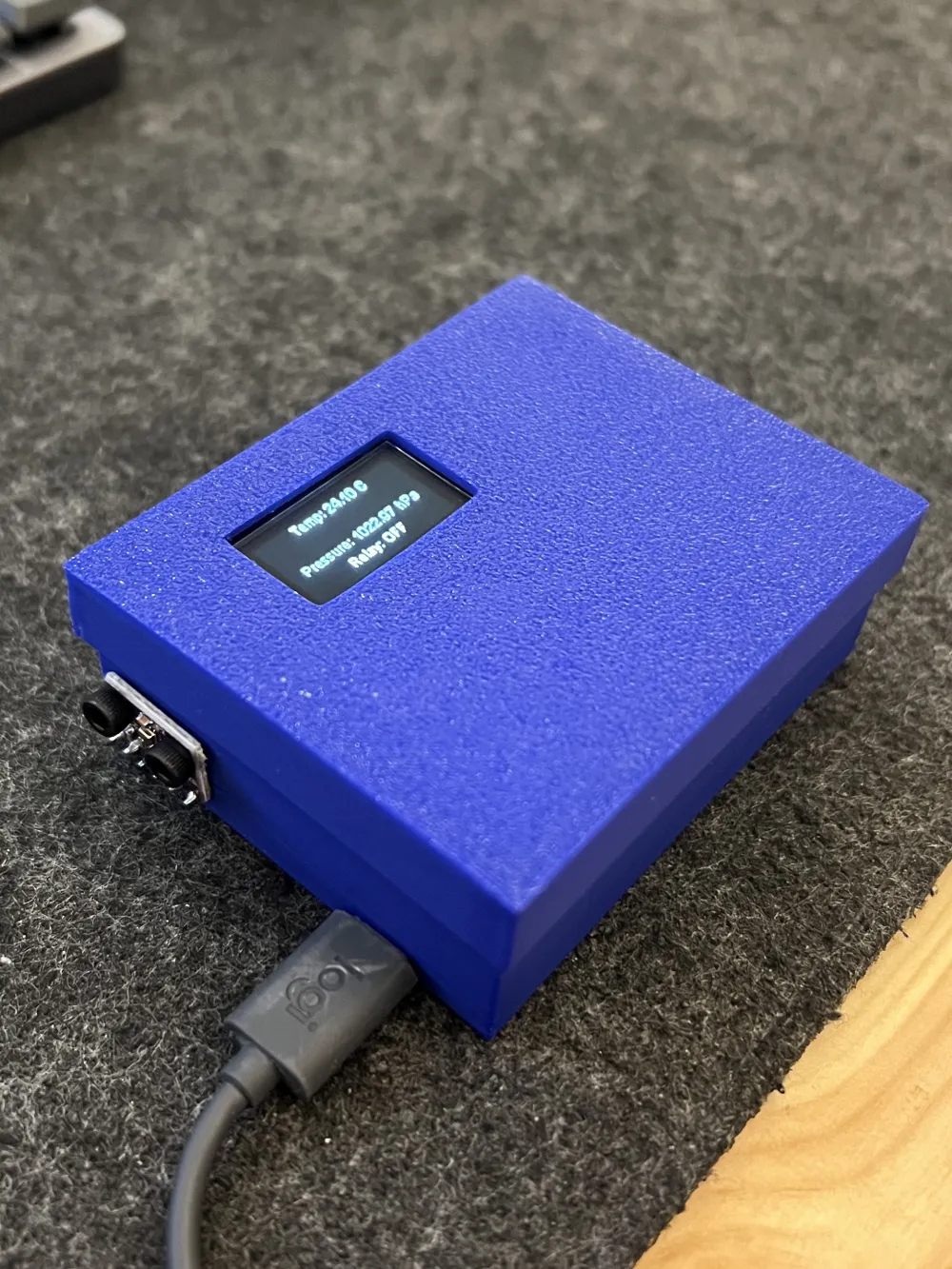

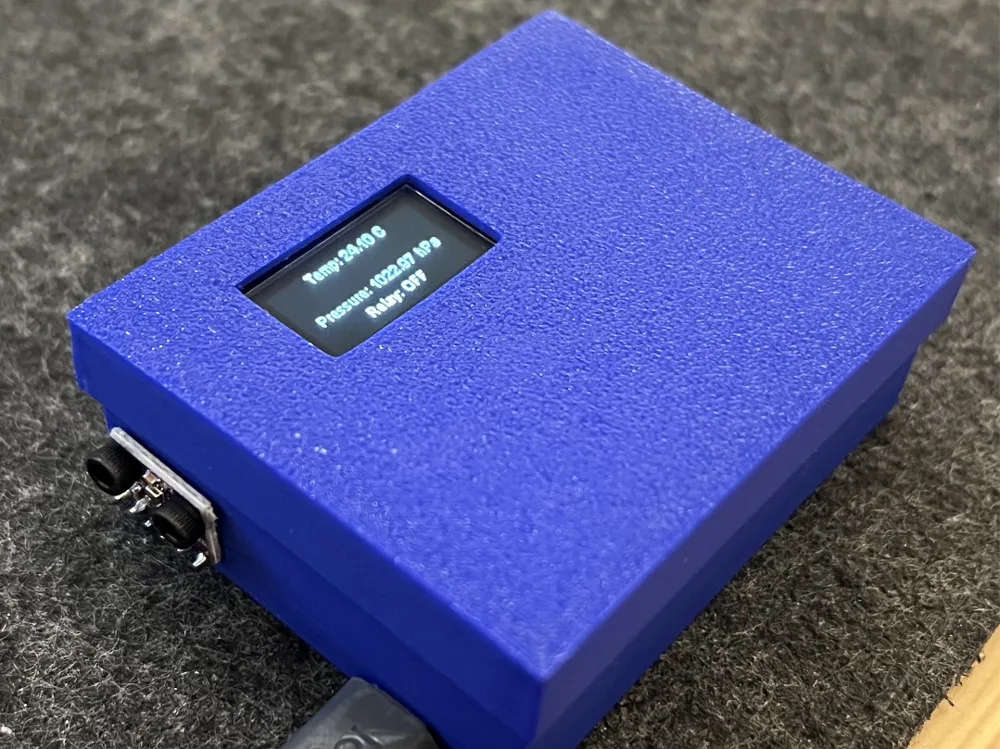

In the lid i placed a small 0,97" OLED display, 128x64 pixels.
Inner dimensions of the box i 58 x 73mm.
