Rocket Launch controller box.
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.6 h
1 plate
Open in Bambu Studio
Boost
4
16
0
0
4
1
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description
This is a box for a launch controller I made.

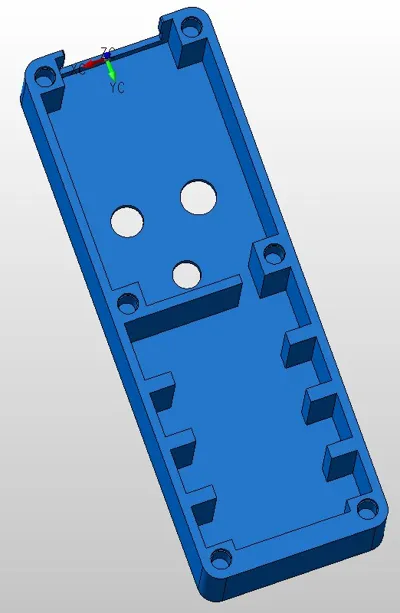

I have uploaded the .stp file so you can easily make modifications for the parts you intend to use.
The box can fit a 9v battery, or a 4 AAA battery holder as designed.

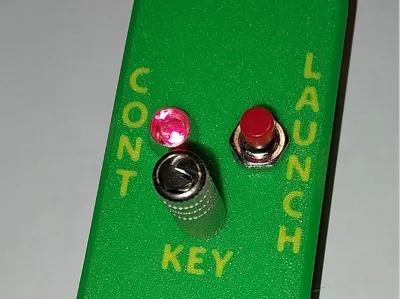

It uses a push button, a continuity LED, and a safety key.
The wiring is simple, but that's beyond the scope of this model.
I used a shorted TS 3.5mm mono plug and a matching jack for the safe key

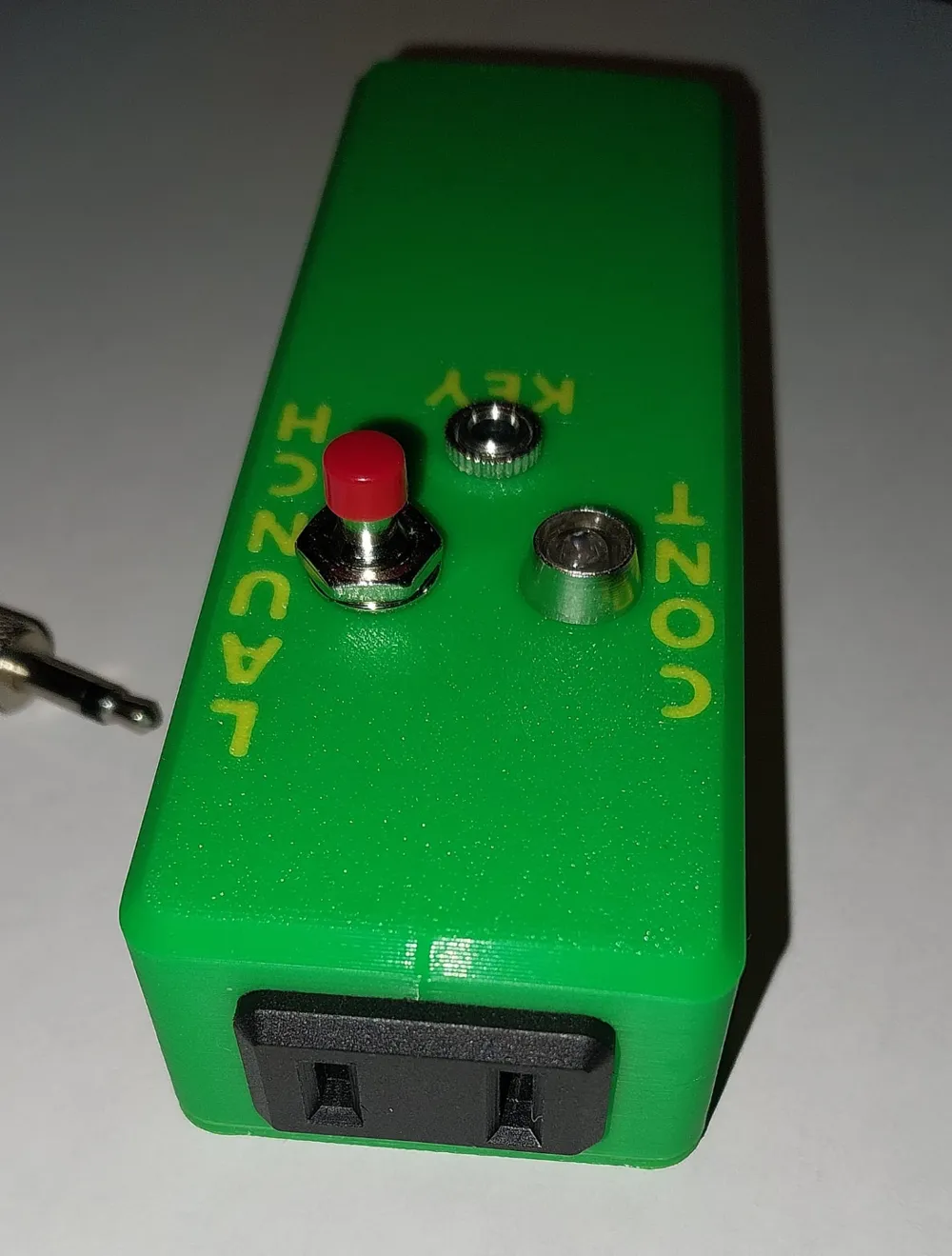

I used a 2 prong extension cord for launch leads, so the case will fit a 2 prong panel outlet like this:
https://www.amazon.com/dp/B09633DZZQ

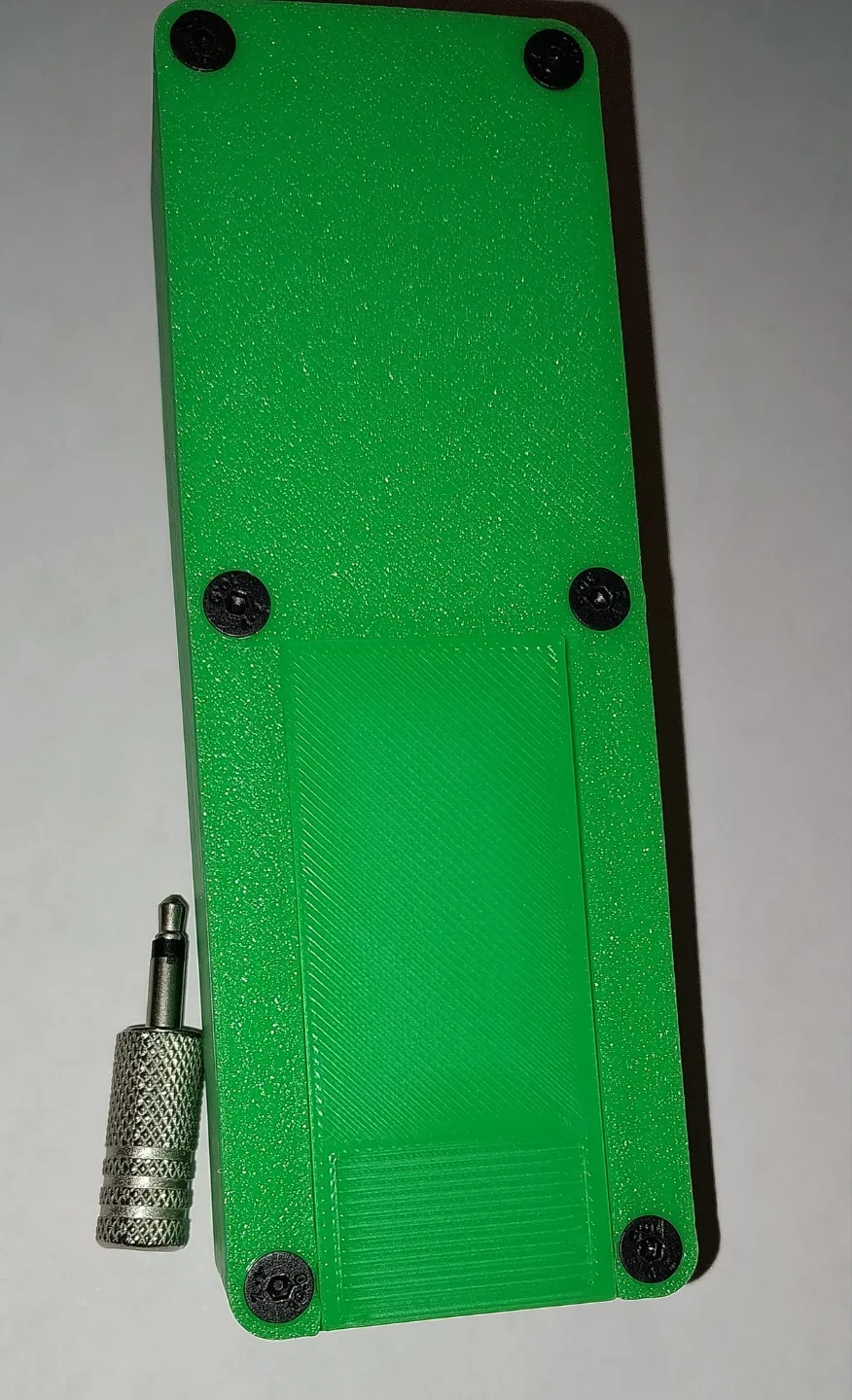

It uses 6 3mm brass threaded inserts, and 6 3mm flat head cap screws.
