Keurig Quad mounted holder with modular extensions

This is a mounted version of by Keurig kpod holder countertop design.

The countertop design can be found here
https://makerworld.com/en/models/217858#profileId-299909

The print profile has the holder and the extensions all as different plates. You'll need to choose which plates you'd like to print. The print time for the holder is about 12 hours. The extensions (which are optional) are as follows = The largest extension is about 9hours and the smallest is about 2hrs.

The main print profile is the Quad design, with a 4 track holder and includes up to 5 modular extension tracks.

(I'll also be including print profile of the same holder and extension but split in half (so only 2 tracks) for folks that don't need quite as much storage. I'll also be including an A1 mini version of the dual track)

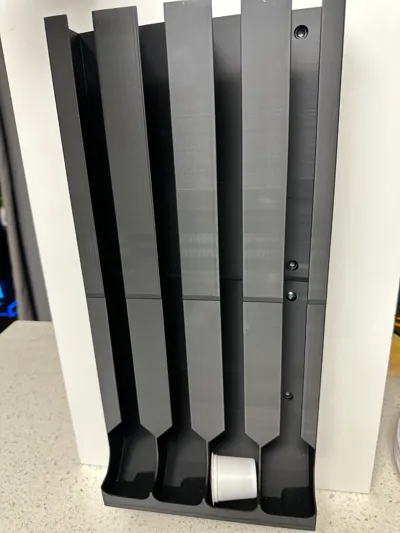

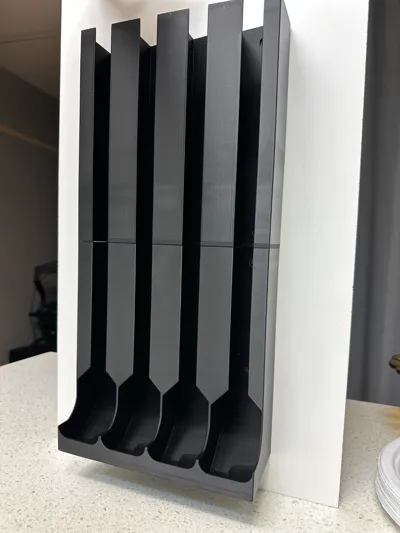

The Quad design holder holds about 20 pods on it's own (5 pods per track). The included extension tracks are optional prints to allow for stacking of more pods. Each extension is designed with tabs at the bottom and slots in the top so that they marry into each other and align correctly. (you will still need to mount the added extensions, the slots and tabs alone will not secure the holders against the wall)

The extensions come in 5 sizes, mix and match as you like

2inch tall (holds 4 additional pods)

4inch tall (holds 8 additional pods)

6inch tall (holds 12 additional pods)

8inch tall (holds 16 additional pods)

9inch tall (holds 20 additional pods)

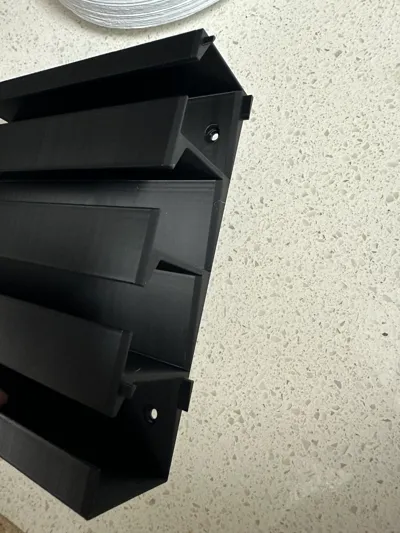

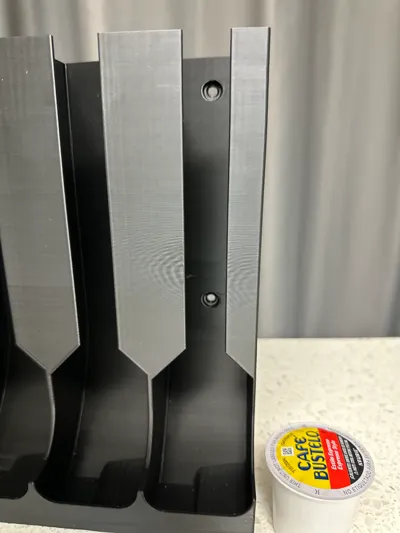

The holder and the extension all have pre-made screw holes for mounting (just be a bit careful if using a drill to mount, if you go too intense with the screws the plastic could crack)

Dimensions of the Quad holder are roughly

9 inch tall

8 ½ inch wide

2 inch deep (tracks)

3 ½ inch deep (bottom “scoop”)

Happy Printing!
