Alignment fix remix -- Python AMS Enclosure

This is a remix of the four “Edge” pieces that attach to the four “Top” pieces.

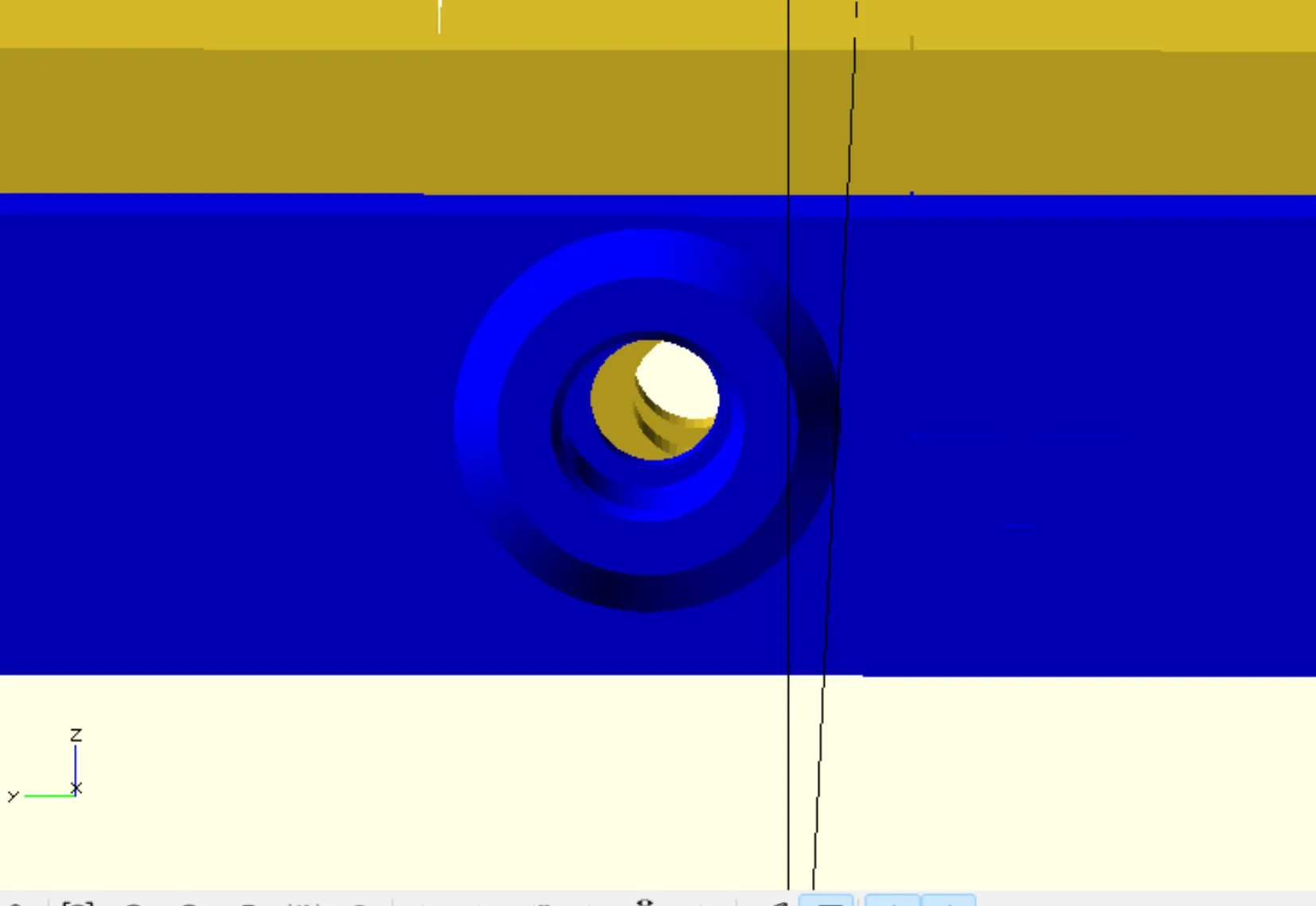

Yesterday I was assembling my Python AMS Enclosure, but the screw joining LEFT-FRONT to LEFT-REAR could not be installed. I double-checked everything, I had assembled correctly. Next step, I imported all the 3MF files to OpenSCAD, carefully aligned all the parts as in the final assembly, found this:

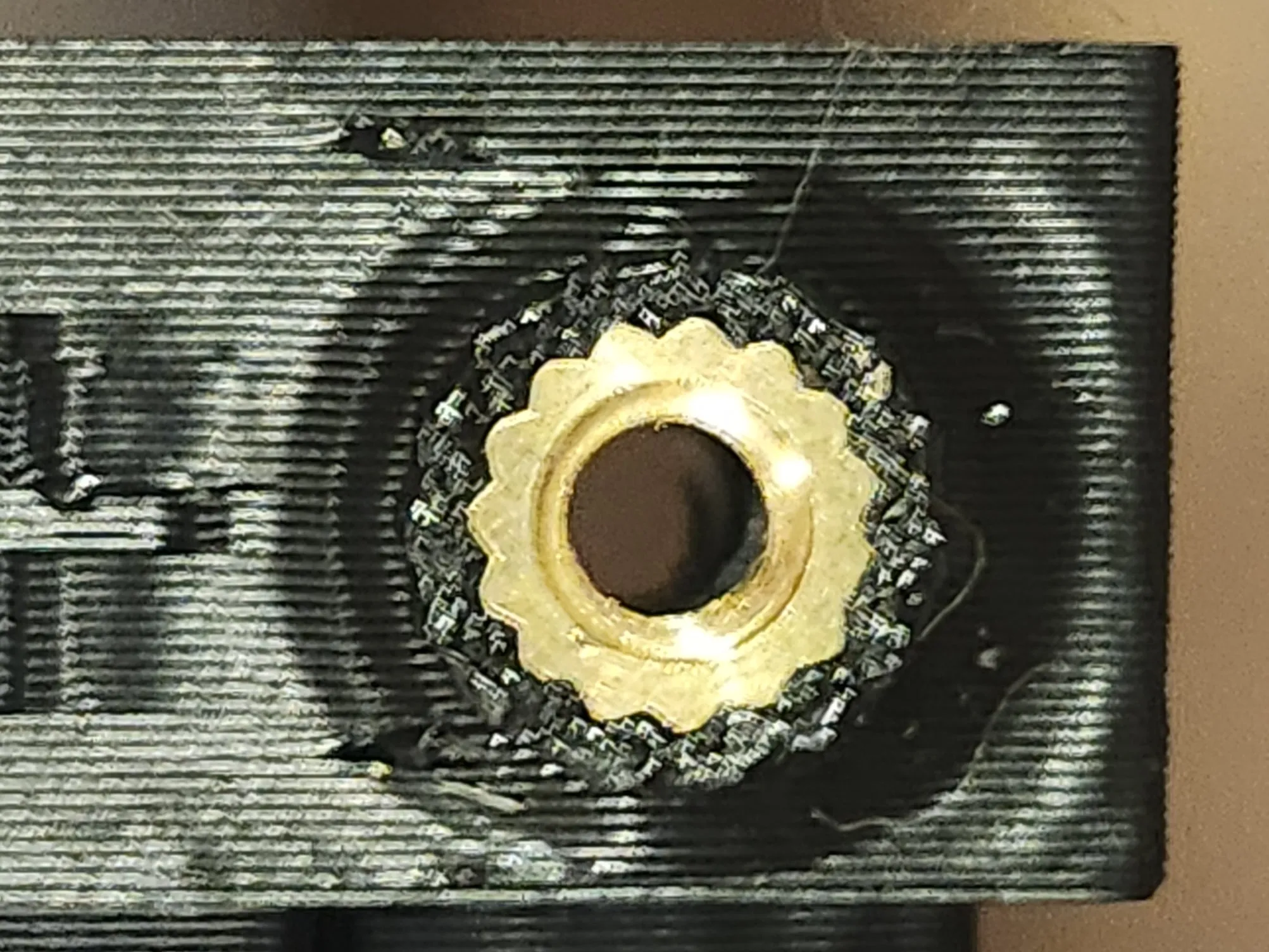

Photo of misalignment:

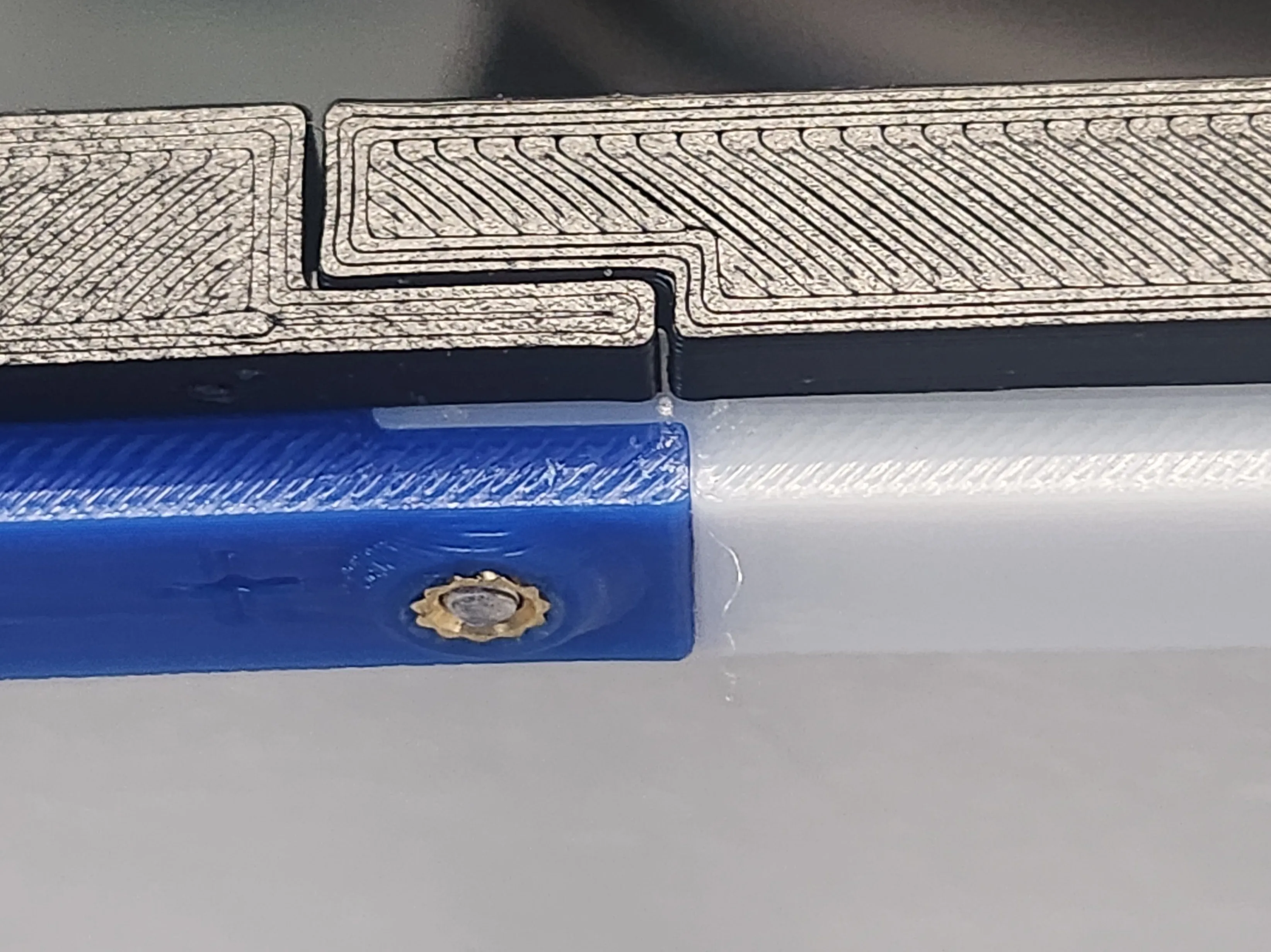

I reported the error to the designer, but he didn't believe me. I then remixed the parts and installed – the new parts install as they should, no more cursing or pulling hair out:

I recommend using M3-10 screws to attach the edge parts to the top parts, and use M3-12 screws to join the four sections.
