DeWalt USB Phone Charger / Battery Adapter
Print Profile(1)
Description

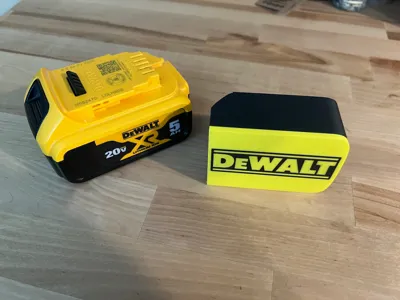

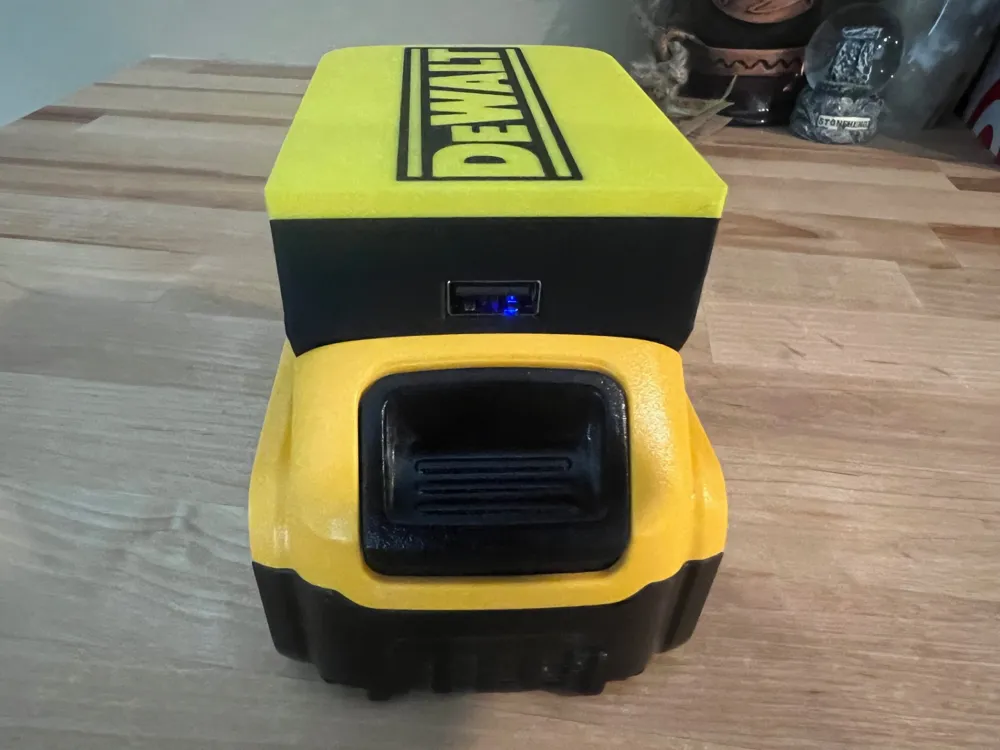

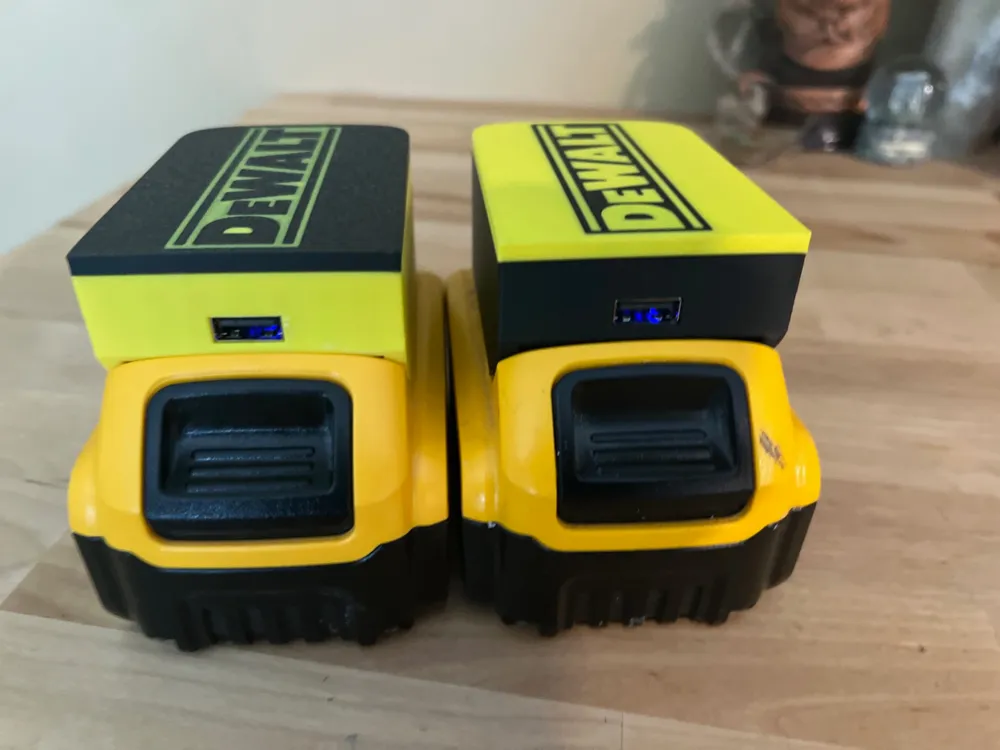

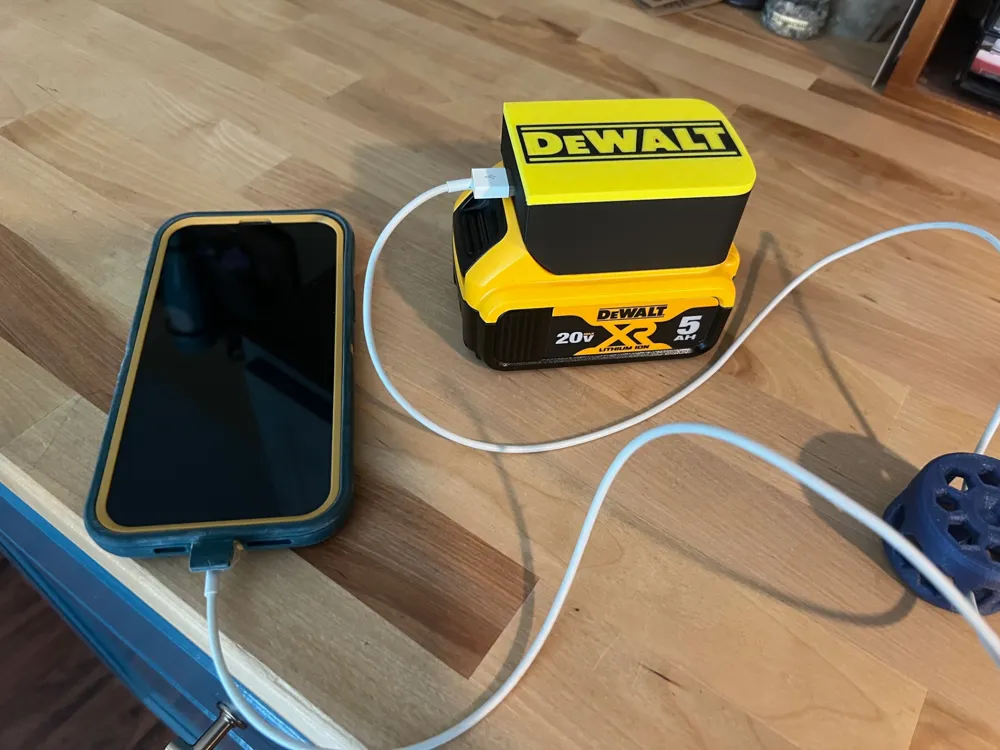

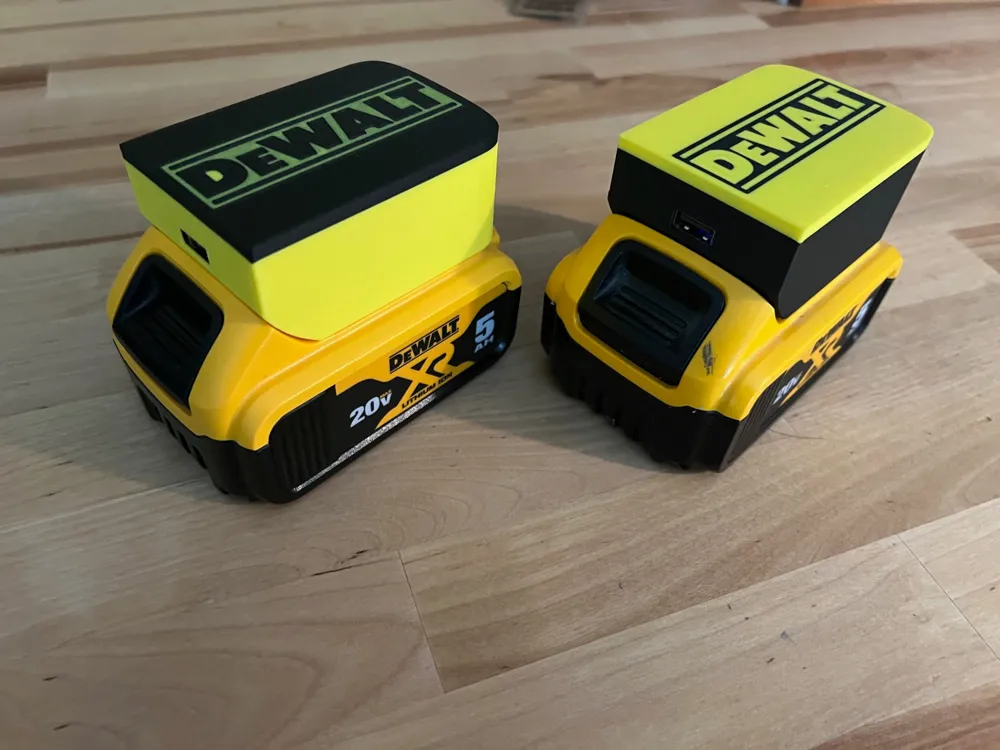

Introducing the DeWalt USB Power Bank / Battery Adapter! Plug this into any DeWalt 20v or 18v battery and you now have your own USB charging station/portable power bank. Due to the low voltage/wattage of USB charging, this setup charges several phones or tablets without needing to recharge the DeWalt battery (lasts a very long time!!).

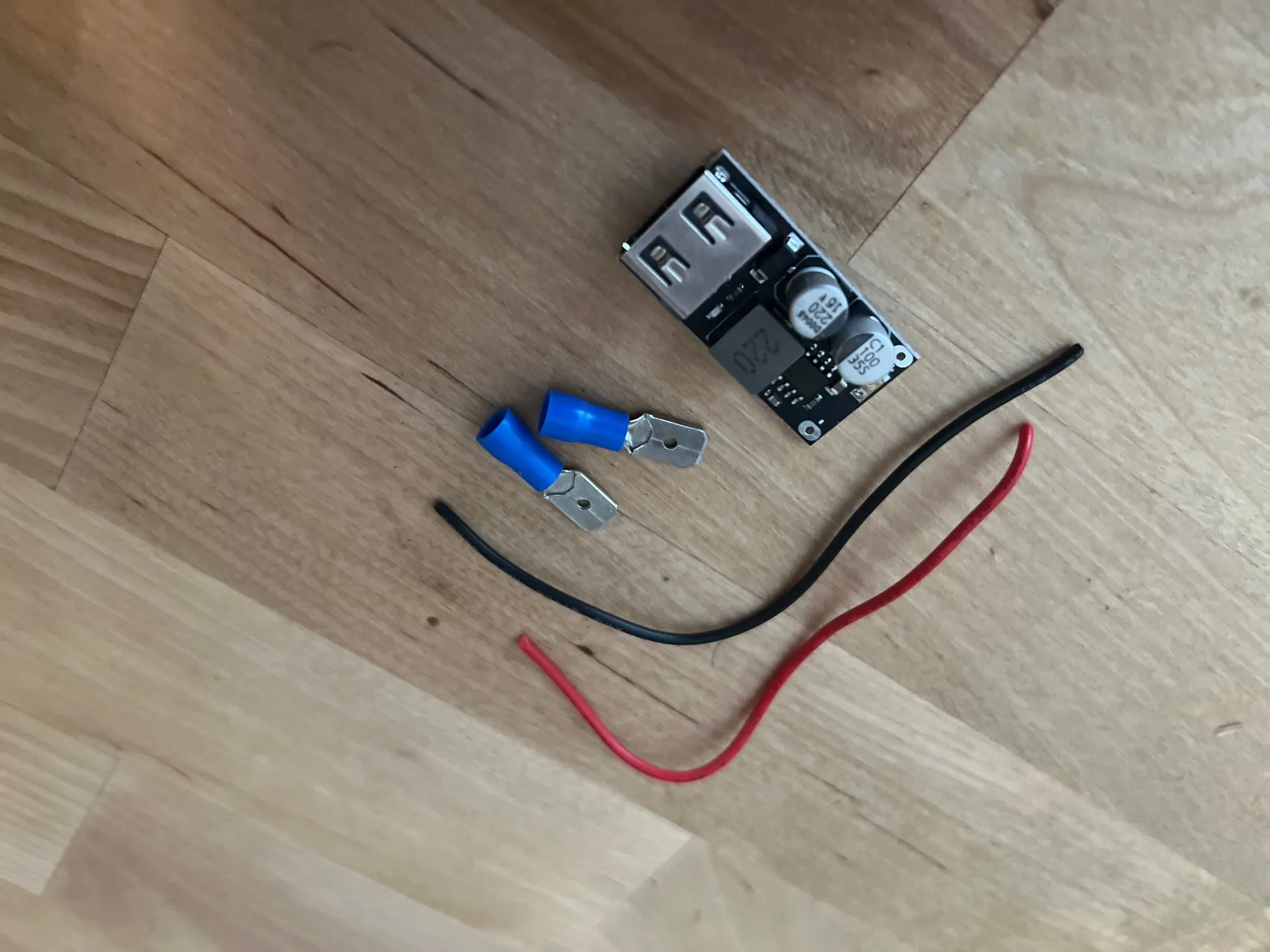

Items you'll need:
x2 Male Disconnect Connectors (#22-16 Gauge, ¼ inch), these came in a multi-connector pack from Harbor Freight
Amazon Link to Connectors ($6.59 for 100): https://a.co/d/aCXBYWv
x2 Wires
x1 USB Buck Converter (DC-DC Step Down Module to 5v QC 3.0), this allows for Quick Charge 3.0, but other buck converts would work.
Amazon Link to USB Converter Module ($12.99 for 4 of them): https://a.co/d/ep975kr
Directions:

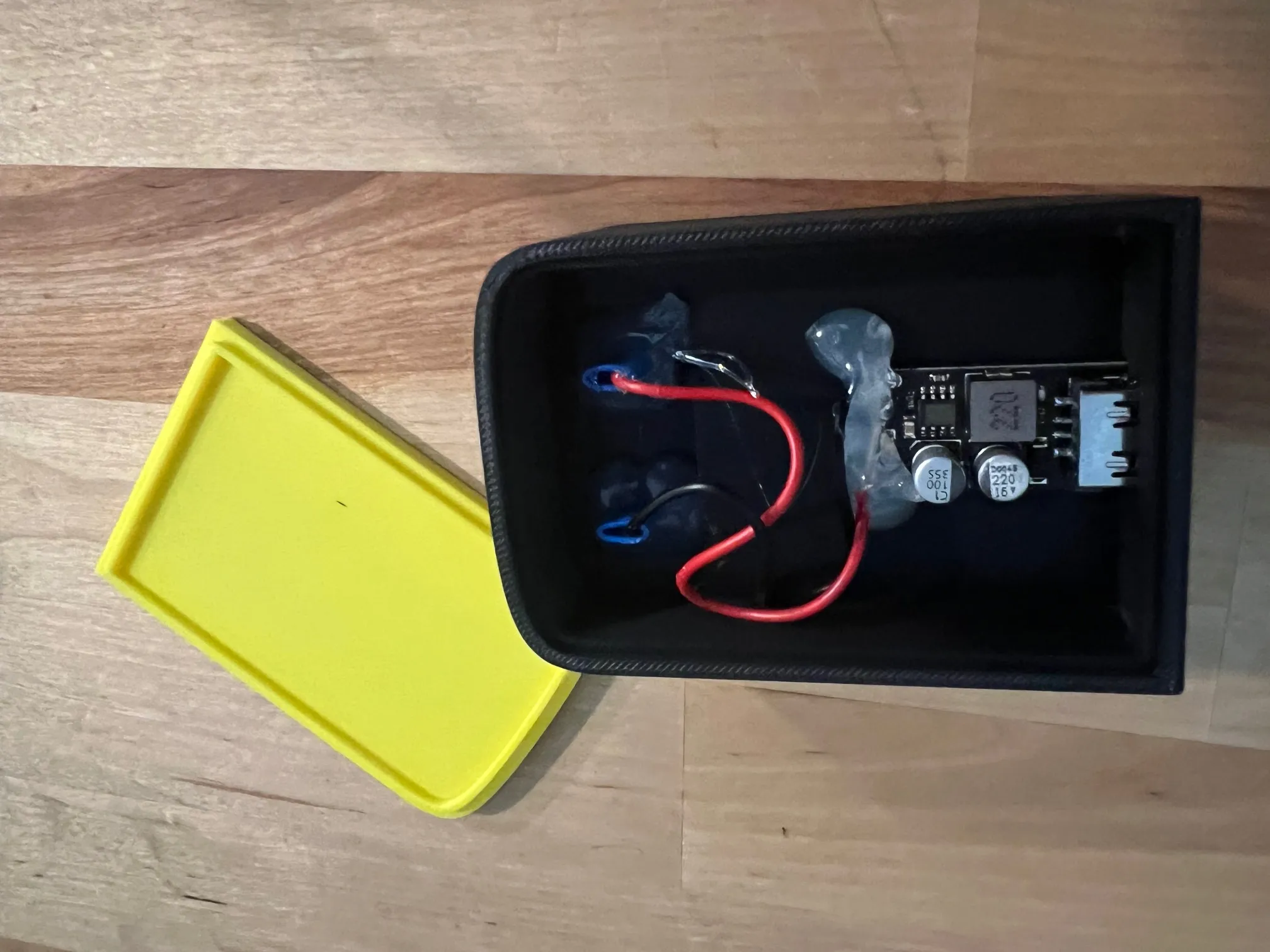

- Solder the red wire to the positive (+) terminal on the buck converter
- Solder the black wire to the negative (-) terminal on the buck converter
- Crimp the male spade connectors to the other end of both red and black wires
- Push the ‘Red’ (positive) spade connector through the ‘right’ slot
- Push the ‘Black’ (negative) spade connector through the ‘left’ slot
- Push the buck converter into the USB opening
- Hot Glue the buck converter and spade connectors (for extra security, optional)
- Put cover on (snaps in place, shouldn't need glue)
Please boost or like! Comments/suggestions welcome.
