Parametric Foot
IP Report
Print Profile(1)
TPU, 0.28mm layer, 4 walls, 15% gyroid infill
26 min
1 plate
Open in Bambu Studio
Boost
3
7
0
0
8
2
Released
Description

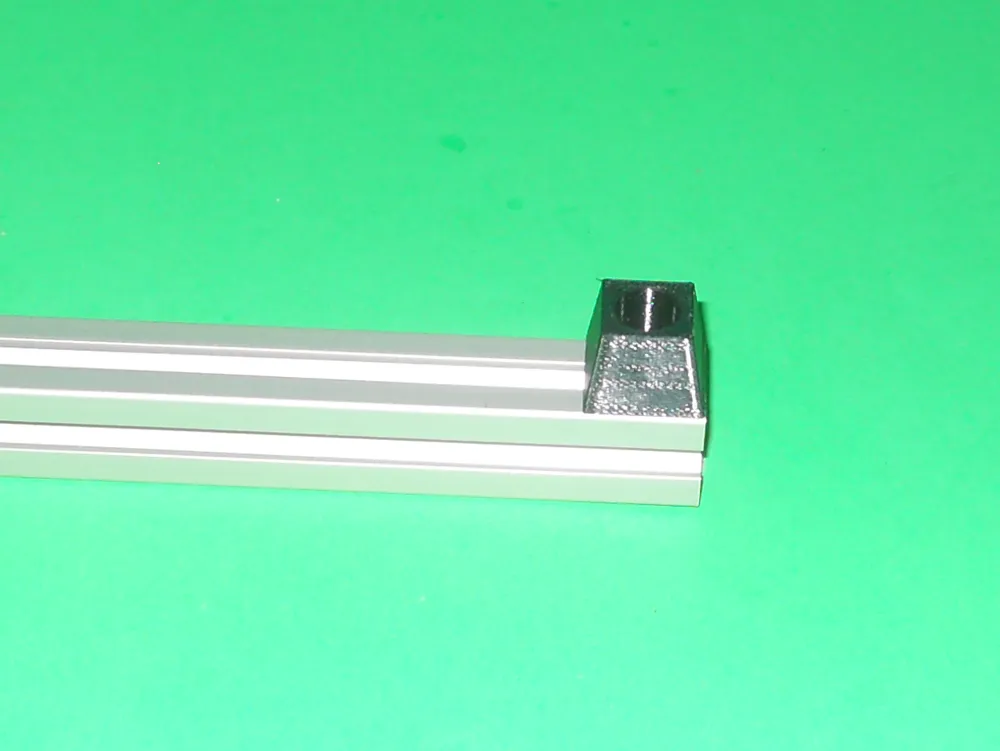

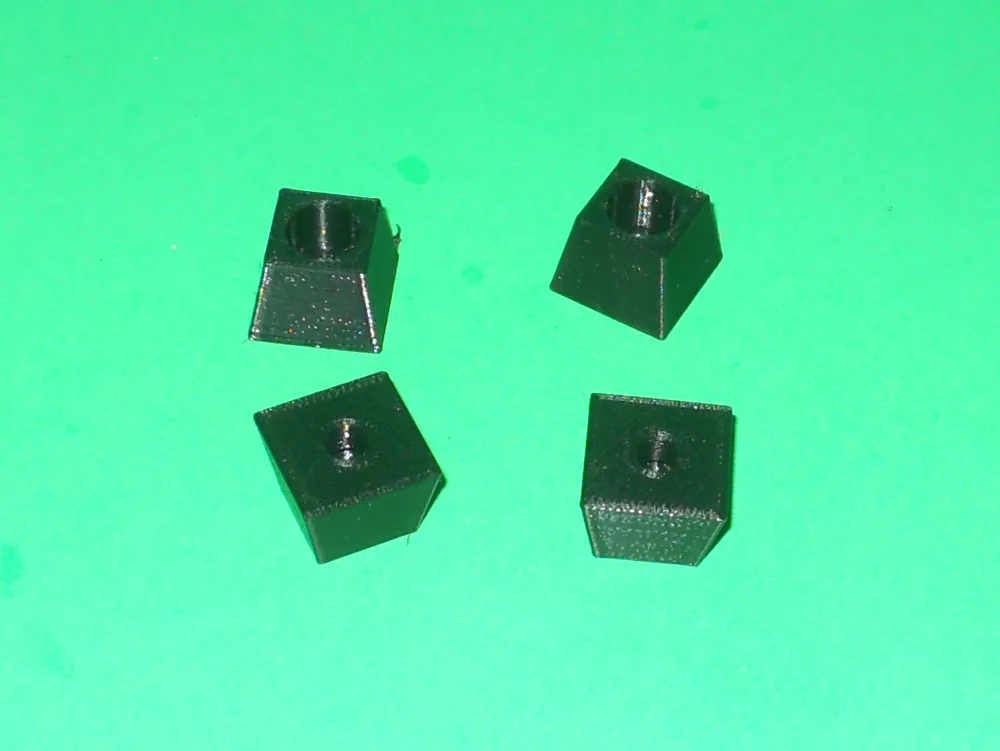

This openSCAD script create feet for projects. It was designed for aluminum
extrusion, but can be used for other purposes. The thickness of the sides will
have an impact on vibration dampening. TPU is recommended. The given example
is for 20 x 20 mm extrusion using a M5 bolt.
Support material is not required. An infill of 15% is recommended.
This object main web page is:
http://www.ctheroux.com/parametric-foot/.
This object was designed using openSCAD.
