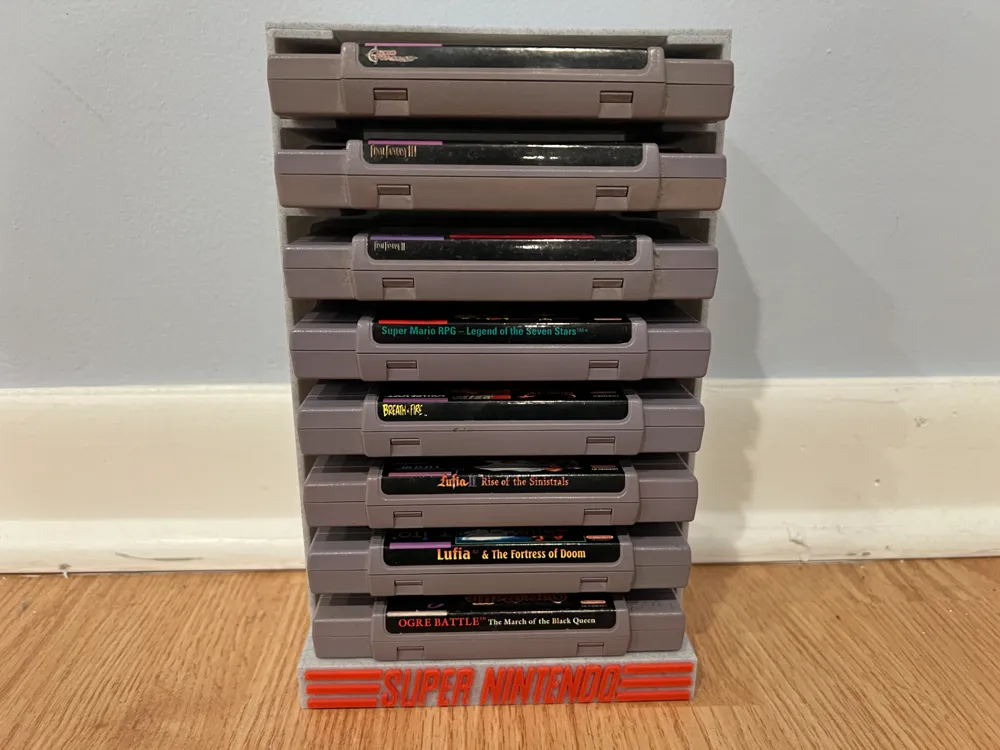

Super Nintendo Cartridge Holder for Dust Covers v2

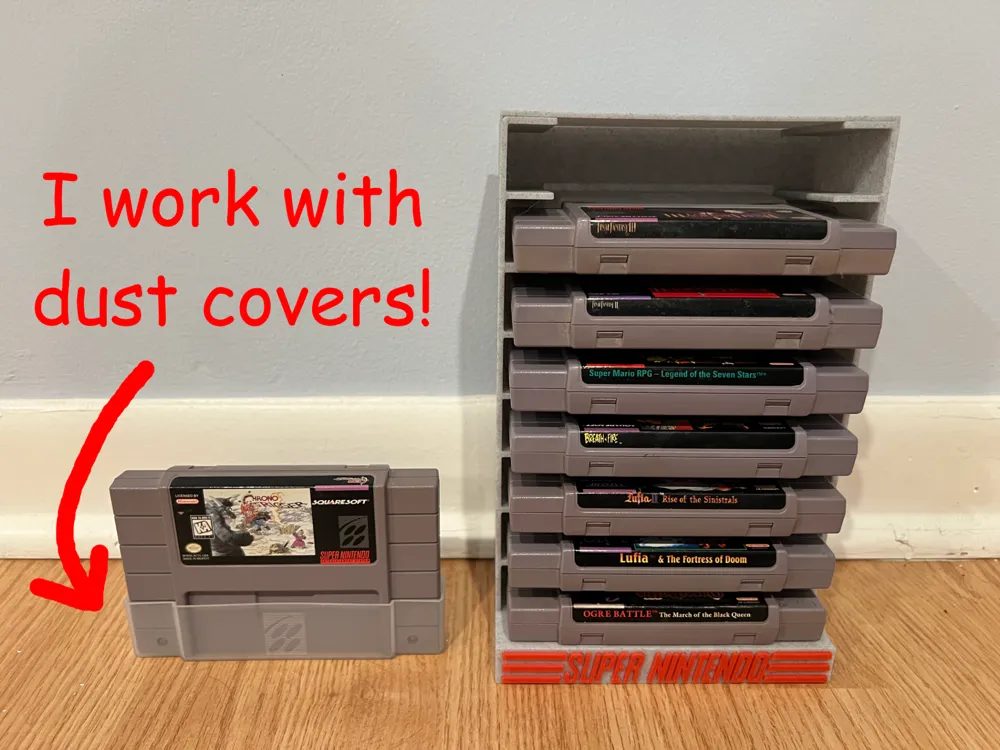

This is a new and improved Super Nintendo cartridge organizer which is designed to hold your games with the original plastic dust covers that they came with and can be printed on the A1 Mini. Don't have dust covers, no problem, it will just be a looser fit for your games.

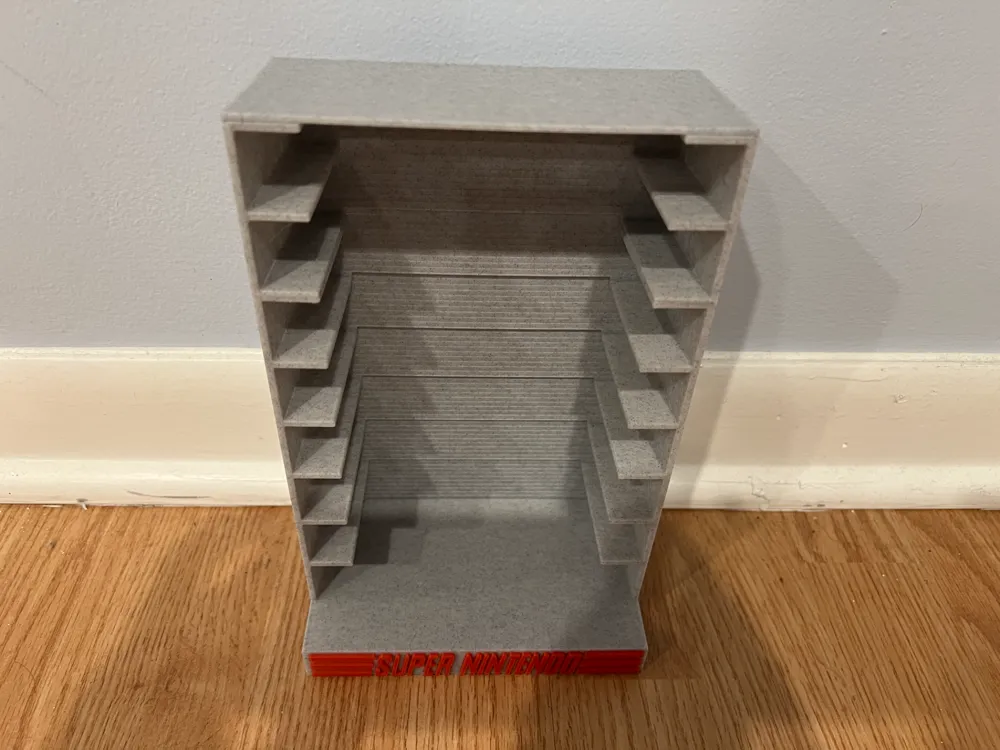

This design is fully customizable allowing you to print an organizer of any size based on your needs, from a single game to all 722 games (well maybe you should use more than one if you have a complete set of games). The slots on the cartridge holder are loose but not too loose so that your dust covers won't get stuck in the holder. They also only have walls on the sides, there is nothing where the game's label is so you don't need to worry about scratching your labels. These vertical holders feature a 5 degree angle in each slot and are deep enough so that the games will not slide out of the organizer, but not too deep that you can't easily take out the games to play them.

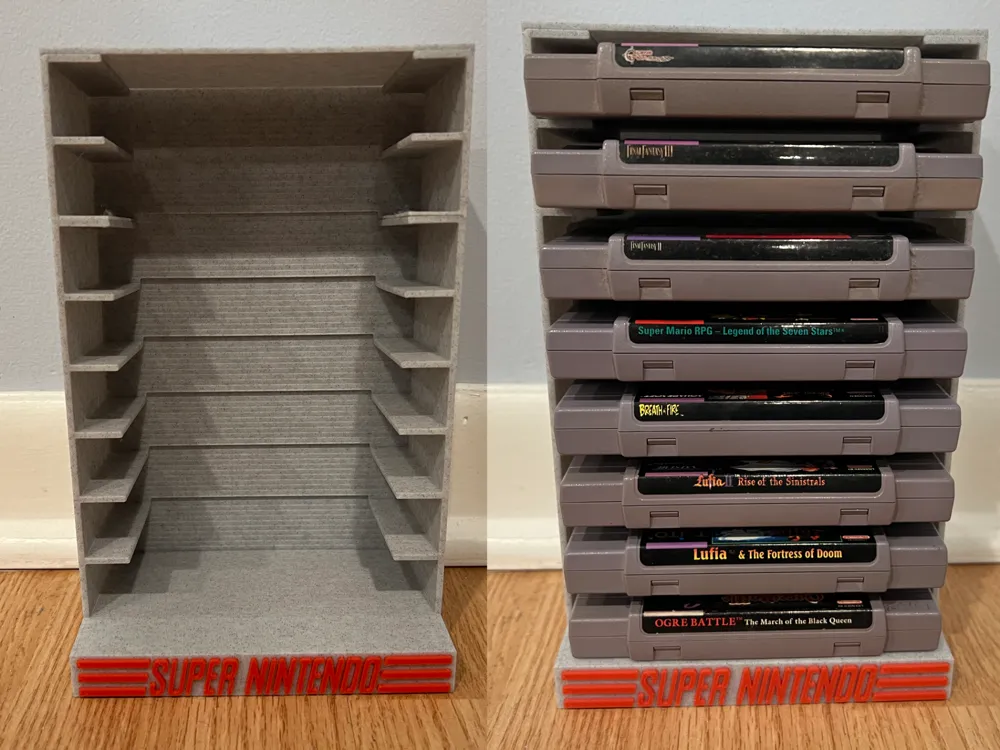

Improvements over previous version:

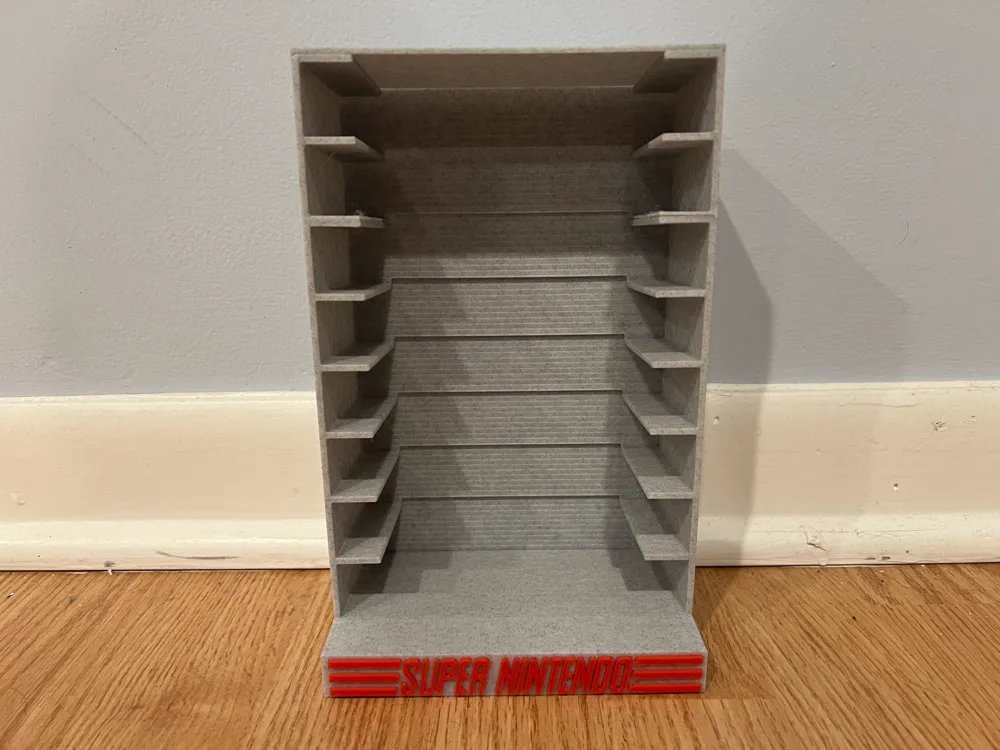

1. Base extends out entire length of the games.
   1. Provides better stability
   2. Super Nintendo logo is more visible
   3. Helps prevent you from pushing something against up against the cartridges themselves
2. Totally customizable
   1. Can be designed to hold however many games you want.
   2. Top parts can be stacked to provide storage for more than 12 games.
3. Better design all-around
   1. Eliminated solid walls in the middle of the organizer so it looks much better.
   2. Thinner dividers allow for more games to be stored in less space.

Assembly:

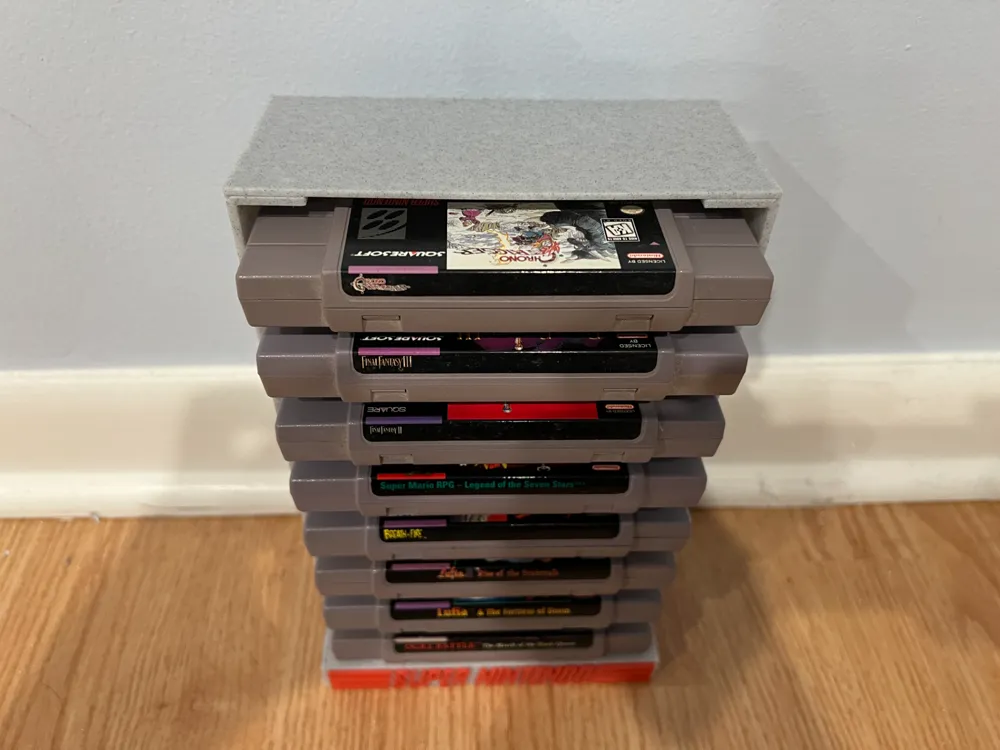

The organizers are comprised of multiple parts depending on your needs. Everyone will start by printing a “Bottom” part which can hold between 1 and 6 games. If you would like to hold more games all you need to do after that is print a “Top” part which can also hold between 1 and 6 games. The best part is that the “Top” parts are also stackable, so if you want to hold more than 12 games, just print more top parts. Finally, there is an optional “Cover” which is more of a cosmetic thing that simply makes the organizer look complete. Please note, if you opt to put on a cover then you can no longer add to the top if you get more games. There are recesses on the top of each part and guides on the bottom of each part to help you piece and glue them together. It isn't a tight fit, I gave it a fair amount of tolerance so that you don't get frustrated putting these large pieces together. I combined mine with super glue and threw a few small clamps onto the game dividers as it dried. The purpose of this design is to allow you to print large organizers on the A1 Mini, or any other printer. I've included approximate heights of each plate on the plates name (always rounding up to the nearest 1/8th inch) so that you can figure out what you can fit into your space. The bottom parts also contain a Super Nintendo logo so that it doesn't just look like a boring gray (or whatever color you use) box.

This is fan art and is not licensed by Nintendo, please do not sell copies of it.
