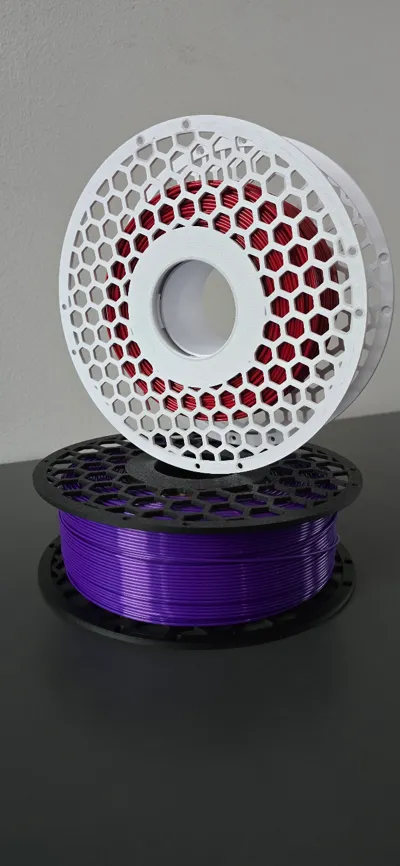

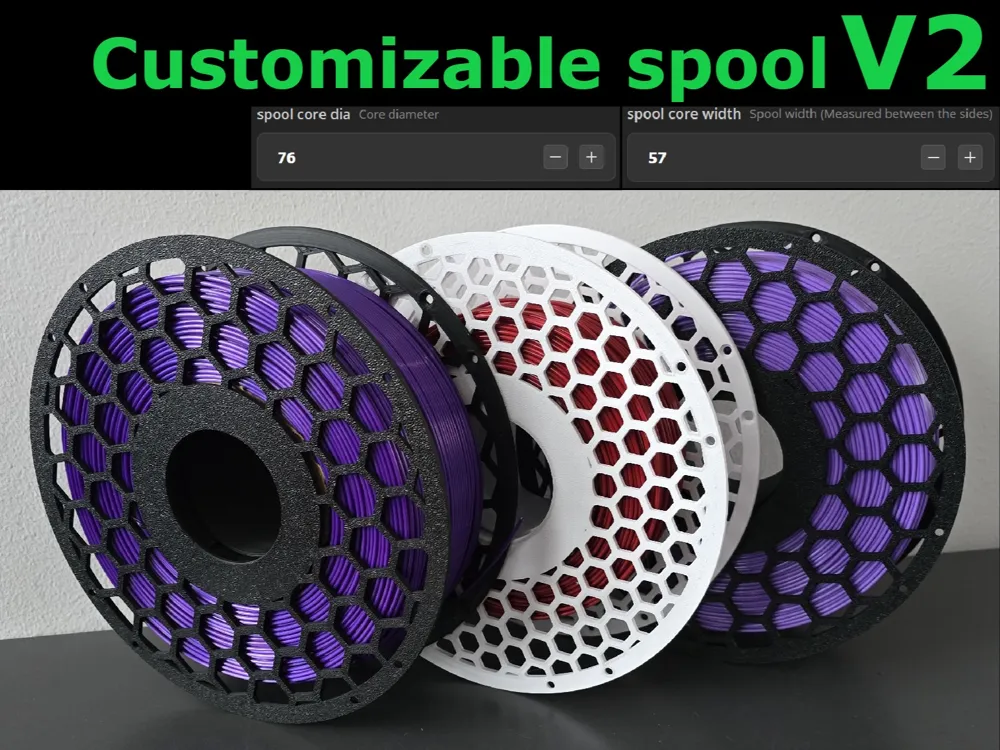

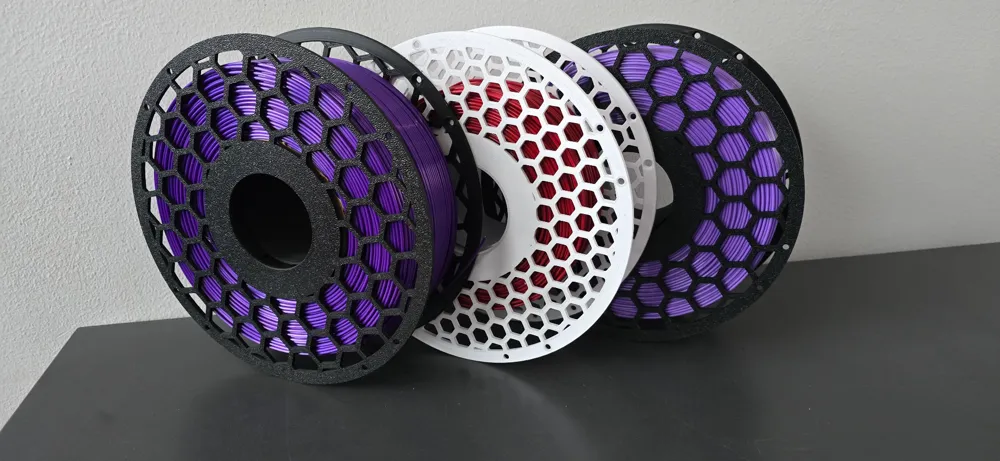

Customizable Spool V2

Description

An easier and lighter version of the Customizable Spool V1.

Perfect for using in an AMS, when the filament you have came on a cardboard spool.

Guide to replacing the cardboard for AMS Compatible spool:

1. First measure the distance between the sides of the spool.
2. Put tape over the filament, to prevent it from winding out.

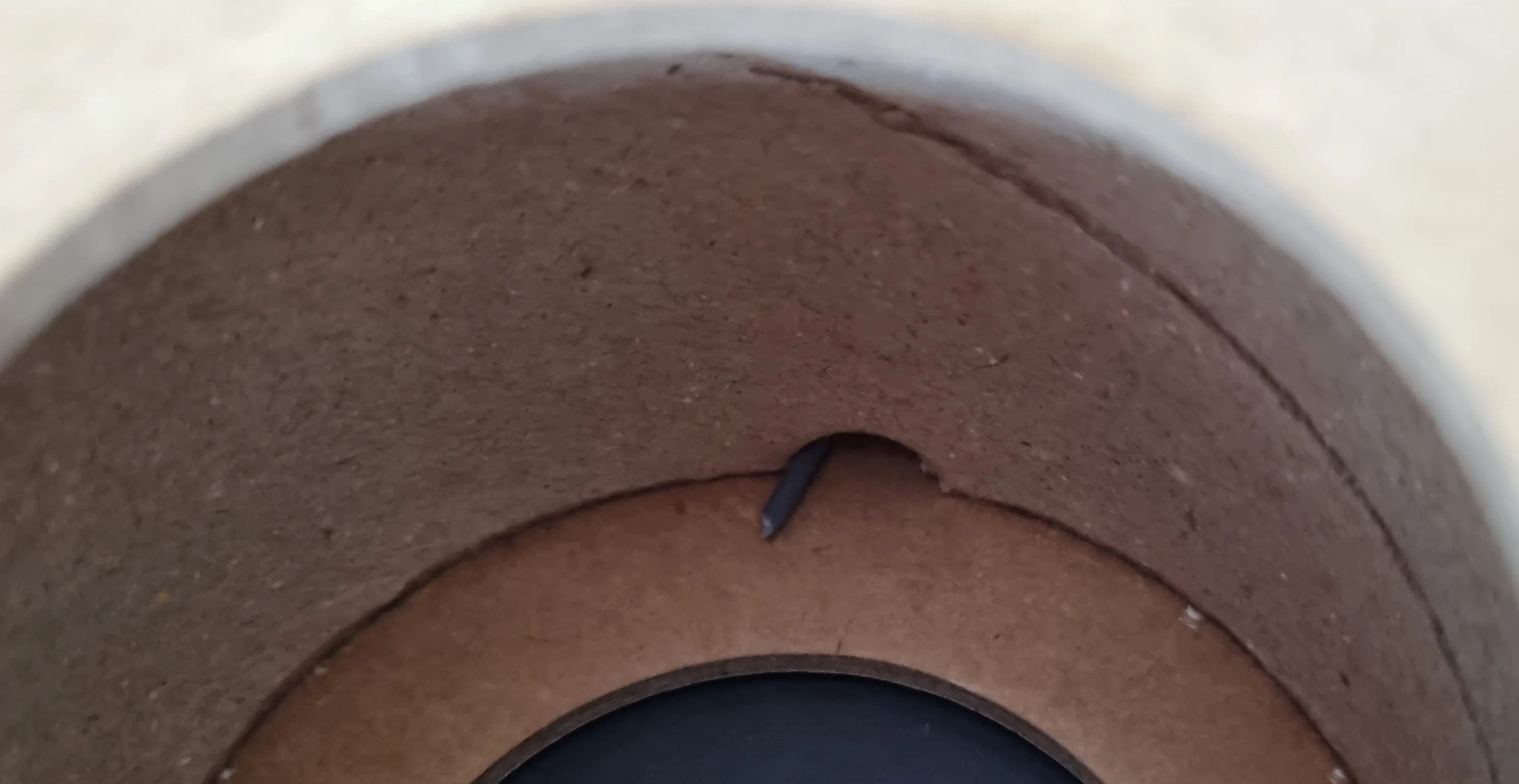

3. Check inside the hole of the spool, and find out on which side the filament is stuck through.
4. Rip that side off.
5. Measure the inside diameter of the cardboard spool.
6. Open the Model Maker by pressing

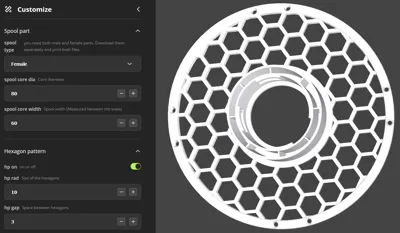

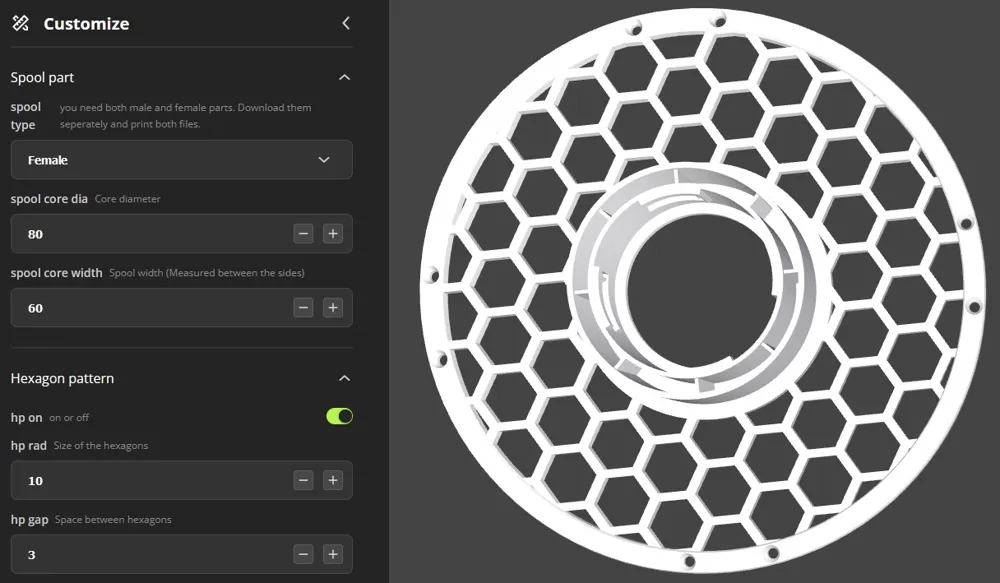

7. Enter the measured inside diameter in spool_core_diameter.
8.
9. Enter the core width we measured in step 1.
10.
11. Print the test ring, and check if it fits well.
    1. Check the diameter with the ring, it should fit, but not turn inside the cardboard.

    2. Check the height with the rectangle tester, by placing it in the hole, and checking if it's the same height.

       (Watch out, some brands have an extra cardboard ring in the hole, that will ruin your test. Check if the thickness of the cardboard is the same in the hole as on the outside of the spool.

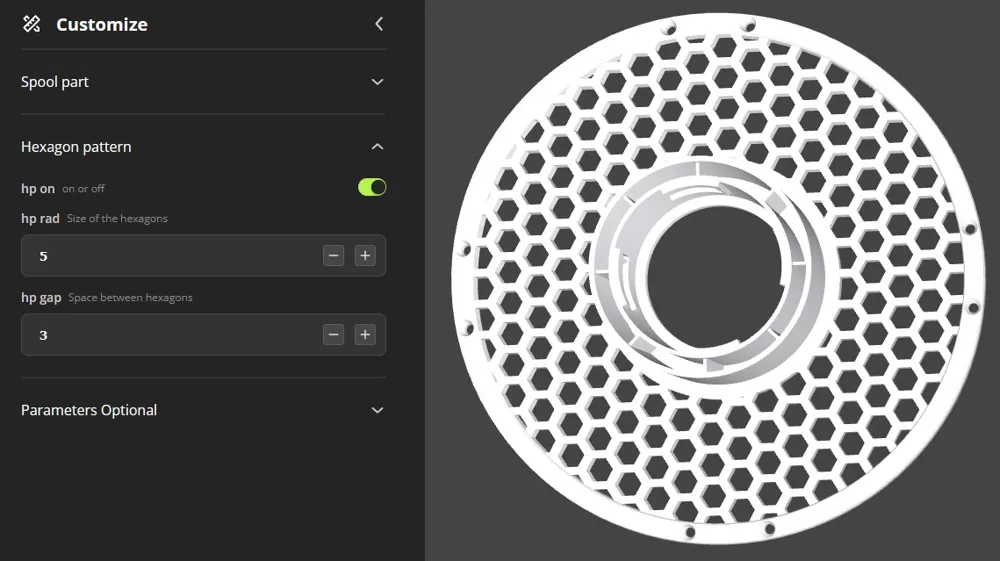

12. Optionally, you can adjust the size of the hexagons, or make the gaps wider.
13. Download the 3MF/STL file for the Male and Female part, and print both models.
14. Push in the Male part first, with the notch on top of where the filament stuck through.
15. Turn the spool around, and rip off the other cardboard side.
16. Push in the Female part in, and twist it until it clicks.

If you're confused about some of the steps, there are several videos online that show how to do this with a standard BambuLab roll.

Good luck!
