Useless Machine
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 50% infill
Designer
1.4 h
1 plate
Open in Bambu Studio
Boost
16
25
6
1
16
4
Released
Description
It was made just for fun, feel free to remix.
I was using screws from old laptop + some m3 brass 3*4.2*5 nuts with m3*25/m3*8/m3*12 bolts.
I was using PETG filament with 5 perimeters and 50 infill

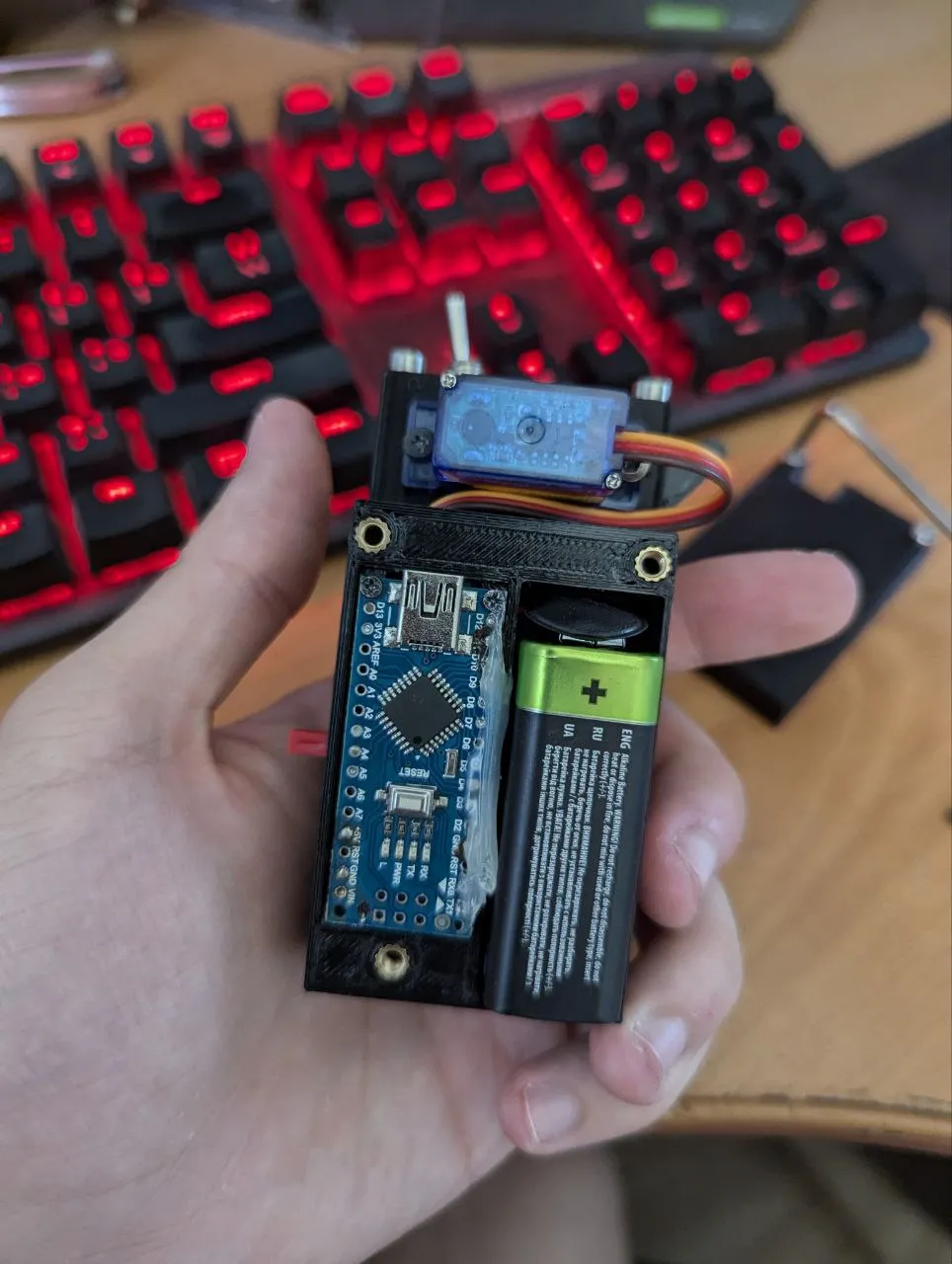

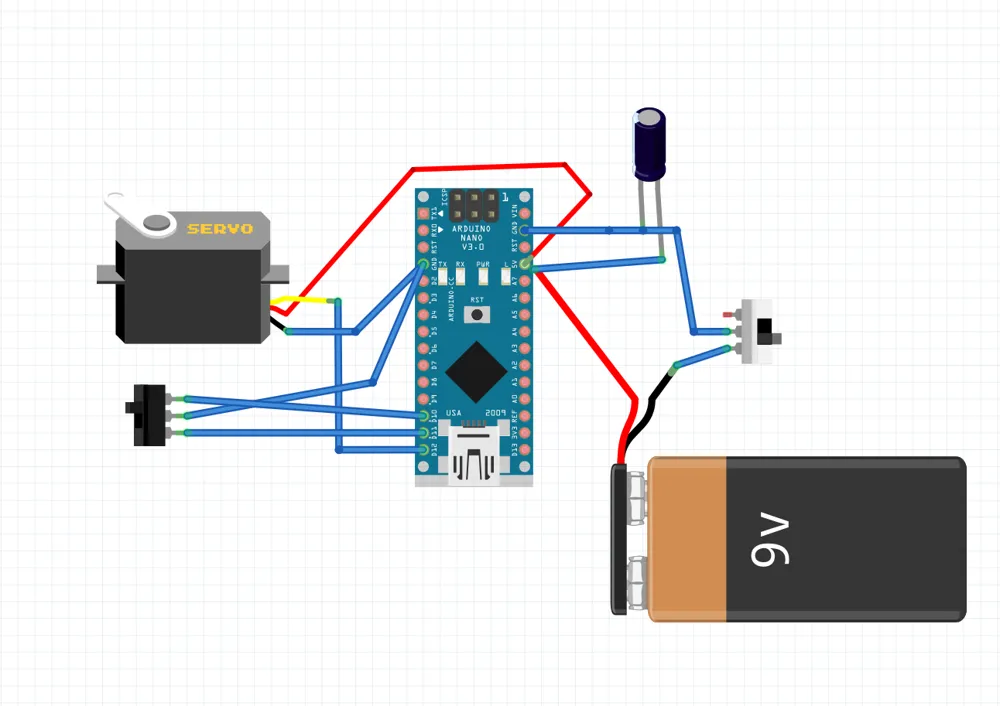

You need:
- MG90 servo
- Arduino Nano 168/328
- SPDT switch
- SPDT micro switch
- 9F22 battery 9V
- 470uF * 16V capacitor
Import libraries from zip to Arduino IDE
