Guitar stand

Guitar stand:

• Simple to print model
• Simple to assemble
• Strong base for you precious guitar

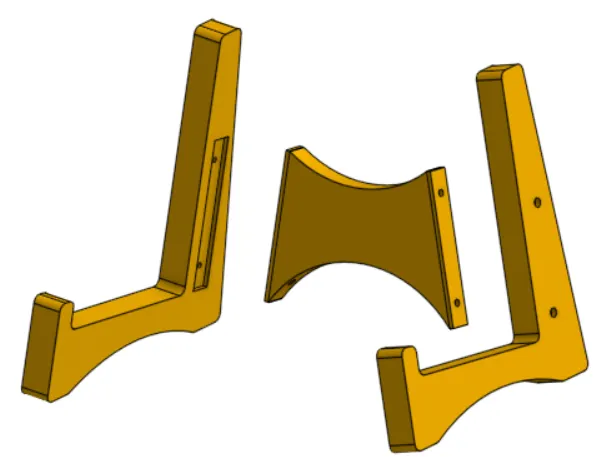

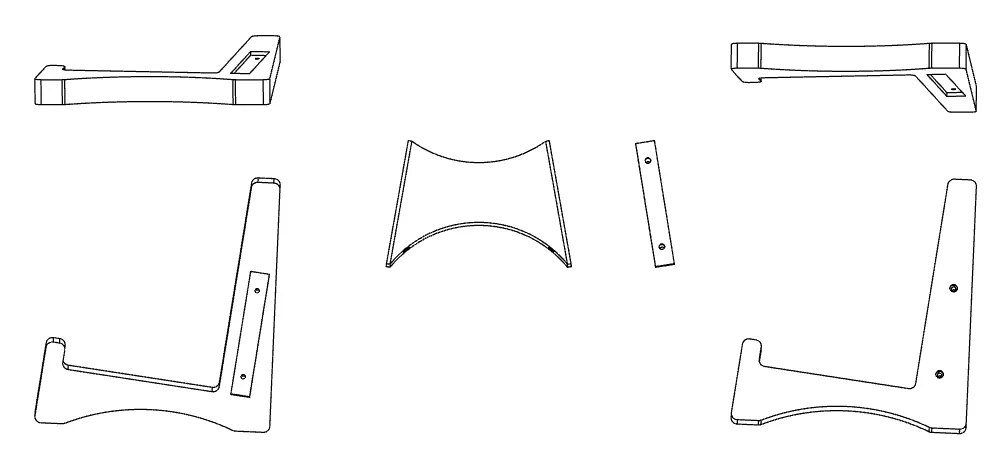

• 3 files (Right - Middle - Left)
• Customizable
• No support needed

Dimensions:

• This model holds a guitar up to 12,5cm wide
• Ground width of left and right L-Stand: 18,5cm
• Height of left and right L-stand: 20cm

Tools needed:

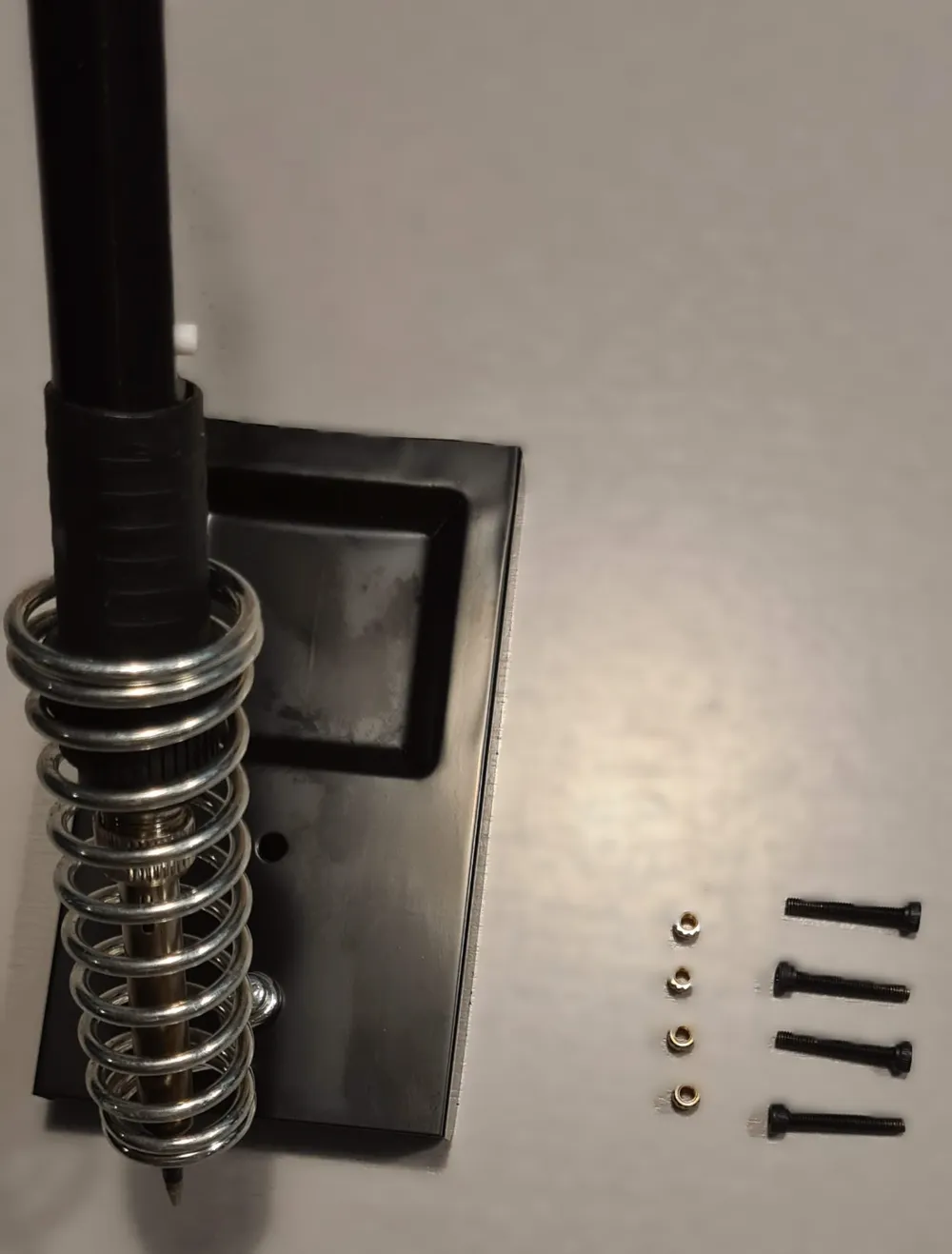

• 4 x M3 inserts
• 4 x M3 screws length 25mm

If yo don't have M3 inserts or screws, you can alternatively use glue to put the parts together.

Assembly guide:

• Print the 3 parts
• Insert the 4 inserts in the middle part
• Put the 3 parts together and put in the 4 M3 srews

Optional - recommended:

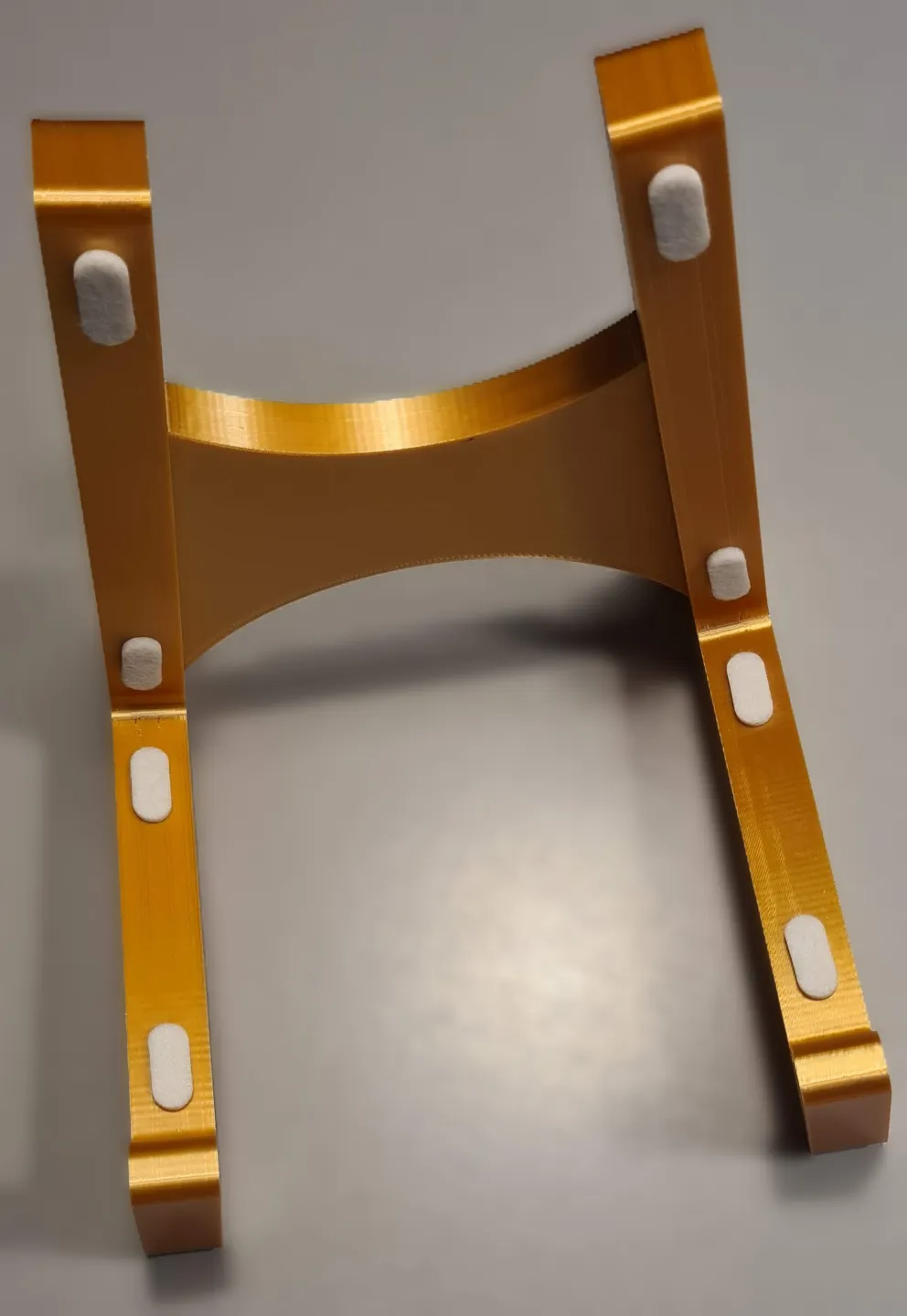

• To protect the surface of you precious guitar, you can use felt pads.
• To personalize this guitar stand, you can add a name in Bambu studio.

Print time and used material

• Print time of 3 parts: 6 hours and 30 minutes
• PLA Gold filament, approximately 225gr

If you find my model useful, please like :-)
