【筋斗云】原创设计-A1mini AMS lite 立式底座(小面积可打印版本)


Print Profile(3)

0.24mm layer, 4 walls, 30% infill
0.24mm layer, 4 walls, 30% infill
Designer
A1 mini, P1S, P1P, X1, X1 Carbon, X1E, A114.6 h
4.8
0.24mm layer, 4 walls, 25% infill
0.24mm layer, 4 walls, 25% infill
A1 mini, P1S, P1P, X1, X1 Carbon, X1E, A112.4 h
5.0
0.24mm layer, 4 walls, 30% infill 【Including decoration and labels 包含装饰板与标签】
0.24mm layer, 4 walls, 30% infill 【Including decoration and labels 包含装饰板与标签】
A1 mini, P1S, P1P, X1, X1 Carbon, X1E, A115.3 h
4.7

311
540
110
1.1 k
663
Released
Copyright Claim
Model
Comment & Rating
Remixes
Related Models

Model

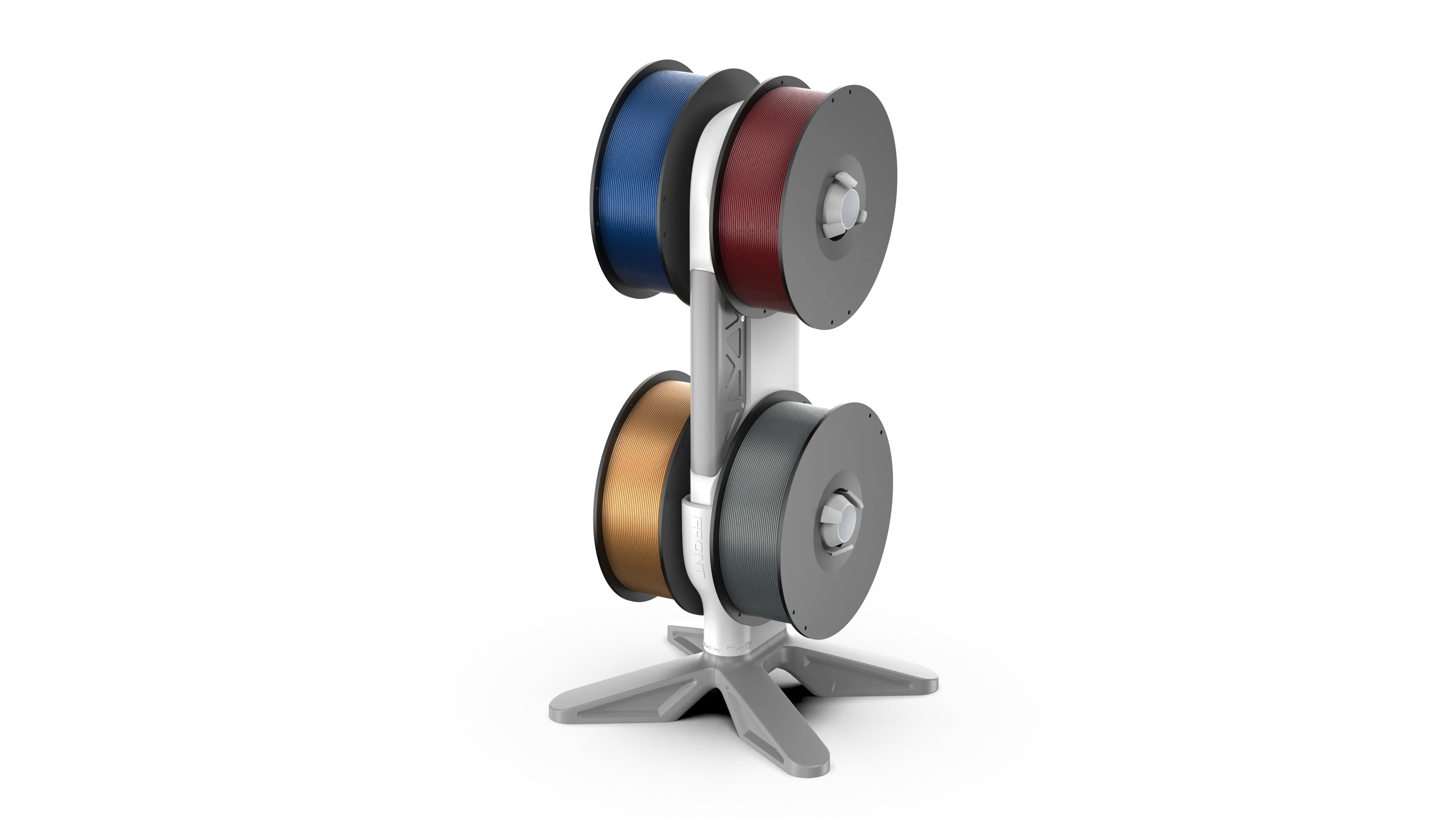

这是专门为A1MINI小面积打印的设计版本,可以让AMS lite改成竖直放置,更简单方便换料操作方式,更小的占地面积,合理的后置进料管线布局,具体的组装说明和更多细节,点击上面gif进入视频页面。



主要优化了:

1.AMSLite的耗材穿线原来在底面,现在改成了正面可视,不用再盲操作了;

2.减少了台面的占地面积,从原来长方形占地面积,变成了一个小方块;

3.后面的耗材换料不用再碍手碍脚了,现在都在正面直接换料;



另外侧面的螺丝来自AMSlite主体的对应孔洞螺丝,所以只需要放入底座前把螺丝拧下来,放上底座后再和底座一起拧上去就ok。



来自deepl翻译:

This is a specially designed version for A1MINI small area printing, which allows AMS lite to be placed vertically instead, simpler and more convenient way to change the material operation, smaller footprint, reasonable rear feeding pipeline layout, specific assembly instructions and more details, click the above gif to enter the video page.



Mainly optimized:

1. AMSLite's consumable threading was originally on the bottom surface, but now it has been changed to be visible on the front side, so you don't have to operate blindly anymore;

2. Reduced the footprint of the countertop, from the original rectangular footprint, into a small square;

3. The back of the consumables change materials do not have to get in the way again, are now in the front directly change materials;



In addition the side of the screws from the AMSlite body of the corresponding holes screws, so only need to be put into the base before the screws down, put on the base and then screwed up with the base on the OK.

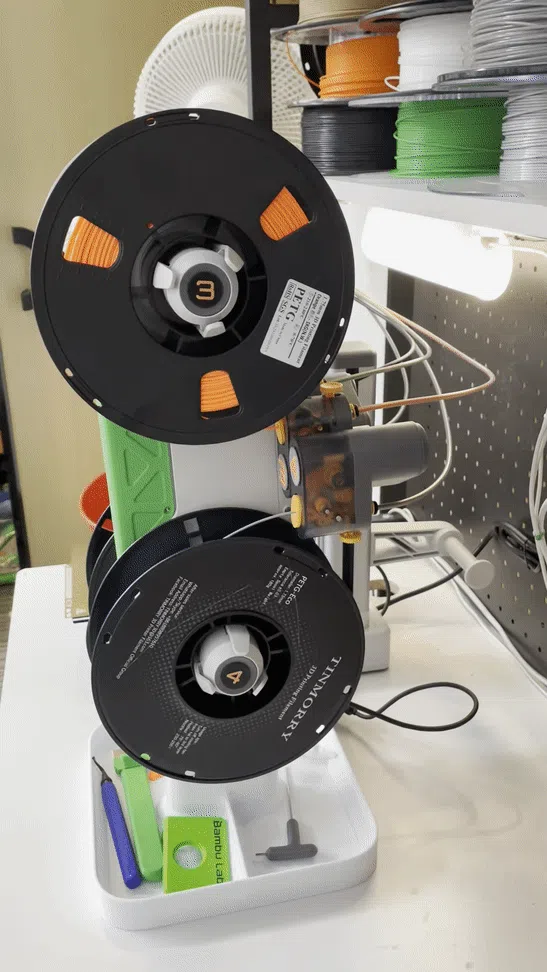

储物盒底座版本在这:👇(点击图片直达)

The storage box base version is here:👇 (click on the image to go straight to it)
