Bedside box

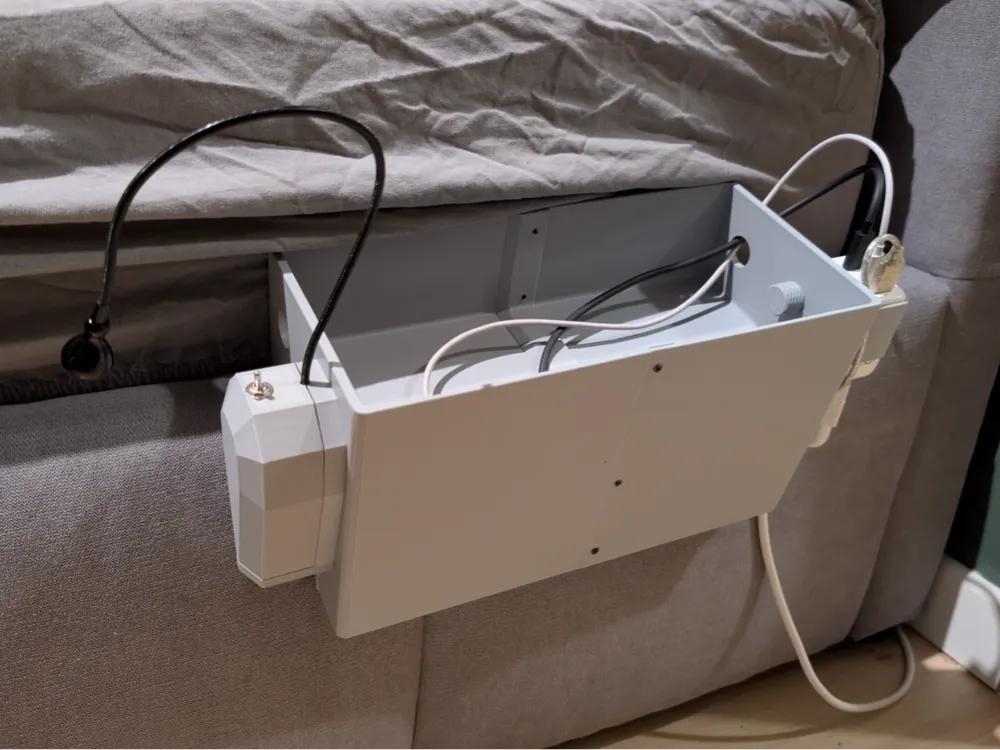

A box that you can hang on your bed frame next to your mattress so that you can store some minor items while you sleep. It was designed for a bed with a frame that is 8cm thick but I used it successfully with another bed as well.

The box consists of 2 main parts that are meant to be attached together using M3x8 screws. It also features 3 holes on each side: large one for cables to go in so that you can put your phone or other tech in the box while it's charging, 2 small ones to mount additional accessories (e.g. a bedside lamp that uses IKEA JANSJO USB light).

There are 2 size versions included to choose from.

Assembly

1. Print out BedsideBox A + BedsideBox B. By default I recommend using the 2 larger variants but if you want a smaller box you can also print 1x small and 1x large - they are cross-compatible.
2. Screw together using M3x8 screws.
3. (optional) Print out 2x HolePlug or CableHolePlug (included in STL files) if you want to something to cover the holes or prevent the cables from falling out.

Old version (V1)

The original version of this box required both sides to be glued together, preferably using 2-part epoxy glue. This made assembly cumbersome and the box itself fragile. The STL are included in cases someone still would like to use it but I recommend sticking with the new version (V3).
