0.2mm layer, 4 walls, 15% infill

Bins 1-4 and 9-12 (Female)

Bins 5-8 (2x Male)


Daniel Rozeboom




Have not tested different nozzle/layer sizes thoroughly, but would recommend a standard 0.4mm nozzle with 0.20mm layer height. The connectors on the bottom are relatively small/fragile and may require a bit of trimming or adjustment after printing to fit properly. I would expect a 0.6mm or 0.8mm nozzle may not be able to print these with sufficient precision.&nbsp;If you want to make the 12-bin (3x4) arrangement as pictured, print the first plate which comprises the first (1-4) and last (9-12) groups of 4 bins (with the original fillets on the ends) that also include female connectors on the bottom (only on the sides that are not the end bins). Then print plate 2 which contains bins 5-8 and has male connectors on the bottom (both sides) to fit into the female connectors of the first and last bin groups.&nbsp;If you need similar connectors but in different bin counts, I may be able to provide that, but you should also be able to just use the “cut” tool in Bambu Studio to slice &amp; dice the bins to your satisfaction, combining the male and female connectors in whatever way works best for you. Would love to see someone improve even further on the interlocking mechanism! Thanks again to the original designer for his excellent work!

Multiple Base Units (3x4) with Bottom Connectors

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

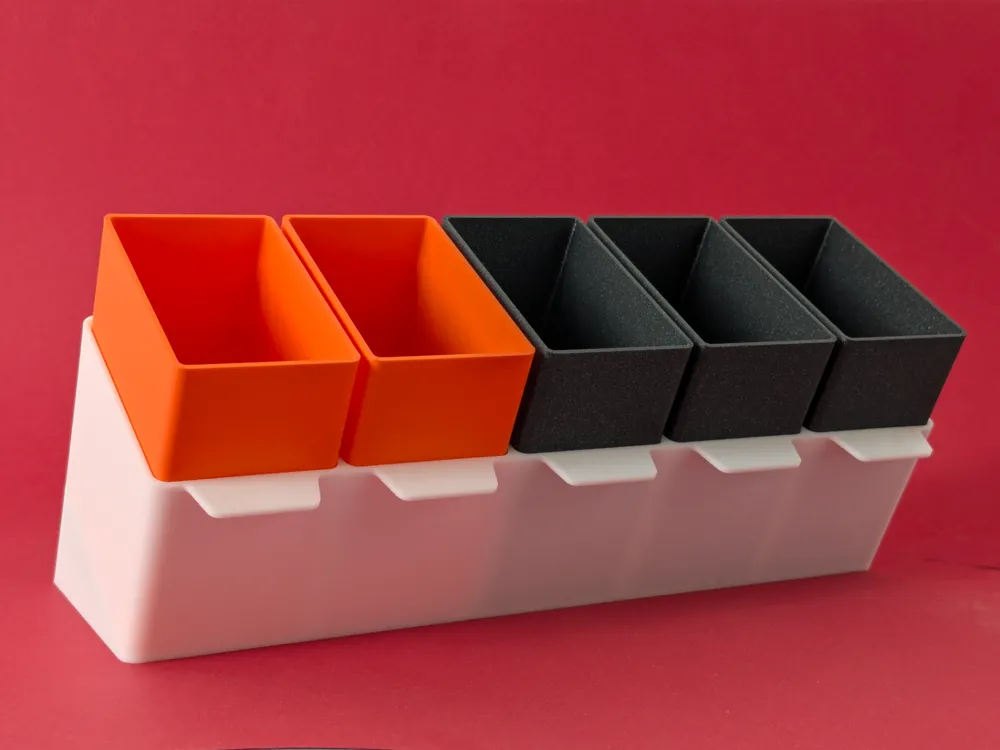

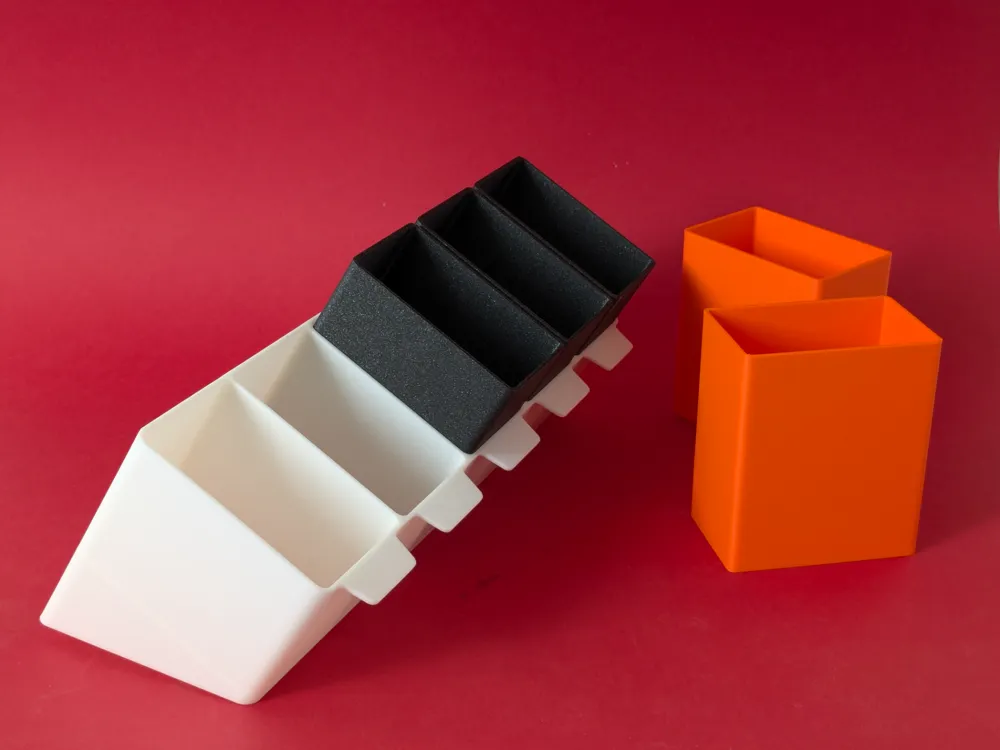

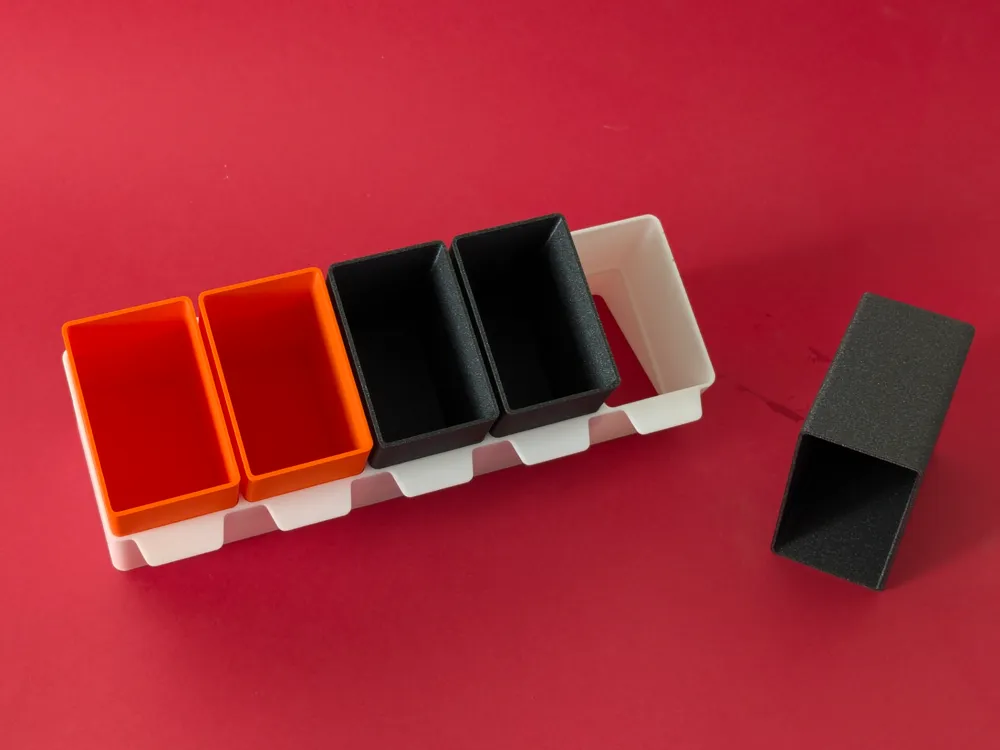

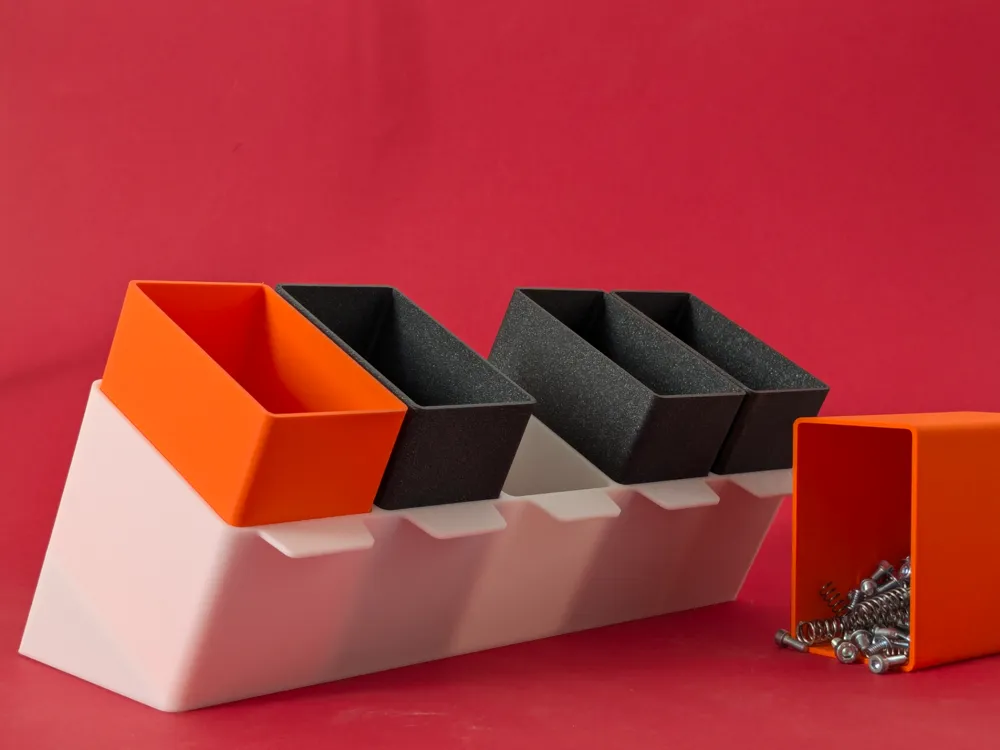

Configurable system for organizing small items, ideal for screws or supplies for repetitive work tasks where an easy way to organize items and be able to have them conveniently is needed. It consists of a general module where bins are inserted. Its design allows a quick look at the different elements. The main module has flaps to identify the different components with labels. For its size, it is quite quick to print. For those who do not have bambulabs, the ideal is 4 contour lines. The thickness of the walls of all components is optimized to not use fill. The good news is that this is the beginning of a new configurable system for organizing a minimalist and modern style that I will be configuring, designing and uploading here for free. Stay tuned for upcoming models and thank you for printing my designs!

TRAY SYSTEM
