Drawer Support Bracket

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 100% infill
0.2mm layer, 2 walls, 100% infill
Designer
1.3 h
1 plate
5.0(17)

Open in Bambu Studio
Boost
47
171
20
10
268
213
Released

Description

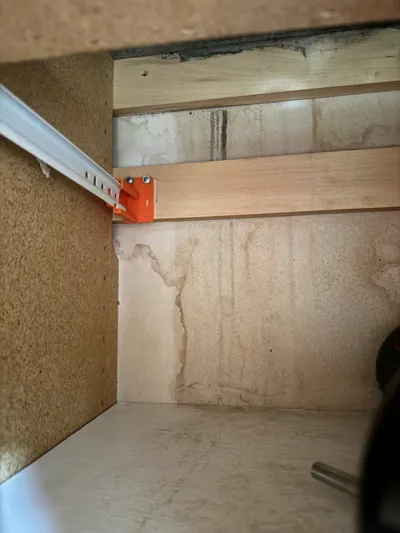

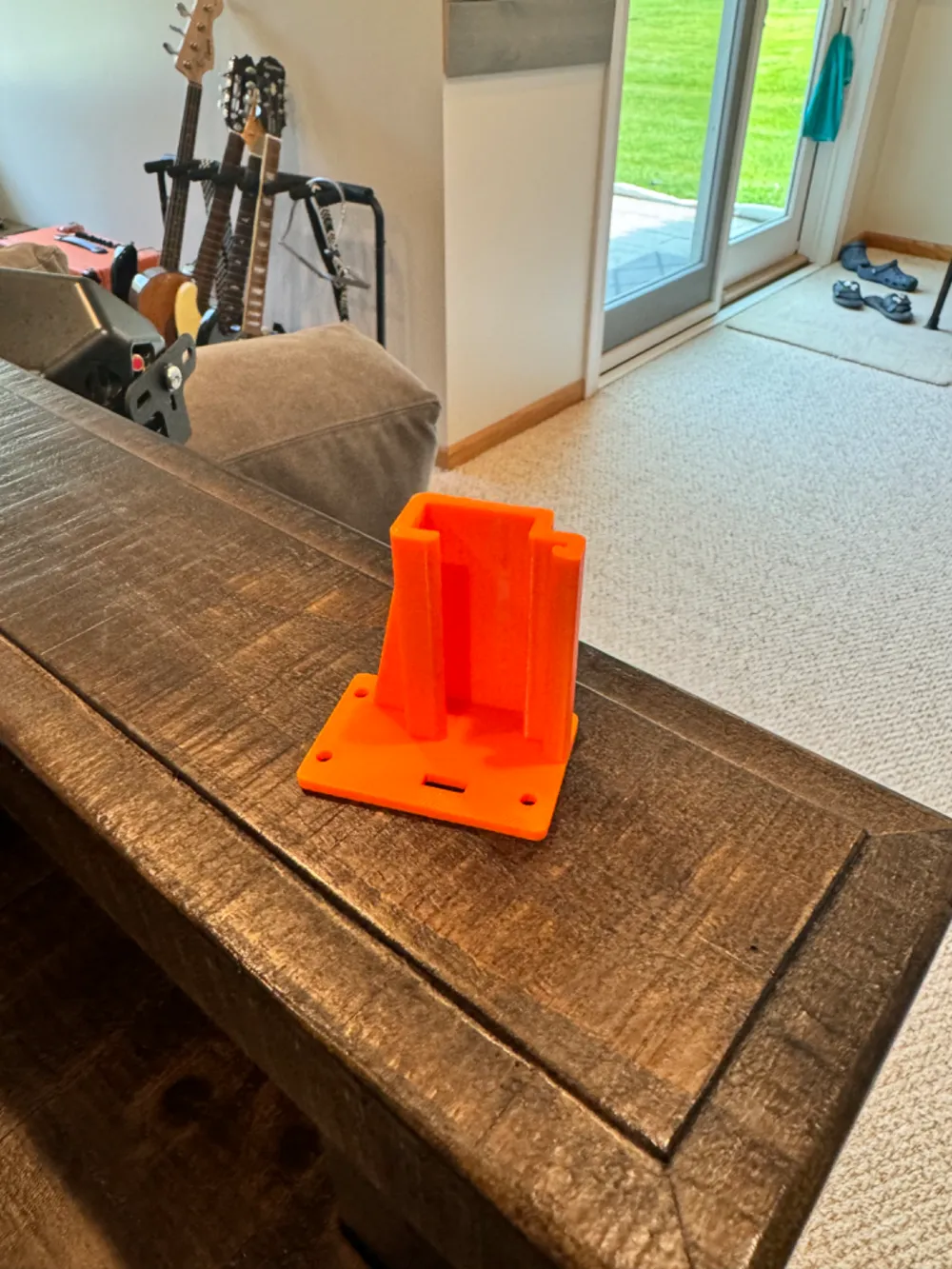

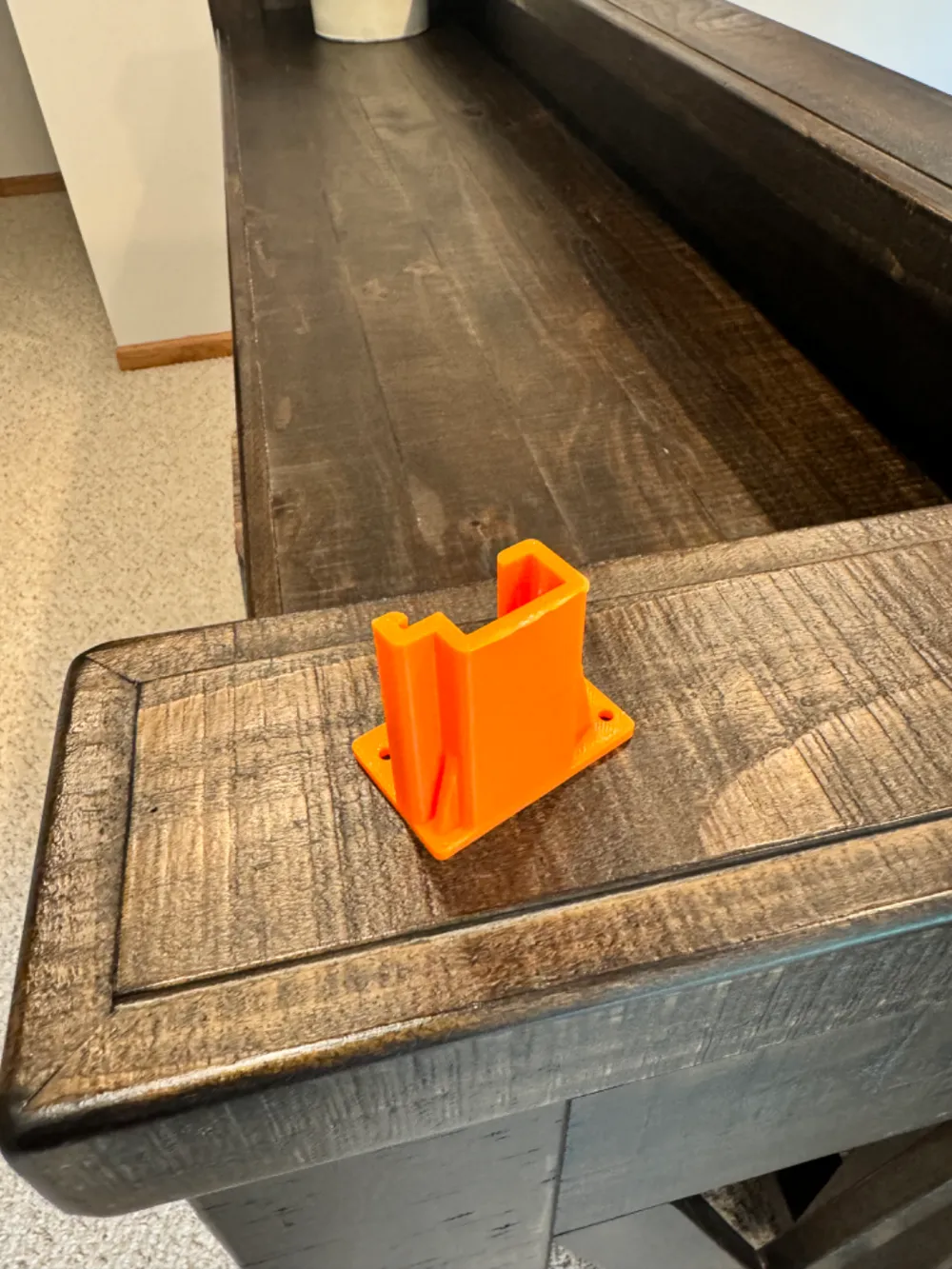

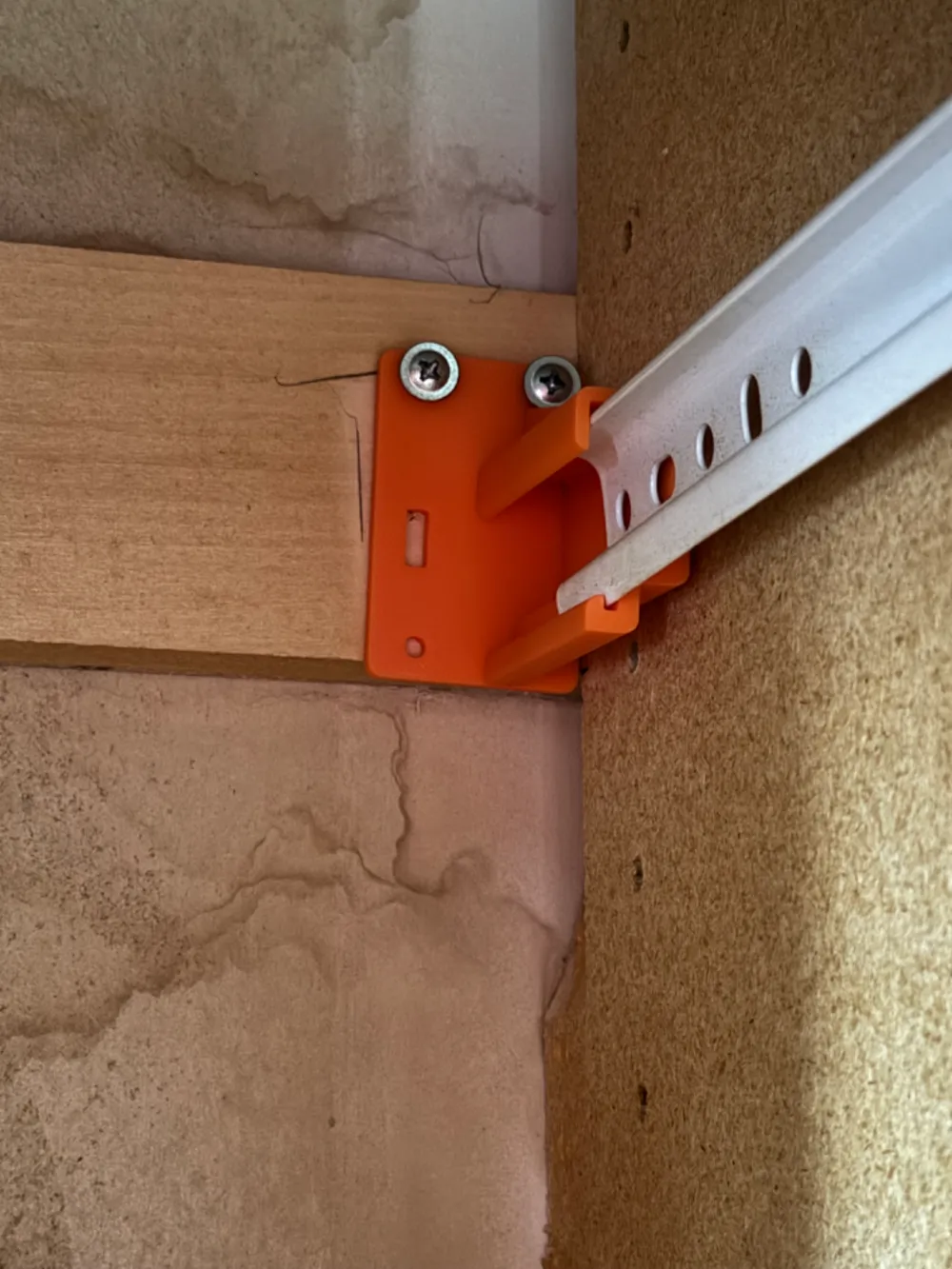

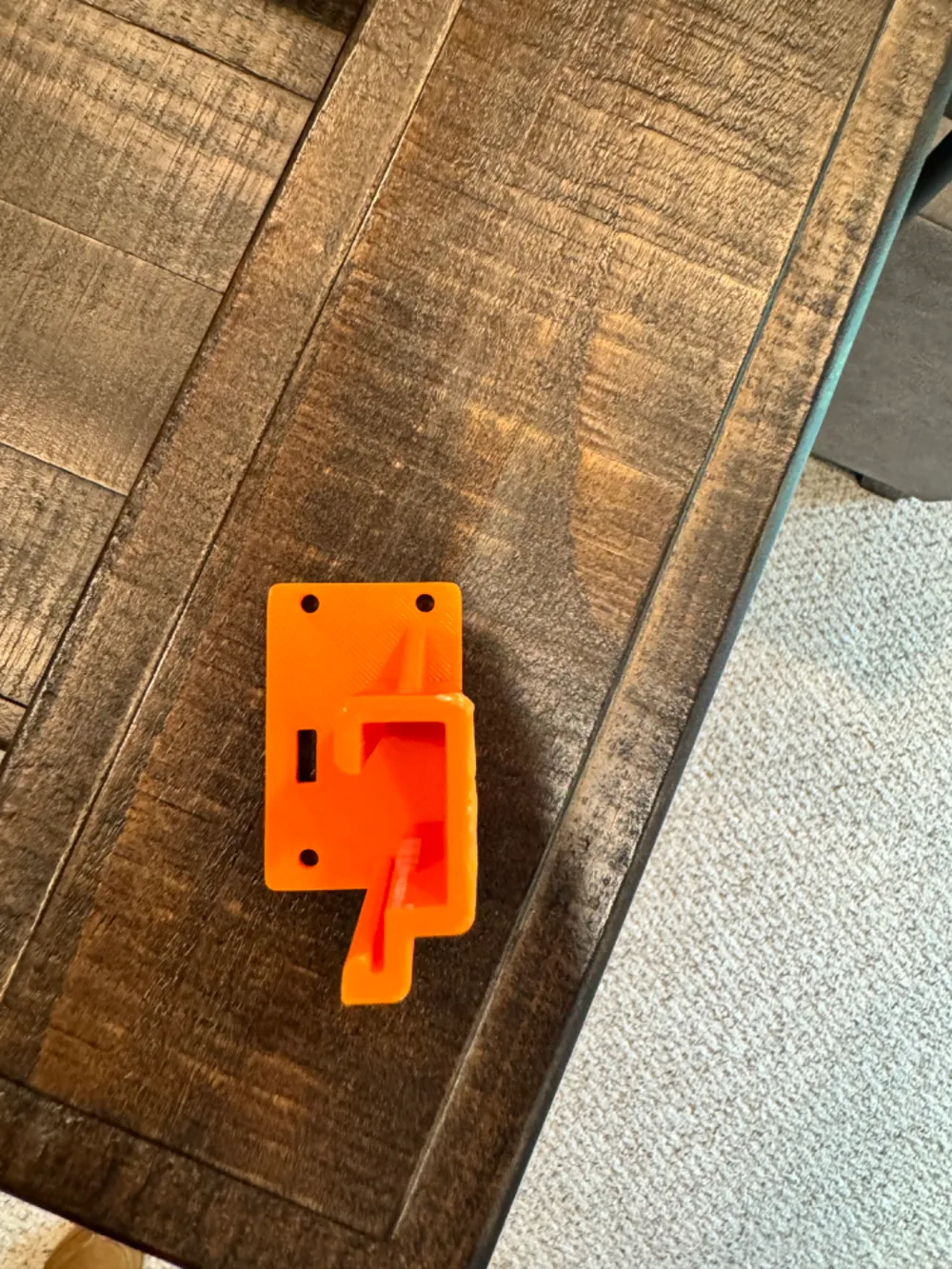

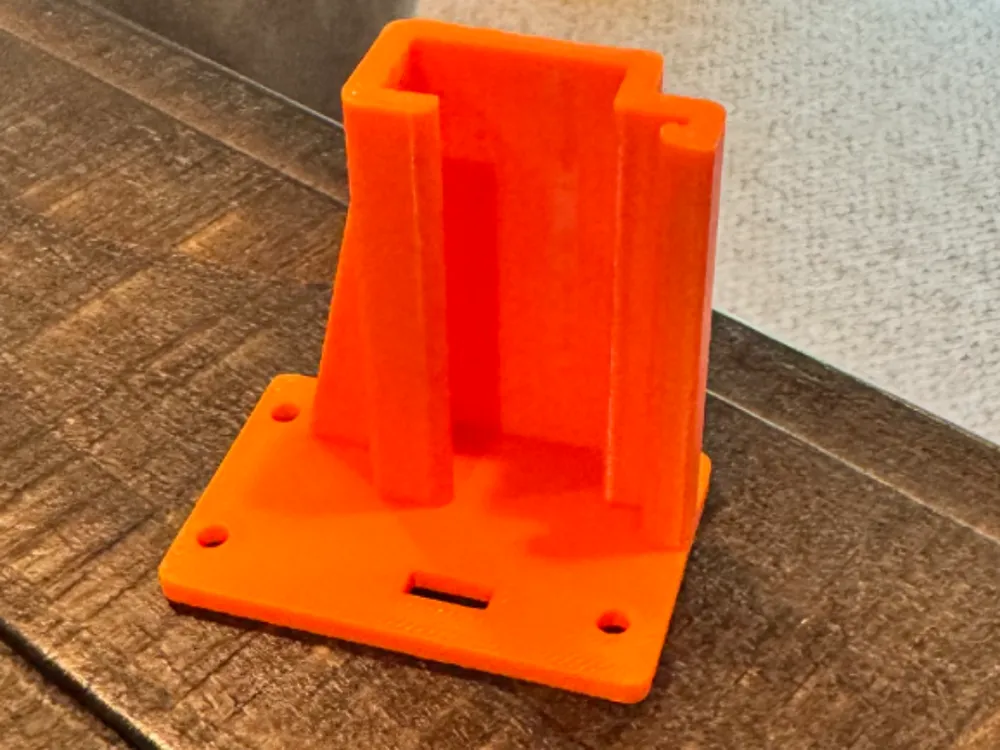

My kitchen drawer fell inside the cabinet, I found out that the support bracket that holds the rail was broken, nothing available in Home Depot or Menard's, apparently my drawer sliding rails are an older model, so instead of waiting, paying $15 for a set of 6 that I didn't need, I designed these in Fusion360 and printed them for $0.16. The files are only for the right side one, but the 3mf file has both, as you can easily mirror the model. Included step file too.
