Hook V2

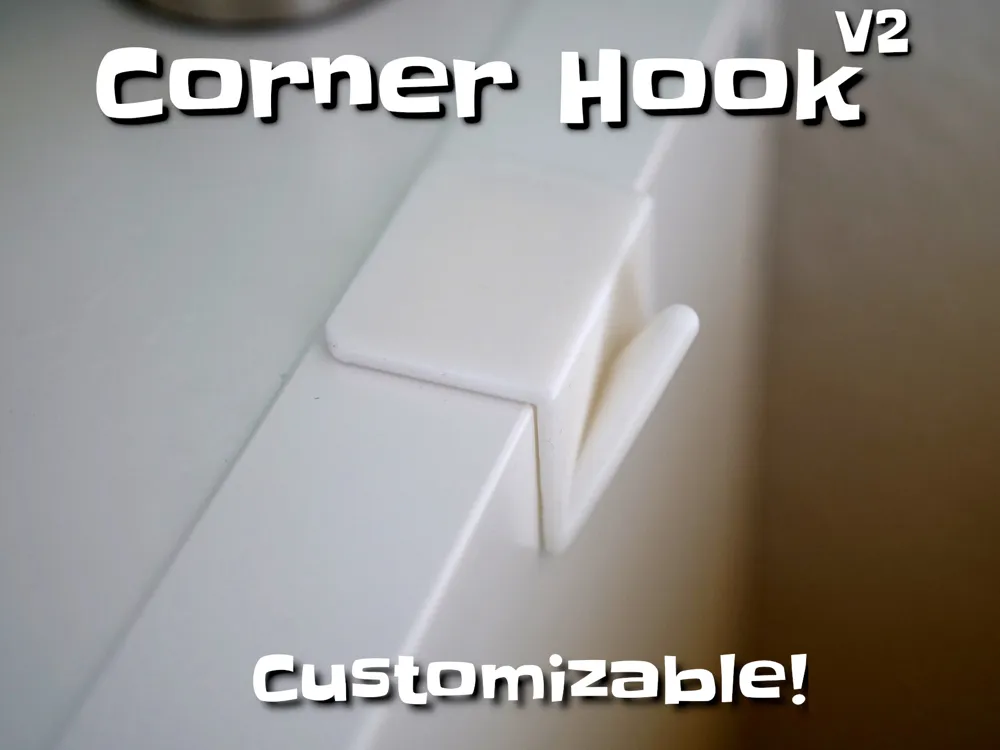

This is a configurable coat hook!

👉 Please rate the print profiles and follow me if you like - It would help tremendously. 👈

Configuration

You can configure the hook (Either by using the makerworld website “customizer button” or by using OpenSCAD and the customizing instructions here).

Configurable are:

• The number of hooks and their distance
• The width of the hook, the hooks angle and tip radius
• The width of the corner the hook is attached to, the thickness of the corner
• The printing orientation (vertical or 45 degree)

Pre-made STL

Hint: To get all versions as STL, use “Download STL” above.

Print instructions

You can print it without support.

The printing orientation

• a single hook works "on the side" without support material / raft if you have good adhesion. If you have a Core-XY printer (like P1S X1S PrusaXL) then more hooks are fine.
• "45 degrees" might need some support material and a raft, but is probably the only choice if you have more than 2 hooks
