Design Reference Kit

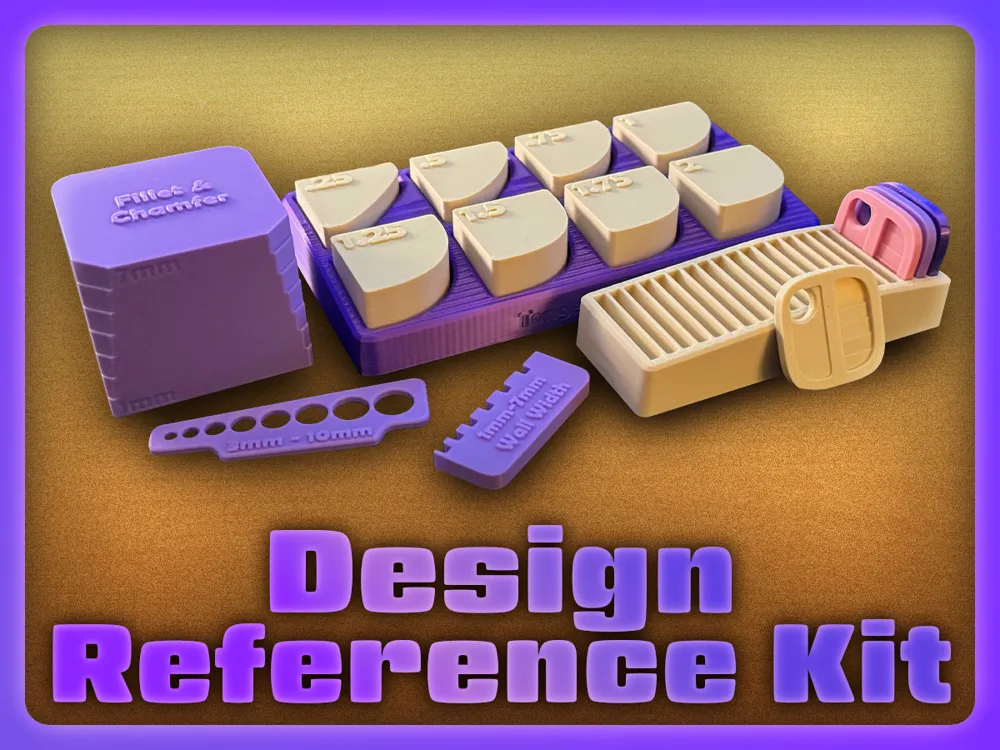

This kit provides you with different physical references which enable you to create a model just as you see it in your mind.

Diameters, Wall Widths, Chamfers, and Fillets

• Displays varying sizes of each of these features measured in millimeters.

Filament Swatches

• The filament swatches and swatch holder allow you see how your filament looks while printed. Different filaments react differently and this lets you see how it does on flat surfaces, steps, and holes. The hole can also be used for a keychain.

Tangency Weight

• Tangency Weight is what alters how strong the curve on a fillet is. On Fusion 360, it is on a scale from 0 to 2. This shows varying degrees of weight on the curve so you can model what you visualize.
