Buckle Clip

A buckle clip for work pants or backpacks, manufactured via 3D printing, needs to be robust, functional, and durable to withstand daily stress. Below is a detailed description of the design and printing process, with a focus on the recommended material choices.

Design of the Buckle Clip

Material Choices:

• ABS: A highly durable and impact-resistant material that is well-suited for mechanical parts. ABS is especially suitable for printing parts that are subjected to heavy loads and stress, such as a buckle clip. It offers a good combination of flexibility and strength.
• PLA with PETG support structures: PLA is easier to print but less flexible and resilient than ABS. Using PETG for support structures makes the printing process more stable and simplifies the removal of supports, as PETG is easier to peel off while being strong enough to support the parts during printing.
• PETG with PLA as support: Alternatively, PETG can be used as the primary material since it is tough and flexible. PLA as support material makes it easier to remove the supports and provides a clean surface.

Structure and Mechanism:

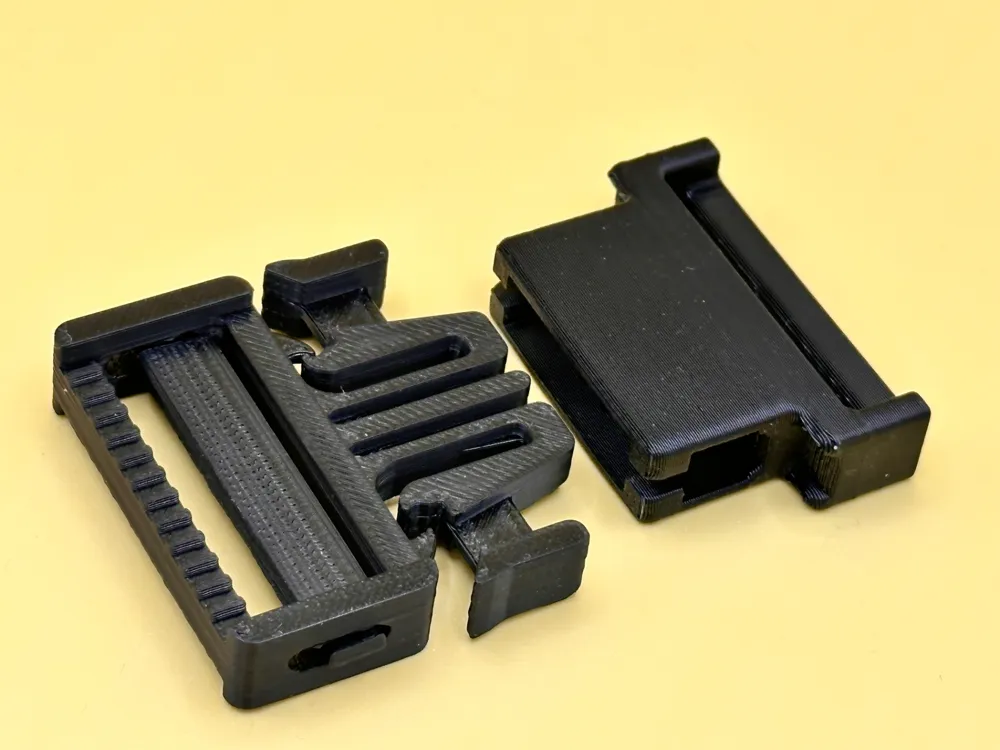

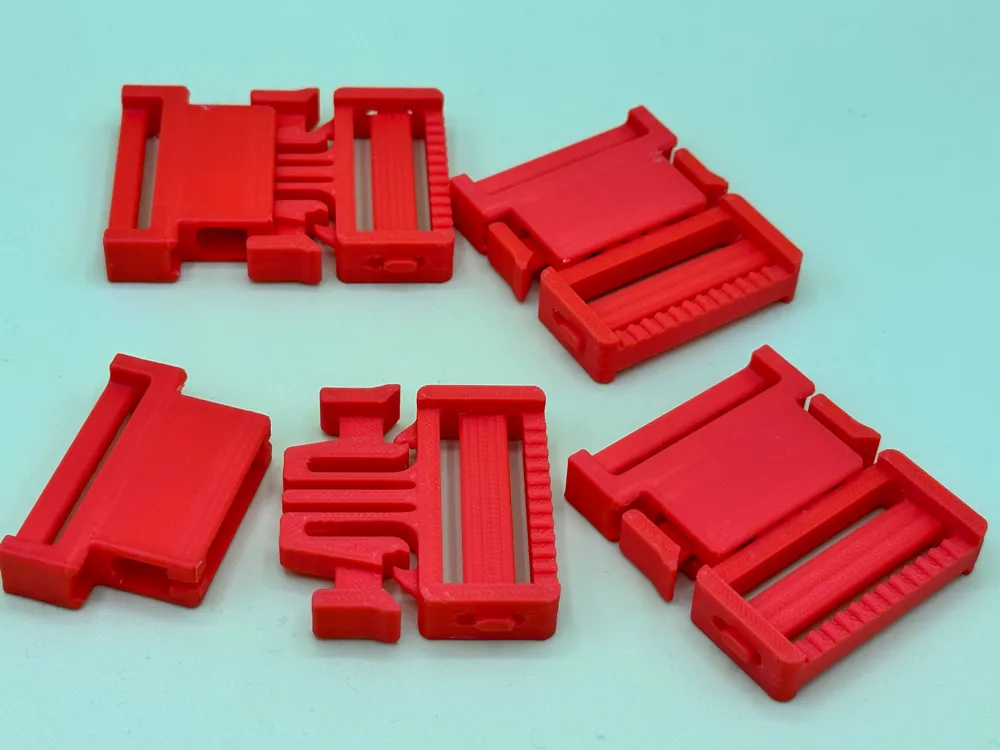

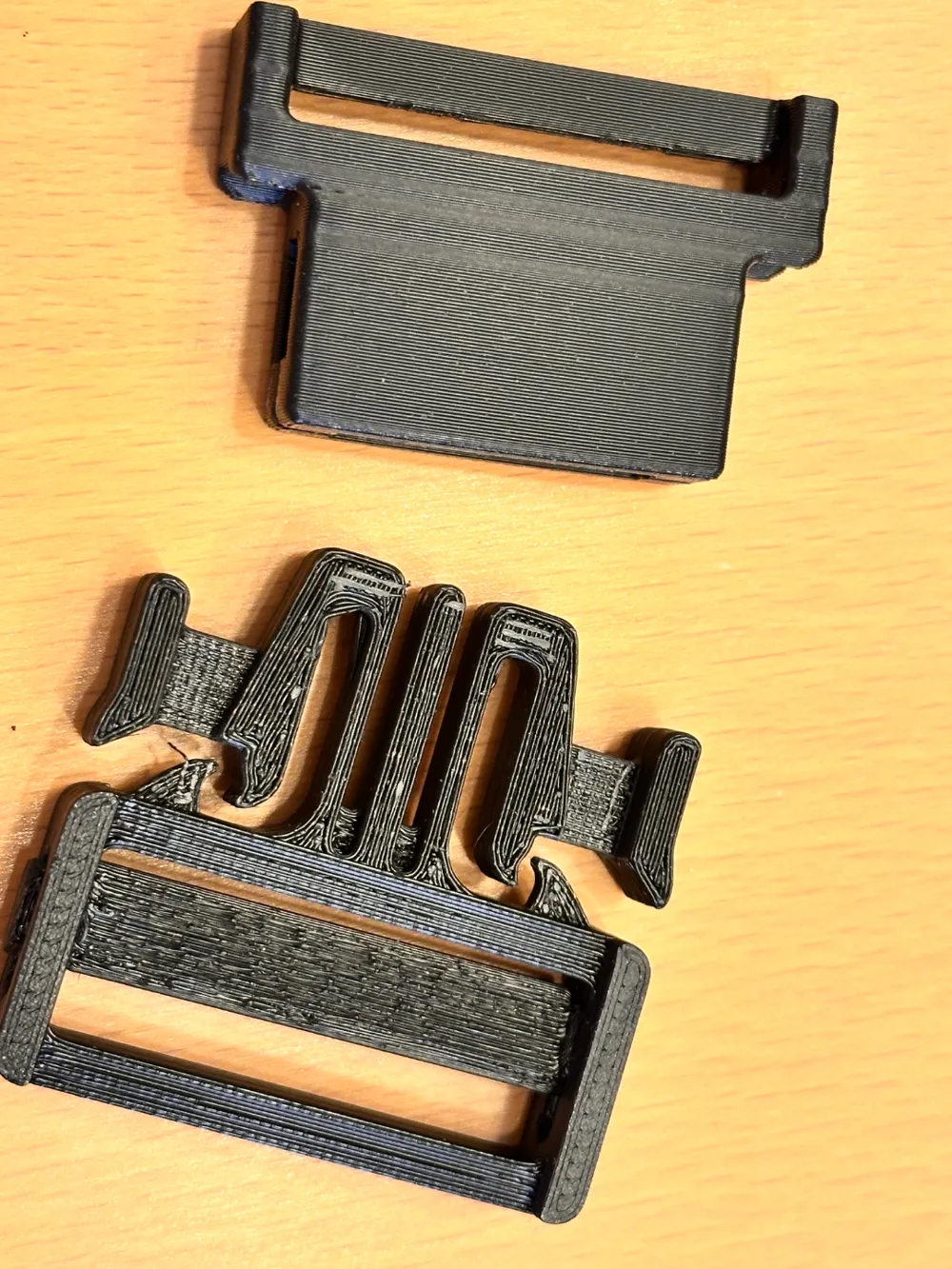

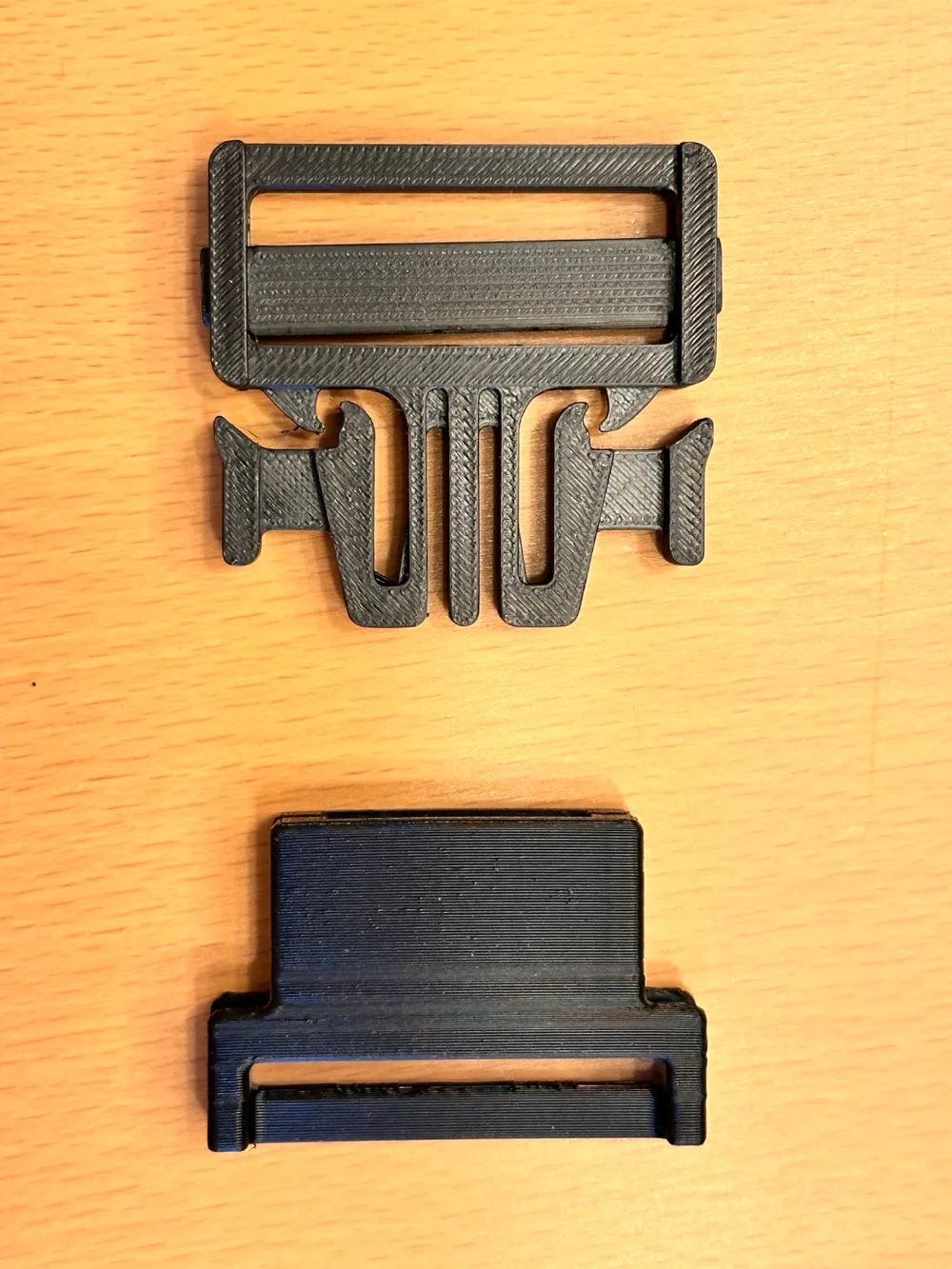

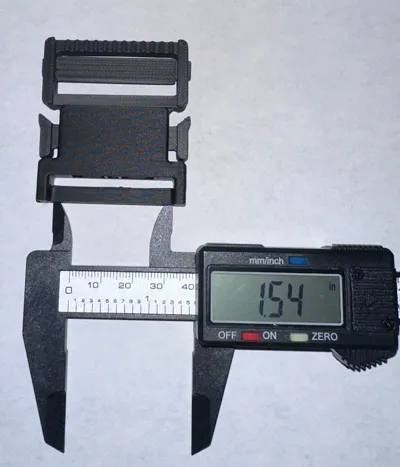

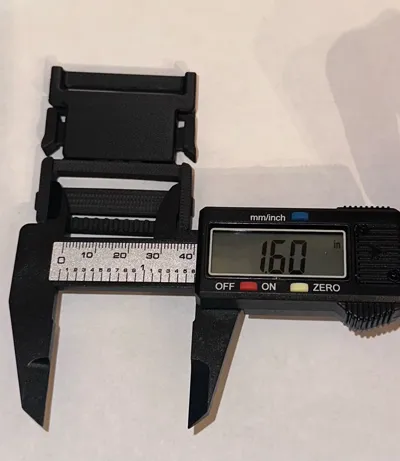

• The buckle clip consists of two parts:
  • Fixed side: This part is sewn securely onto the work pants or backpack strap. It has a loop or a flat area with holes for threading and stitching the strap in place.
  • Strap attachment: The other side of the clip is designed to allow the strap to pass through and be locked in place by a mechanism. There should be slight resistance to ensure that the strap does not slip out on its own.

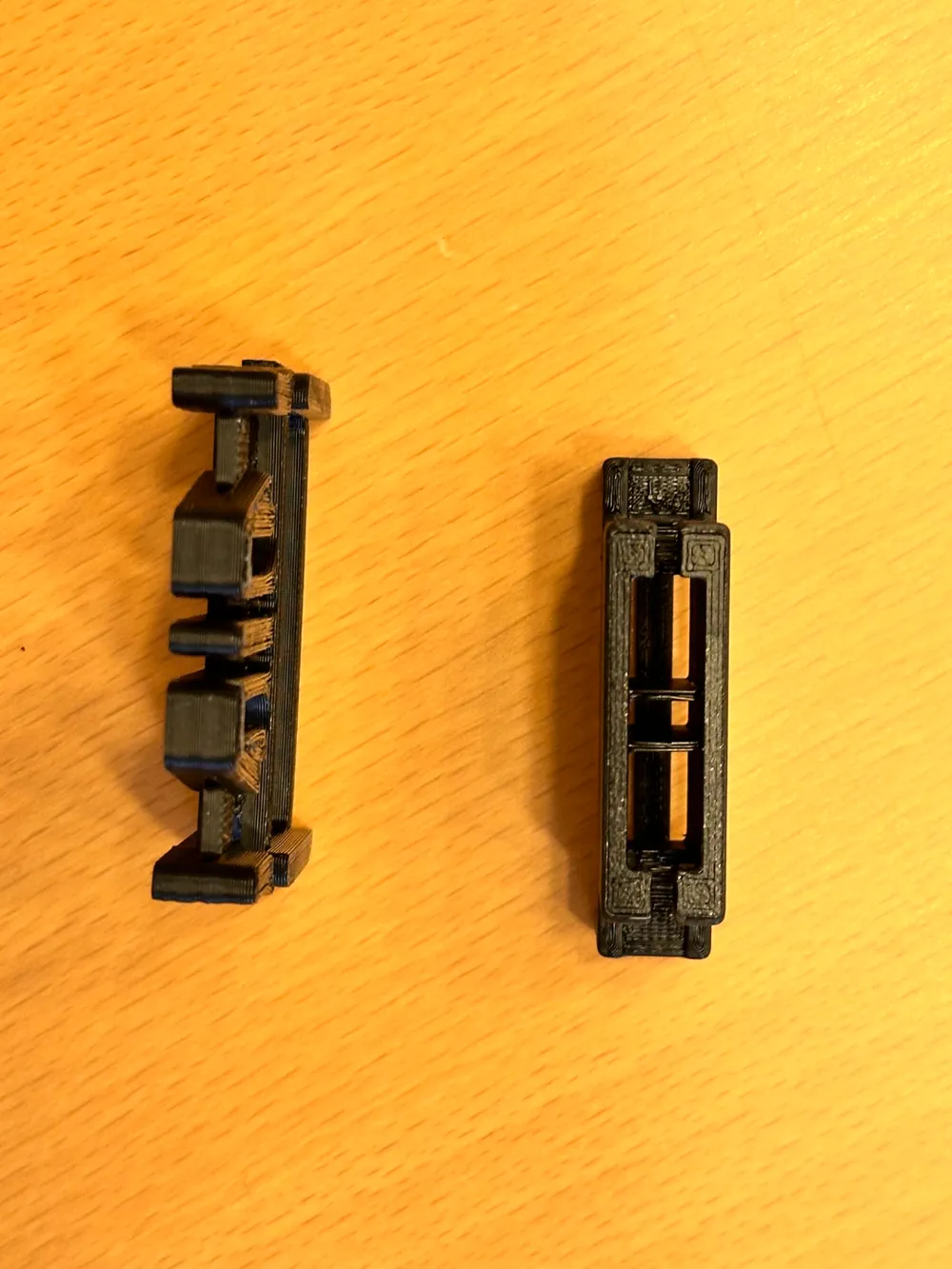

Side Opening Mechanism:

• The side opening mechanism allows for easy unlocking of the clip, enabling it to be opened and closed quickly. This could be achieved with a sliding latch or a small spring mechanism. The mechanism is designed to be secure to prevent accidental opening.
• The clip can be opened by squeezing it, using a side snap-lock to secure it.

Form and Function:

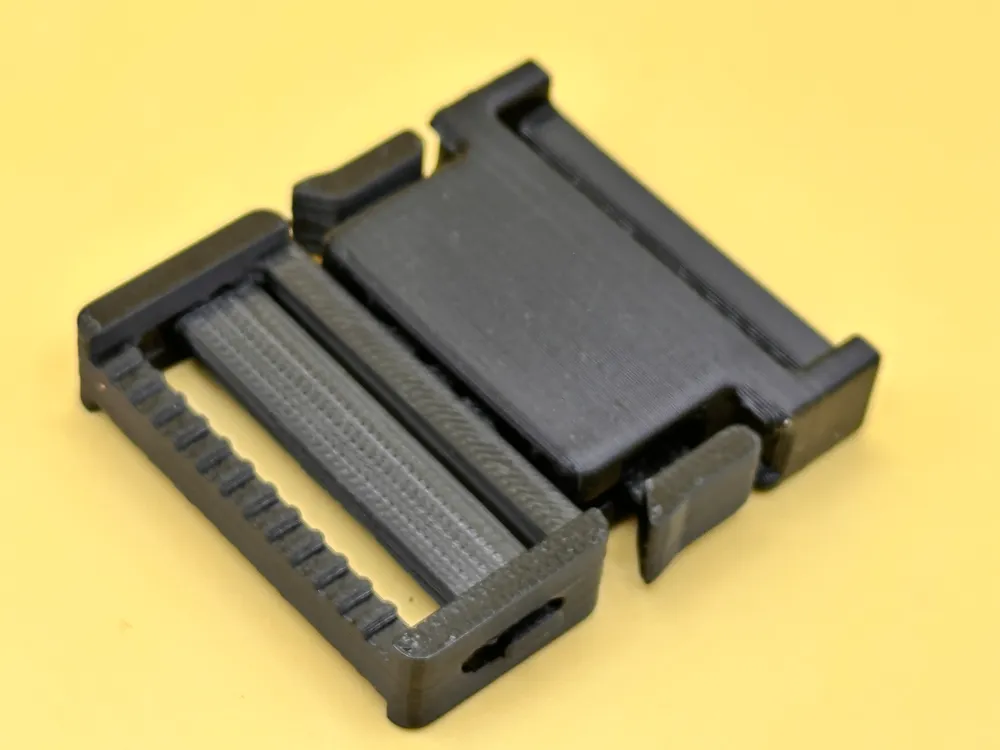

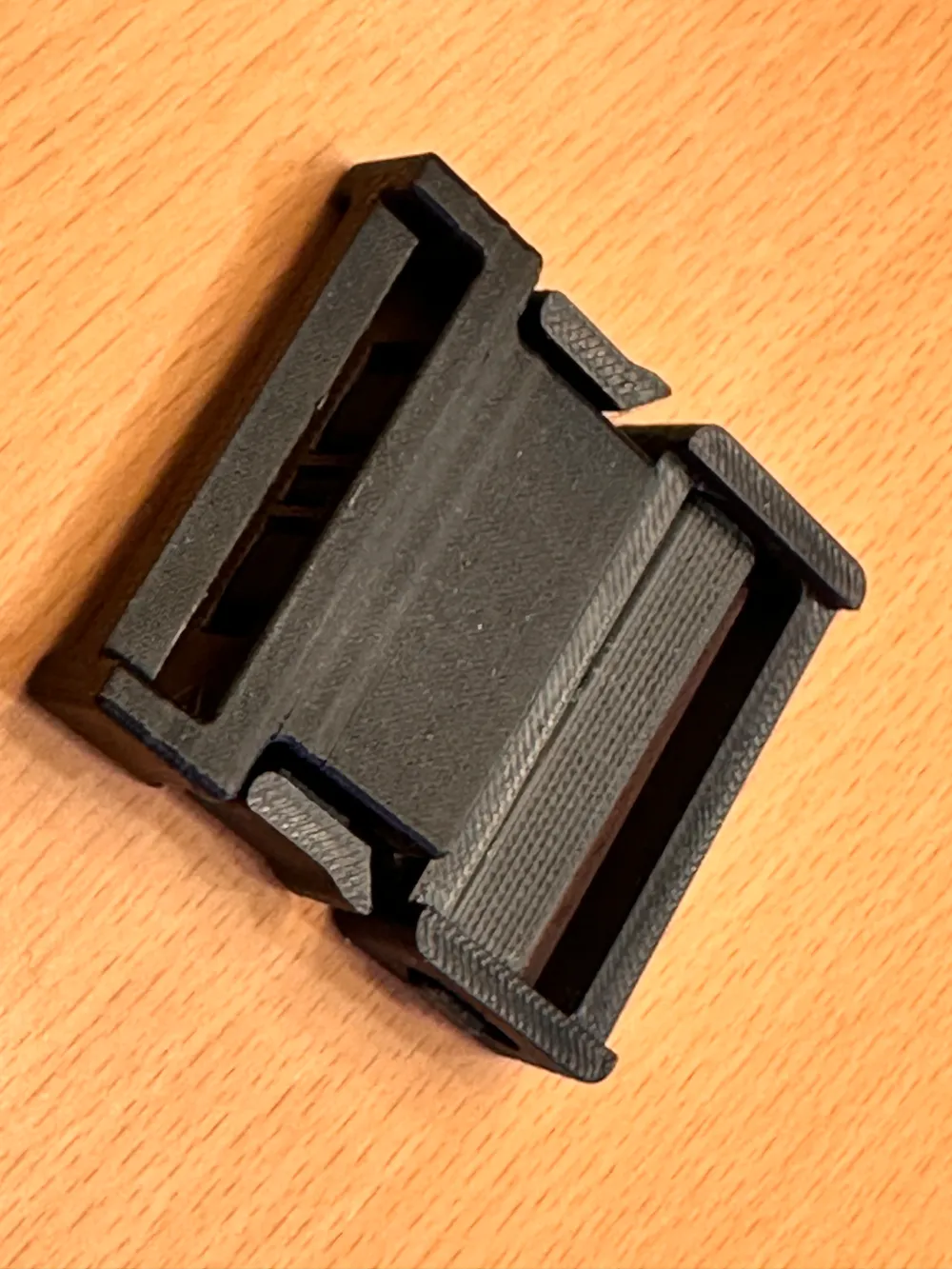

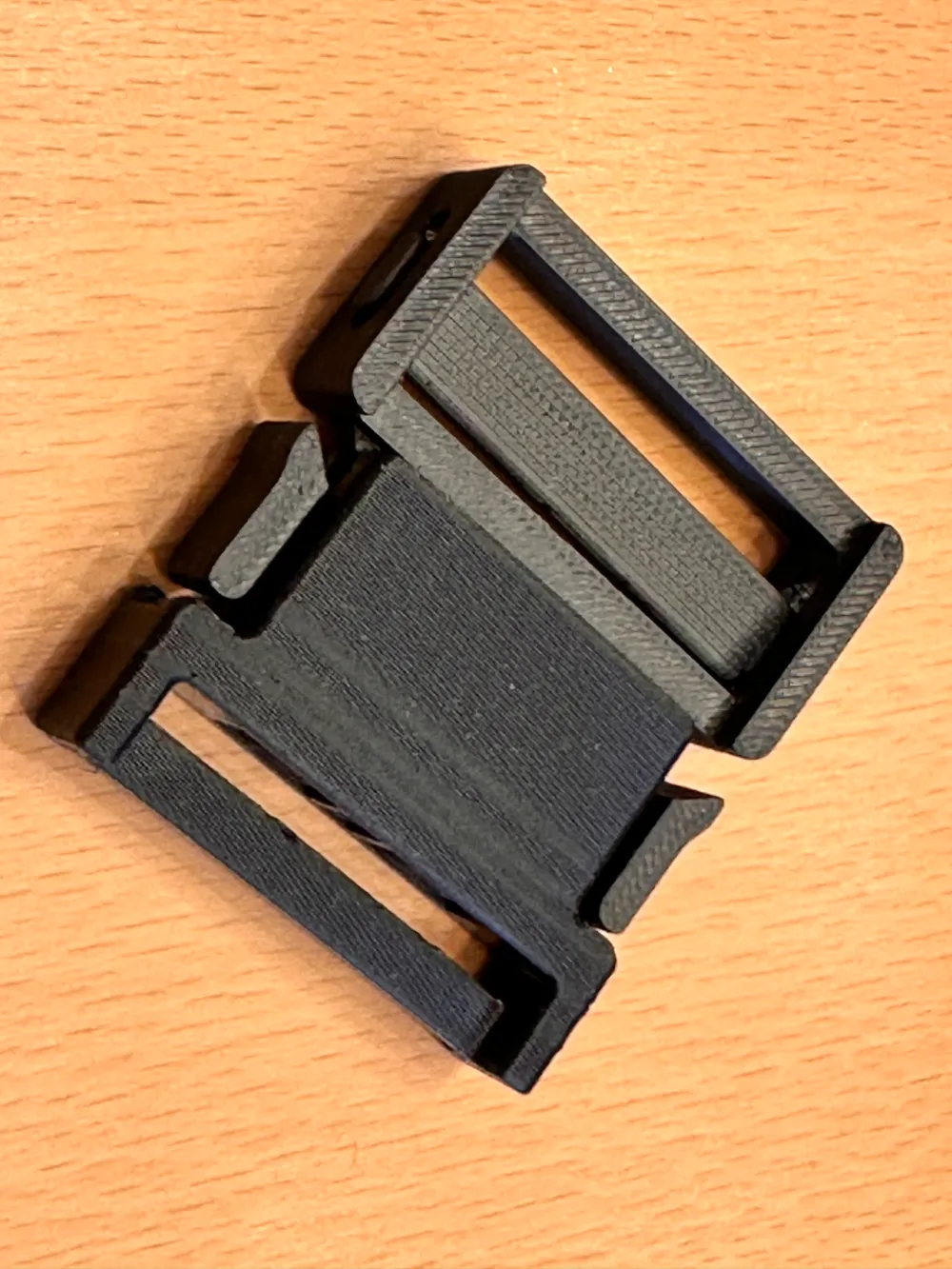

• Both halves of the clip are designed to fit together precisely, allowing for a secure closure. The side mechanism should be printed with precision to ensure reliable operation, even with frequent use.

3D Printing Process

Print Parameters:

• Material: The preferred choice would be ABS for high strength or PETG if flexibility is desired. PLA can be used for non-critical parts but is less resilient than ABS.
• Print Temperature:
  • ABS: 230-250°C
  • PETG: 220-250°C
  • PLA (for support): 190-220°C
• Print Bed: ABS requires a heated bed (90-110°C) to prevent warping. PETG also needs a heated bed (70-90°C), but PLA can be printed on a less hot bed (60°C).
• Layer Height: A layer height of 0.1 to 0.2 mm is recommended to maintain the fine mechanical details of the clip and ensure a clean mechanism.

Support Structures:

• For ABS or PETG with PLA support: When ABS or PETG is used as the primary material, PLA support structures are a good choice because they are easy to remove and hold the clip in place while the print head creates complex overhangs.
• For PLA with PETG support: PETG as a support material for PLA is ideal because PETG is not only more flexible but also separates more easily from PLA, resulting in a cleaner surface and less post-processing.

Optimizing Stability:

• Infill: At least 40% infill should be used to provide the necessary stability for the clip without significantly increasing the print time.
• Wall Thickness: The wall thickness of the clip should also be at least 2-3 mm to withstand mechanical stress during daily use.

Post-Processing:

• ABS Post-Processing: ABS can be smoothed with acetone vapors, which removes layer lines and strengthens the structure.
• Removing Support Structures: When using PLA as the support material, it can be easily peeled off after printing, especially if the main material is PETG or ABS. PETG support structures can also be removed relatively easily.

Conclusion:

The buckle clip is designed to be robust enough to endure daily wear and tear in work or outdoor environments. By combining flexible materials like PETG and ABS or using PLA with easily removable support structures, a functional and durable clip is achieved. The side opening mechanism ensures the clip is easy to operate yet securely locks in place.
