Ikea Pax Drilling Template

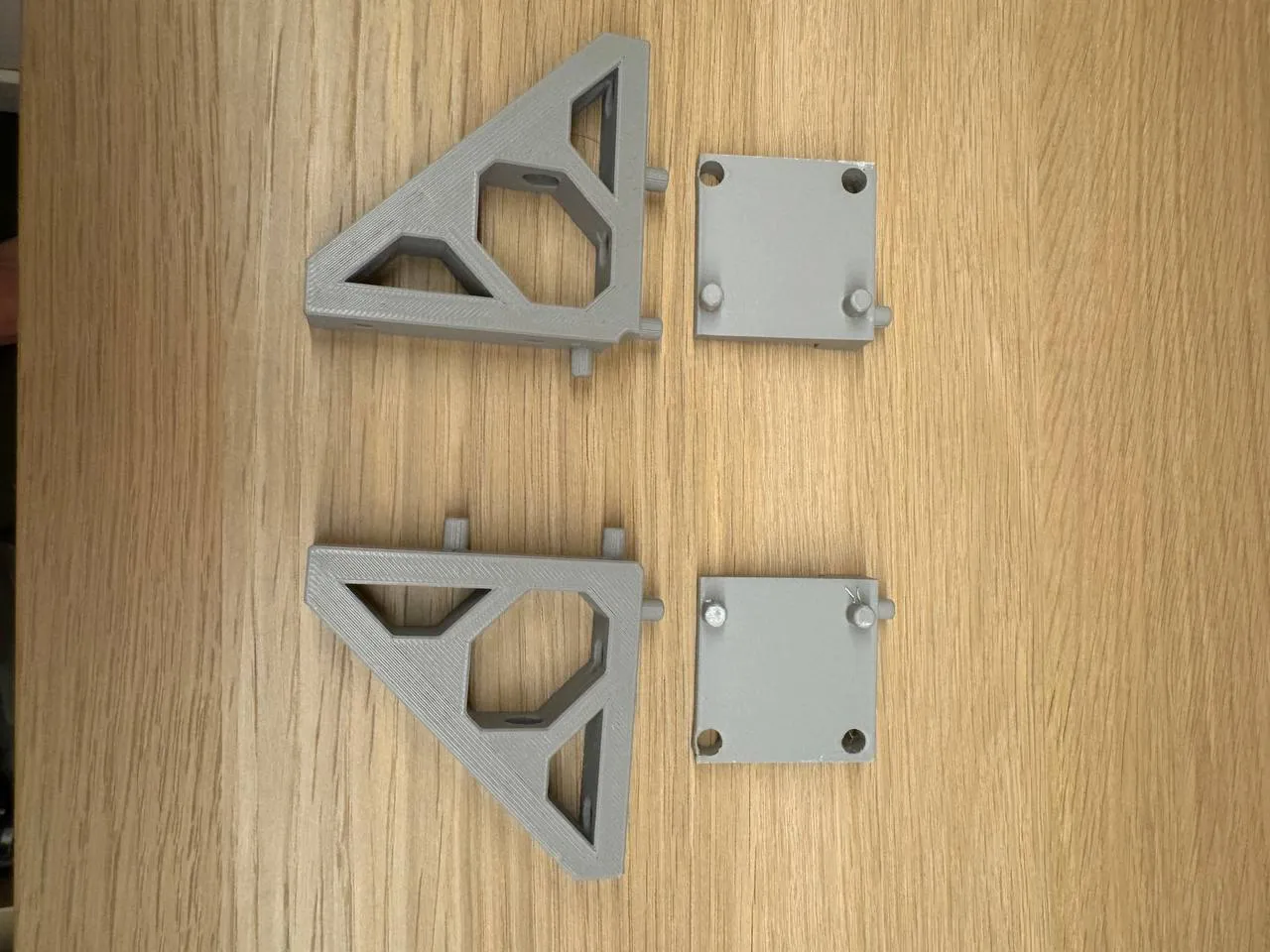

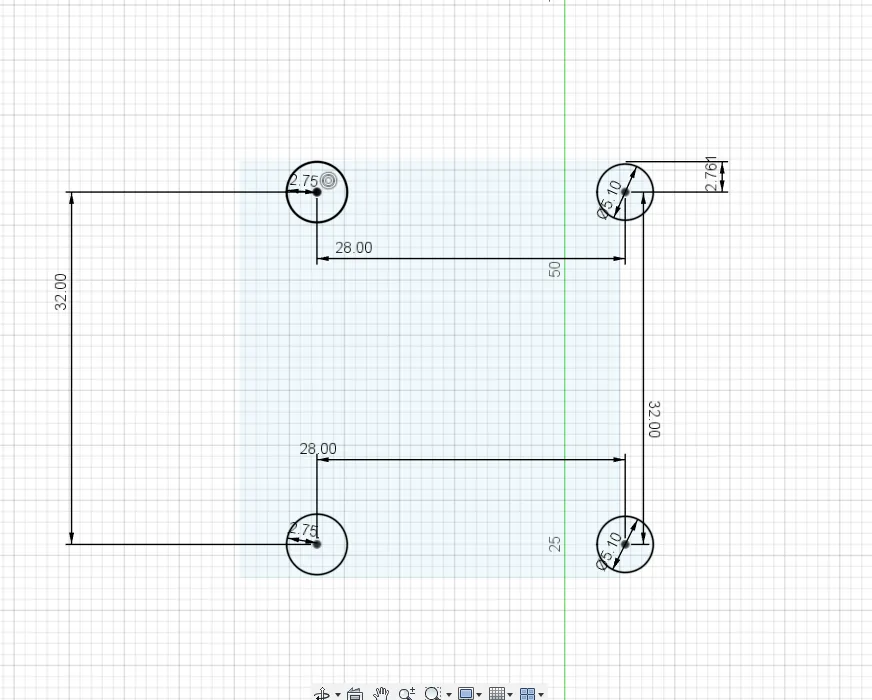

Drilling template for ikea pax komplement to move the shelf support holes by 28 mm, in this case I used these reinforced supports: https://www.printables.com/it/model/699330-ikea-pax-shelf-support-screwing , but it is possible to use the original ikea ones by drilling only in 2 points.

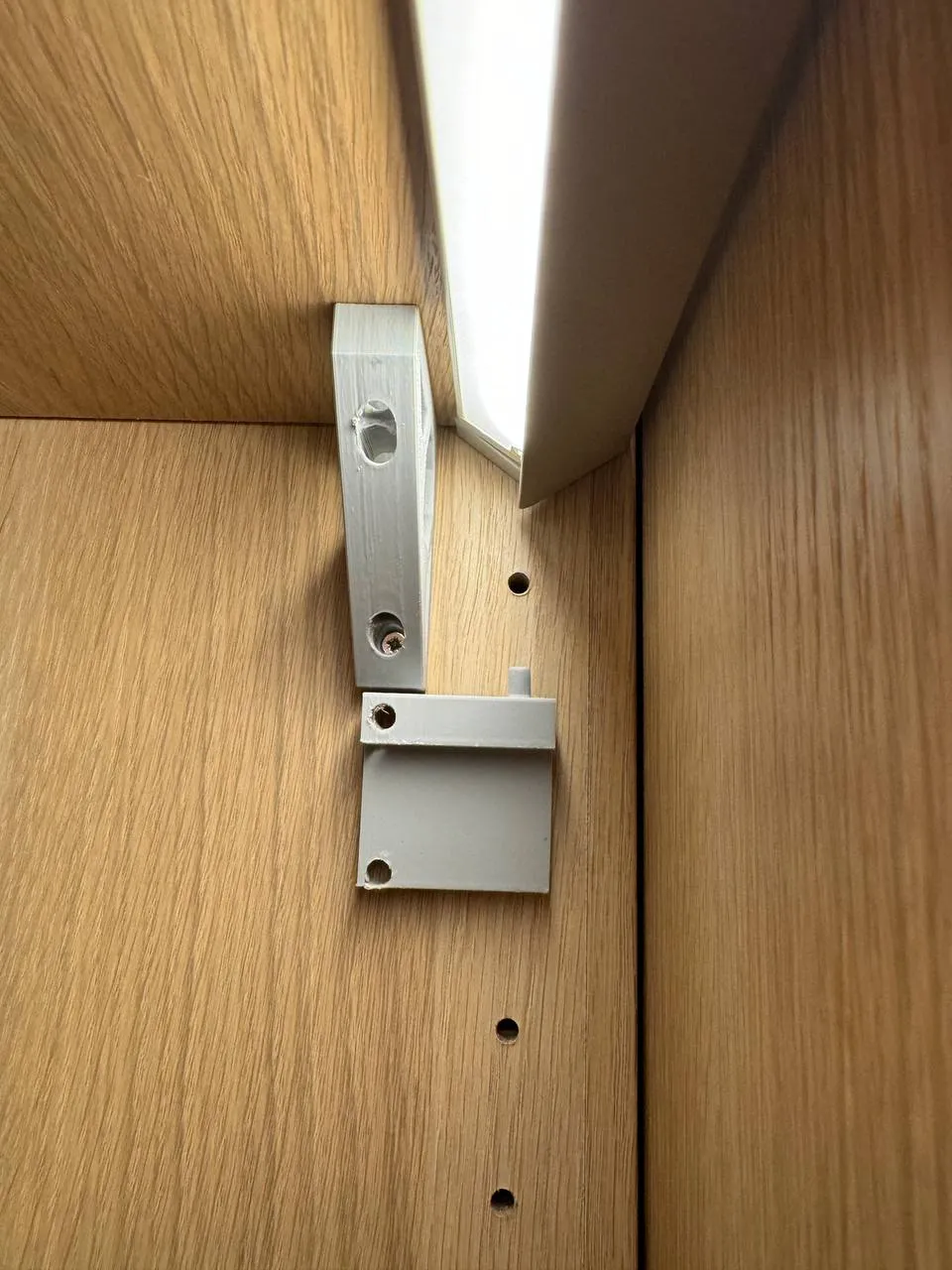

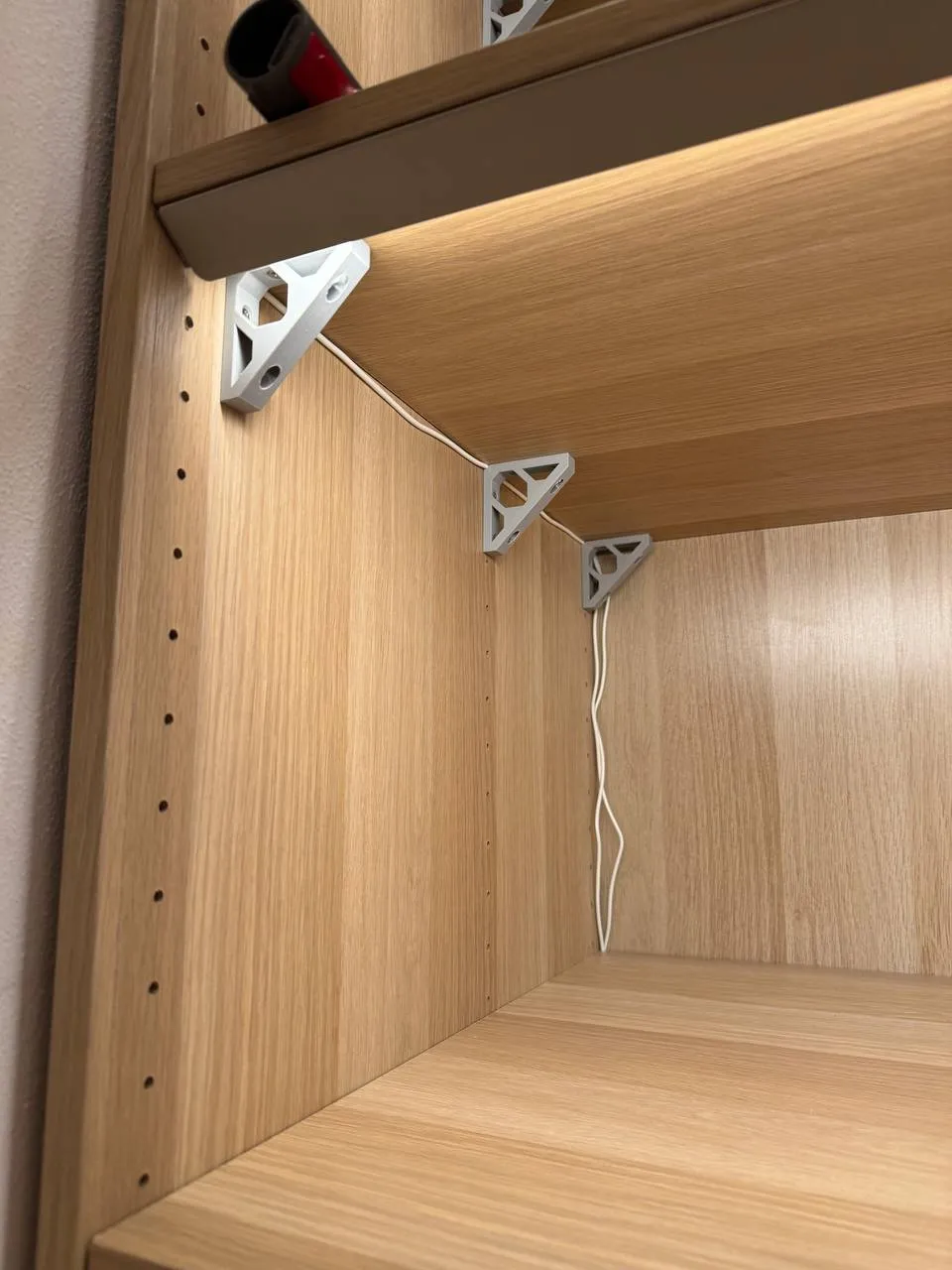

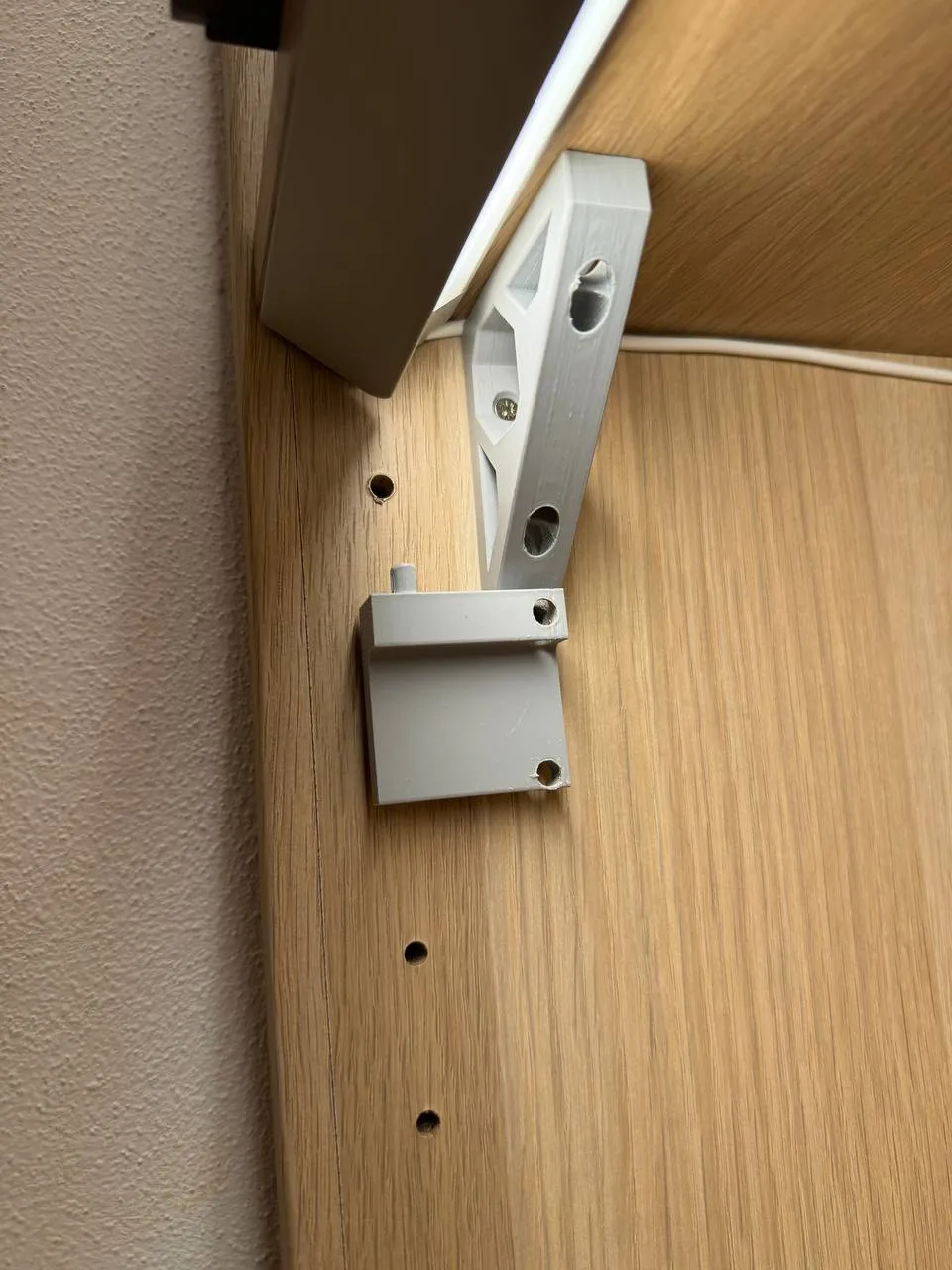

I created modified reinforced supports for the passage of the cable by mounting the ikea ÖVERSIDAN led lighting, the template is designed to leave the right space for the leds by moving the holes by 28mm.

I leave you the link for the modified supports:

https://makerworld.com/en/models/622683#profileId-546831

⚠ Set up your filament well, perform calibrations, dry it and set the right cooling parameters.

I take no responsibility for the print quality of your filaments ⚠
