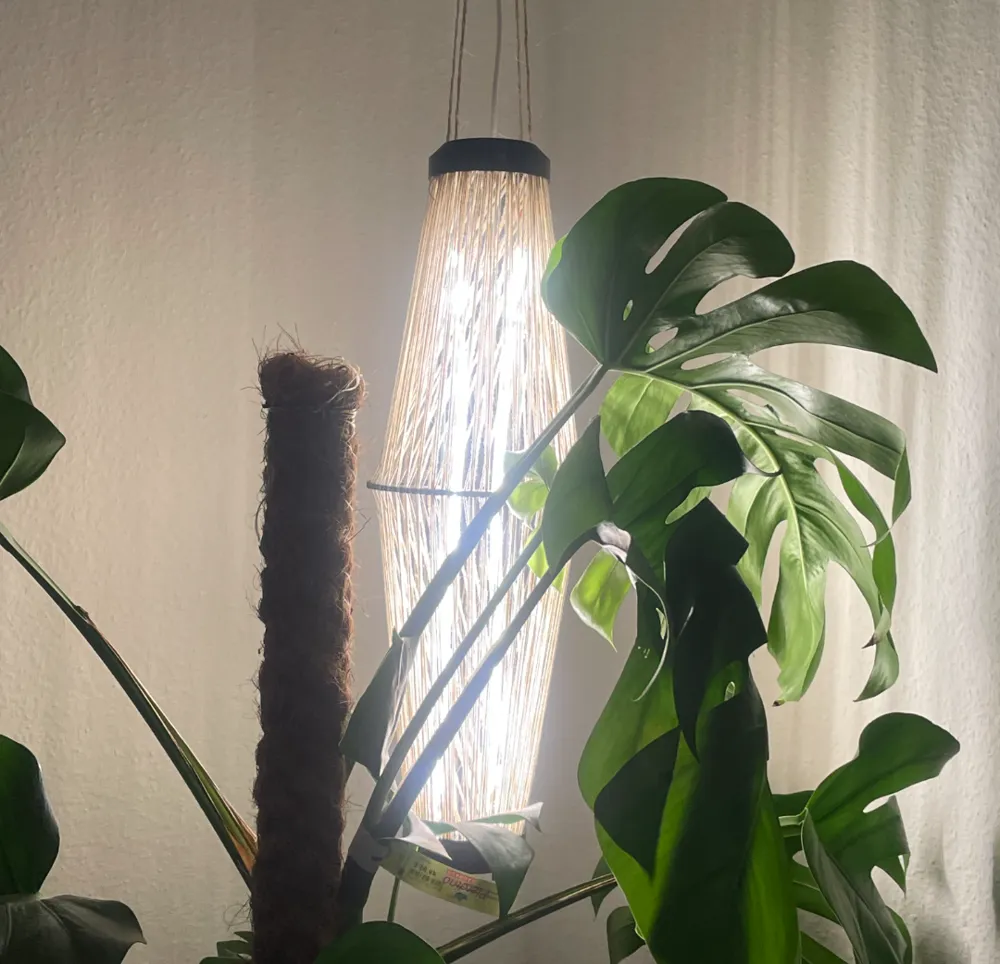

LED-Strip String Lamp

Materials Needed:

1. G-code and/or STL Files: Top and Bottom with Lid, For the LED clamp and transformer holder. (Only G-code files are available.)
2. Holes Specification: 6mm holes for the LED clamp, transformer holder, and STL files.
3. Steel Rods: Two rods, each 60cm in length.
4. Nuts and End Pieces: Four nuts for each plate and a total of four end pieces.
5. LED Strip: Length varies, ideally matching the length of your steel rods. In this example 2x 50cm
6. String: For winding around the lamp structure.
7. Transformer: Suitable for your country's voltage, outputting approximately 15 watts or as needed for your LED strip.

Assembly Instructions:

1. Prepare the Clamps: Use the G-code files to create the LED clamps and transformer holder.

2. Inserting the LED Strip: Gently slide a knife or a thin tool into the back of the clamp to open it slightly.

3. Securing the LED Strip: Place the LED strip inside the clamp.

4. Closing the Clamp: Use the end piece (also provided in the G-code files) to close the clamp, ensuring a secure hold on the LED strip.

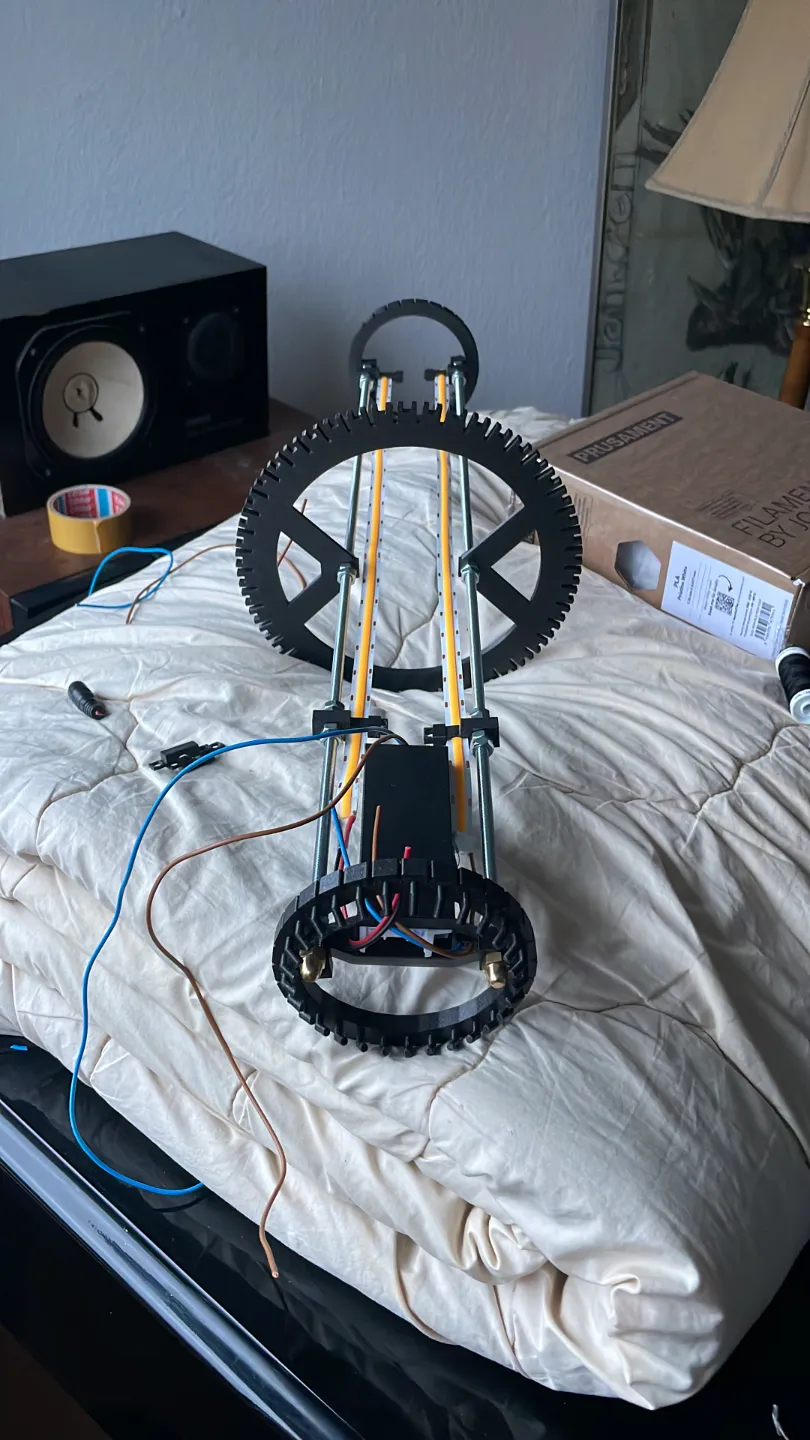

5. Assembling the Frame: Attach the steel rods as per the design, securing them with the nuts and end pieces.

6. Winding the String: Wind the string around the lamp structure for added stability and aesthetic appeal. For a twisted look you can Connect every top piece with every second winding of the middle part.

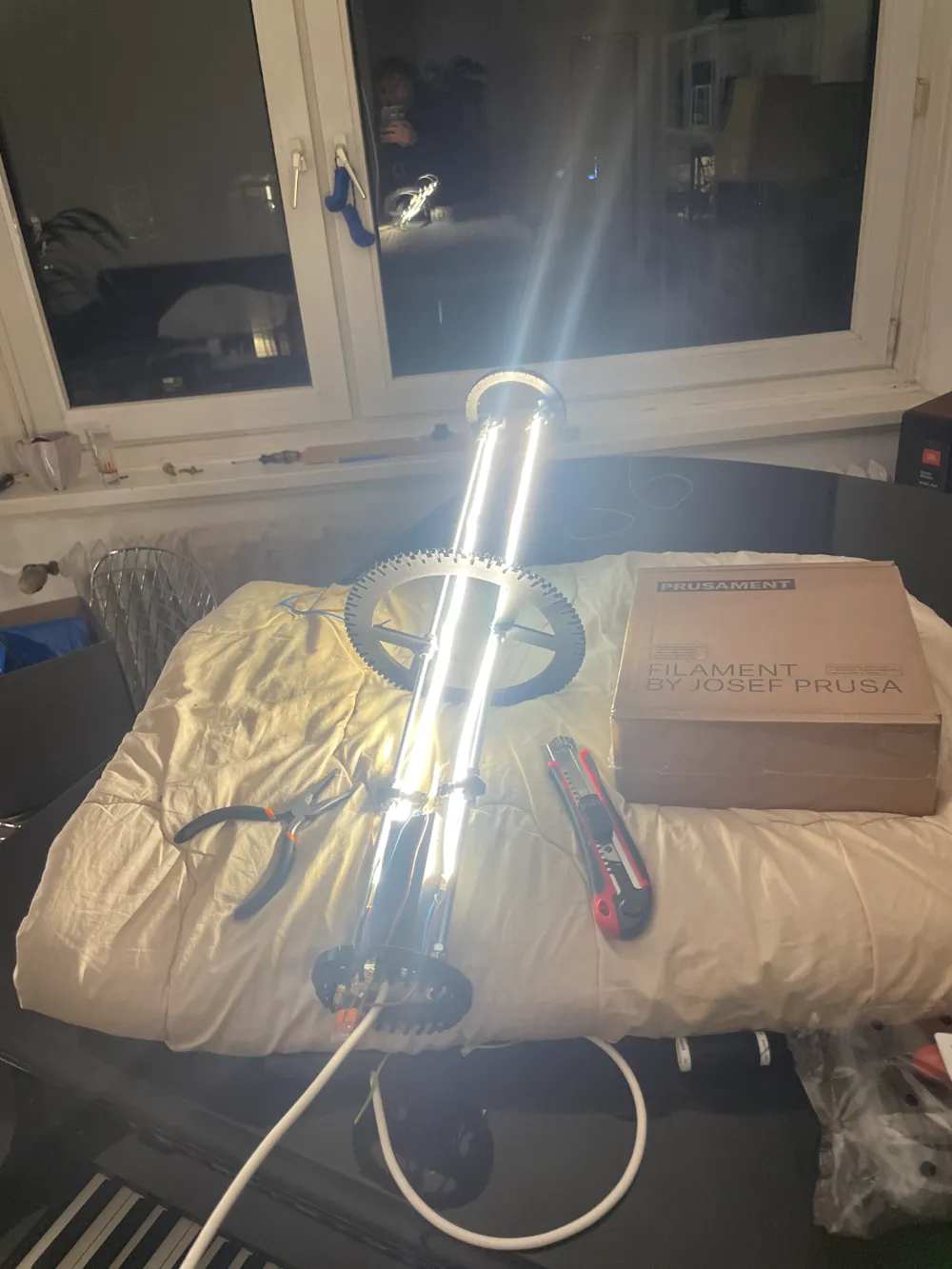

7. Installing the Transformer: Connect the LED strip to the transformer, ensuring it matches your country's voltage requirements.

Materials available online:

https://amzn.eu/d/29hAUJo

https://amzn.eu/d/djrbJan
