Riser Profile Design
Print Profile(1)
Description

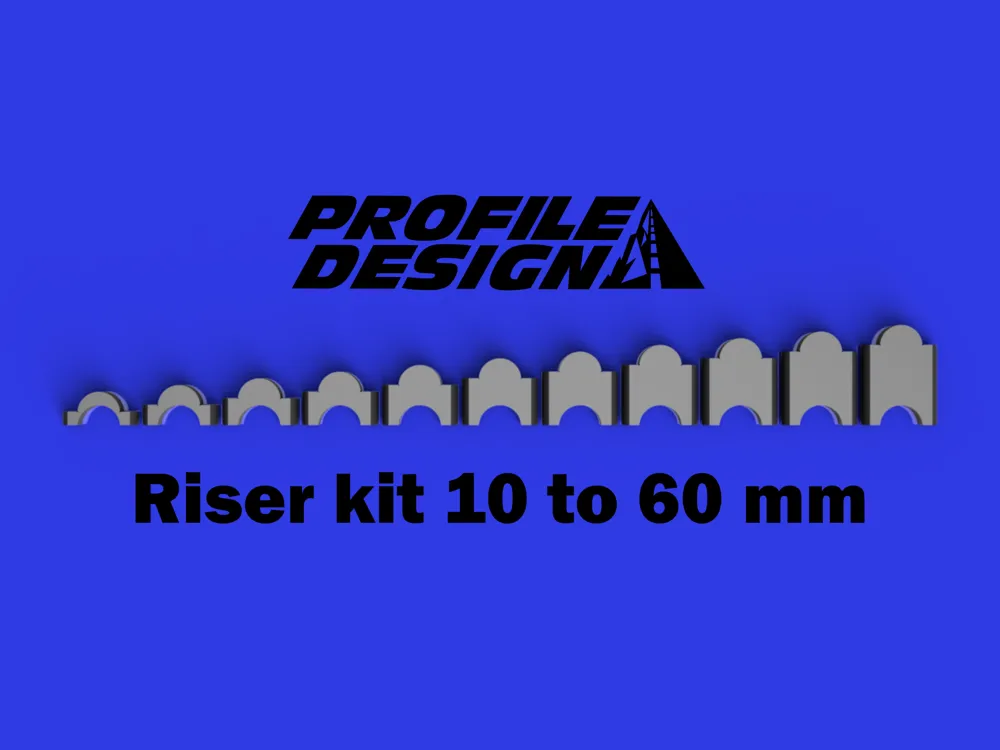

Riser for ProfileDesign aerobars.
From 10mm to 60mm in 5mm increments.
The risers may have a slight flexion on significant heights, it may be necessary to stiffen the assembly with a bridge.
For printing you must load the infill through the perimeters to optimize its rigidity.
It works very well for me but I recommend doing tests before doing long rides to avoid unpleasant surprises.
Riser 10 mm = Bolt 25 mm
Riser 15 mm = Bolt 30 mm
Riser 20 mm = Bolt 35 mm
Riser 25 mm = Bolt 40 mm
Riser 30 mm = Bolt 45 mm
Riser 35 mm = Bolt 50 mm
Riser 40 mm = Bolt 55 mm
Riser 45 mm = Bolt 60 mm
Riser 50 mm = Bolt 65 mm
Riser 55 mm = Bolt 70 mm
Riser 60 mm = Bolt 75 mm
