Quick Change Spool Holder

Summary

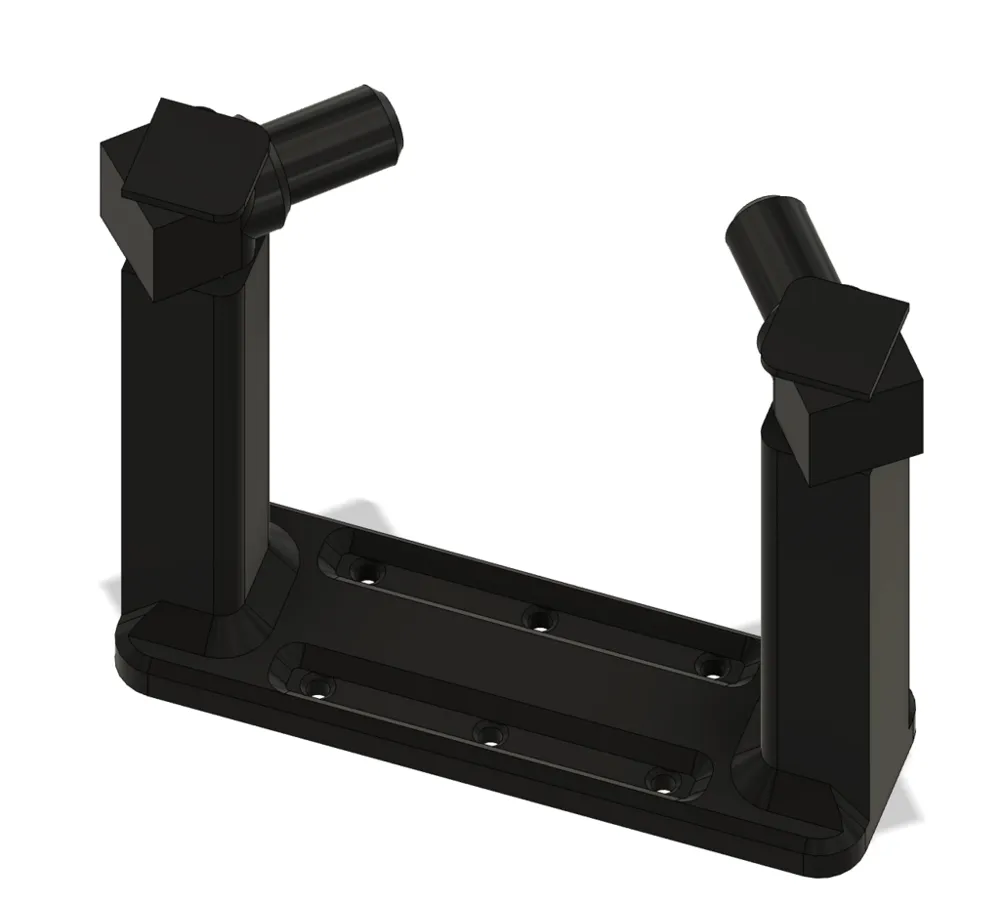

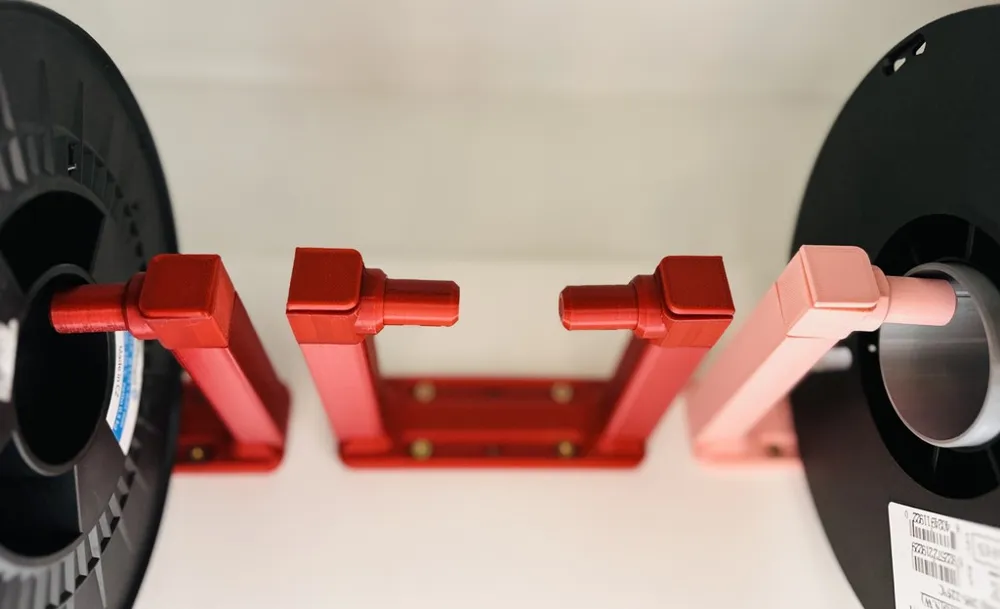

Wall Spool Holder with Quick Change Feature!

Simply slide your spools up to lock and up again to remove. Very easy.

This model is for wall mounting, I provided six holes for screws.

Holds the weight of a 1kg spool easily

Fits narrow (68mm) and large spools (75mm) but smaller spools might need an adapter.

Print:

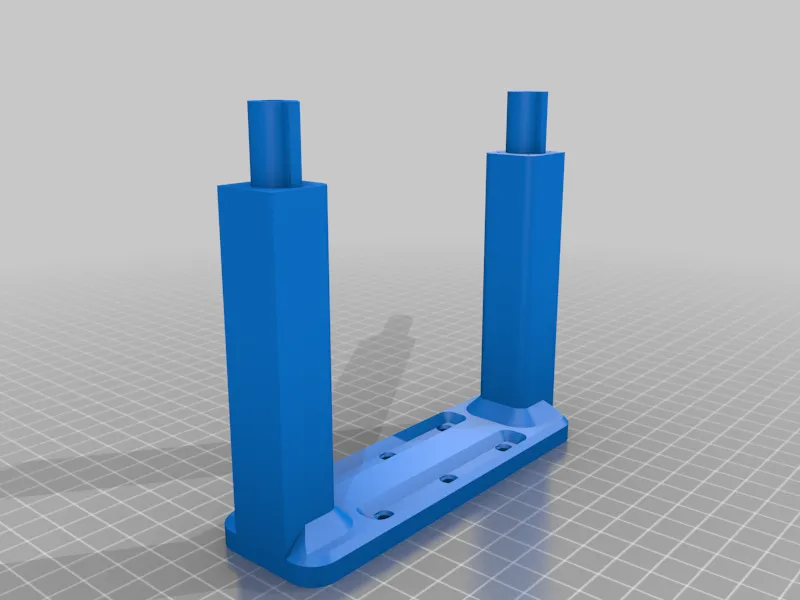

• Body x1
• Arms x2

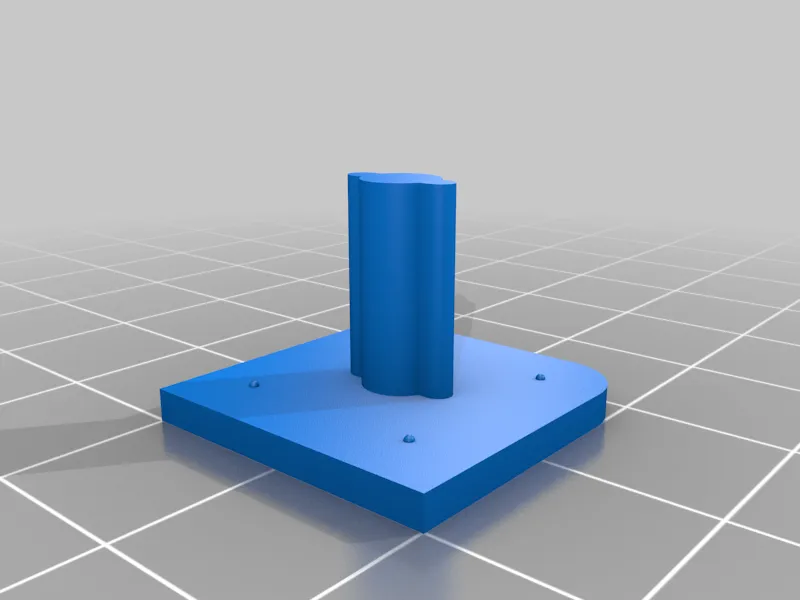

• Top x2

Note: if arms don't go up and down smoothly try making them 1% bigger

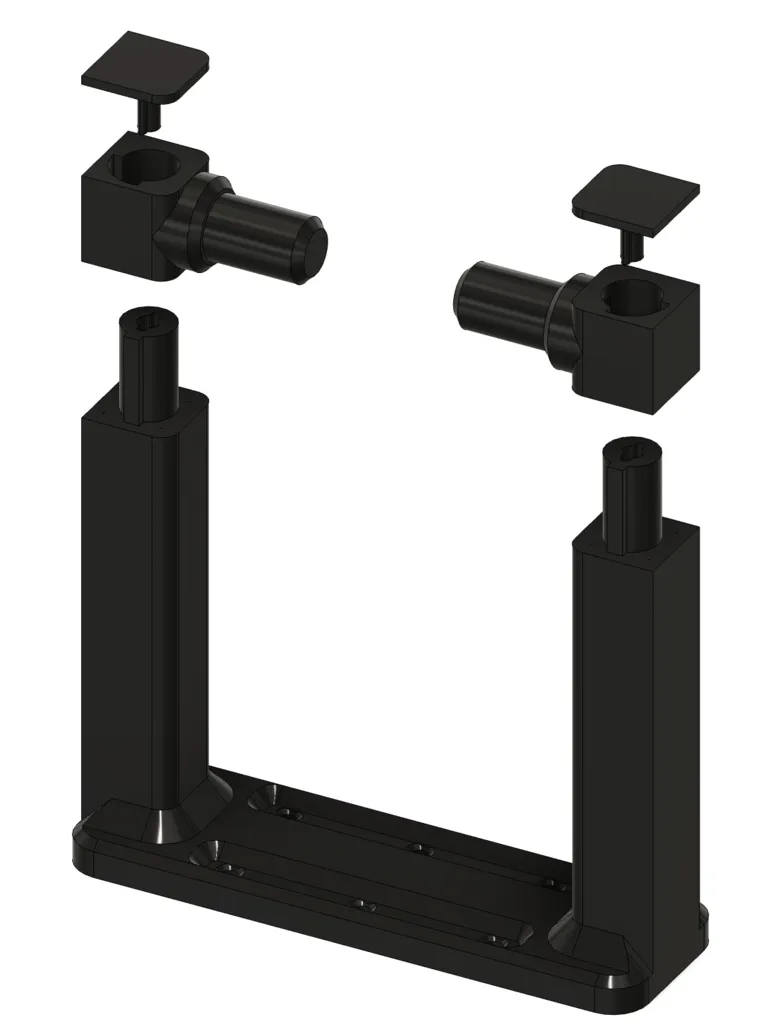

Assembly:

Add the two rotating arms to each sides of the body

The arms must both rotate in the same direction facing each other

If desired add some lubricant

Finally apply superglue to the tips of top part and press it down into the arms

• The fit must not be tight in order for the arms to rotate easily and come back down with gravity

Print Settings

Rafts:

Doesn't Matter

Supports:

No

Infill:

15

Notes:

Printable in PLA or PETG

My settings:

• PLA
• 5 perimeters
• 15% Gyroid Infill
