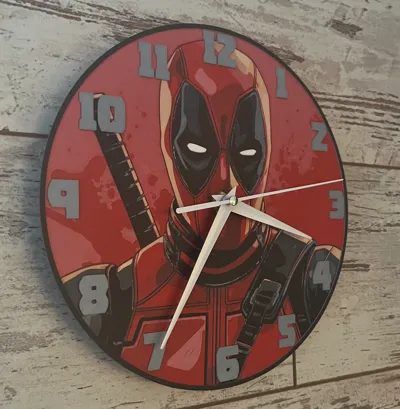

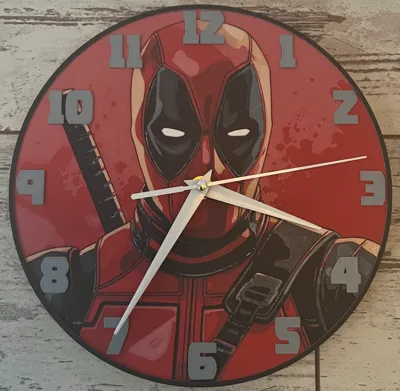

Deadpool Clock Hueforge

4 Color HueForge model. 'Deadpool Clock' filament painting made using Bambu filaments.

if you are not familiar with printing at really fine layers such as 0.04 you will need to lower the print speed on printers like the Bambu

(I recommend the following speed settings for the Bambu with 0.04 layers, inner walls, outer walls and gap infill - 200mm/s, sparse infill, internal solid infill and top surface - 150mm/s)

Print at 100% infill with a layer height of 0.04mm with a base layer of 0.24mm

Filaments Used:
PLA Bambu PLA Matte Charcoal Black Transmission Distance: 0.6
PLA Bambu PLA Basic Jade White Transmission Distance: 5
PLA Bambu PLA Matte Scarlet Red Transmission Distance: 1.5
PLA Bambu PLA Matte Lemon Yellow Transmission Distance: 3

Swap Instructions:
Start with Charcoal Black
At layer #7 (0.48mm) swap to Jade White
At layer #13 (0.72mm) swap to Charcoal
At layer #15 (0.8mm) swap to Scarlet Red
At layer #19 (0.96mm) swap to Jade White
At layer #21 (1.04mm) swap to Lemon Yellow
At layer #23 (1.12mm) swap to Jade White for the rest.

At Layer #39 (1.76mm) swap to Charcoal for the border

At layer #41 (1.84mm) swap to Jade White for the numbers (clock with numbers)

This is a filament blending model, I would recommend trying to match the td as close as possible if not using the exact filaments to get the best results

Use the exact numbers in your slicer to match up properly.

The Model is designed to print with 0.4 nozzle.

**If re-scaling model make sure not to alter the Z height of the model**

add a negative cylinder to the Centre of the model in slicer to create the correct size hole for your movement or alternatively mark the Centre at the rear and drill the required size hole.

Link for the movement that I used is listed below but any standard movement will be fine (be sure to check the size of the hands)

https://www.amazon.co.uk/dp/B0BBLXG55S?psc=1&ref=ppx_yo2ov_dt_b_product_details
