Description

i dont wanted to hot glue my boards to the wall so i downloaded a holder for it

i couldn't find the one i prited but this one should also work

link:https://www.thingiverse.com/thing:3017873

I needed to make a new hole for the usb type c outlet because i needed it going down

And i also had to cut of an edge of it because it wouldn't fit otherwise

8 M3 heat inserts

8 M3 Screw and

https://a.co/d/9CfZ6MB

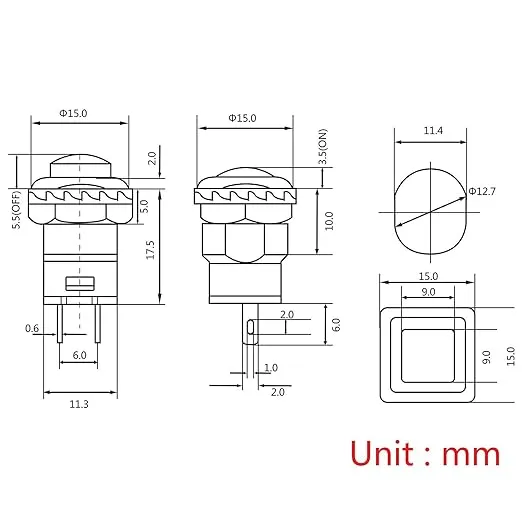

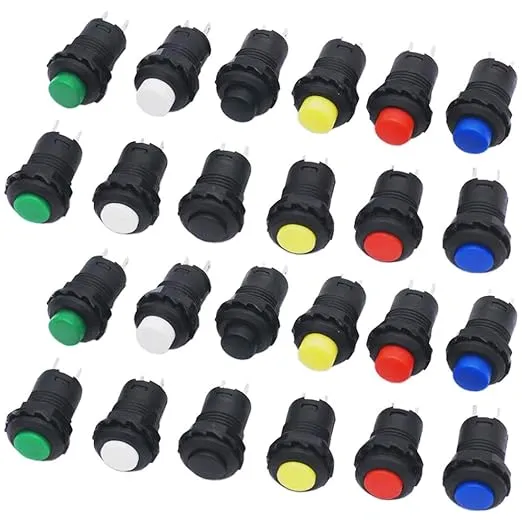

20 Buttons like these

https://a.co/d/2ZC4g84

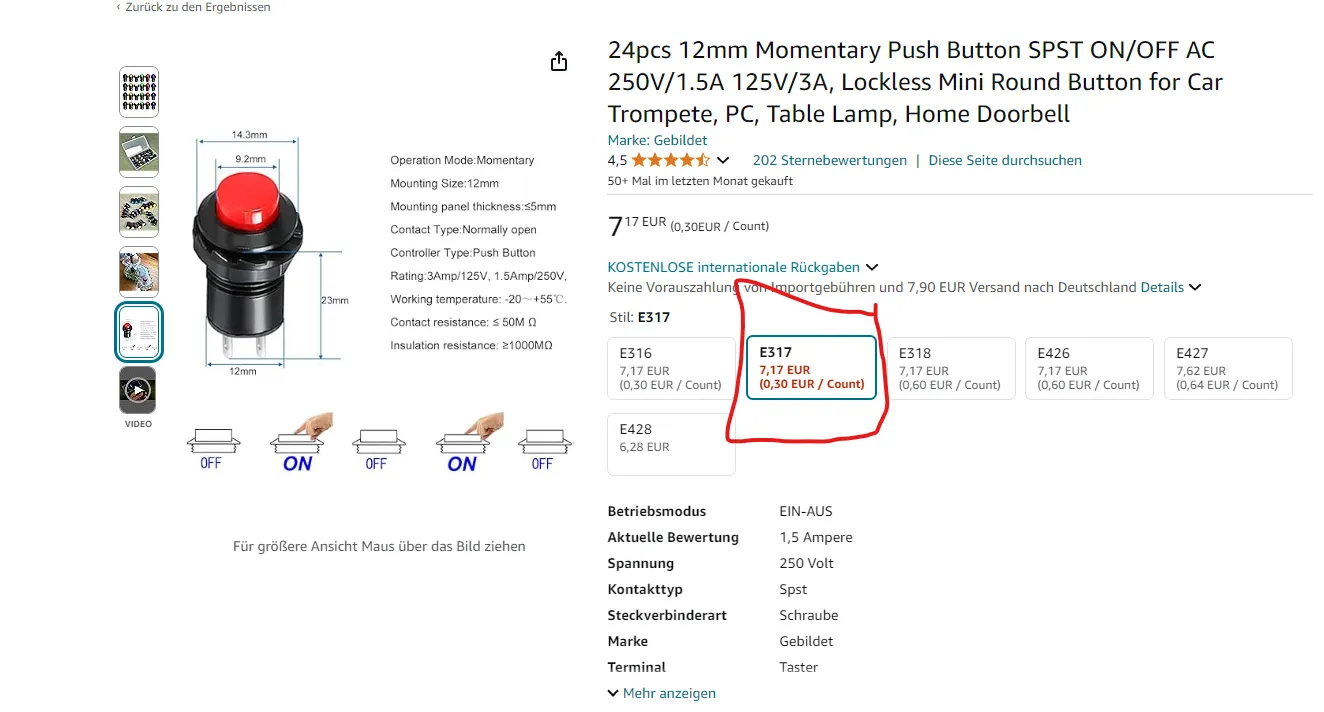

Chose E317 if you want momentary buttons

And also

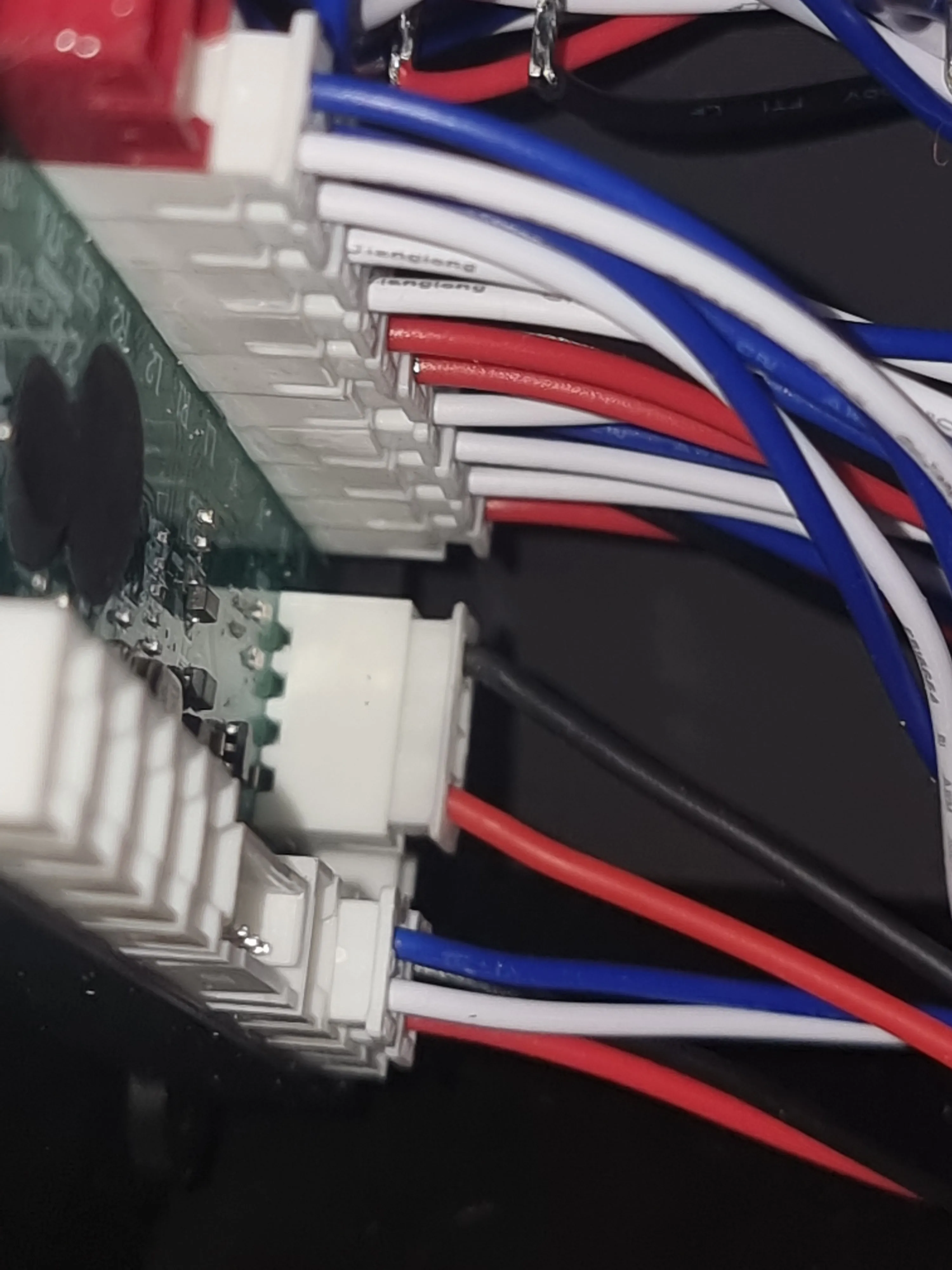

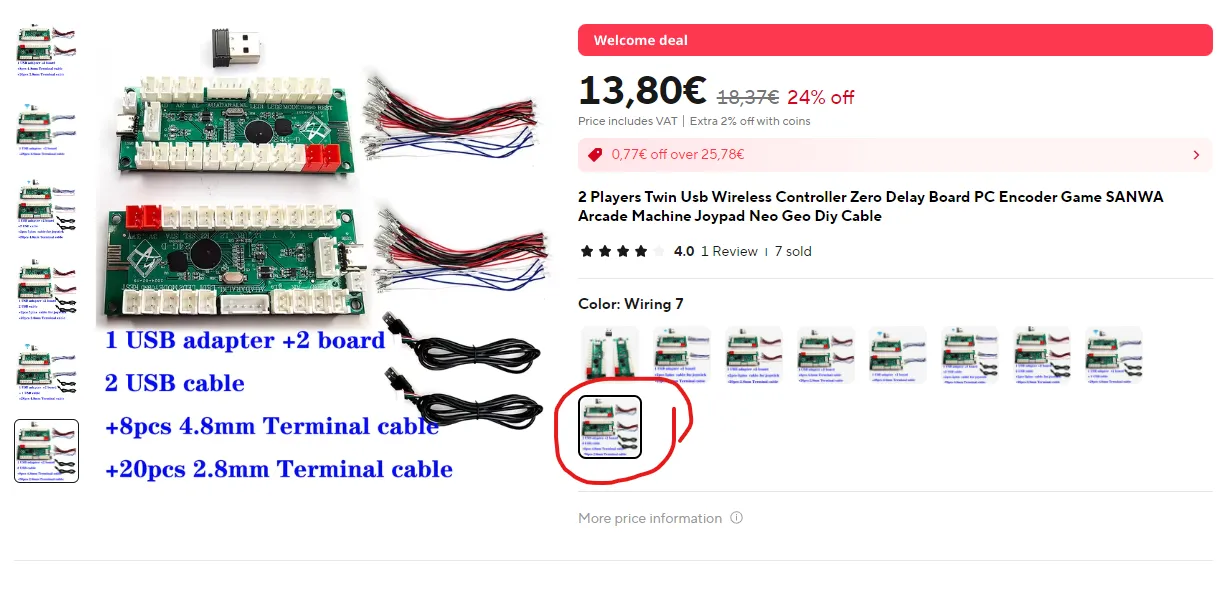

https://www.aliexpress.com/item/1005006749328582.html you dont have to chose wiring 7 but i recommend it

And also

Link: https://www.aliexpress.com/item/1005005353972599.html?spm=a2g0o.productlist.main.15.1ce9c495jEgylT&algo_pvid=daa1e893-b917-4a24-a4ca-6d5146273476&aem_p4p_detail=20240822093144212497120738500000686044&algo_exp_id=daa1e893-b917-4a24-a4ca-6d5146273476-7&pdp_npi=4%40dis%21EUR%215.05%210.99%21%21%2139.20%217.70%21%4021039f3e17243443039411012e1d27%2112000032874815505%21sea%21DE%216001789962%21ABX&curPageLogUid=JFQt12D11nfu&utparam-url=scene%3Asearch%7Cquery_from%3A&search_p4p_id=20240822093144212497120738500000686044_2

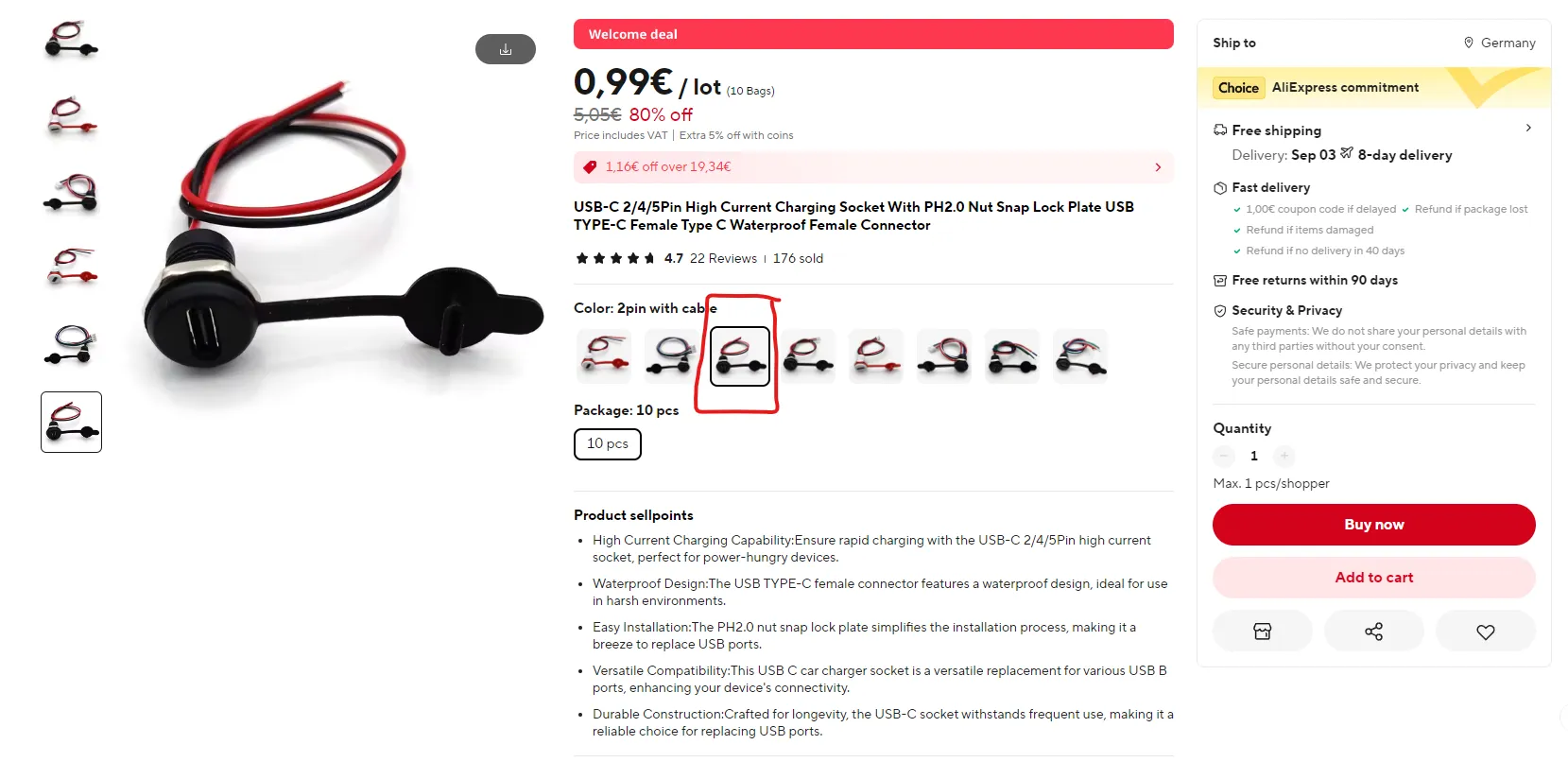

chose 2pin with cable in white or Black
