SRT Hellcat LED Lightbox
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
3.8 h
2 plates
Open in Bambu Studio
Boost
34
77
9
2
89
52
Released
Description

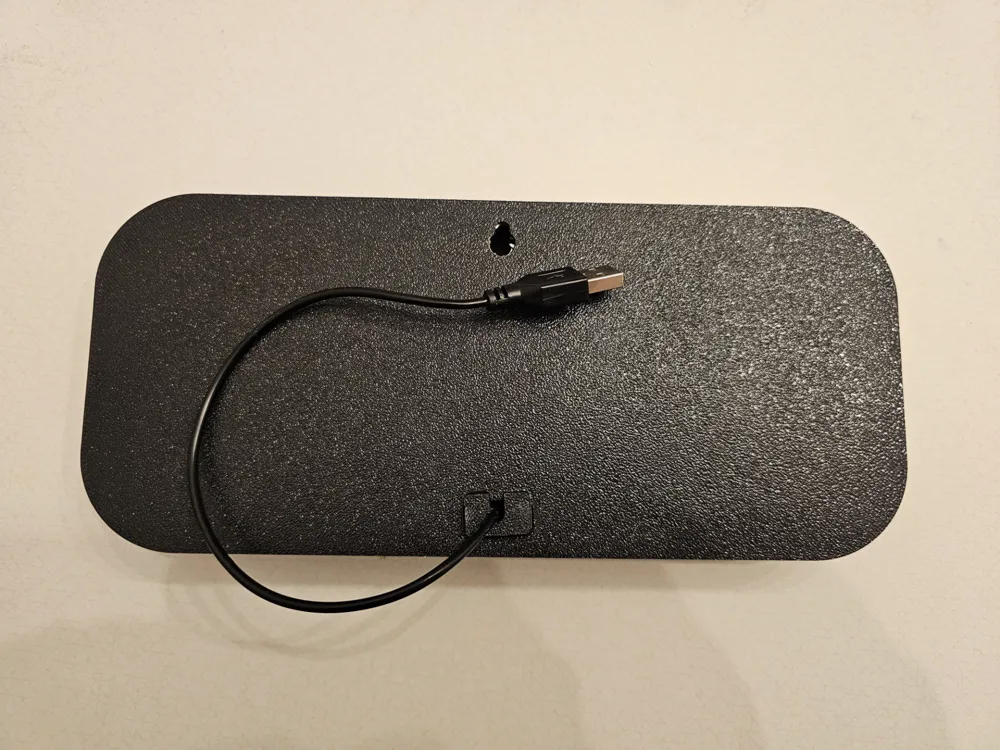

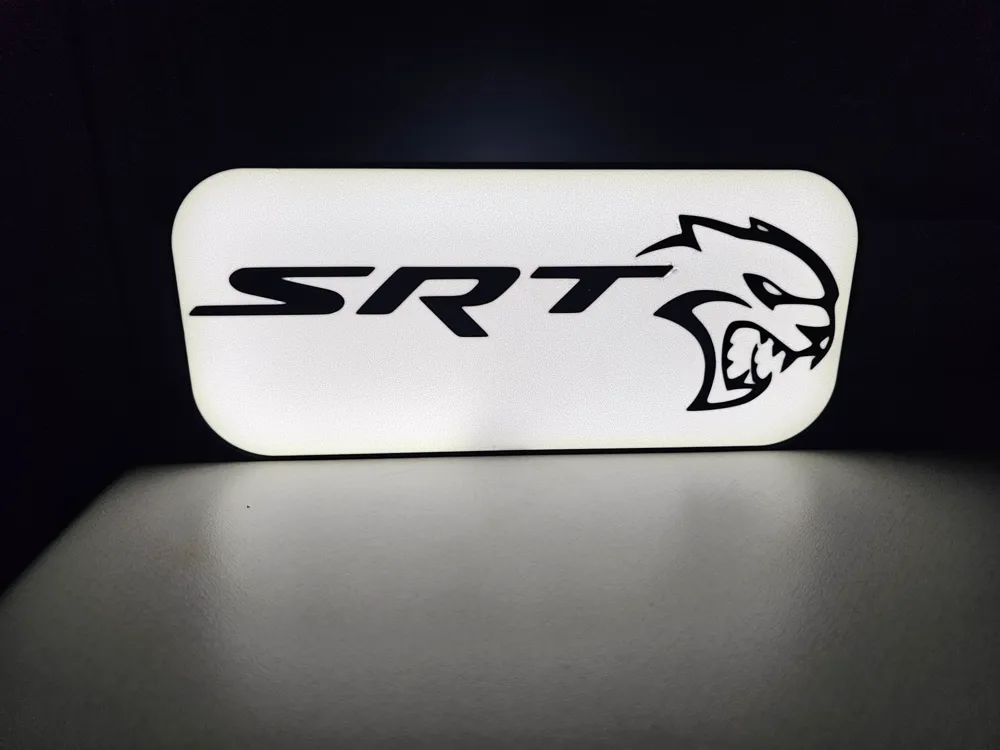

Easy to print, one plate for the lid and one plate for the back. Add a white led strip and you have an amazing light box! I suggest applying aluminum foil tape to the inside of the backplate to maximize light reflectance. The link to the USB hole plug/grommet can be found here LED Lightbox USB Cutout Grommet/Plug
This is the LED Light Strip I use
5V COB LED Strip Light White 6000K
Measures approximately 9.75" wide x 6.5" high x 1.25" deep
LED Lightbox designed in Fusion 360
Print settings
Nozzle: 0.4
Layers: 0.2
Infill: 15%
Print face down on Textured PEI plate
Arachne Wall Generator
Print White First
Likes, Boosts, and downloads are appreciated!
