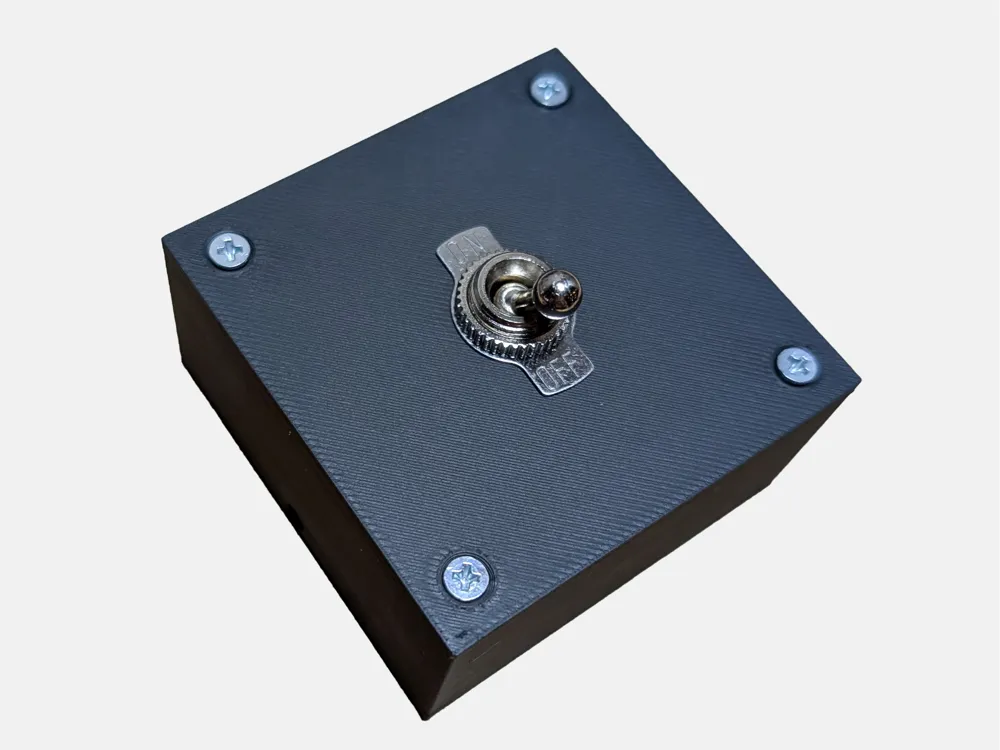

Toggle Switch for BentoBox

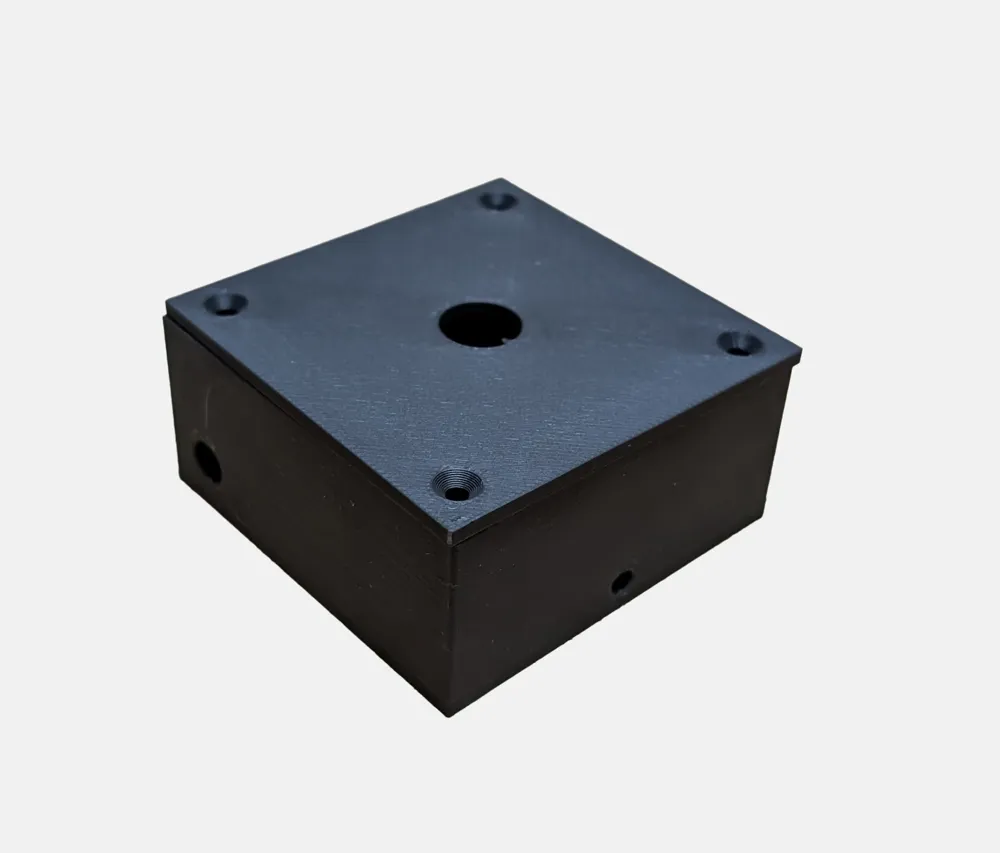

I designed this toggle switch housing specifically for my Bentobox v2.0 but could be for anything that needs a toggle switch!

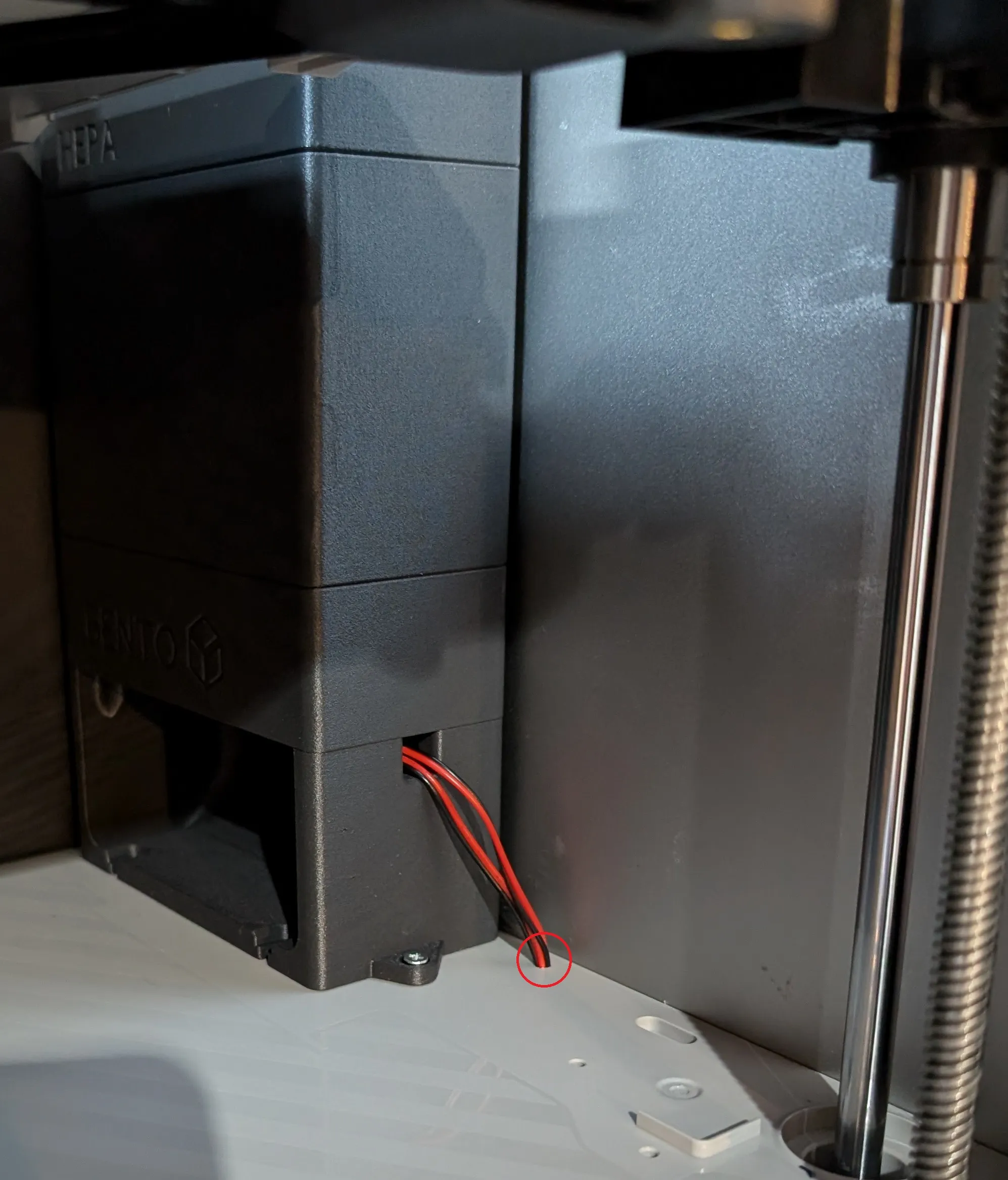

The fan wires from the Bentobox can be routed through the holes already present on the printer. No need to drill.

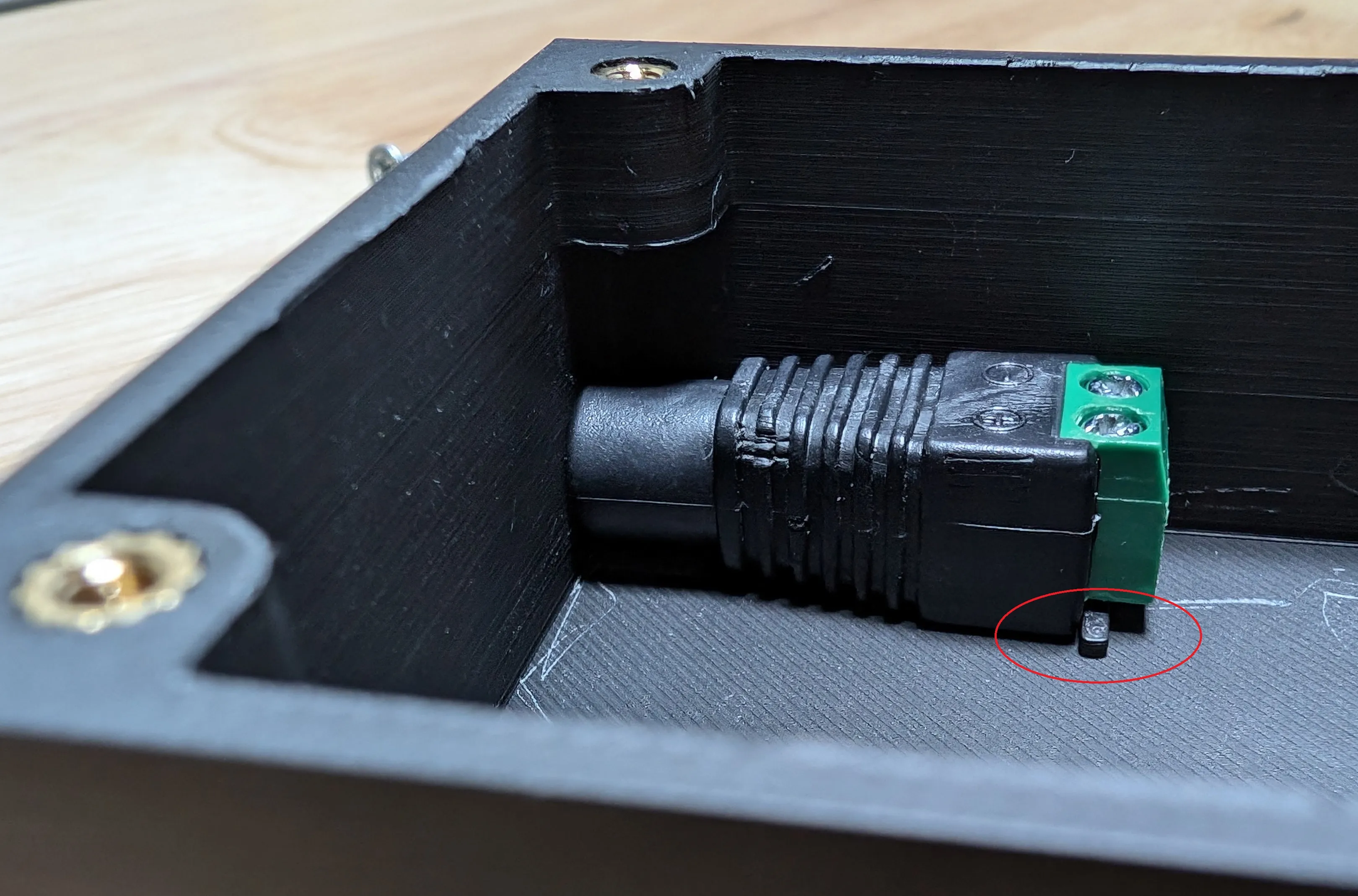

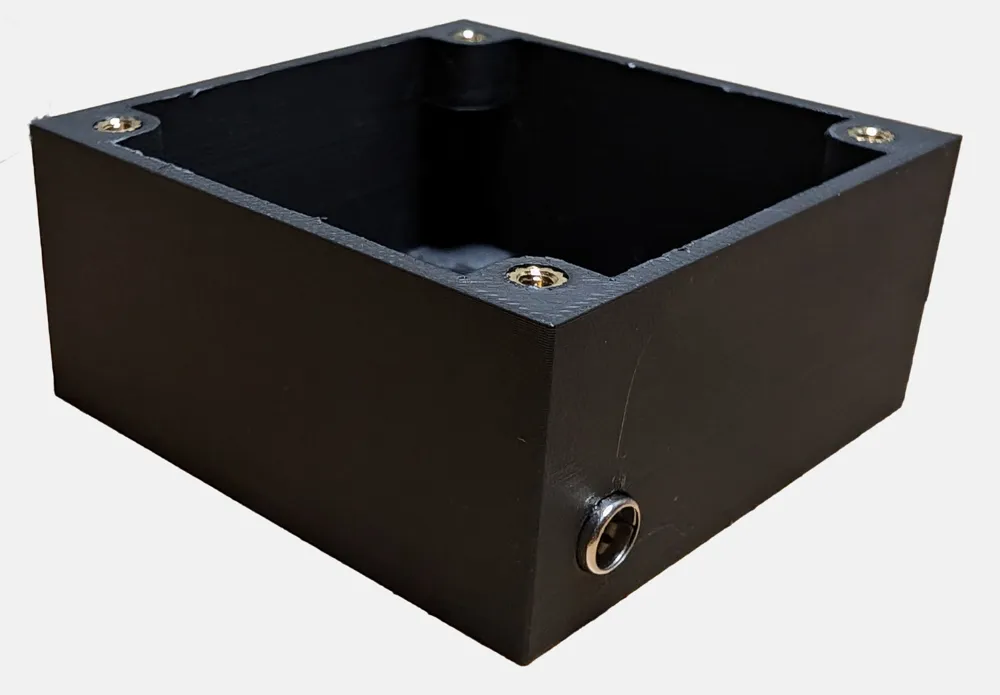

Any toggle switch will work. However, I designed the rear hole and spacing specifically for the power connector that came with my 24v power supply. It fits snugly into place(https://www.amazon.com/dp/B09281KTS8?psc=1&ref=ppx_yo2ov_dt_b_product_details)

Female barrel plugs can be purchased separately if you already have a suitable power supply!

Printed in PLA with supports.

0.2mm Layer Height

3 walls

15% infill

Gyroid

Supports on: Stand auto, snug.

BoM:

4x M3 heated inserts

4x M3x8mm Flathead screws

1x Toggle Switch (https://www.amazon.com/gp/product/B00004WLK8/ref=ox_sc_act_title_1?smid=ATVPDKIKX0DER&psc=1)

1x 2.1mm x 5.5mm Power Connector (https://www.amazon.com/gp/product/B07C61434H/ref=ox_sc_act_title_1?smid=A2C232BUL391Z5&psc=1)
