Drill Press Dust Collector with Flexible Hose

Introduction

Thanks to thosa, Makers Manual and teslapunk for the inspiration to create this drill press dust collection model. Other models are also good, and while they all share the similar thought platform, I have gone ahead and created parts from zero to come up with a solution that is modular and has solutions to a wide range of work situations.

Designed for

• Adjustable Column/Pillar Clamp: Easily moved and fixed with knobs, simplifying the adjustment process.

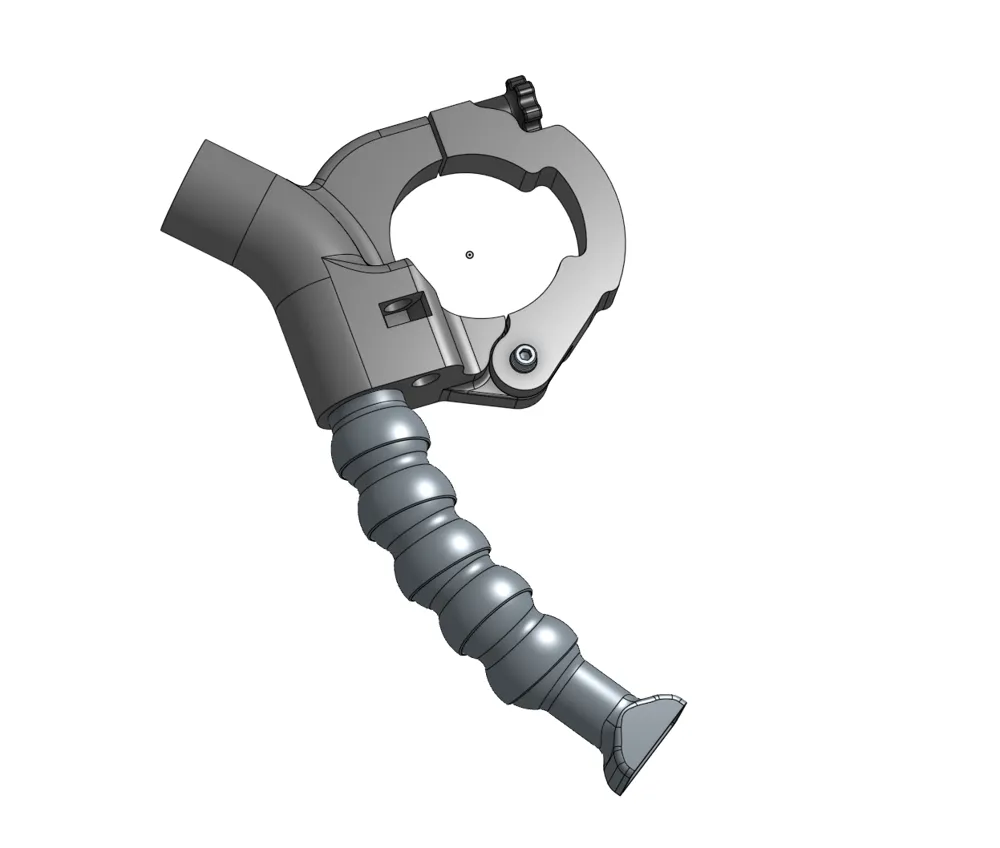

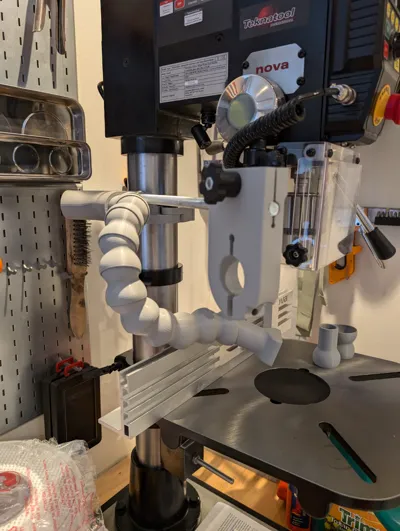

• Versatile Dust Collection: Efficiently collects dust whether working on large or small items using a flexible hose.
• Flexible Positioning: The column/pillar clamp can be attached to both the upper and lower parts (with rack), accommodating odd-sized items.

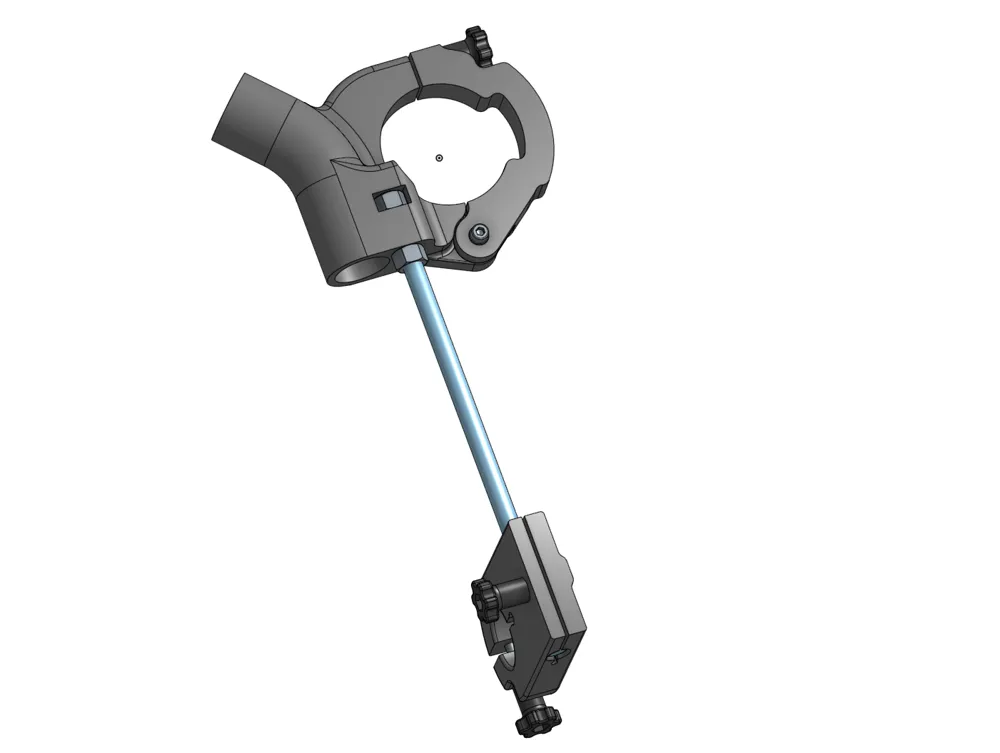

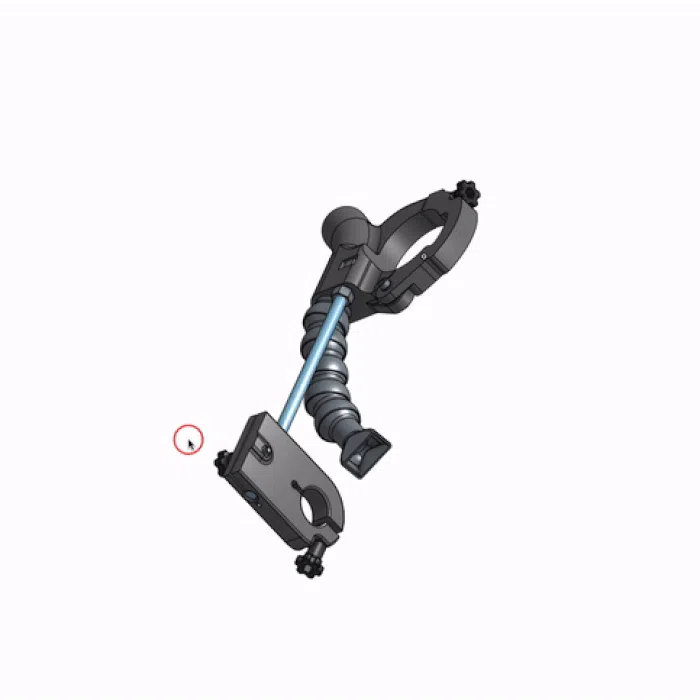

• Extension Arm: Supports dust collection when drilling items requiring a longer vacuum hose.

Important dimensions

• Column/Pillar Clamp Vacuum Hose Hole: 35mm diameter, suitable for a vacuum hose end.
• Column/Pillar Diameter: Fits drill columns/pillars with an 80mm diameter. Note that I have now also added a print profile for column diameter:
  • 92mm
  • 90mm
  • 78mm
  • 73mm
  • 65mm
  • 58mm
  • 48mm
  • 40mm

Parts for assembly

Part 1: Column Base & Clamp

• 2 x M6 Nuts
• 2 x M6 Threaded Rods
• 2 x M6 Knobs

Part 2: Flexible Hose - available here


Part 3: Extension Arm (Optional)

• 2 x M12 Nuts
• 4 x M6 Nuts
• 2 X M6 Threaded Rods
• 1 x M12 Threaded Rod (Length is determined by your needs)
• 2 x M6 Knobs

Part 4:  To support the use for the Drill Press Dust Extraction solution in small shops where wet/dry vacs are installed please use this vacuum 2-1-2 hose adapter insert adapter for 2-1-2 hose

My printing configuration if you should decide to print on other than Bambuu Lab Printers.

• Nozzle: 0.4mm
• Layer Height: 0.20mm
• Infill: 45% if you are expecting to use the Extension Arm. Otherwise 25%
• Supports: Yes
