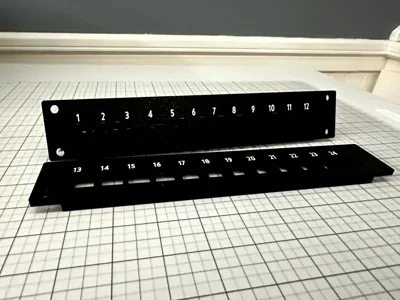

10in Server Rack Patch Panels 1u 12 Keystone Jacks
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
6.8 h
4 plates
V2 Slots! 0.2mm layer, 3 walls, 10% infill
Designer
4.9 h
4 plates
Open in Bambu Studio
Boost
318
1359
115
65
2 k
1.1 k
Released
Description
Designed to work with and match my other 10 inch server rack components: Omada Panels and EU2251 Modem

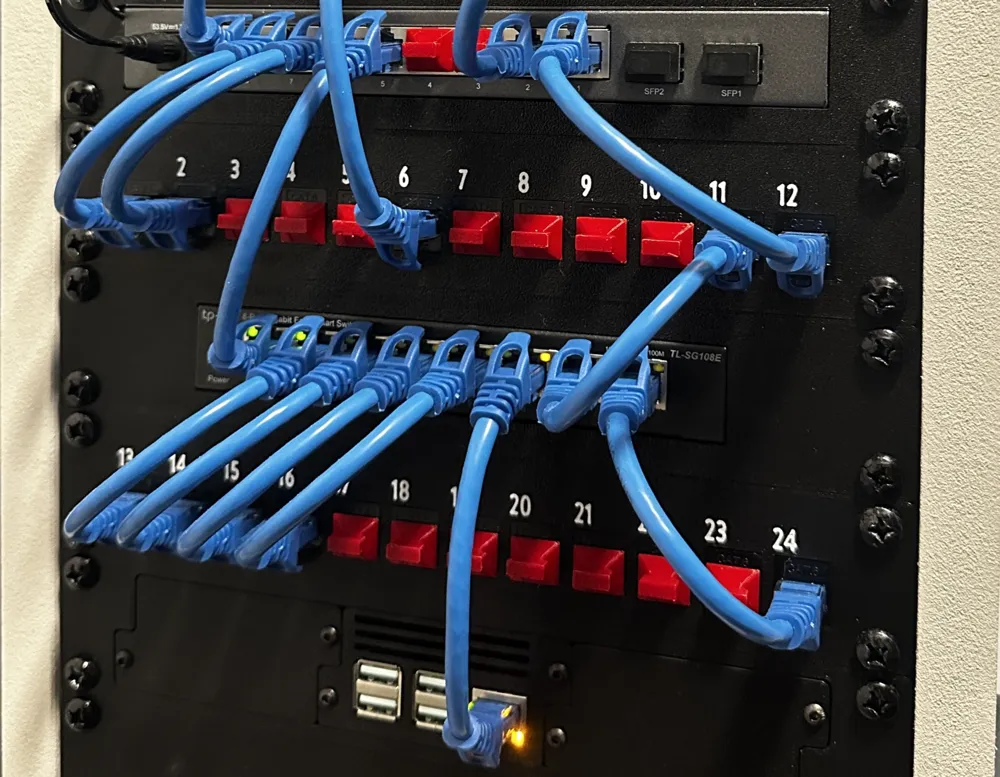

I needed 24 ports and just ordering the keystone couplers and printing these frames made the setup more uniform and saved a lot of money.
NEW V2 print profile includes slots for the screws to accomodate slightly varying rack dimensions.
Components used (Amazon affiliate links, I get a small commission which I'd greatly appreciate!)

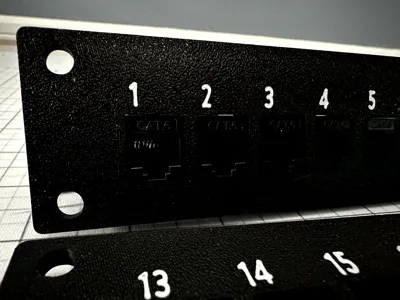

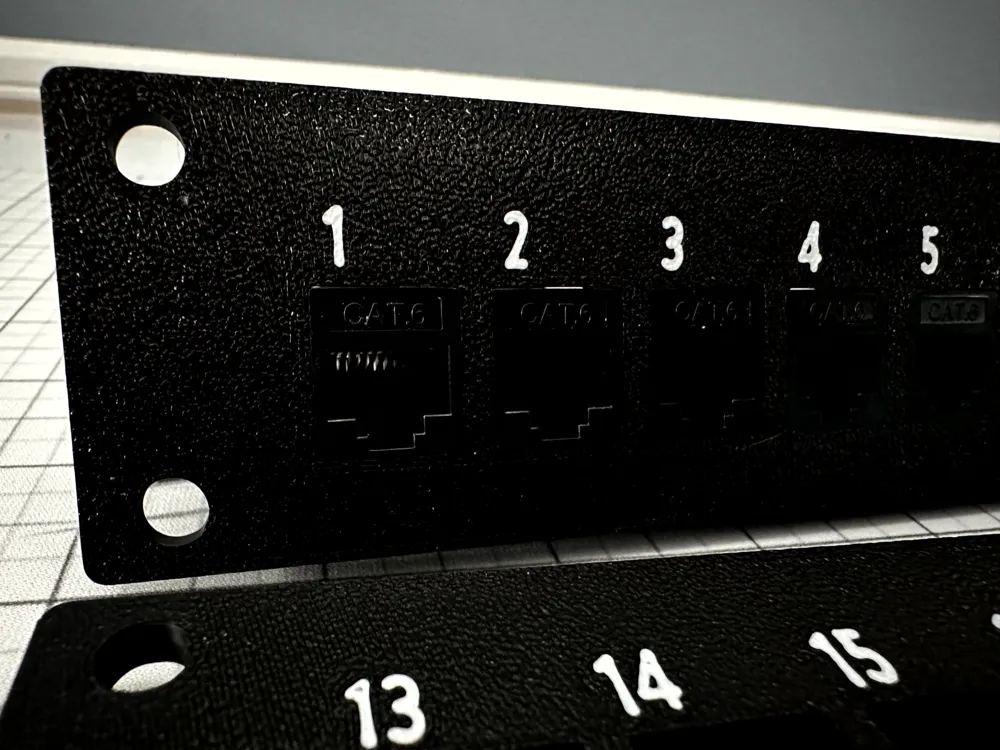

Cat6 RJ45 Keystone Couplers 24 pack: https://amzn.to/48uXo77
6" Cat6 Patch Cable Blue: https://amzn.to/47XngbA
12" Cat6 Patch Cable Blue: https://amzn.to/4mxUiT7
10u Rack Rails (with screws): https://amzn.to/3W3YY8y
