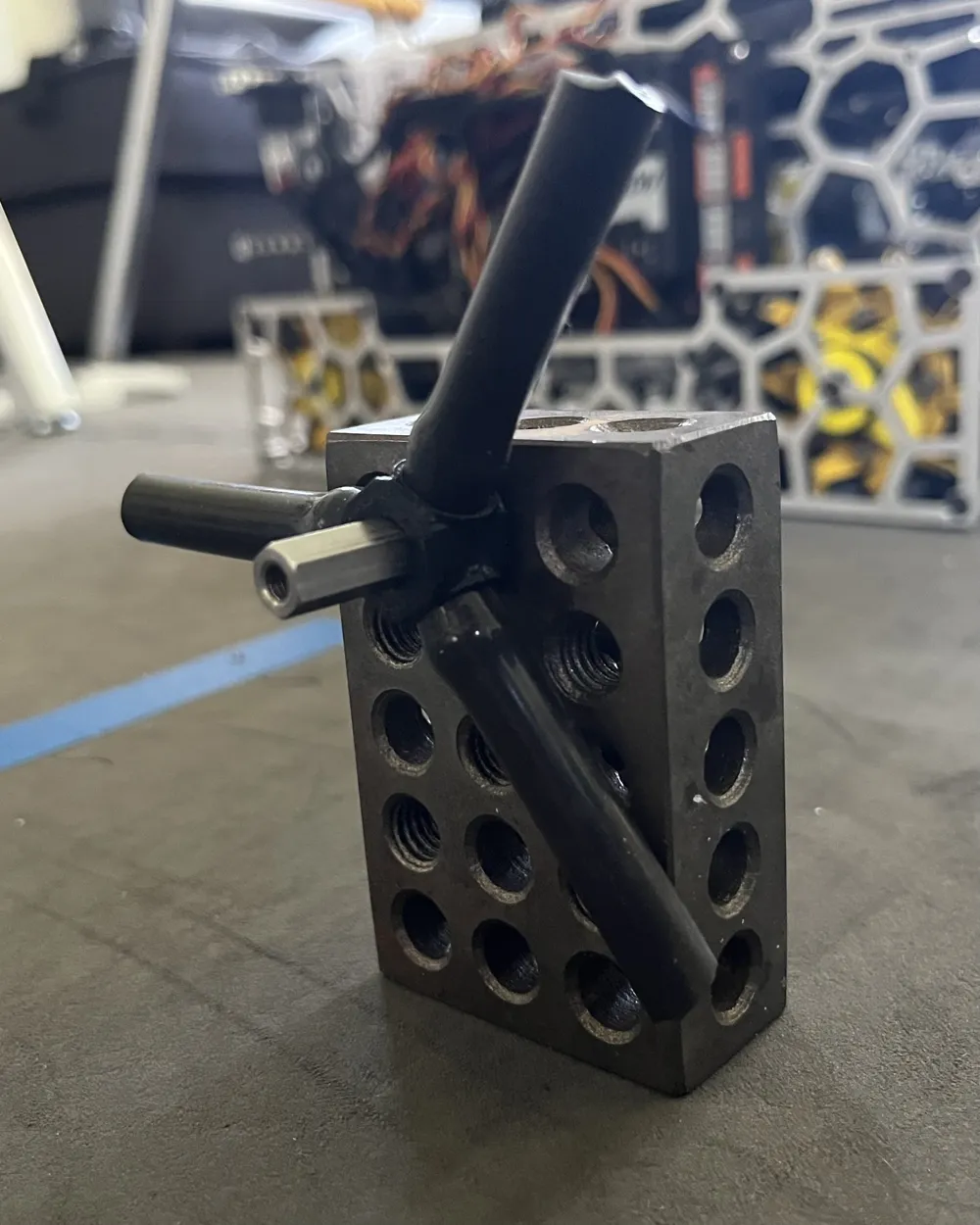

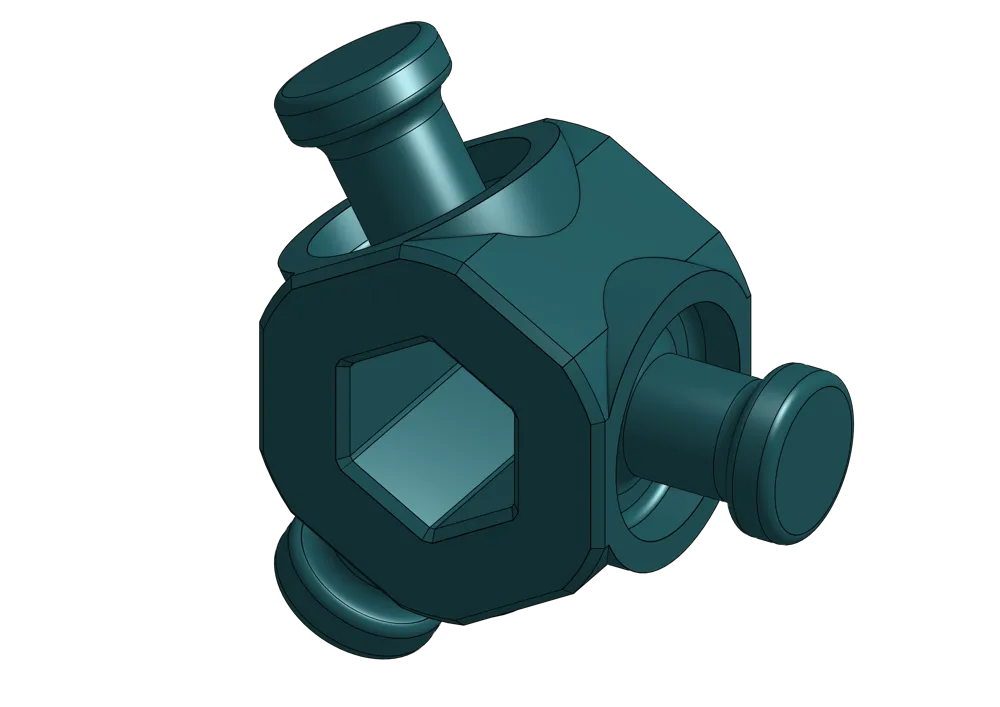

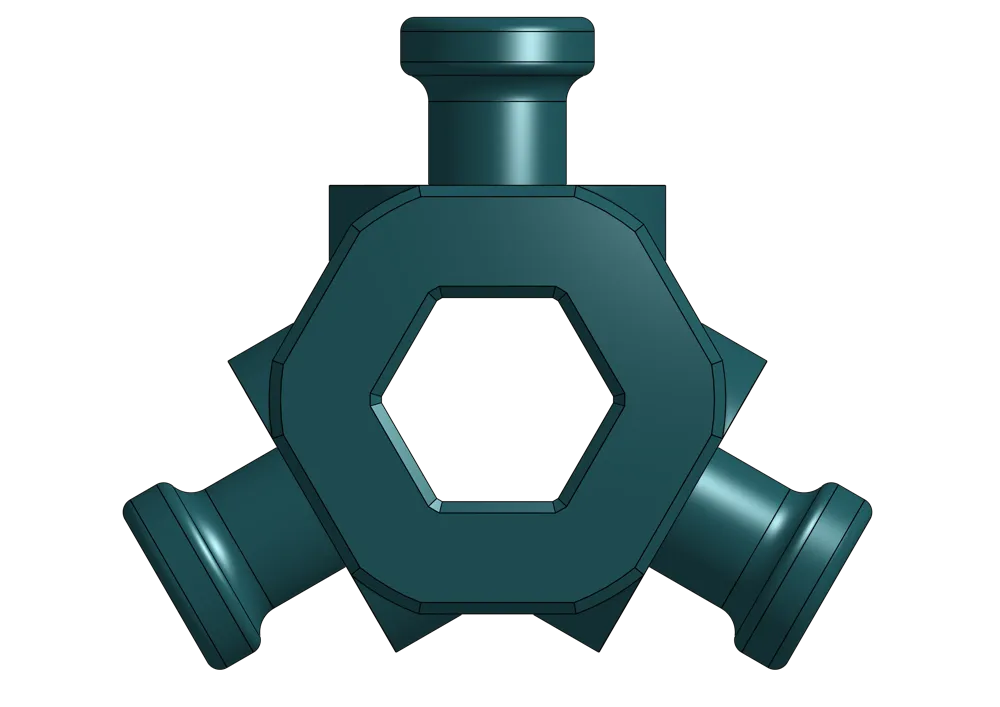

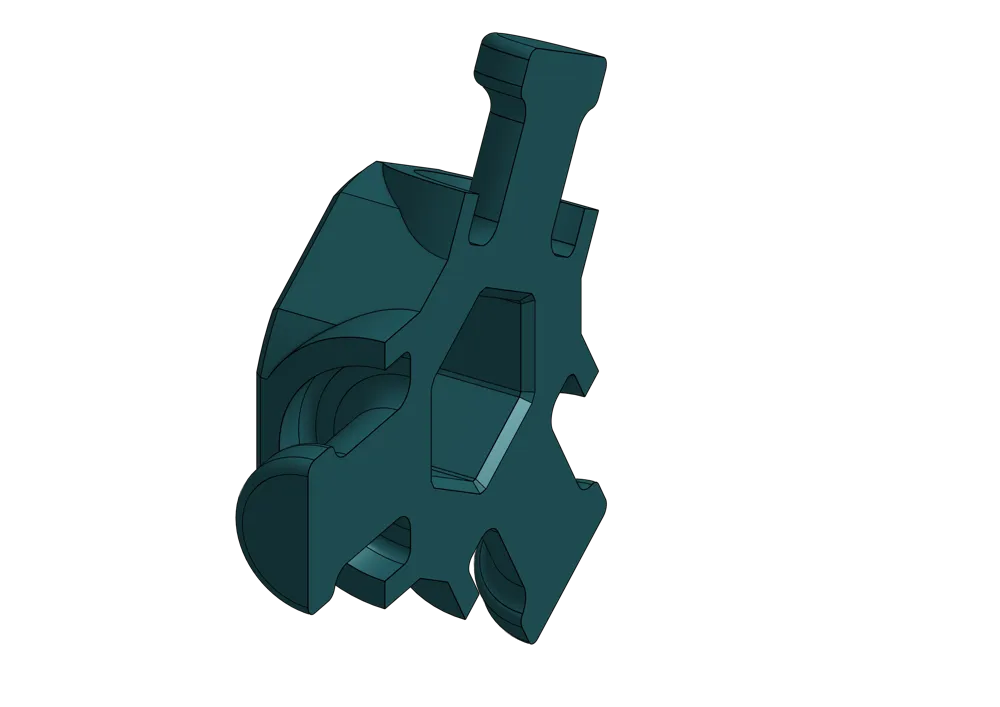

Tired of having to submit a form to gain access to optake? I'm publishing what I found to be the most common design. To use, print 2 of these optakes, and slide them on the shaft facing each other, no supports are needed!
-----------------------------------------
Recommended print settings are: PETG or ABS, .2mm layer height, 4 top and bottom layers, 3 side layers, 40% infill.
-----------------------------------------
If you want to use other configurations of this design, go to https://cad.onshape.com/documents/0267c13a508c61819e4973b4/w/670e913cf8aec1a5d4745c33/e/1dd12bd2829f9d7d9aa8783a
