Cable Channel Covers for Bambu Labs P1S 2023 by RoyalT

RoyalT

3D Printer>3D Printer Accessories

Print Profile(4)

All

P1S

P1P

X1 Carbon

X1E

One Plate - 0.2mm layer, 3 walls, 10% infill

Designer

1.7 h

1 plate

4.8(40)

1 side per plate - 0.2mm layer, 3 walls, 10% infill

Designer

1.8 h

2 plates

4.6(8)

One Plate - ABS - 0.2mm layer, 3 walls, 15% Gyroid infill

1.8 h

1 plate

5.0(2)

ASA One Plate - 0.2mm layer, 3 walls, 10% infill

1.8 h

1 plate

Boost

218

226

160

Released

Description

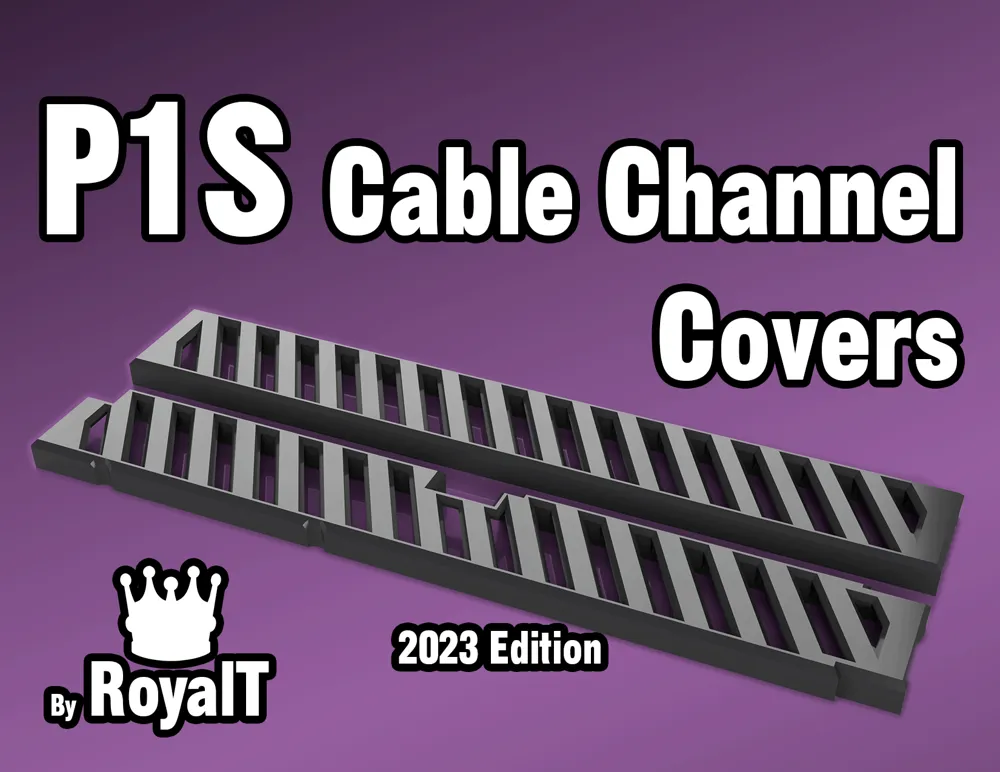

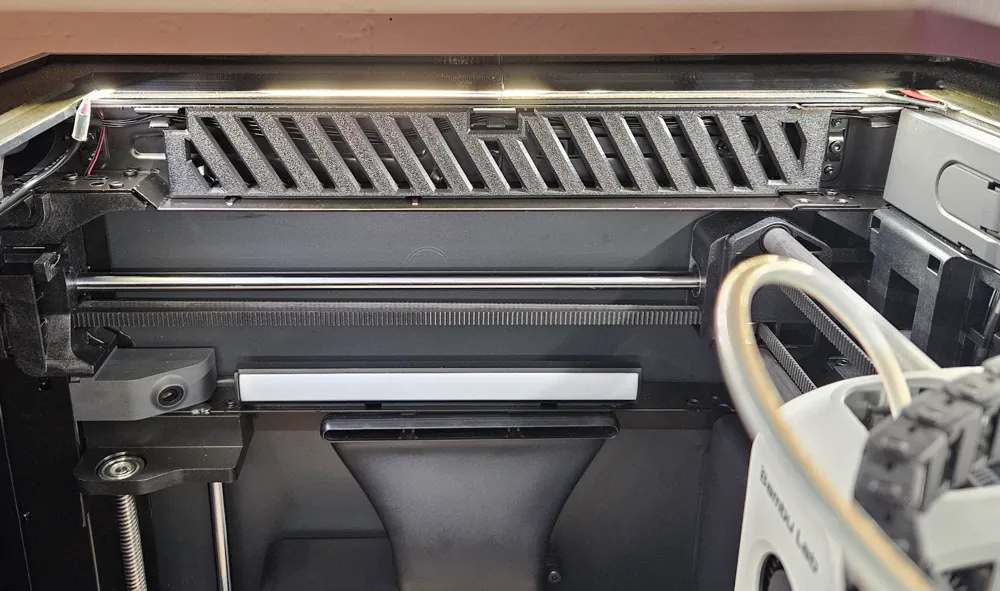

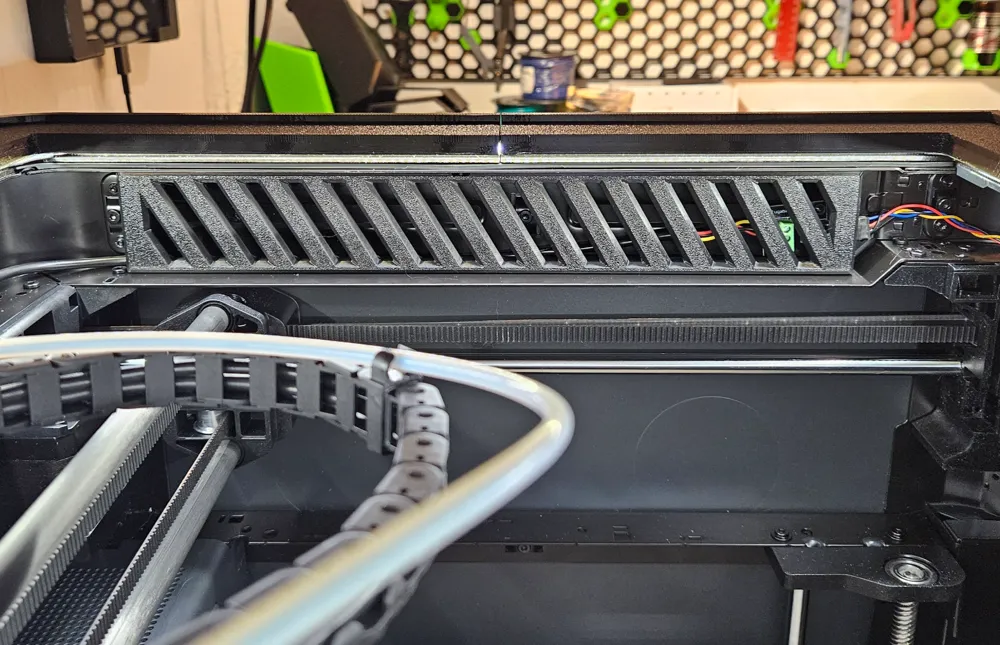

Panels to cover the cable channels running along the top left and right edges of the Bambu Labs P1S 2023 models. The other cable covers I found seem to be made for an older version of the P1S or P1P as they did not fit my machine correctly. These panels are compatible with the latest edition of the P1S (End of 2023).

I have uploaded two print profiles. The first includes both left and right cable channel cover panels on one plate. The second has the left and right panels each on one plate. You can always Download the STL to print however you prefer as well.

Recommended print settings (100% scale, 0.4mm nozzle)

Material	ABS, ASA, or PETG
Infill	10% Support Cubic
Elephant foot compensation	0.15 mm
Supports	None
Brim	None

Make sure you use a filament that can withstand 60c temps. PLA will be a no-go if you print materials like ABS that require high chamber temps. The chamber temps regularly reach 60c+, when the build plate is set to 90-100c with the door closed, at the top of the case where the panels sit. ABS and ASA would be good choices for this print. You could probably get away with PETG or PETG-CF too if you don't do much high-temperature printing.

This is my first public release so any critiques or suggestions are more than welcome!

I ❤️ My Bambu

Comment & Rating (54)

@treecewx

Print Profile

One Plate - 0.2mm layer, 3 walls, 10% infill

Printed perfect in BL PETG and fit excellent.

@johnfcooley

Print Profile

One Plate - 0.2mm layer, 3 walls, 10% infill

printed well. used PETG-CF.

@LyzGameArt

Print Profile

One Plate - 0.2mm layer, 3 walls, 10% infill

Looks great

@dwisetiyadi

Very nice design, thank you for share it. I used Polymaker ABS filament.

@Reiskeks

Print Profile

One Plate - 0.2mm layer, 3 walls, 10% infill

actually not necessary at all XD...but I really like the Look and it's giving me a more secure feel about my printer...I had to cut off a Corner, because It doesn't fit, but absolutely No big Deal at all.
