Top mount A1mini spool holder w/Creality weight

Print Profile(1)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 6 walls, 25% infill
0.2mm layer, 6 walls, 25% infill
Designer
4 h
1 plate
3.0(2)

Open in Bambu Studio
Boost
8
23
3
1
31
4
Released

Description

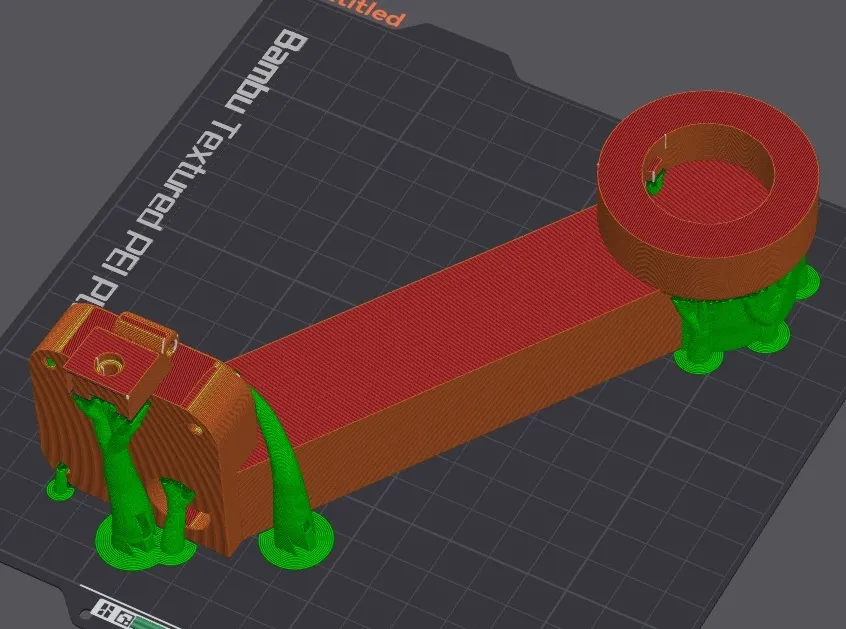

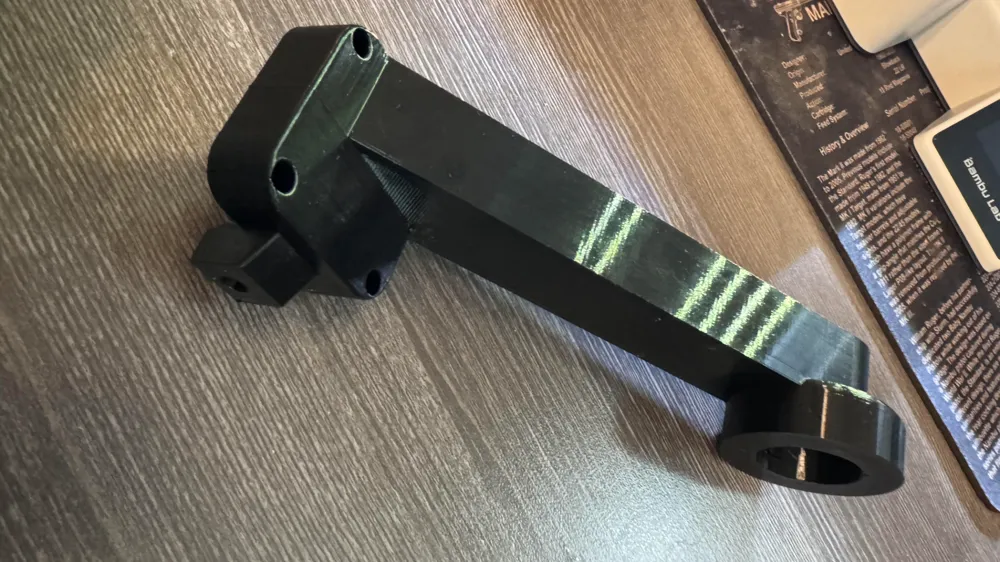

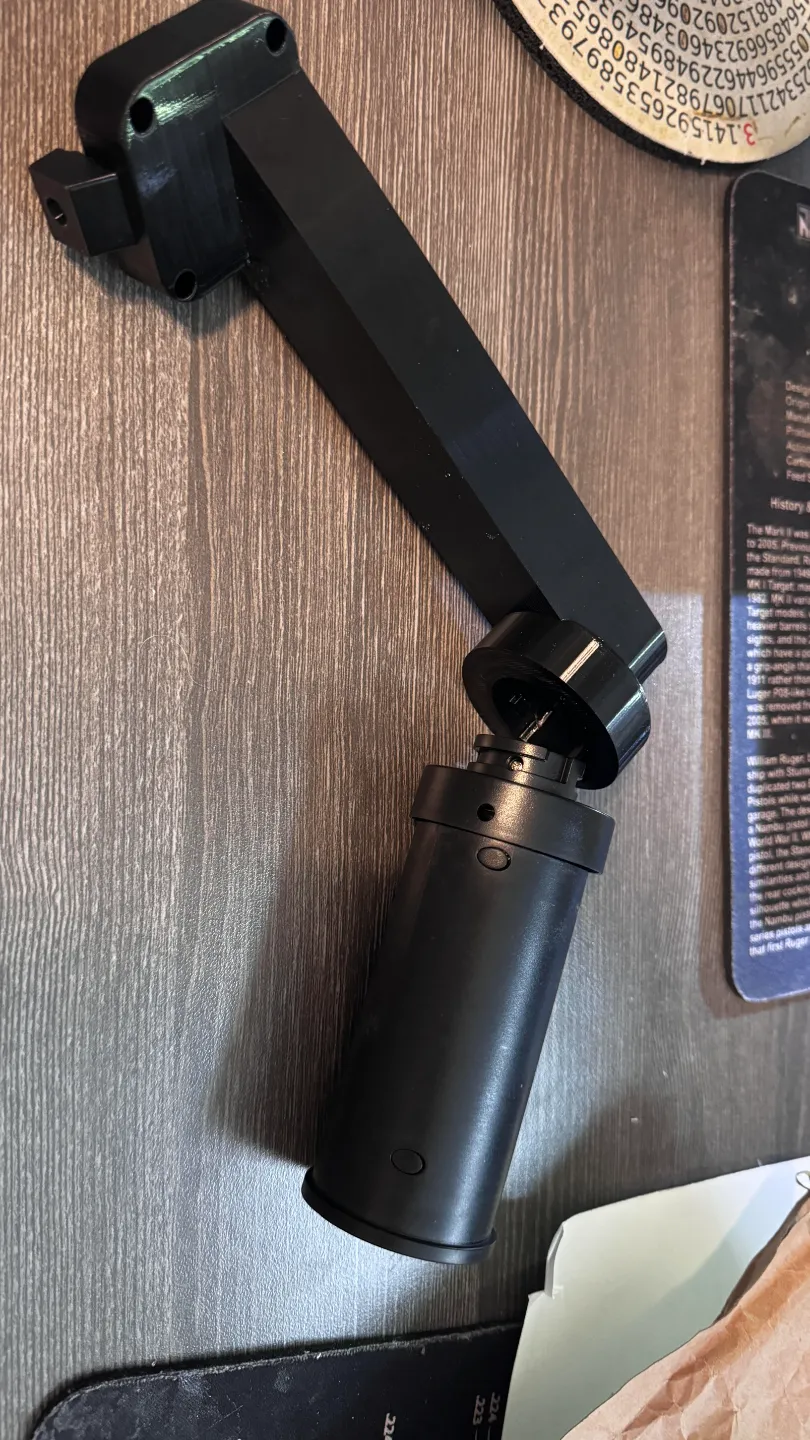

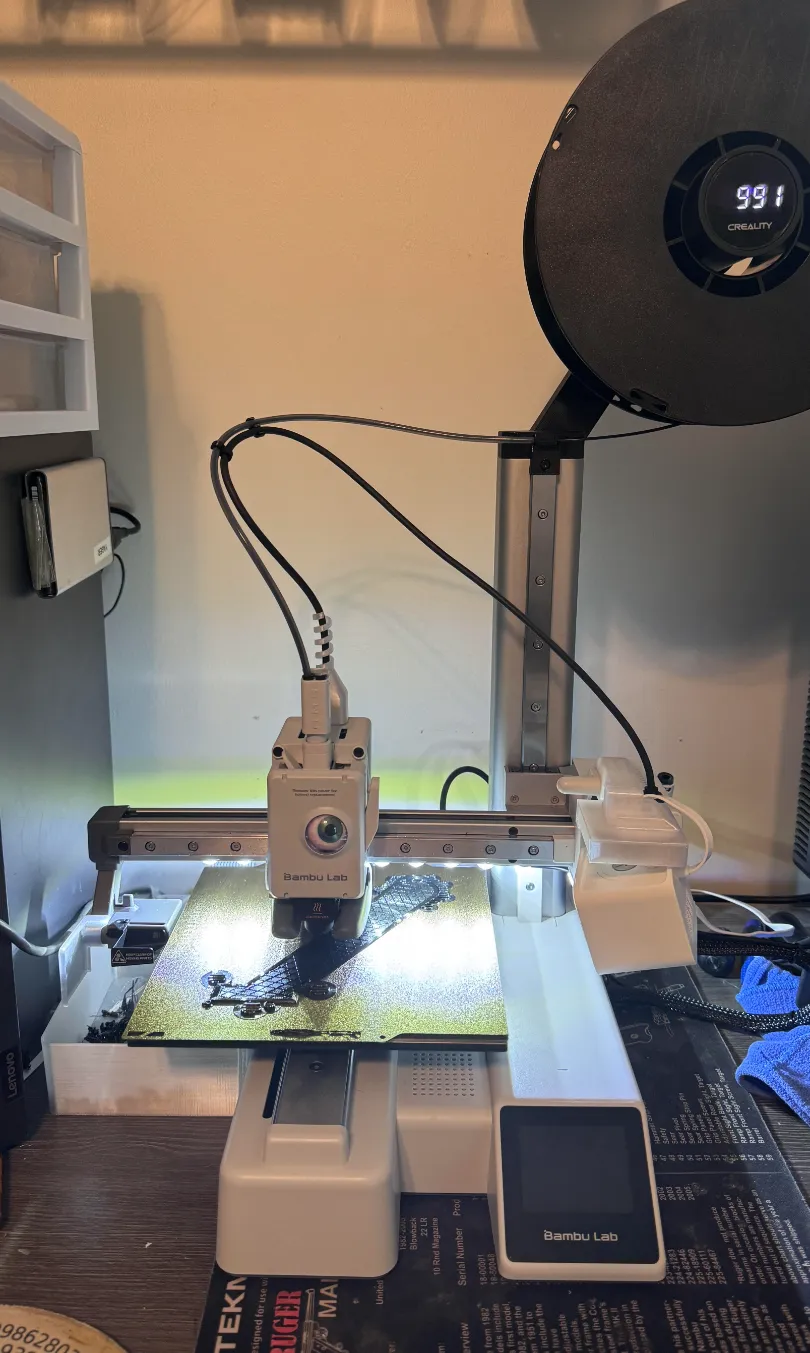

Top mount tool holder that uses the Creatlity spool weight gauge. I ended up keeping the provision for a Bowden tube due to the spool free spooling when the print head snatched on it. You don't have to use it if you don't want to. I tried other designs but they either hit the print head during a cut at full height or they made the printer very tippy with a full spool on. I felt the 45 degree angles that other designs used made it tippy so I leaned the post more vertical to 58 degrees. Printed on the a1 mini on it's back, 25% infill, 0.2 strength, with supports, Z-top distance at 0.4 and supports popped right off.
