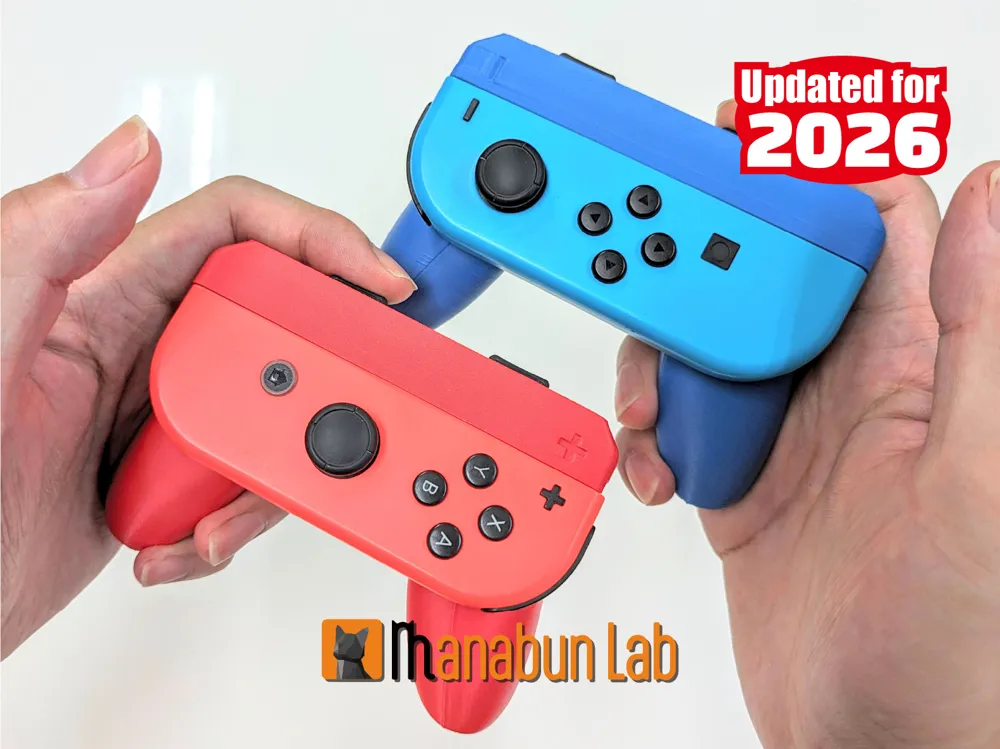

This Joycon grip is an updated version of the data I posted on Thingiverse in 2018.
https://www.thingiverse.com/thing:2769344

If you wish to sell prints, please obtain a commercial license from here:https://www.patreon.com/Manabun_lab

Although a successor to the Nintendo Switch is expected to be released in 2025, the current console is still very much in use. I felt that there is still a demand for this Joycon grip, so I made the following improvements and released it as new data.

Modifications:

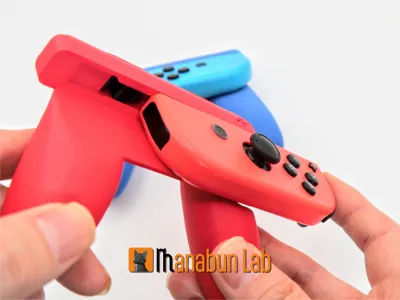

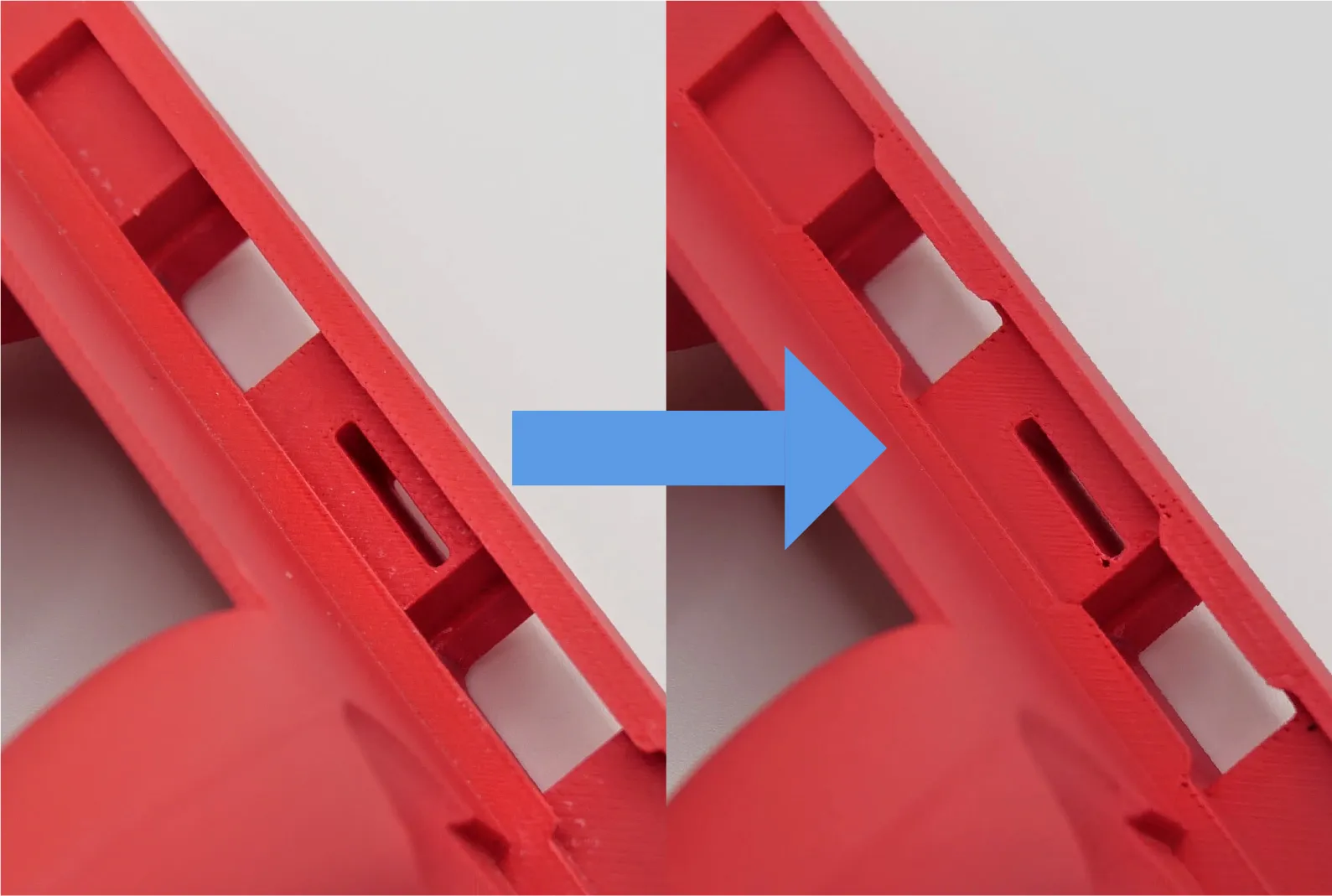

Adjusted the rails for a better fit for the Joycon.

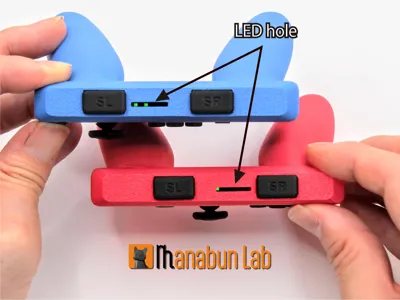

Added holes for the LED.
Changed the design of the main body to make it easier to print.

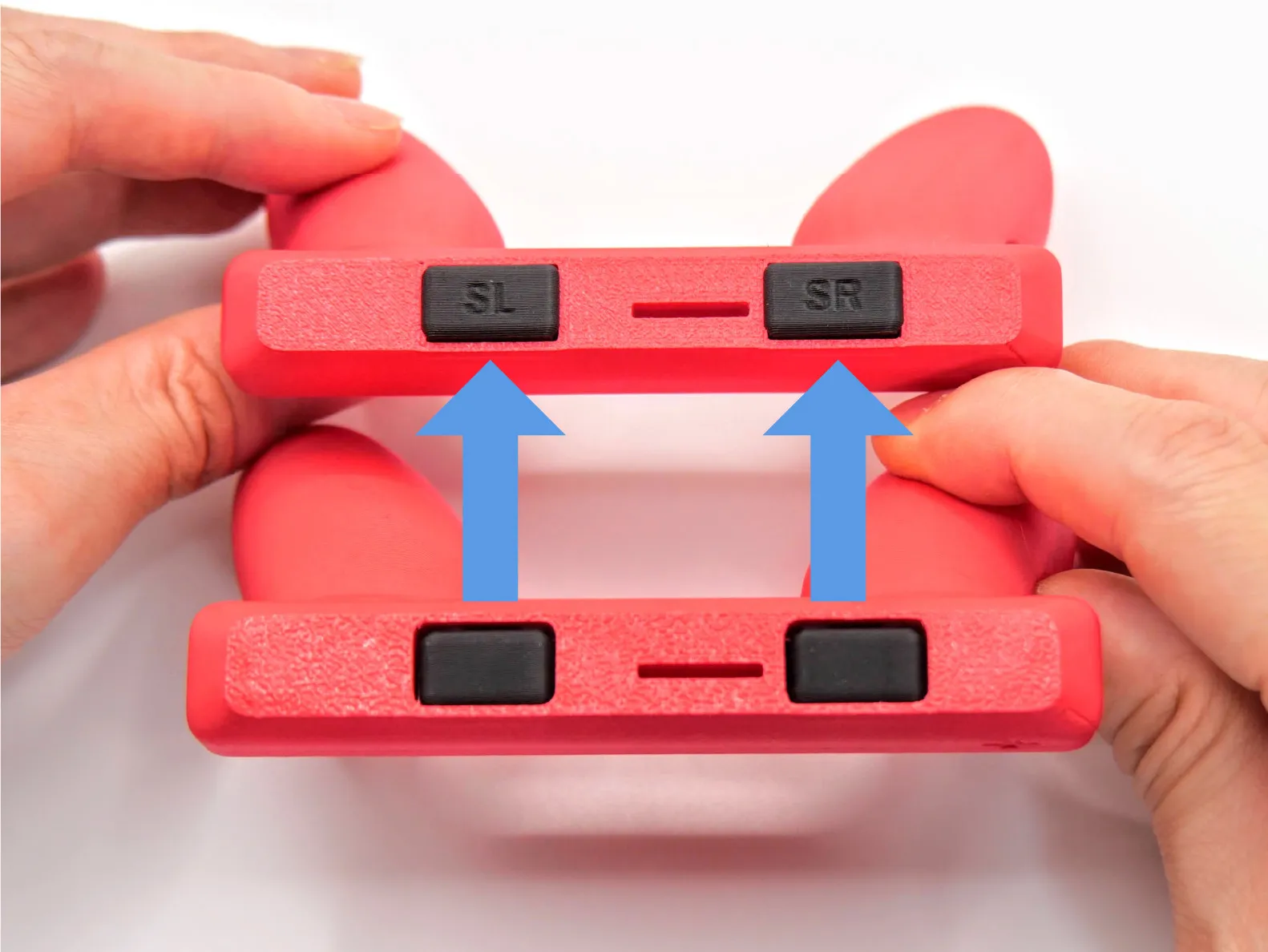

Improved the accuracy of the LR buttons.

Printing Instructions:

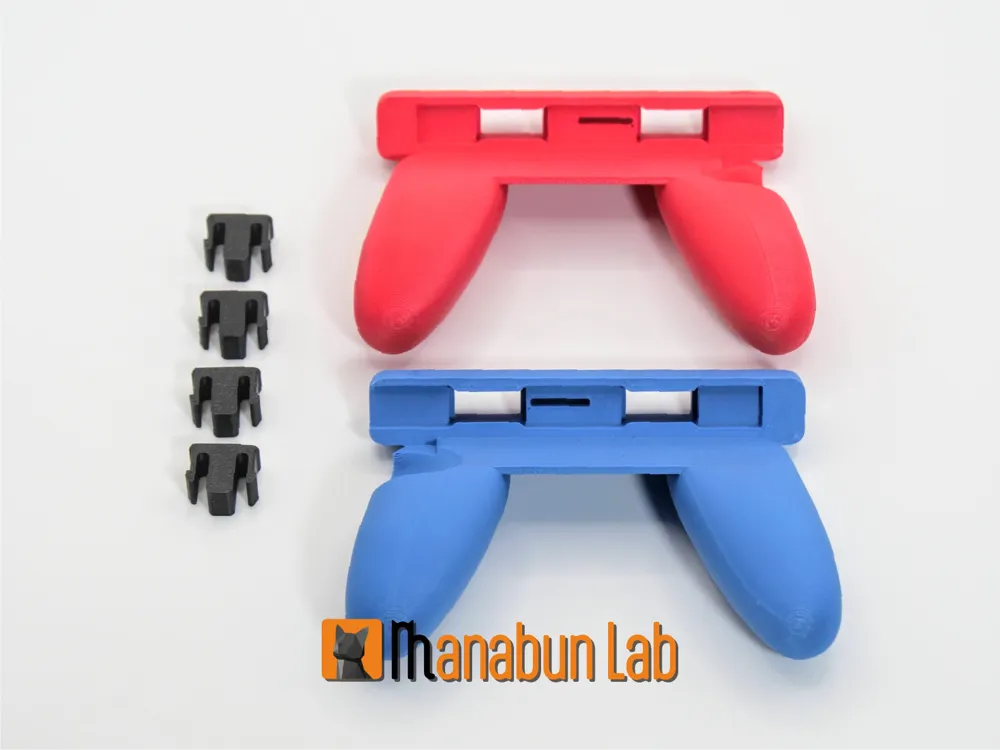

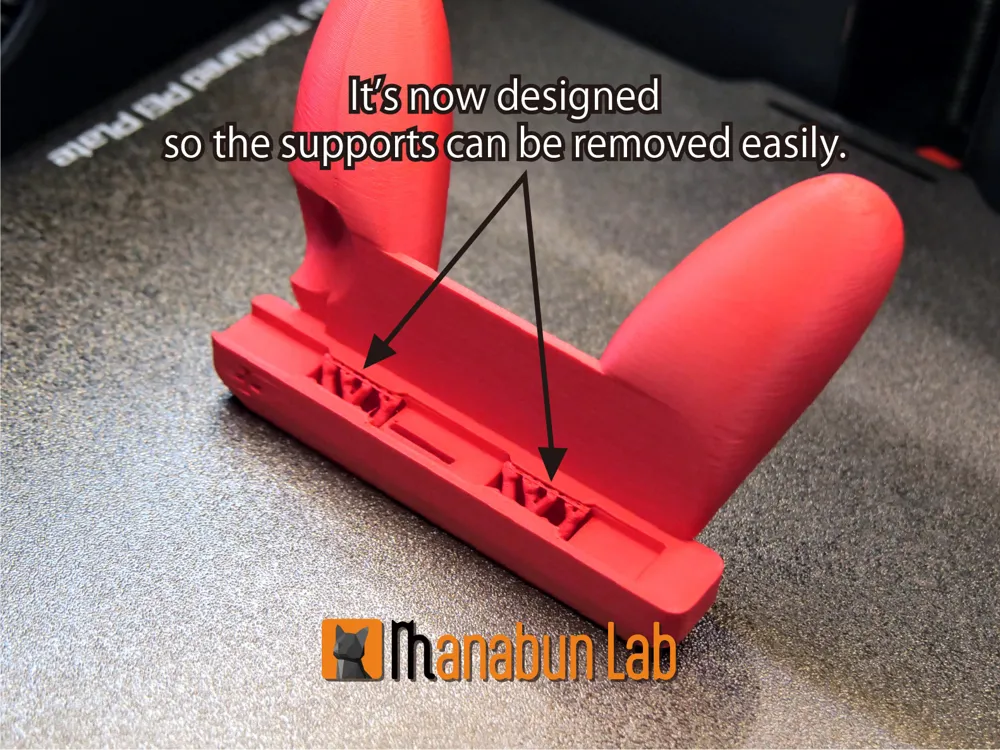

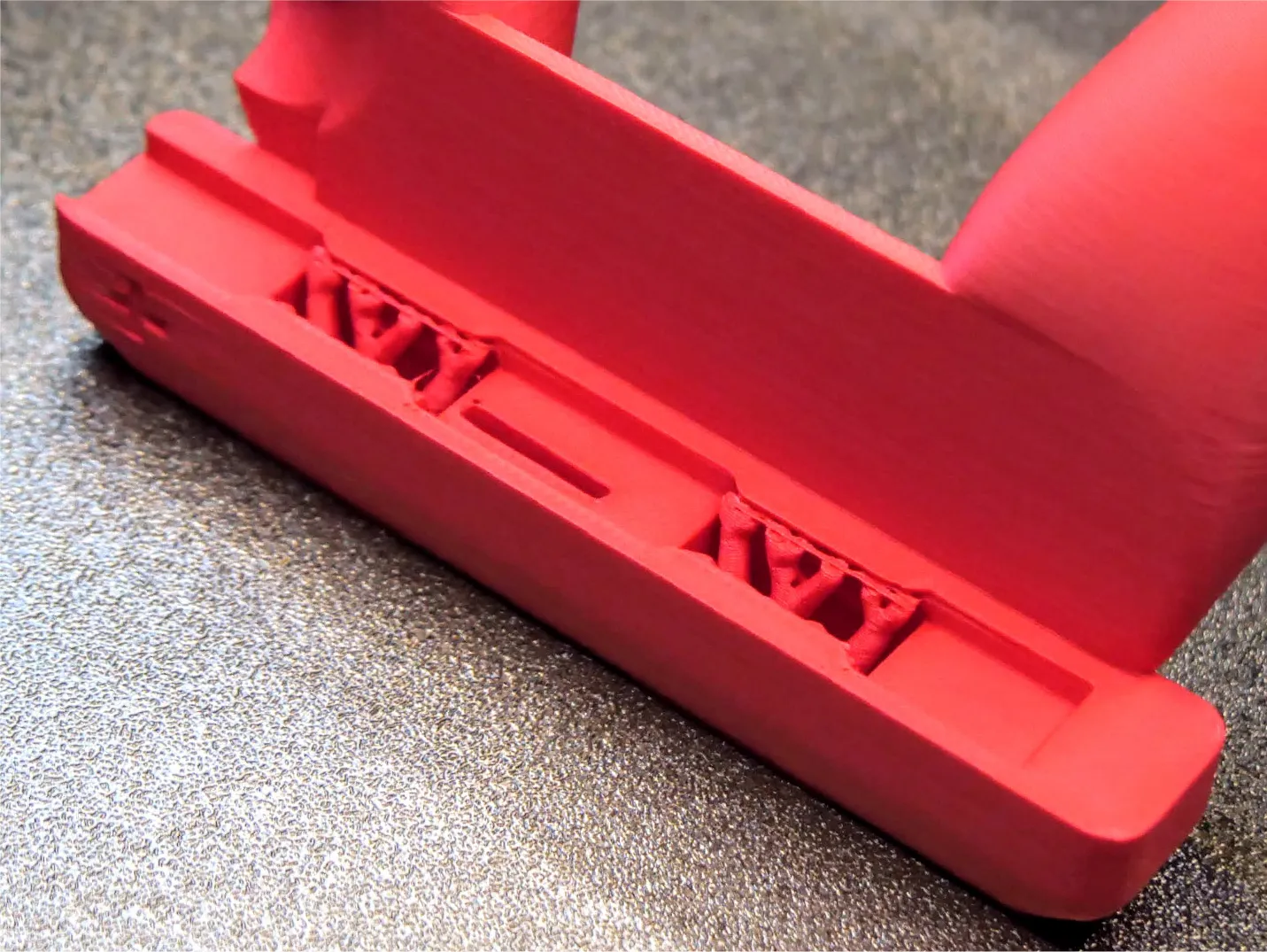

When printing “joy-con_plus.STL” and “joy-con_minus.STL”, support is only needed for the rail parts.
No support is needed for “joy-con_button.STL”.

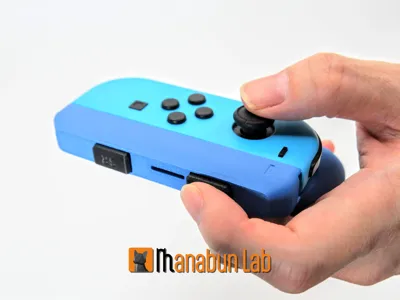

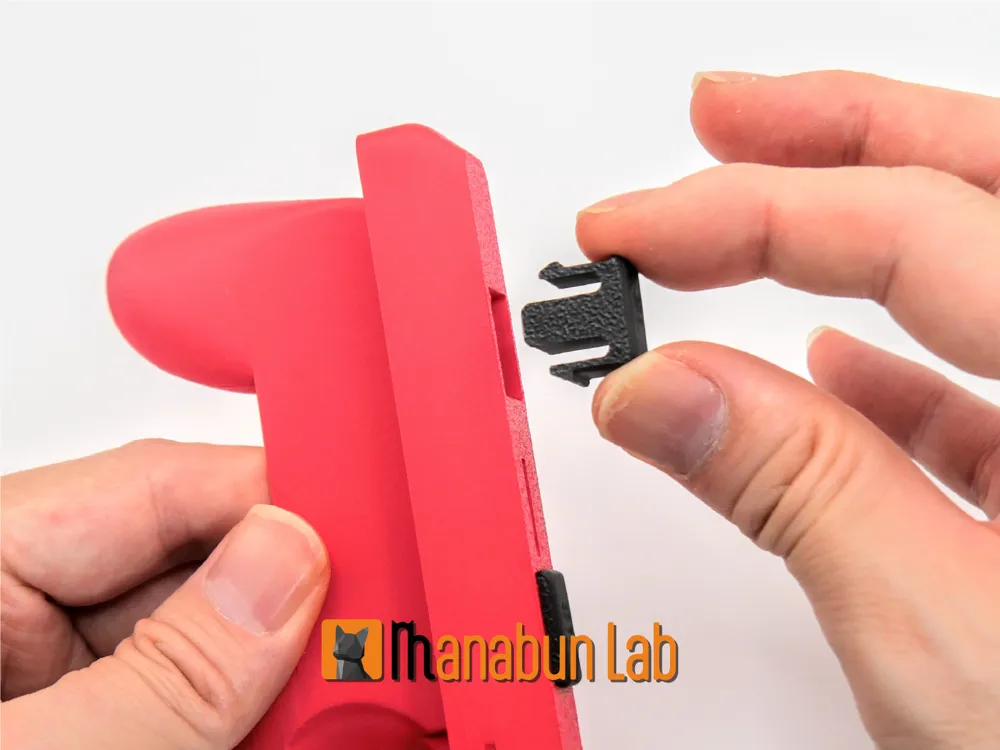

Insert the buttons into the printed grip to complete it.

Enjoy your gaming life!

Boost Me (for free)

If you like it, please give it a Boost!

Comment & Rating (119)

@Justprintforfun

Doesn't seem to fit, not sure why. Printed on A1 mini with petg

@Trevos3D

Boosted

You need to remove the supports dude.

@Justprintforfun

Replying to @Trevos3D :

Yeah, figured that, but they're pretty impossible to remove. Could that be because I printed with peth instead of pla?

@Trevos3D

Boosted

Replying to @Justprintforfun :

Dunno dude, but is really hard to remove in PLA too.

@MGCPQ

Boosted

Print Profile

Single Colour Single Plate 0.2mm layer (P1/X1)

wow it really works well and doesn’t damage my controller

The designer has replied

@MWD_NAME

great! glad to hear!

@Odinheathen

Prints fine on my A1 mini, but not on my P1S. Maybe a setting for the overhang is off, because that is where the problem persists. Yet I can't seem to find an issue, so not sure what the problem is.

@FireDragon3D

aux fan on p1s messes up my prints. not sure if this is the case for you.

@VoltaicShock

I'm trying this now on my P1S that I just got. I'll let you know how it goes. Did you open the front door and take off the top glass? I have been printing PLA like that and things are coming out great.

(Edited)

@Trevos3D

Boosted

I had no problem printing on P1S but I use my own print profile.

@user_1753754454

Print Profile

painted minimum easy to remove support

perfect print with the A1 mini, I used PLA Metal

@RyanBru

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Turned out really nice. No more hand cramp! Those supports were toughhhh to remove but got there in the end

@DadSkipper

Really great design, and the controllers fit perfect :)

@zubirjamal

Boosted

Truly awesome! Thanks for this 😁

@tattertotman

Print Profile

0.2mm layer, 2 walls, 15% infill

great print and sturdy!

@user_827632170

Print Profile

painted minimum easy to remove support

Excellent fit, feels great in hand!

Show original

@RocketGuy20

Print Profile

0.2mm layer, 2 walls, 15% infill

supports are hard to remove
