Controller Box Replacement

I bought a controller similar to the one on the original modal, but when trying to use it, it wouldn't fit, also as I didn't have a L USB-C connector, wanted the box hole to allow a direct connector.

Because I had this issue, and think other might find controllers with a different sizes, I'll leave the model link here, so you can clone it and adjust to match whatever controller you might get.

How did I do the remix?

I designed the part from scratch, so I could be able to adjust the position of the tabs that secure the controller.

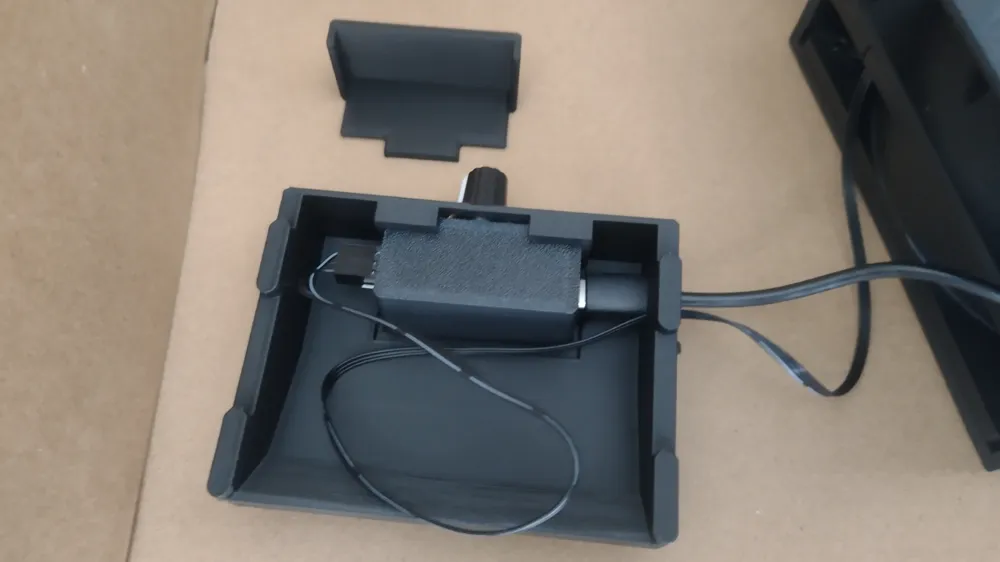

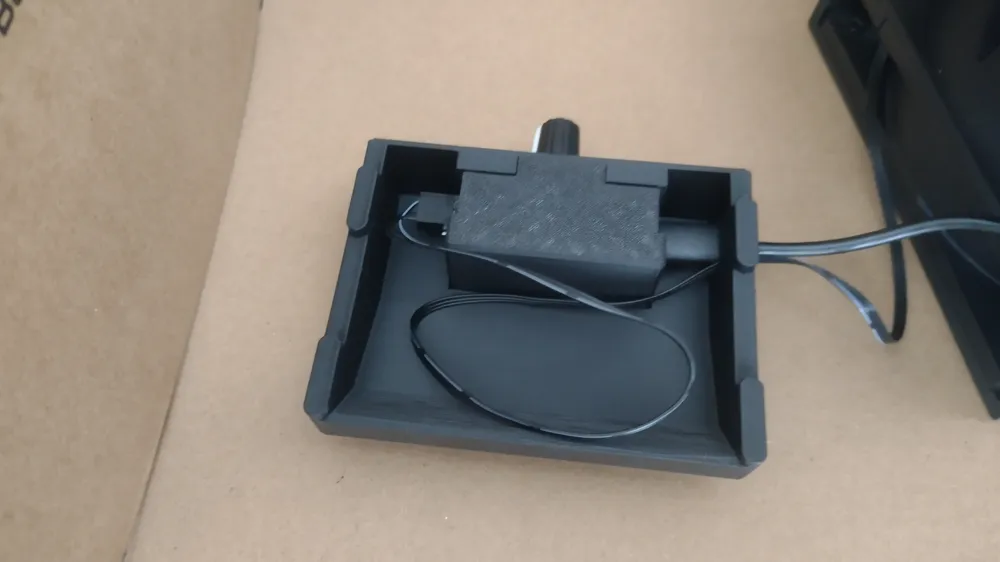

The hole is set on the middle of the box, and the side tabs that secure it are adjusted.

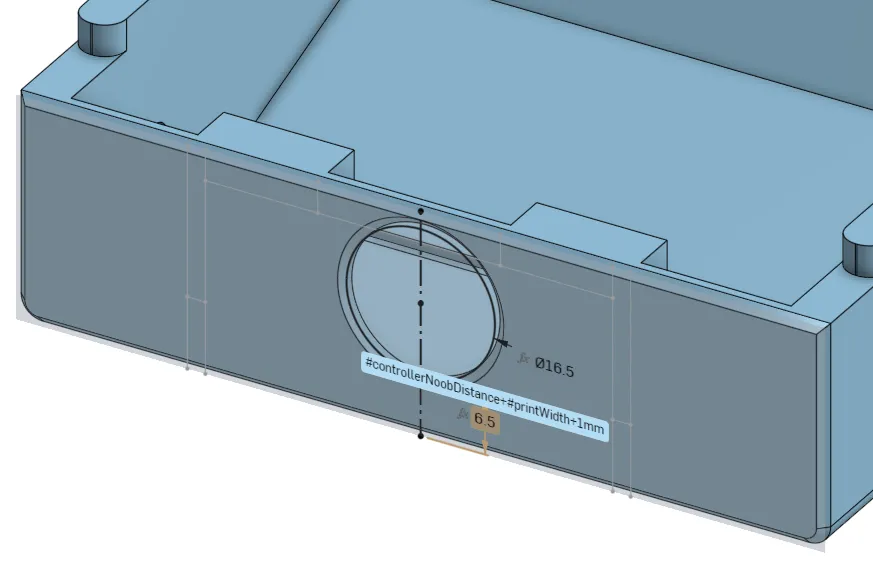

The model had several parametric variables that allow you to be able to adjust it without the need to recreate it like I had to, just adjust the variables in the Nod Adjustment folder:

Onshape Part

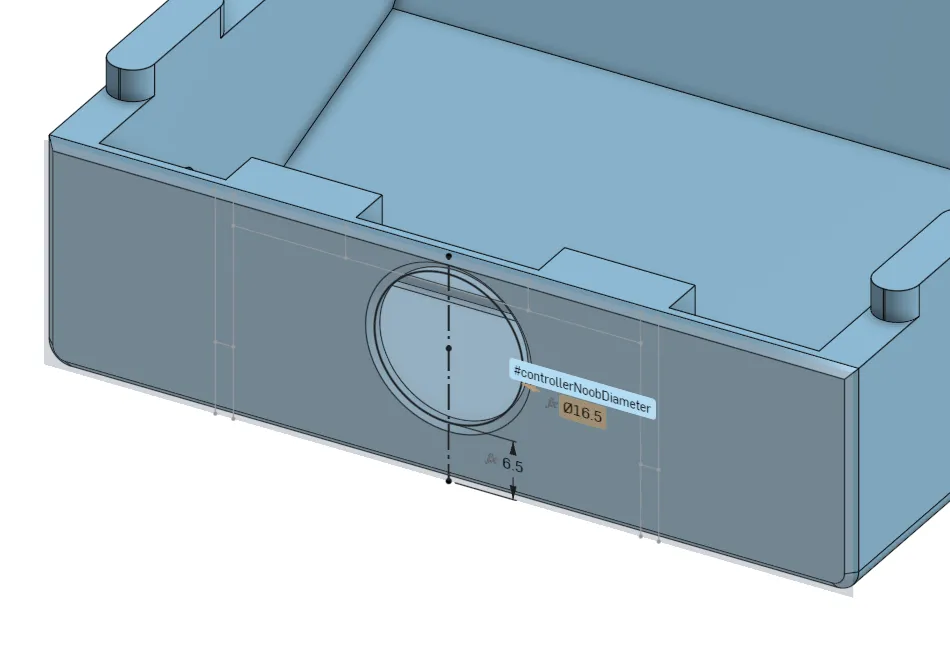

You can adjust to diameter of the hole:	The height:

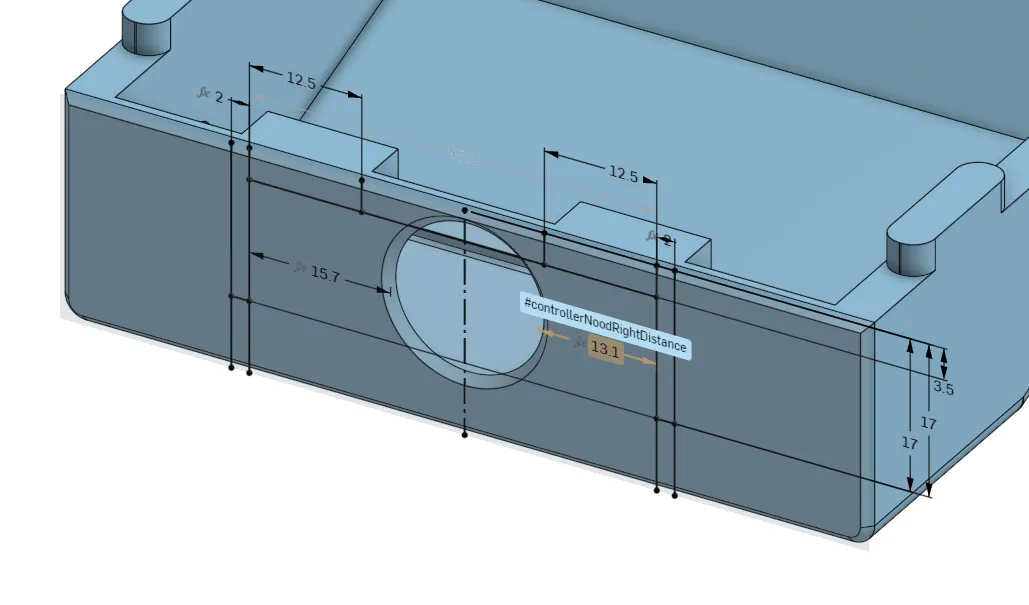

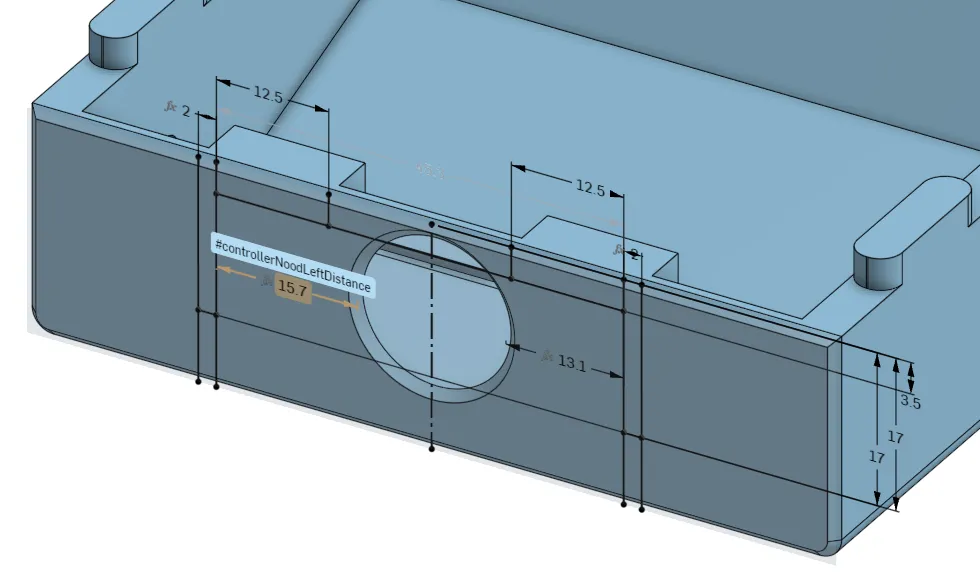

And the distance to both sides, left:	and right:
