split keyboard
IP Report
Print Profile(1)
0.15mm layer, 3 walls, 40% infill
Designer
3 h
2 plates
Open in Bambu Studio
Boost
47
139
15
9
90
23
Released
Bill of Materials
List other parts
- keyboar_switches x 36: mx/choc
- 1N4148_diodes x 36:
- heatset_inserts x 4: M3X5mm
- M3X20mm-screws x 4:
- cables x 1: 26awg_best
- arduinoProMicro x 1:
Description
V2 is available on my profile
UPDATE: changed the design for better heatset insert mounting and lower overall hight

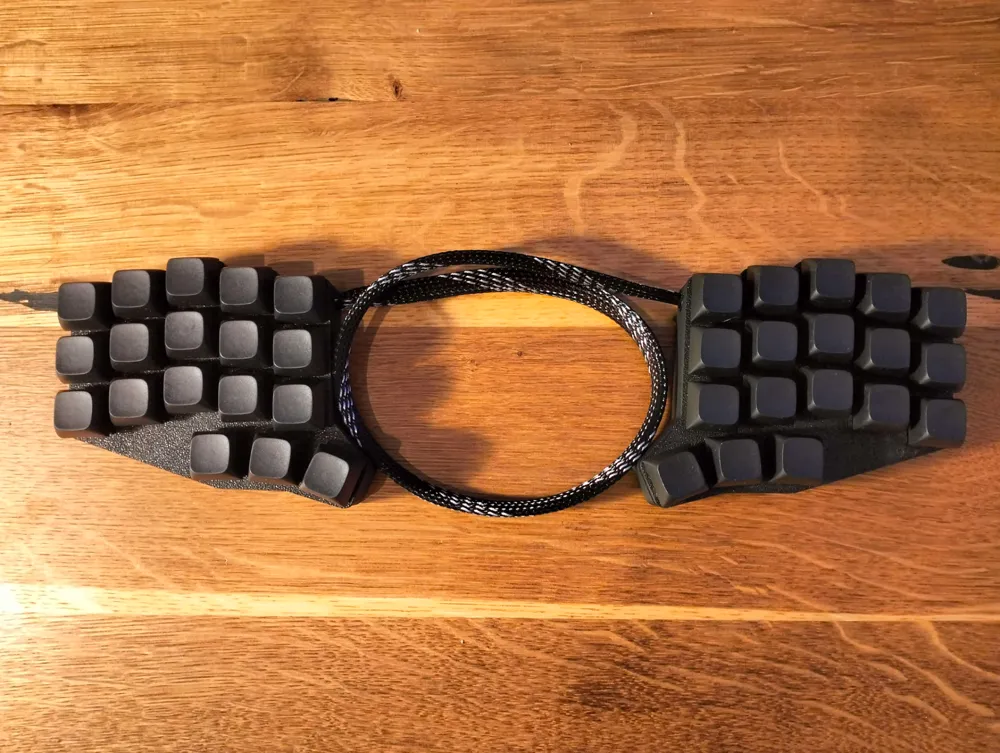

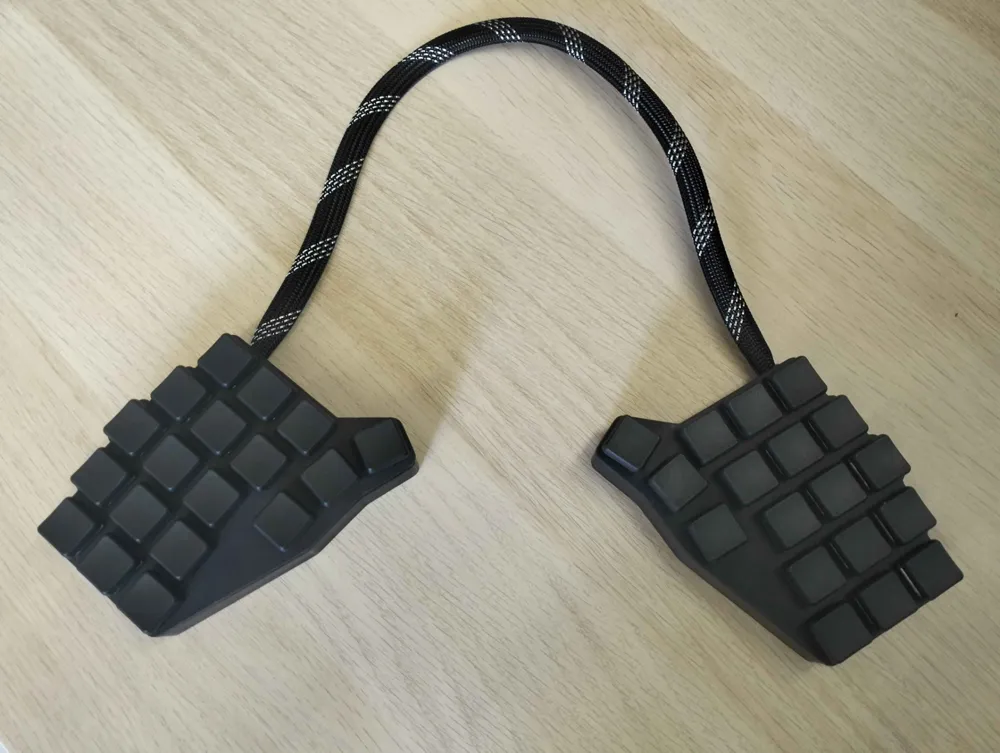

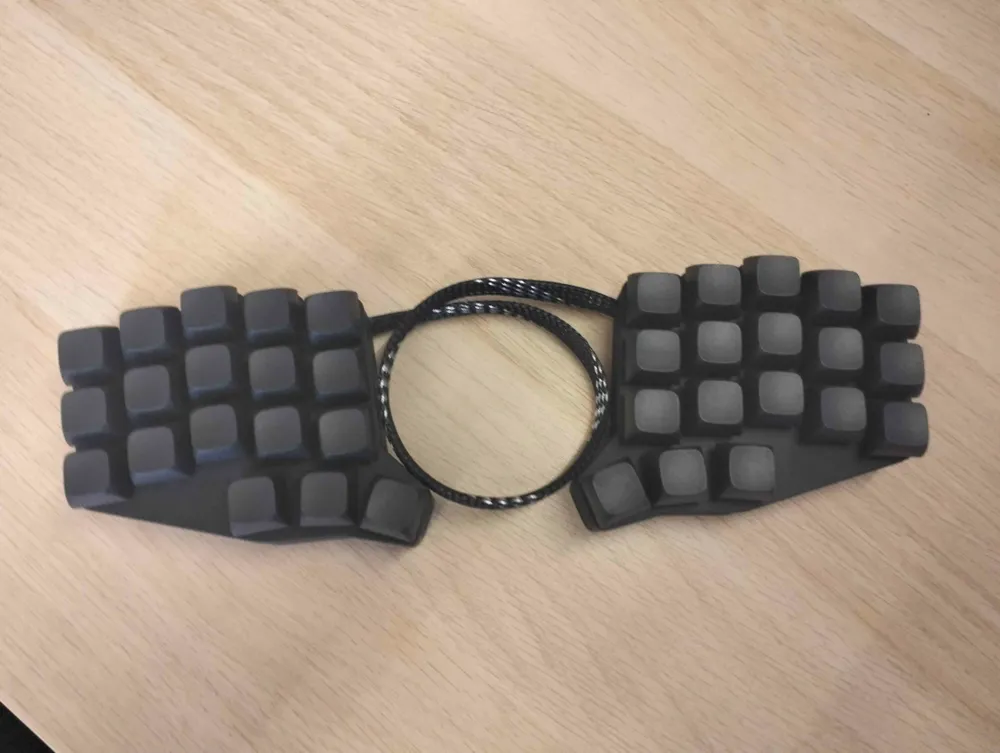

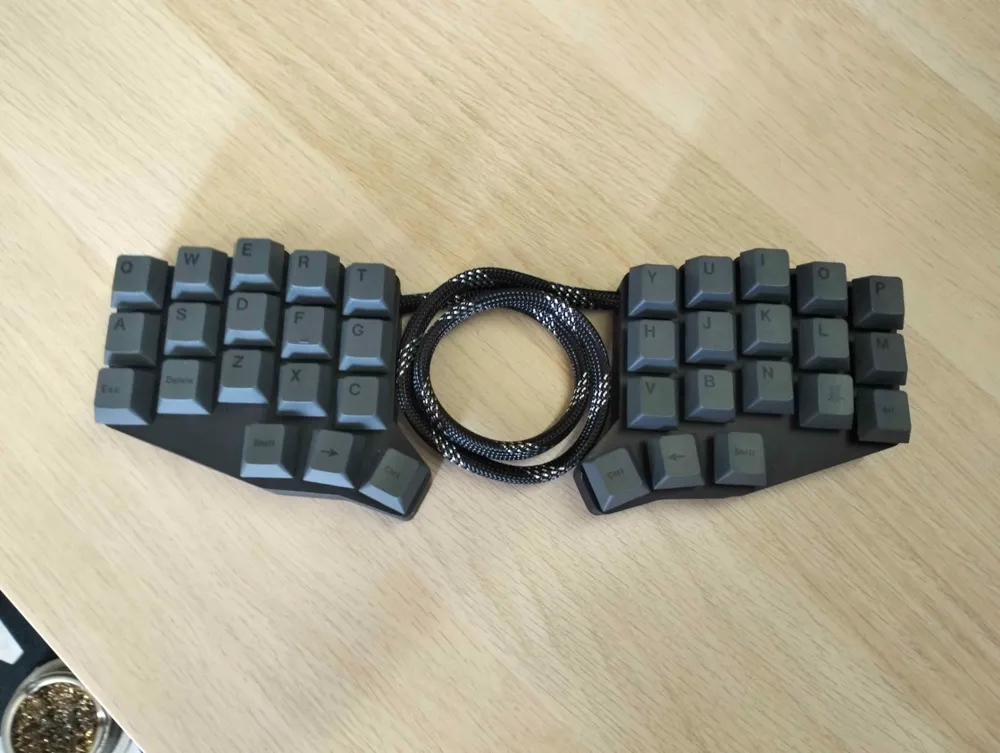

this is a case for a split ergonomic handwired custom keyboard project. all the parts are listed down below. its a great first step into the world of custom handwired keyboards.
