Bill of Materials
- ruthex M3 thread insert x 8: RX-M3x5.7
- M3 Socket Cap Head Machine Screws x 4: M3x20mm
- M3 Socket Cap Head Machine Screws x 4: M3x30mm
Description

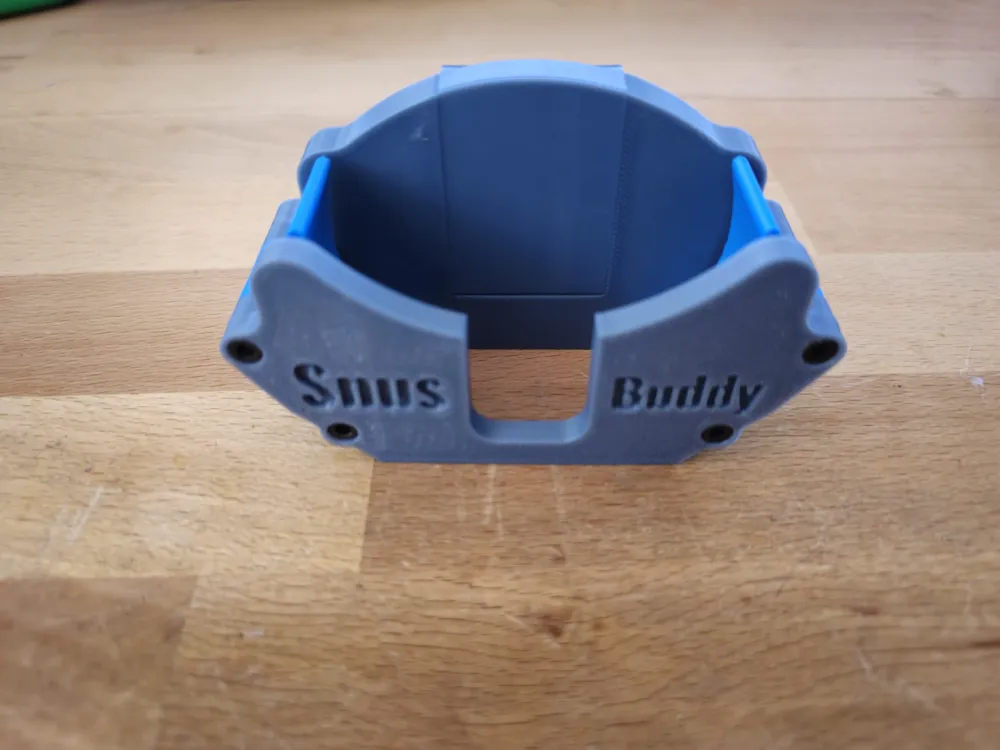

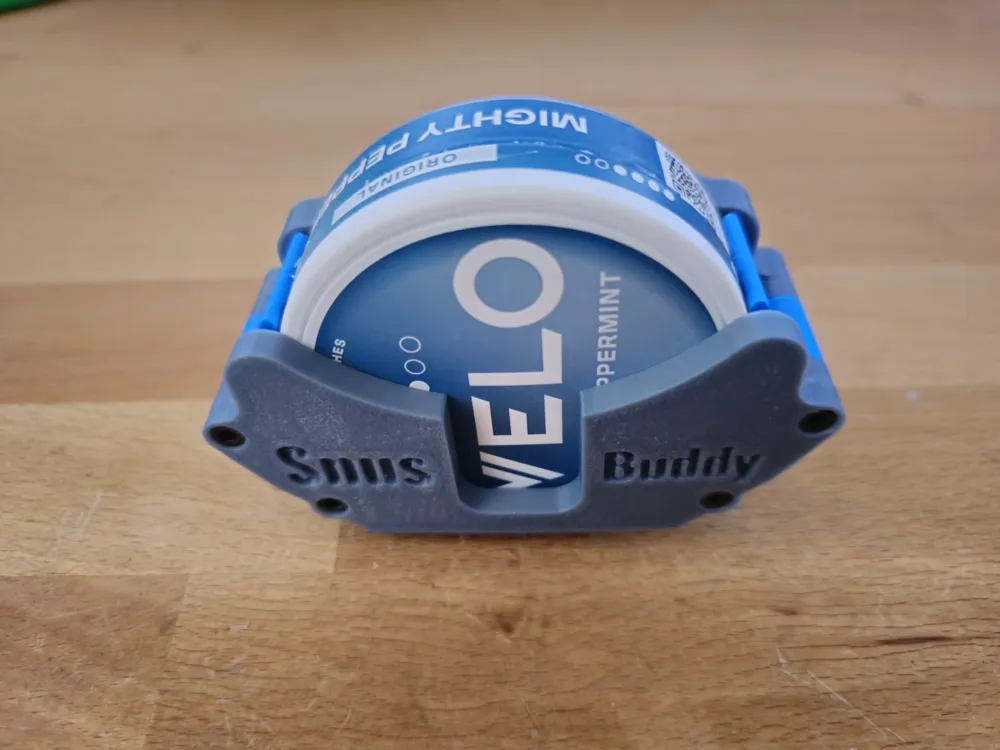

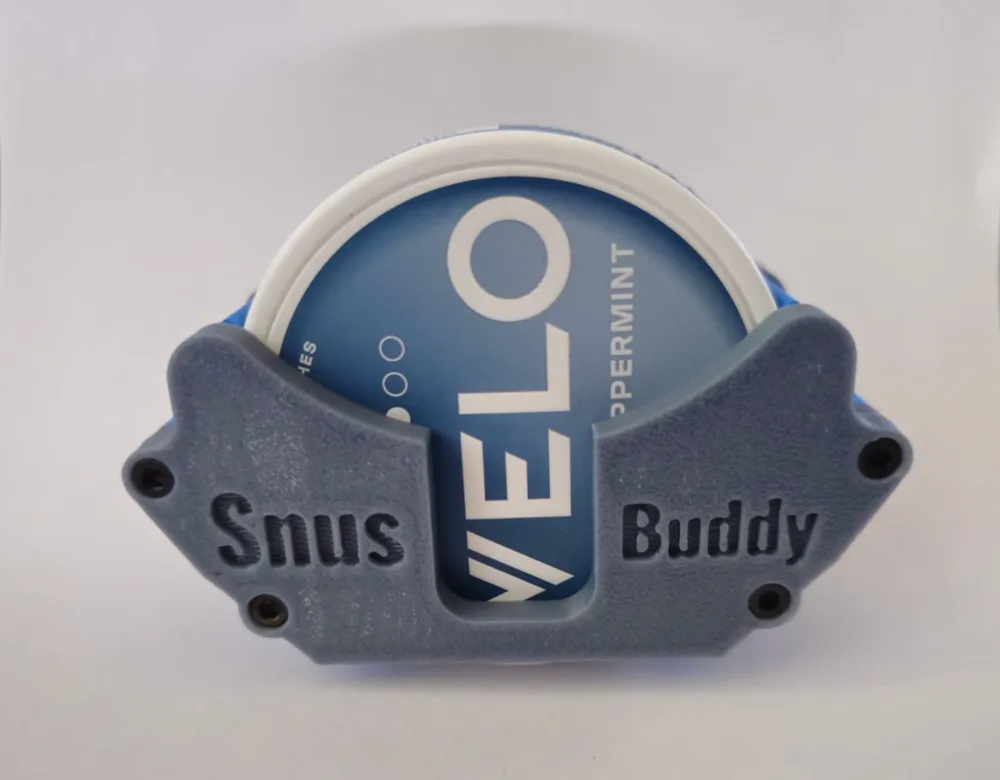

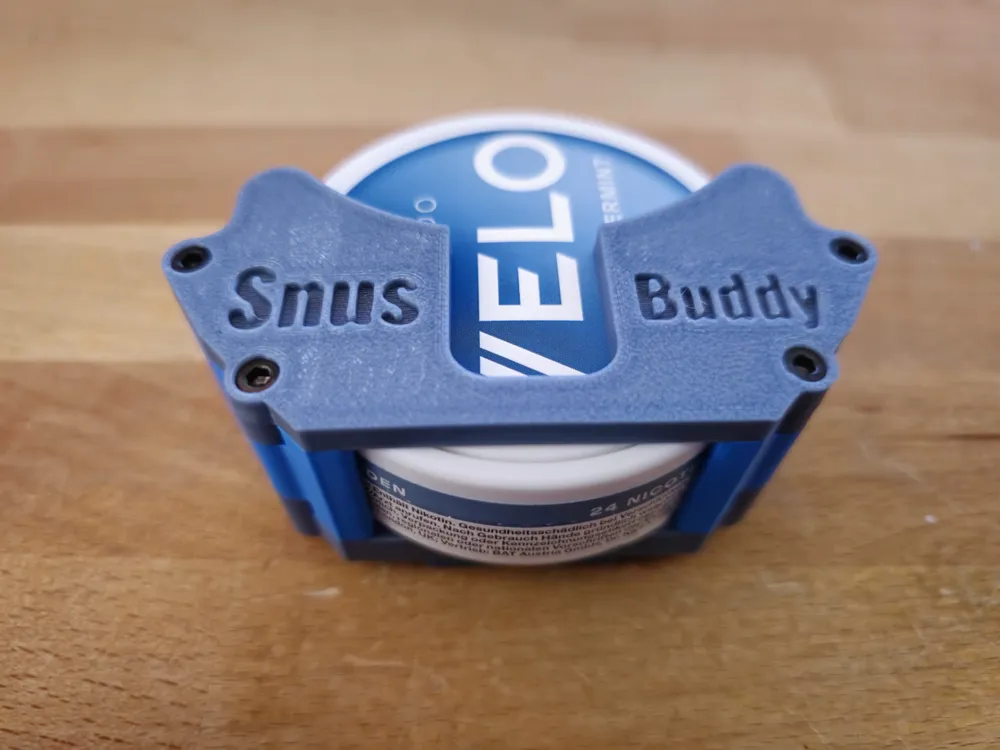

This snus holster will keep your snus safe from falling out whatever you do.

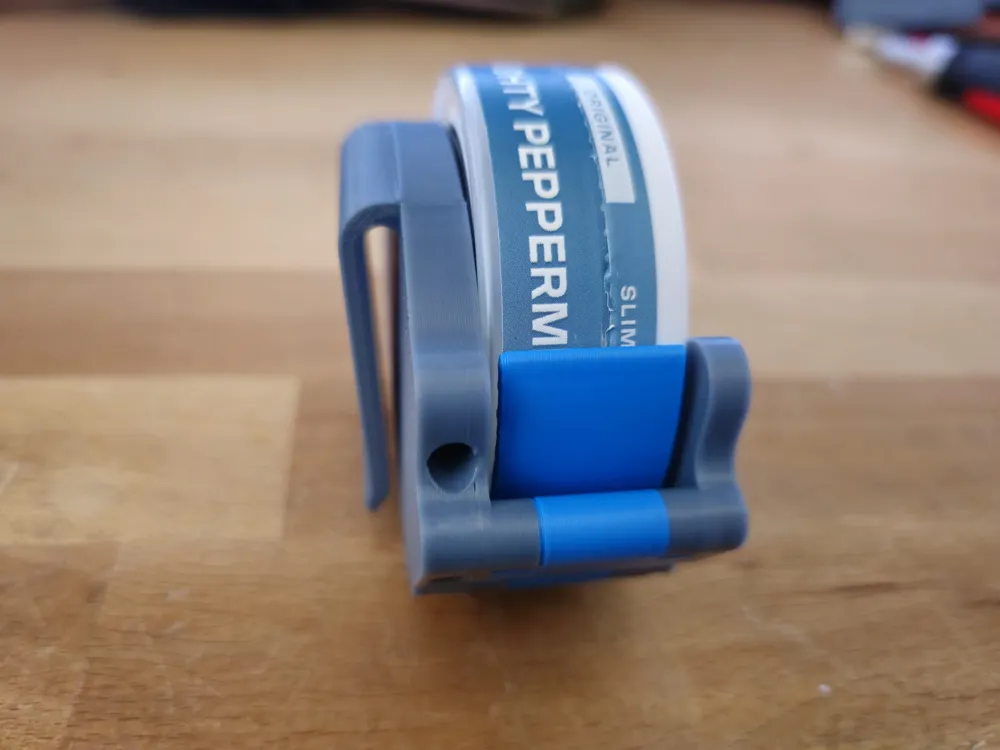

It can be worn on your belt or clamped to the waistband of your pants.
(NOTE!! You only need 4 screws of both kinds)

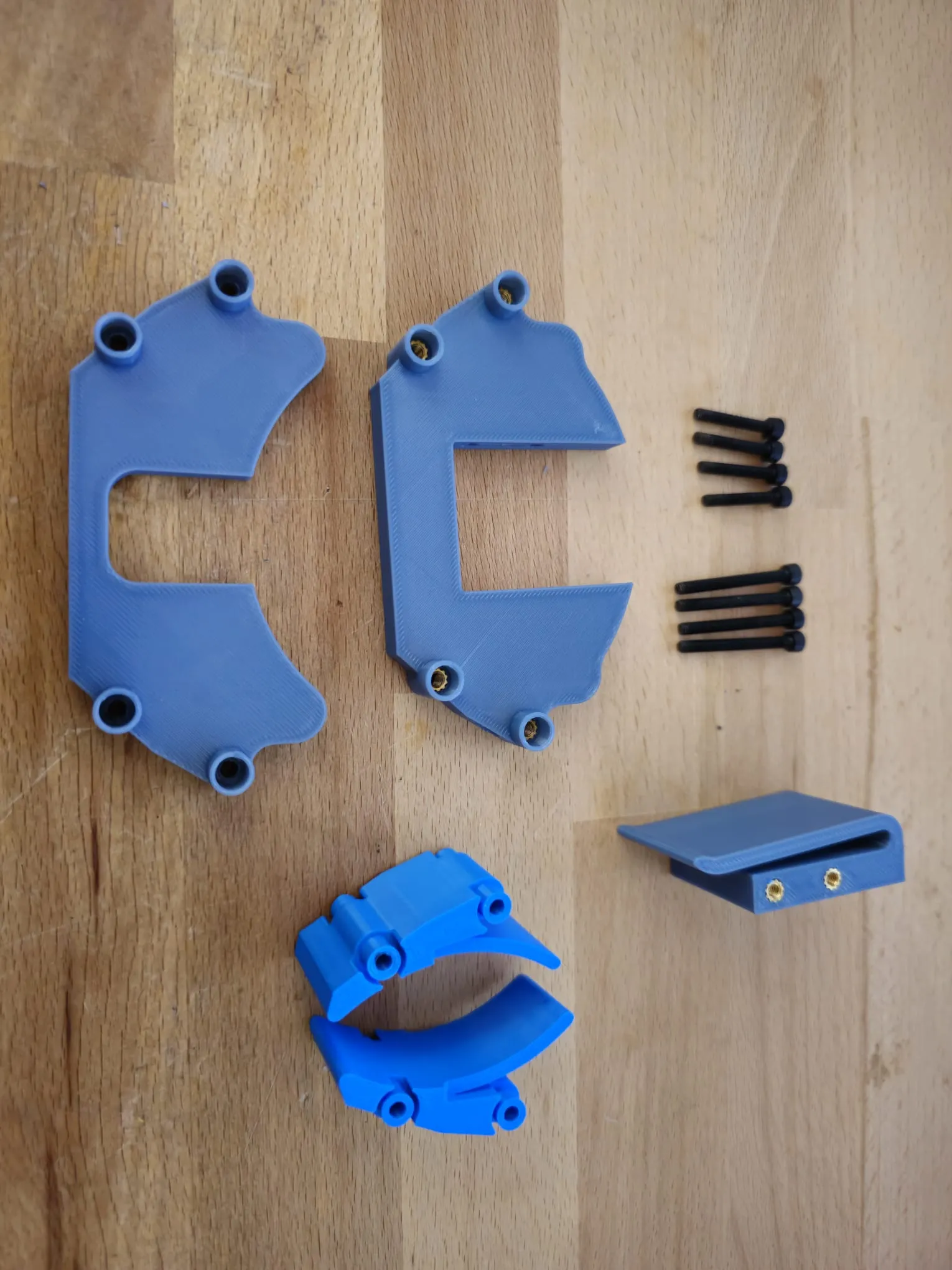

Parts overview:
Assembly:

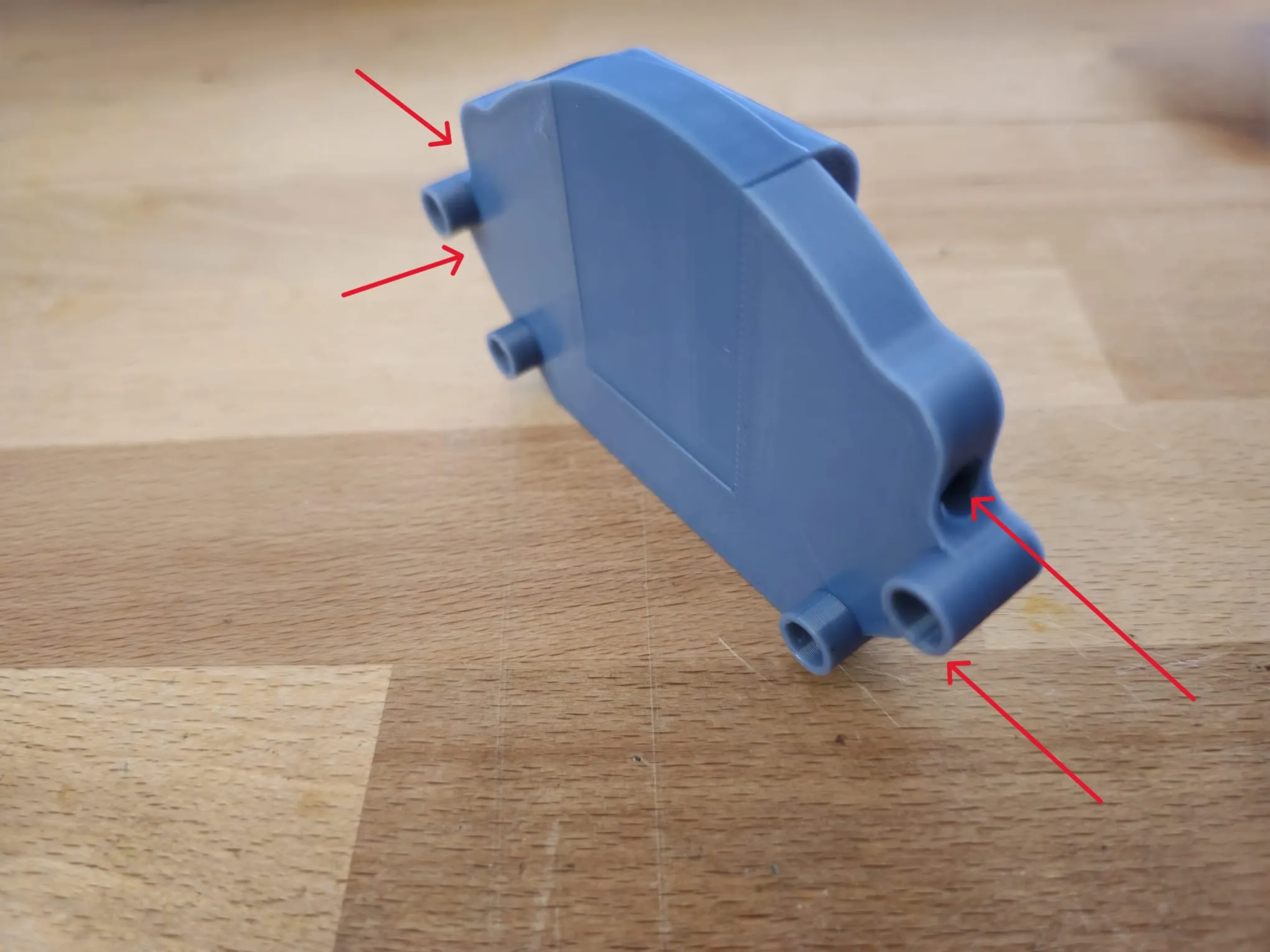

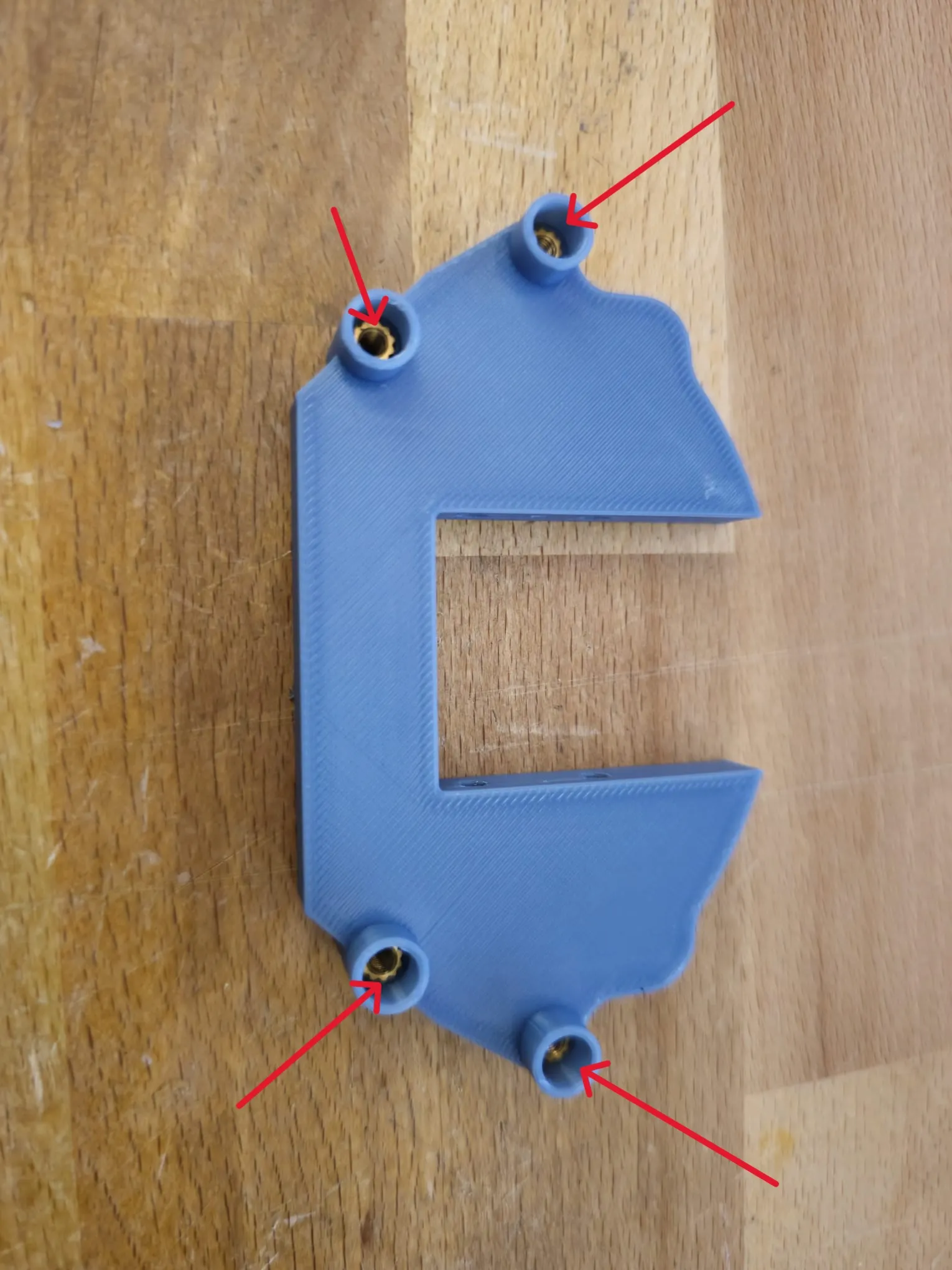

Insert the thread inserts to the back plate
Be very careful to not damage the fittings for the springs, it can be easier to press in the inserts halfway, let them cool a bit
and then inserting them all the way.

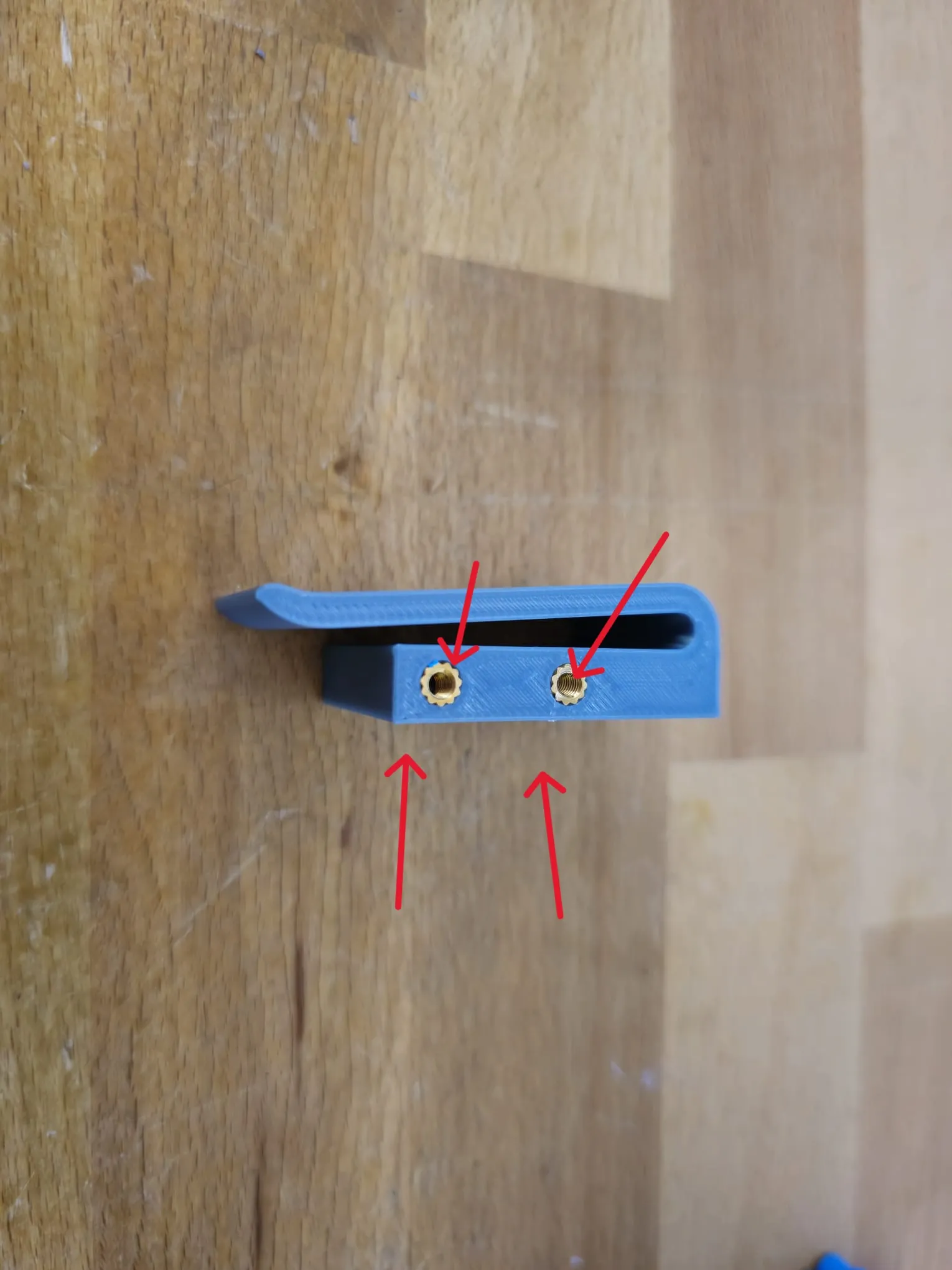

Insert the thread inserts to the clamp
Attach the clamp to the back plate using the 4x M3x20 screws

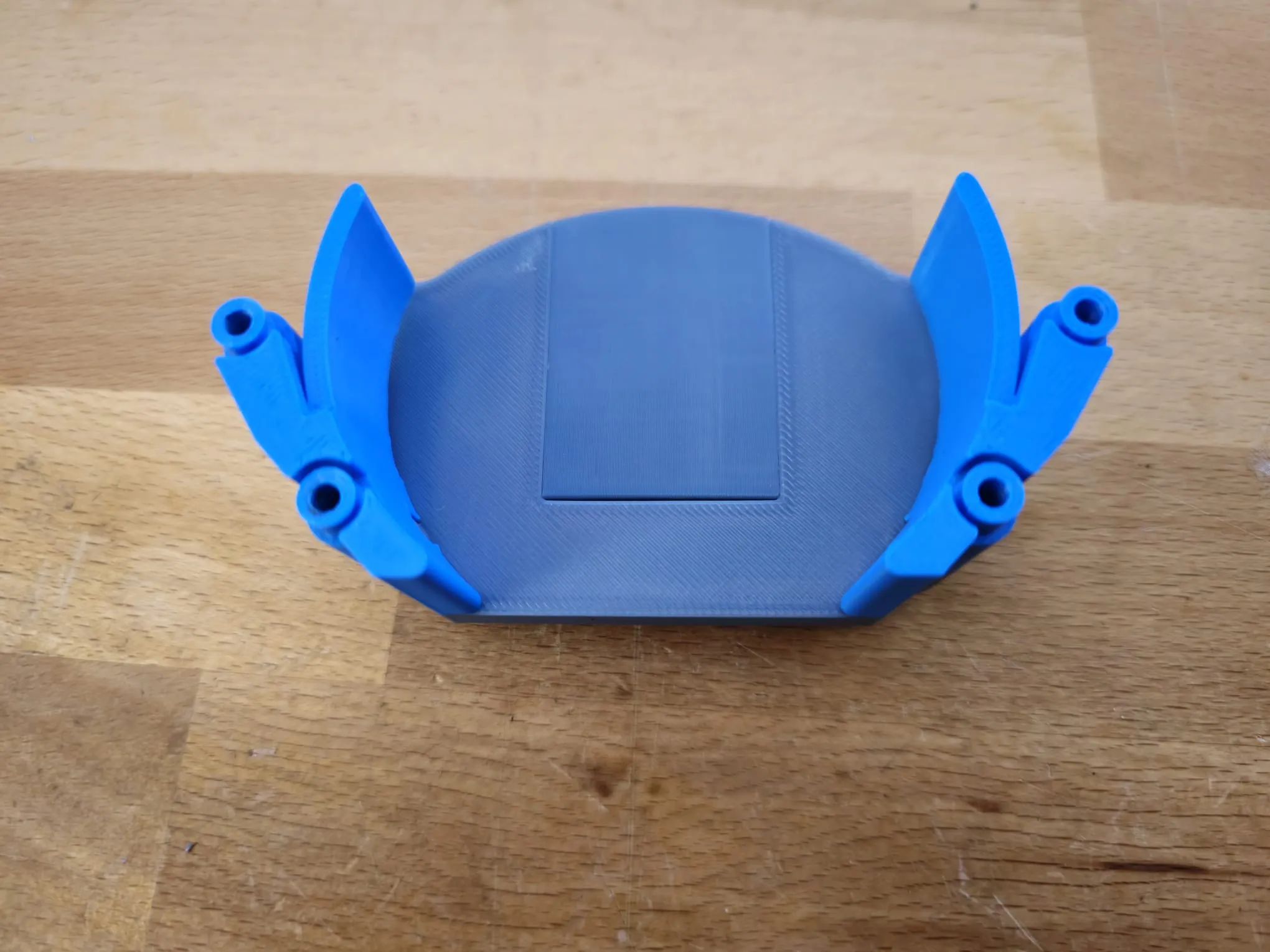

Attach the springs to the back plate.
This should be a very tight fit.

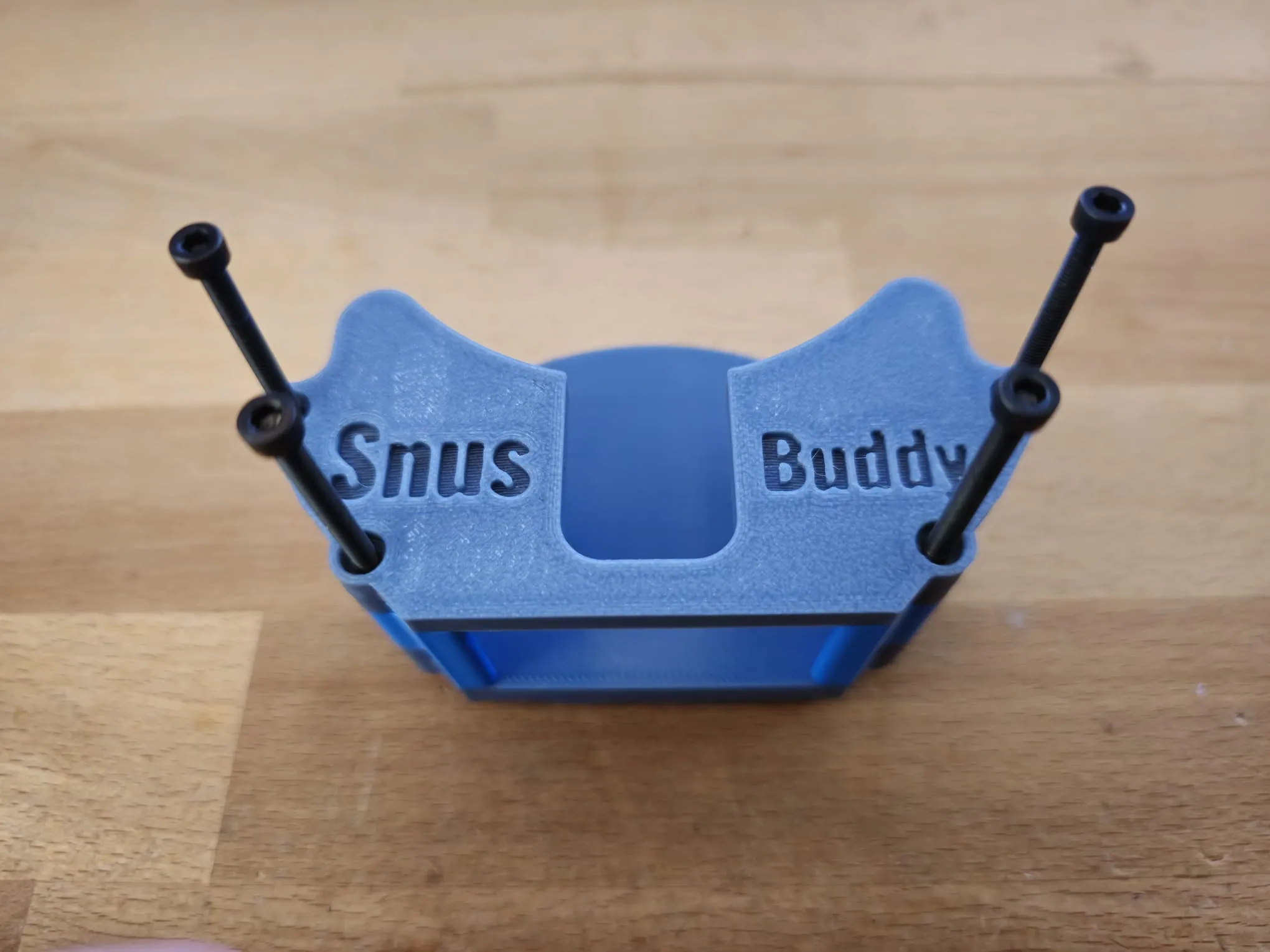

Attach the front plate and screw in the 4x M3x30 screws.
