Interlocking and stackable containers V2 (vase mode)

Original models by Jujumo can be found here: https://www.thingiverse.com/thing:6241141

Summary

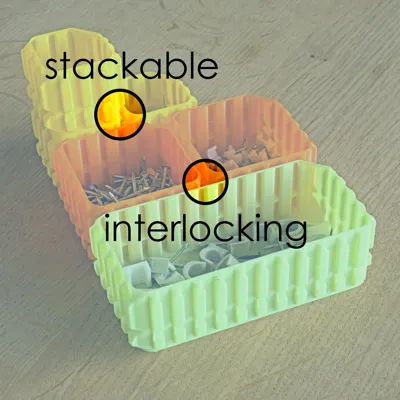

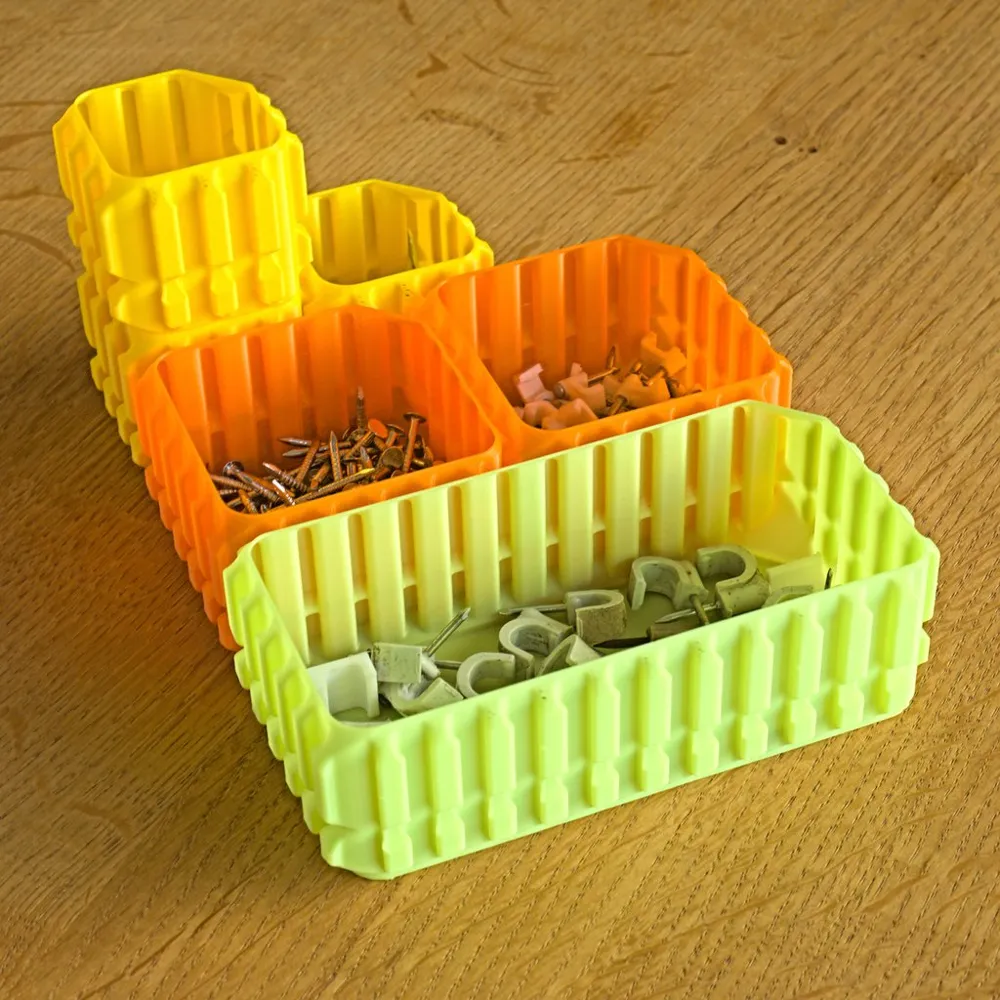

This is a simple interlocking containers that can be arranged and stacked.
Interlocking is asymmetric.

Arranged by size on plates for ease of printing.

Features

• interlocking,
• stackable,
• secure with a locking pin,
• several sizes,
• cut corner to identify the assembly position.

Description

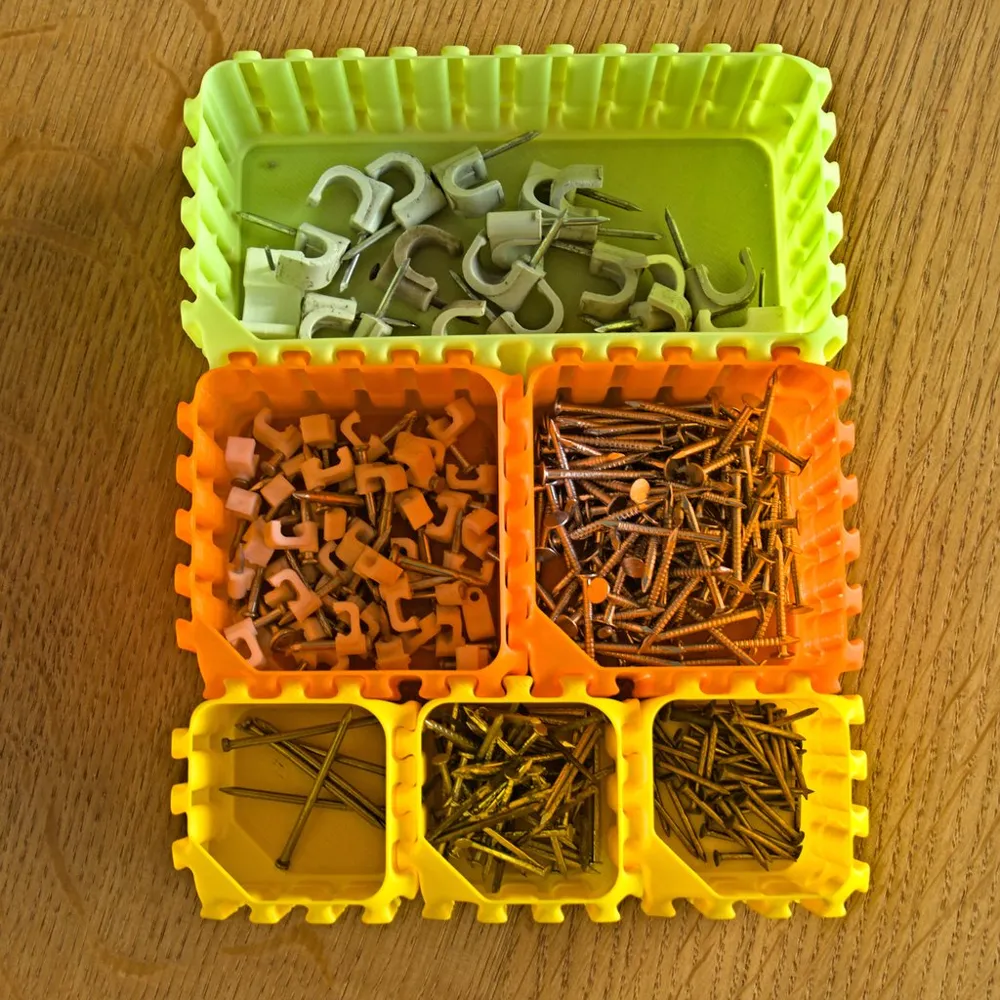

• As with the previous version, these containers attach to each other using an interlocking mechanism.

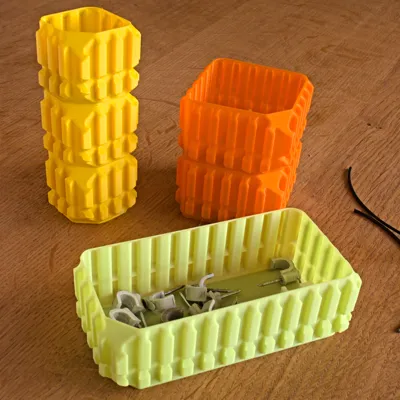

• It is also still possible to stack them.

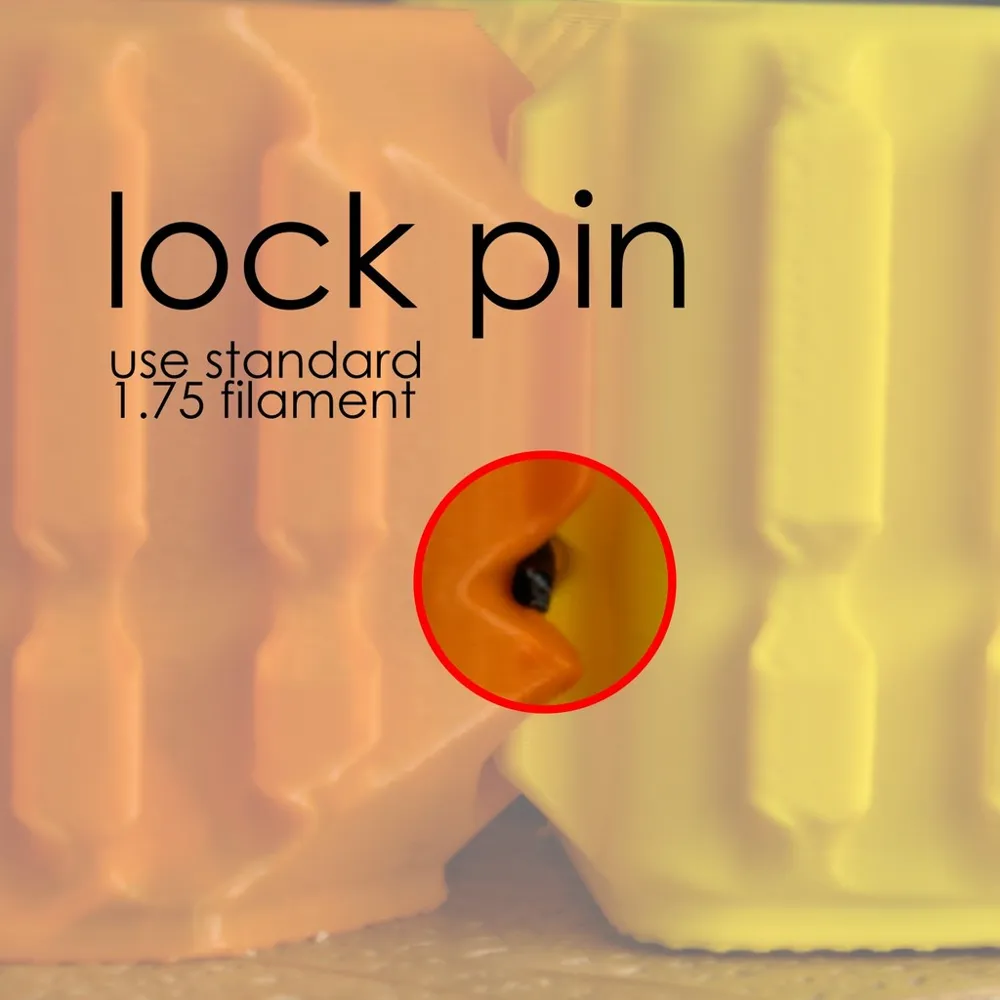

• The pin helps secure the containers together. Simply slide the filament into the groove.

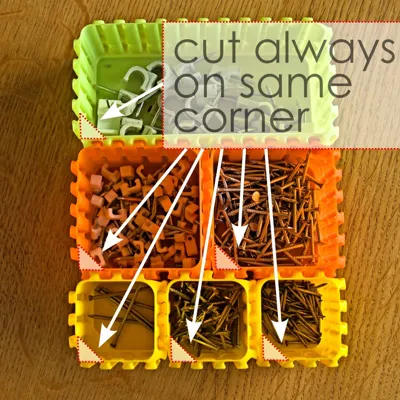

• The cut corner is a visual cue to help assemble the containers.
• As you have probably noticed, the number of notches is not the same on opposite sides of the container, so there is a sense of assembly.
• By always placing the cut corner on the same side, you are assured of good assembly, therefore, containers cannot be rotated 90°.
  For example, the 12x06 container is not interchangeable with the 06x12 container (like the left and right hands).
• You will find 16 .stl files, corresponding to 16 different container sizes.

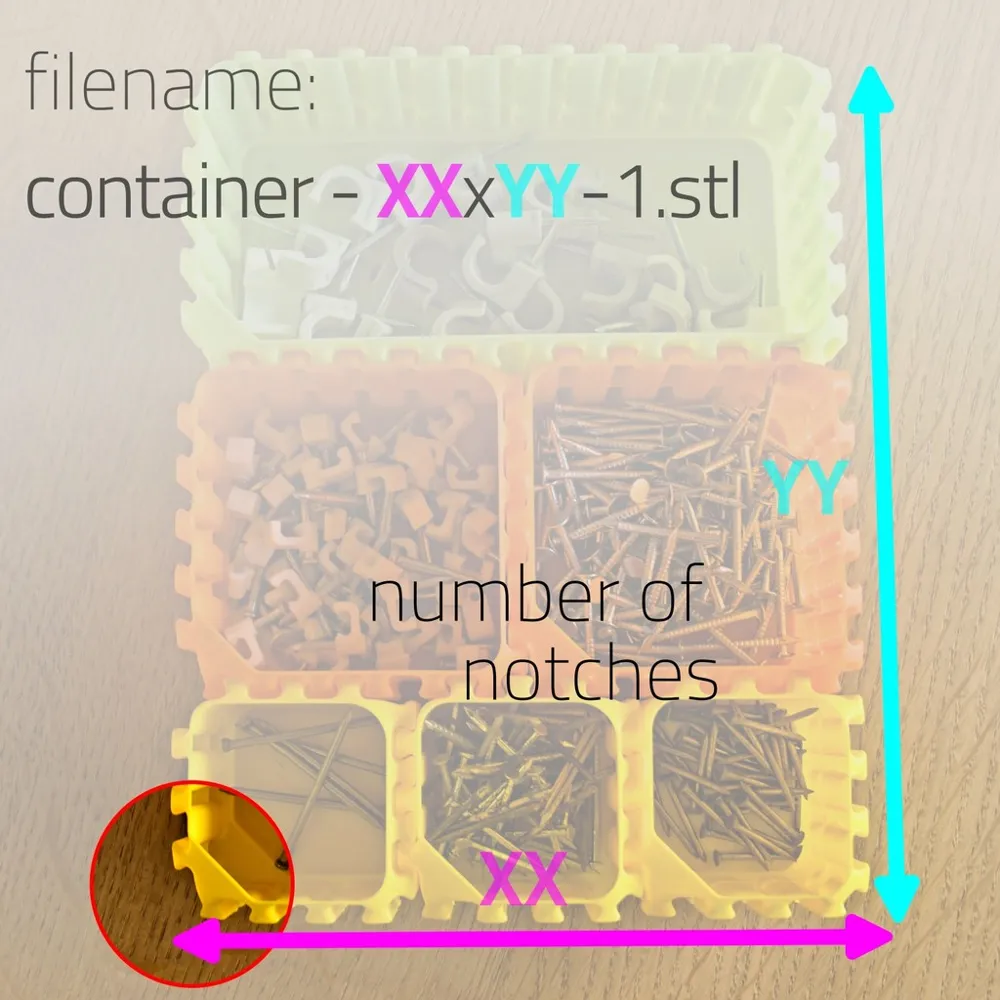

• Files are named using the following convention: container - XXxYY-1.stl.
• XX represents the number of notches in the width direction and YY in the depth direction.
• By convention the cut corner is placed at the front left.

Print instructions

• I recommend a 0.4mm extruder,
• print in spiral mode,
• no support needed,
• narrow side touching plate.
