Hollow fridge magnet - customizable

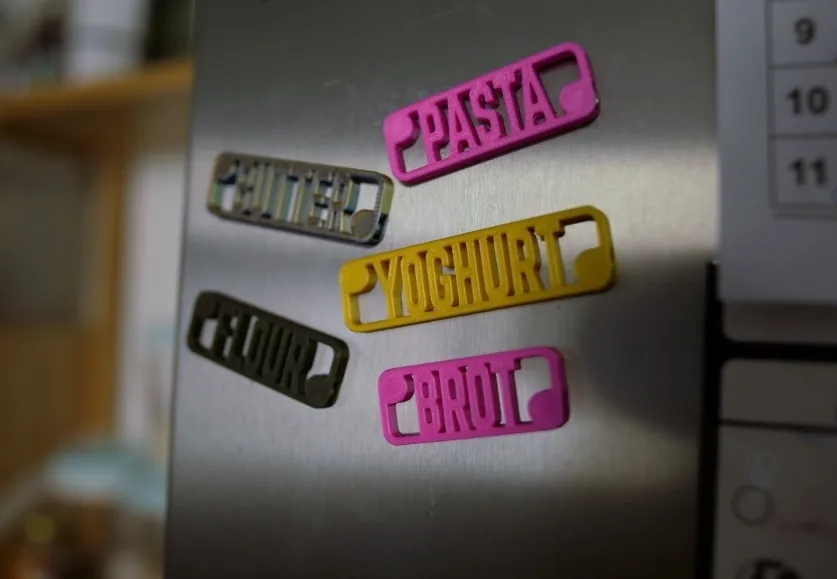

Use these magnetic words on your fridge, e.g. to manage your groceries! Just print them, slide in two 6x3mm magnets from the sides (they stick without glue) and have fun! But you can also customize your words so any of your existing magnets fit.

👉 Please boost the model and rate the print profiles - It would help tremendously. 👈

Customizing

You can customize the model to show a word or name and make any magnet fit. To do that, please use the "customize"-button above or install OpenSCAD on your own computer and follow these in depth instructions.

Hint: To get the groceries for 6x3mm magnets as STL, use “Download STL” above.

Updates:

🆕29.7.2024: Bugfix to make all fonts work. Thanks to emmm for the bug report!

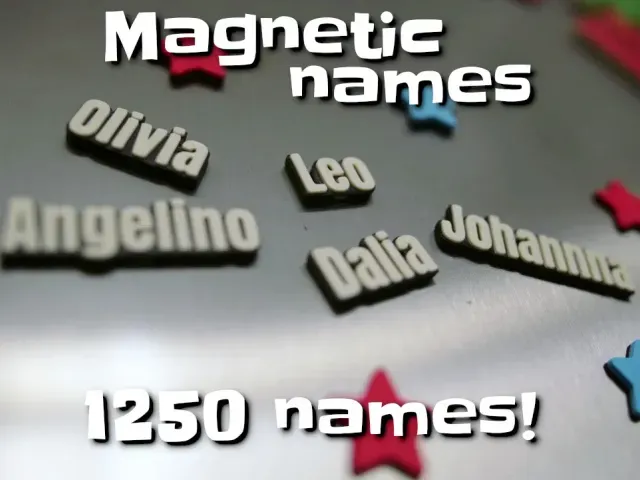

You can also print some of the magnetic poetry or magnetic names: Then combine the words and names to form sentences specific to your family / friends. (e.g. “John please go shopping”, “I like Leo”)

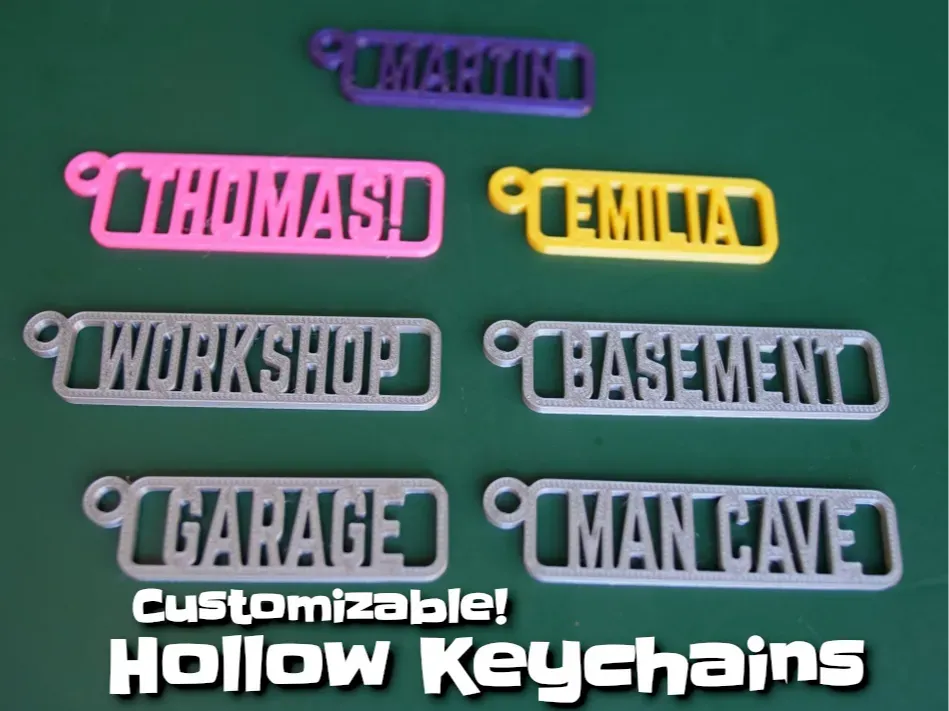

There is also a configurable keychain version available:

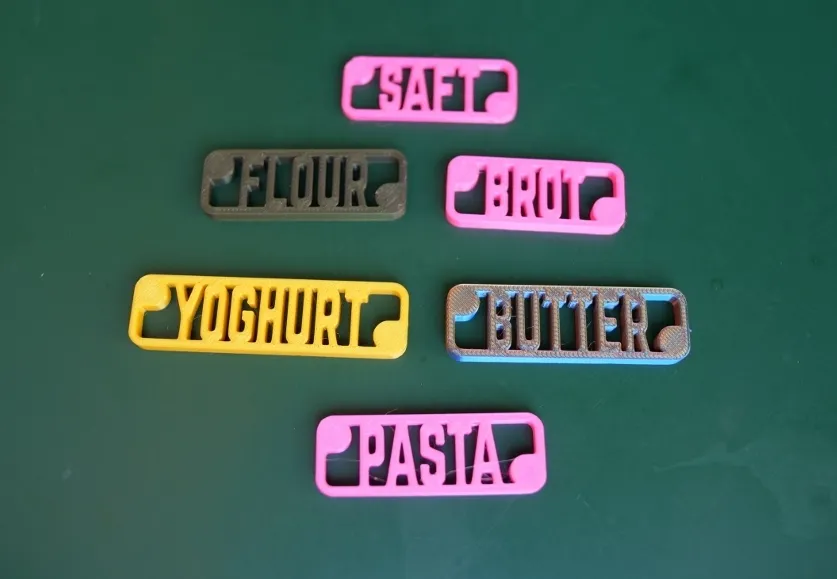

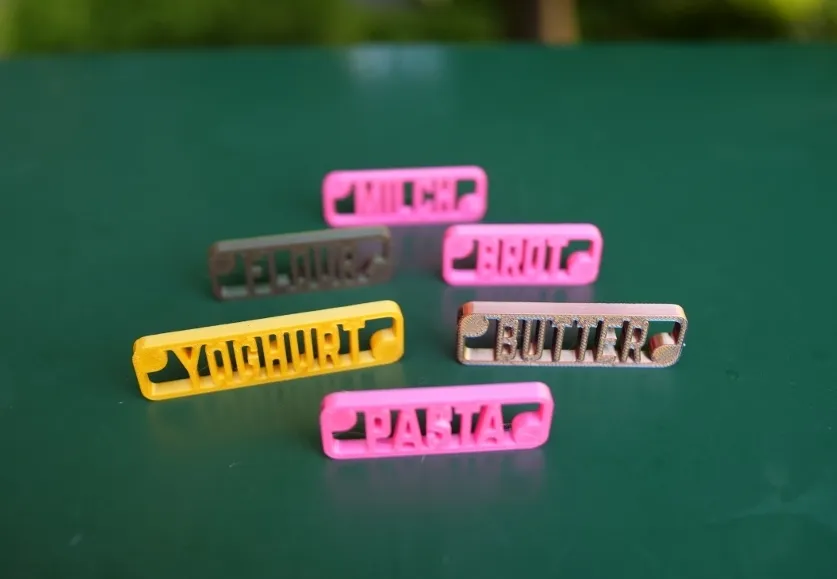

Words included

• PASTA , RICE, BREAD, FLOUR, CEREAL, MILK, EGGS, CHEESE, HAM, FISH, MEAT, OIL, BUTTER, YOGHURT, ONIONS, GARLIC, FRUITS, VEGGIES, PULSES, TOMATOES, SOUP, NUTS, HERBS, HONEY, VINEGAR, SUGAR, SALAD, BASIL, OREGANO, CORIANDER, CUMIN

Features

• Uses minimal filament, print many words in one go, prints in place
• No glue needed, just push magnets in from the sides

Printing & assembly

• Use .2mm quality setting
• no support material needed
• names of files and folders are self explanatory

You can use any of the makerworld magnets if you set the diameter and thickness accordingly. I recommend 3mm thickness so the magnets stick well:


D4x2 mm Round Magnet (20PCS) - CA001
D5x1 mm Round Magnet (20PCS) - CA002
D5x2 mm Round Magnet (20PCS) - CA003
D5x3 mm Round Magnet (20PCS) - CA006
D6x2 mm Round Magnet (20PCS) - CA004
D6x3 mm Round Magnet (20PCS) - CA007
D6x4 mm Round Magnet (10PCS) - CA013
D8x2 mm Round Magnet (20PCS) - CA005
D8x3 mm Round Magnet (20PCS) - CA008
D10x3 mm Round Magnet (20PCS) - CA009
D12x3 mm Round Magnet (20PCS) - CA010
D15x3 mm Round Magnet (20PCS) - CA011
D20x3 mm Round Magnet (10PCS) - CA012
