Description

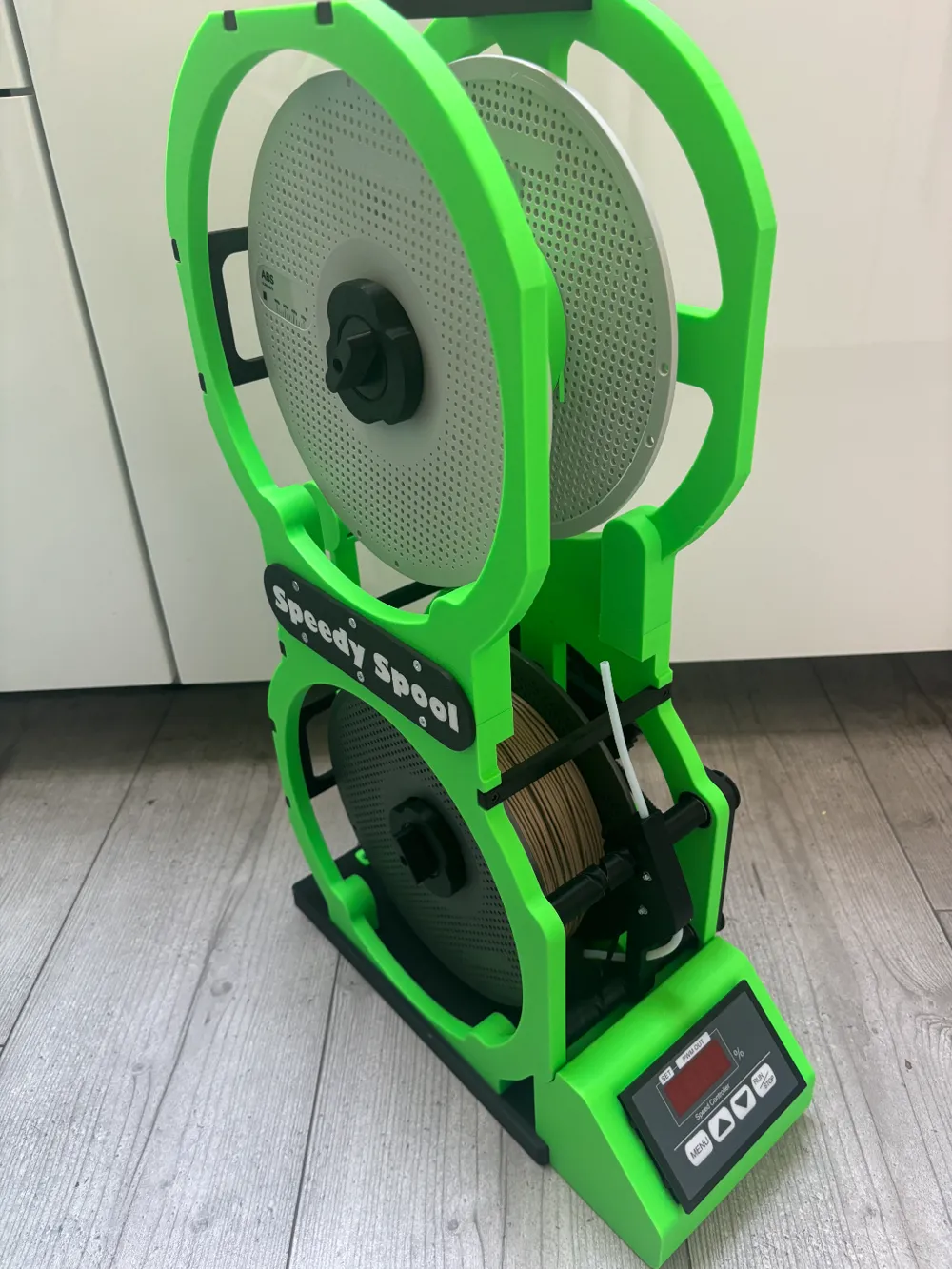

Greetings, fellow 3D printing enthusiasts! After reproducing numerous spool winders available online, I present to you the ultimate device (inspired by LTS Design's winder)! All previously encountered spool winders share a common flaw: they are noisy, excessively wobbly, and the winding quality is subpar. I dedicated weeks to resolving these issues. The printed components now exhibit exceptional precision, ensuring smooth operation and minimizing noise. An integrated switch automatically halts the motor upon filament depletion. The upper filament spool's rotational speed is regulated via a contactless magnetic field, eliminating the friction-based systems of other winders, which contribute to increased wear and noise. View my Speedy Spooler in action—the video speaks for itself!
Hello dear 3D printing enthusiasts,
After replicating several spool winders available online, I have now created the ultimate device for you (inspired by the spool winder from "LTS Design")! All the spool winders I found have ONE thing in common: they are LOUD, totally WOBBLY, and the winding is so-so. I spent weeks tinkering to solve this problem, and now the printed parts have very high accuracy to ensure smooth operation and minimize noise.
A switch is installed to automatically stop the motor as soon as the filament runs out. I regulate the running speed of the upper filament spool via a contactless magnetic field. Other spool winders use the principle of friction, which leads to increased wear and, again, increased noise levels. Feel free to watch the video of my "Speedy Spooler" in action and see for yourself!
Required Components:
The following items are required:

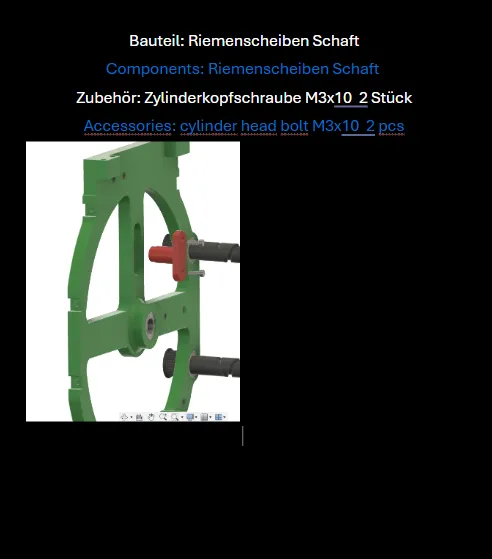

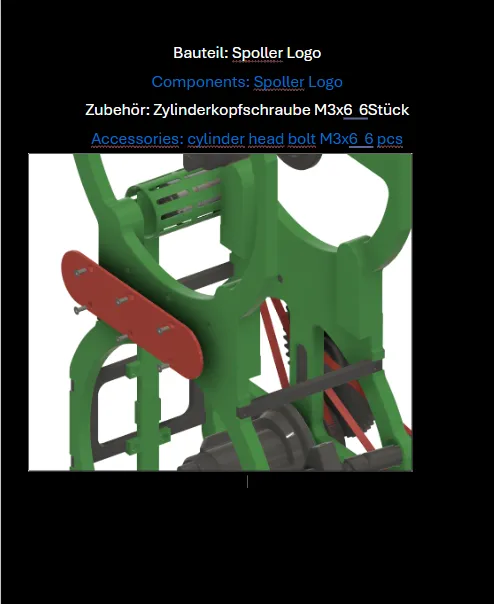

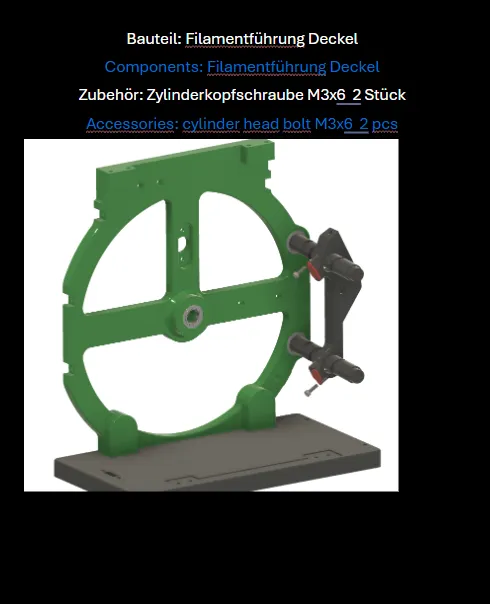

Cylinder head screws M3x6 2 pieces

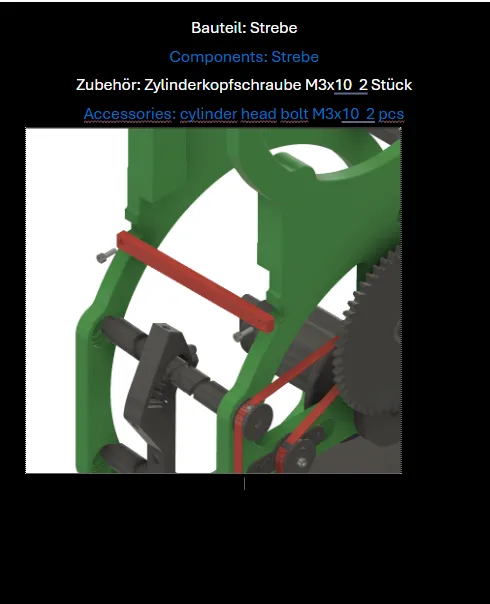

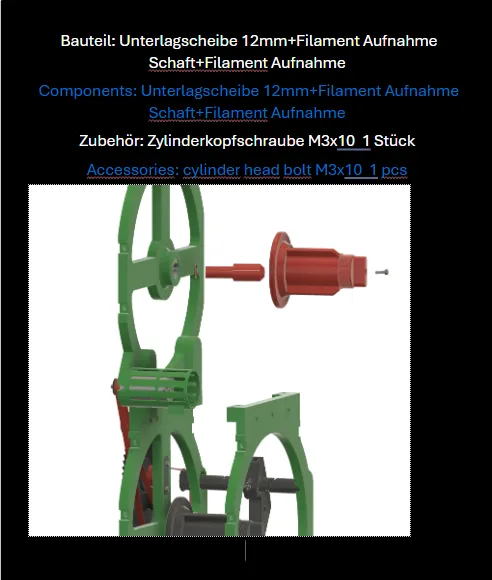

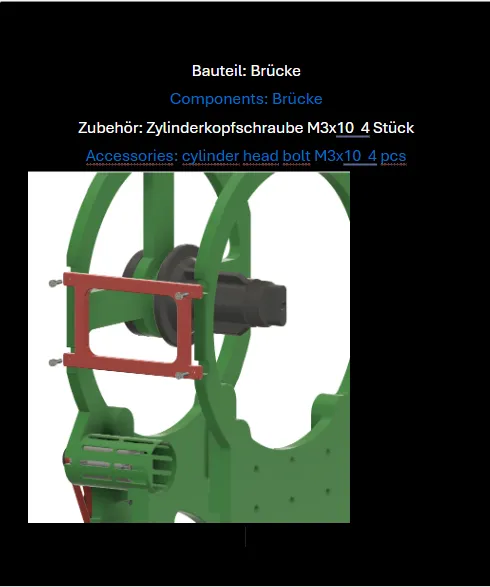

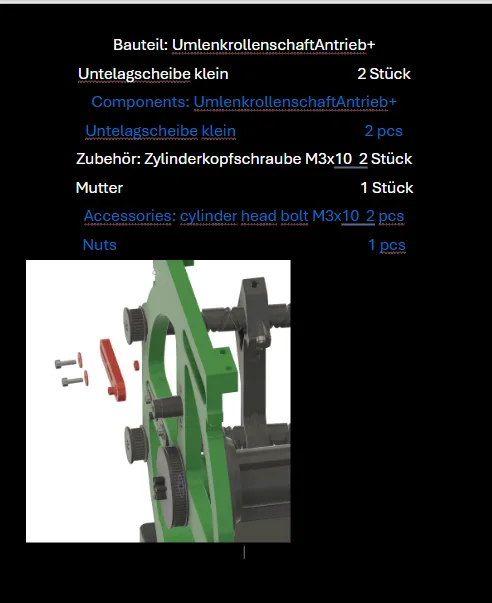

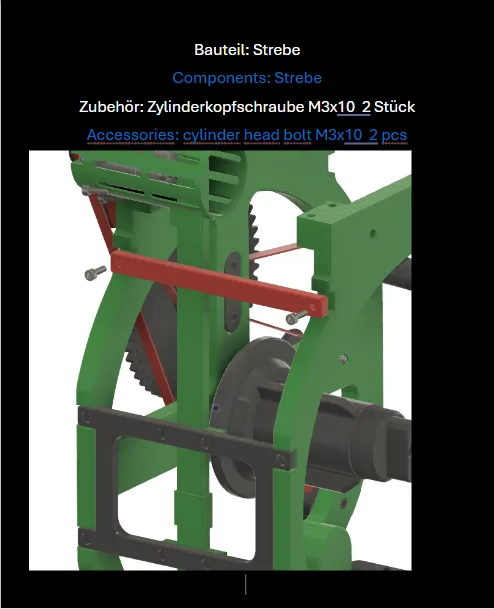

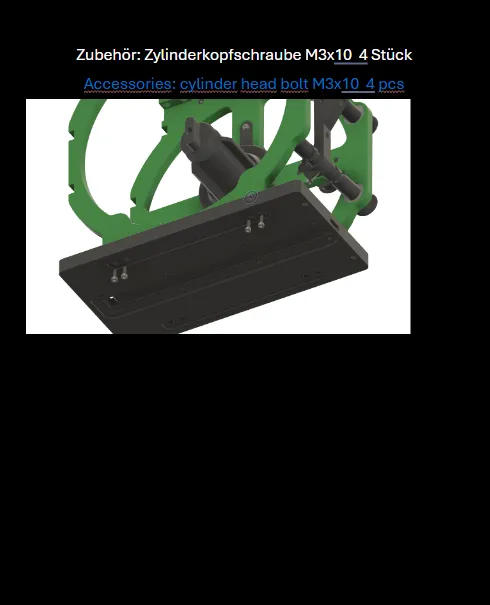

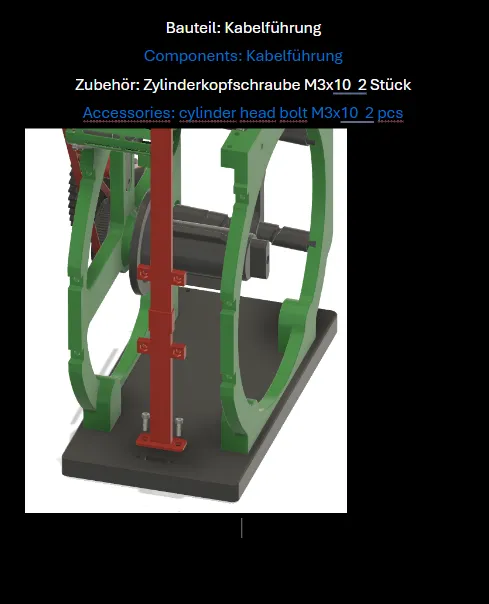

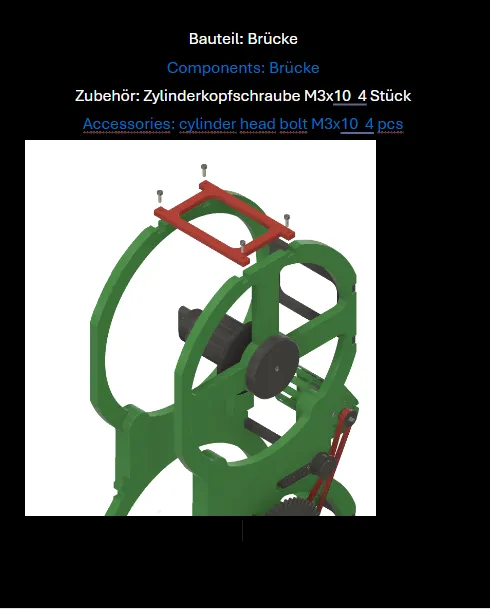

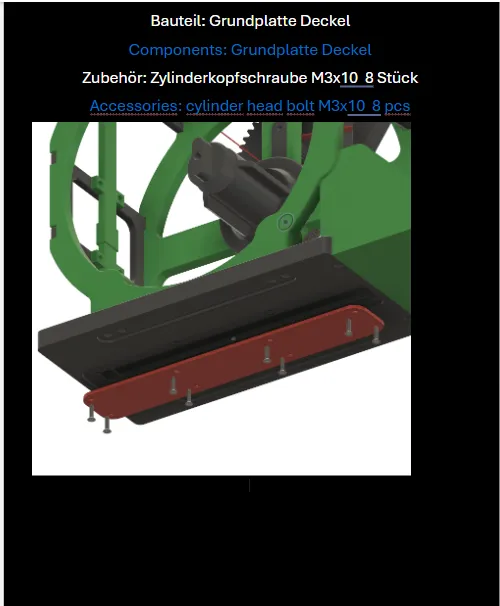

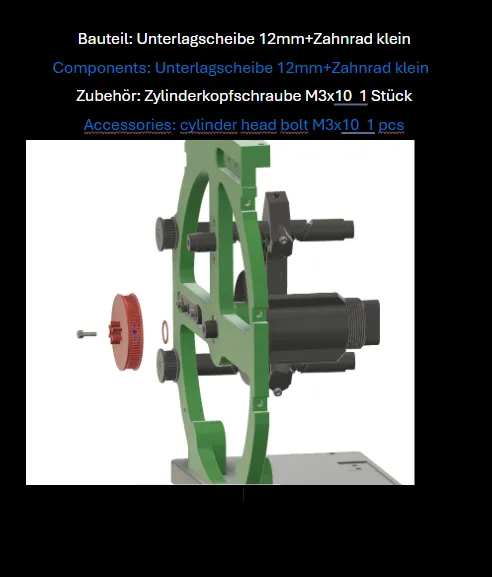

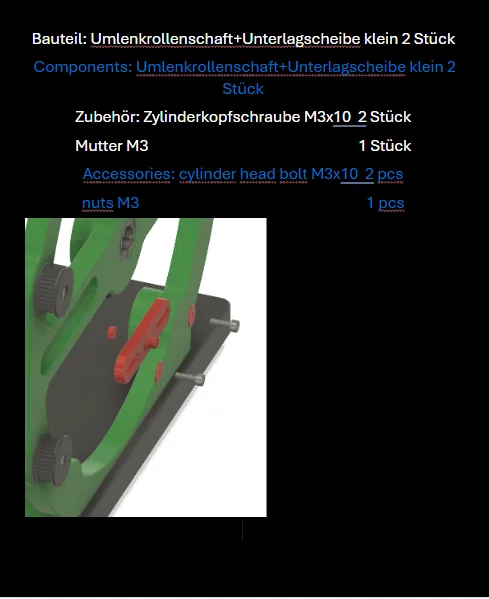

M3x10 51 pieces
M3x16 2 pieces
M3x20 1 piece

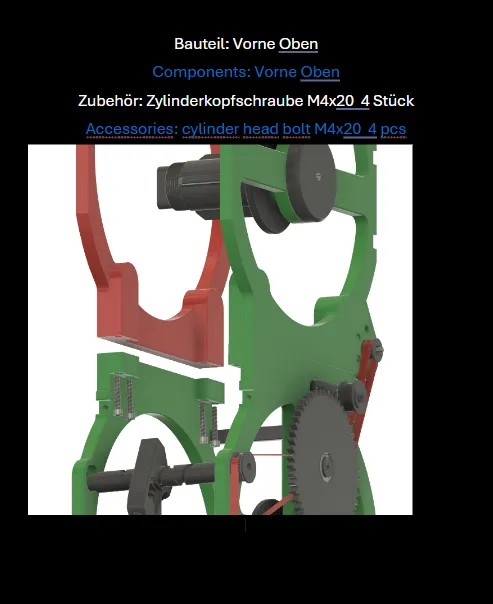

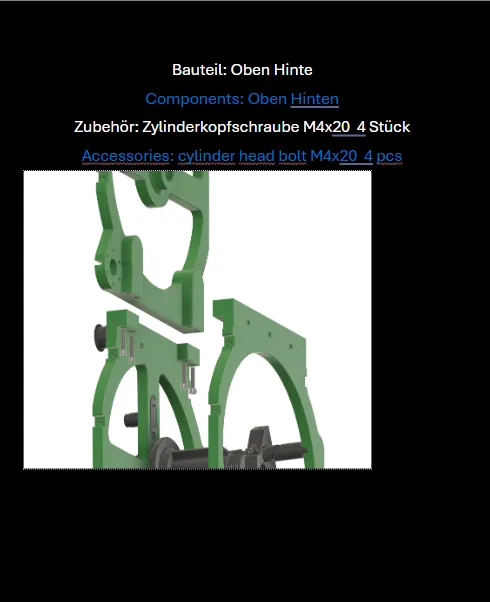

Cylinder head screws M4x20 8 pieces
Countersunk screws M3x6 14 pieces
M3x14 2 pieces

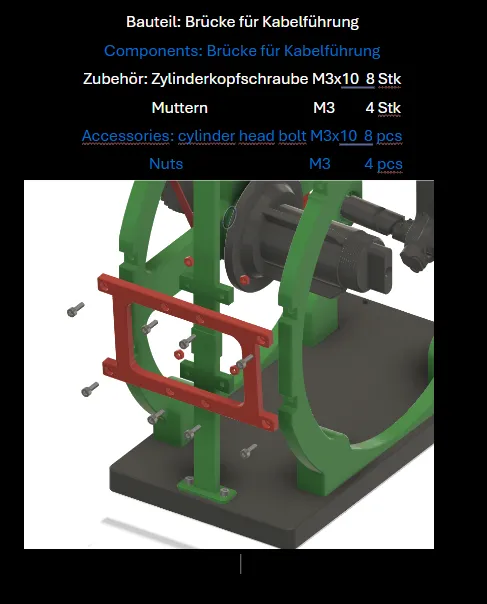

M3 Nuts 13 pieces

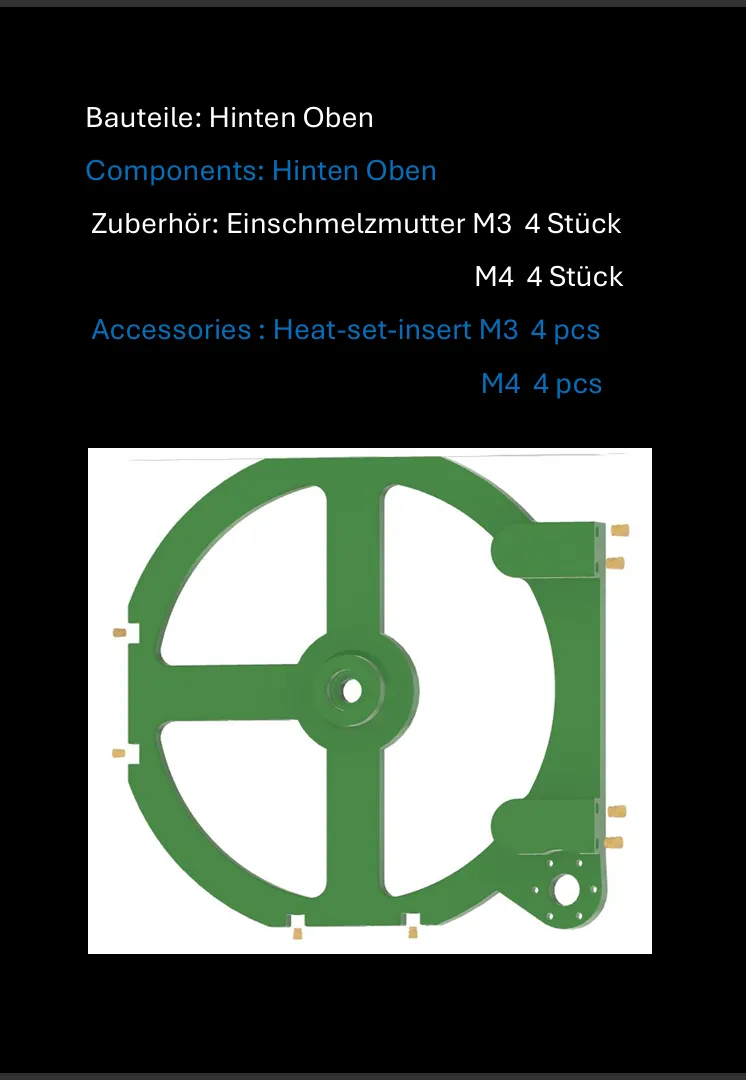

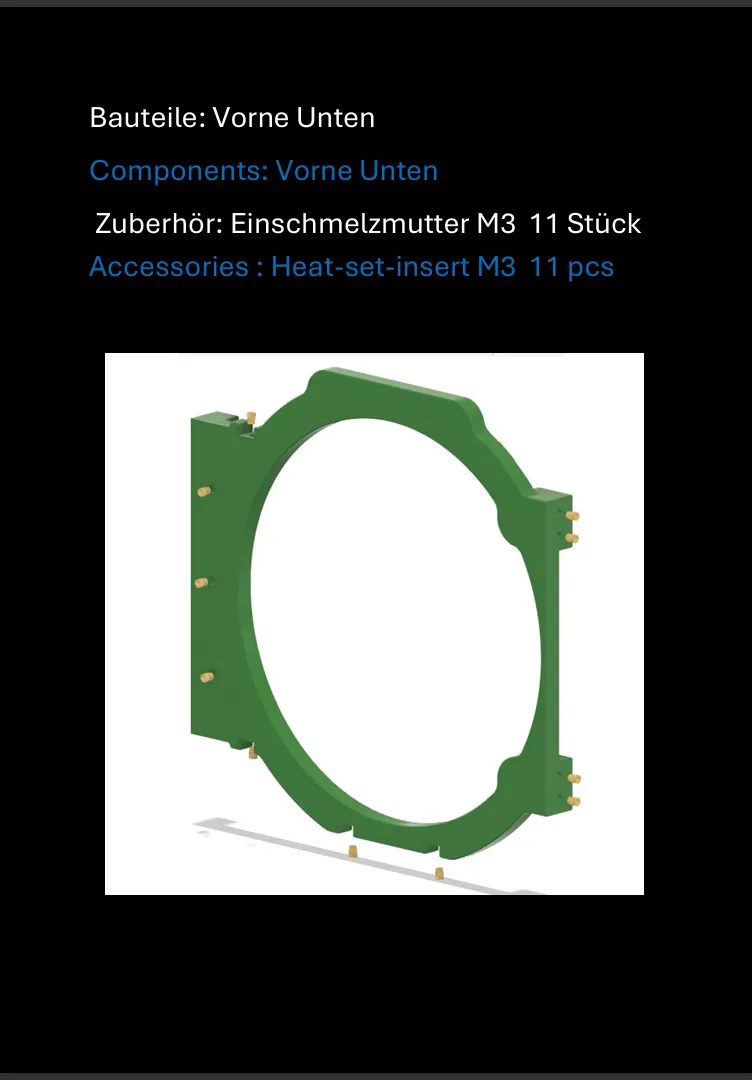

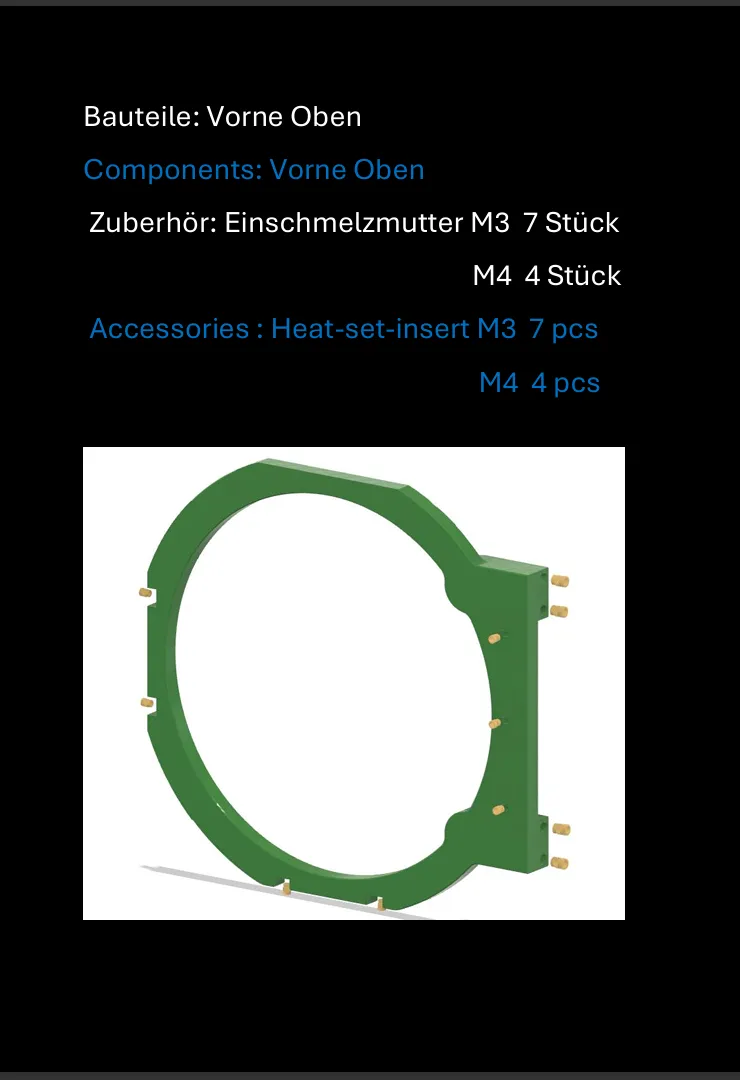

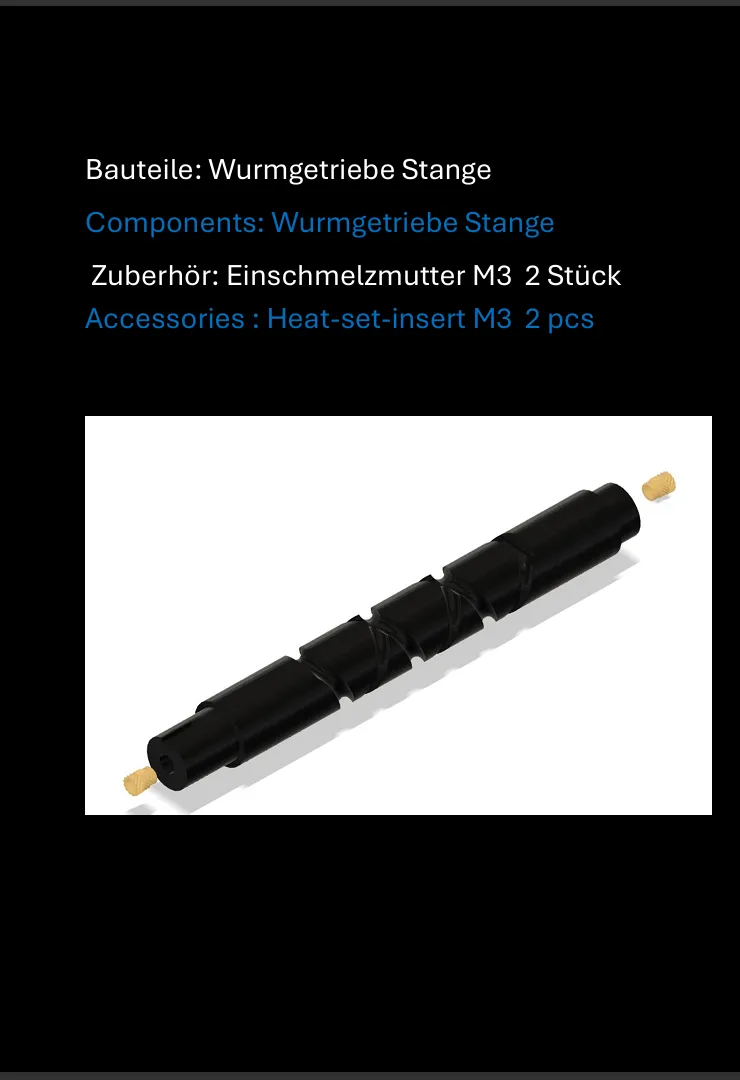

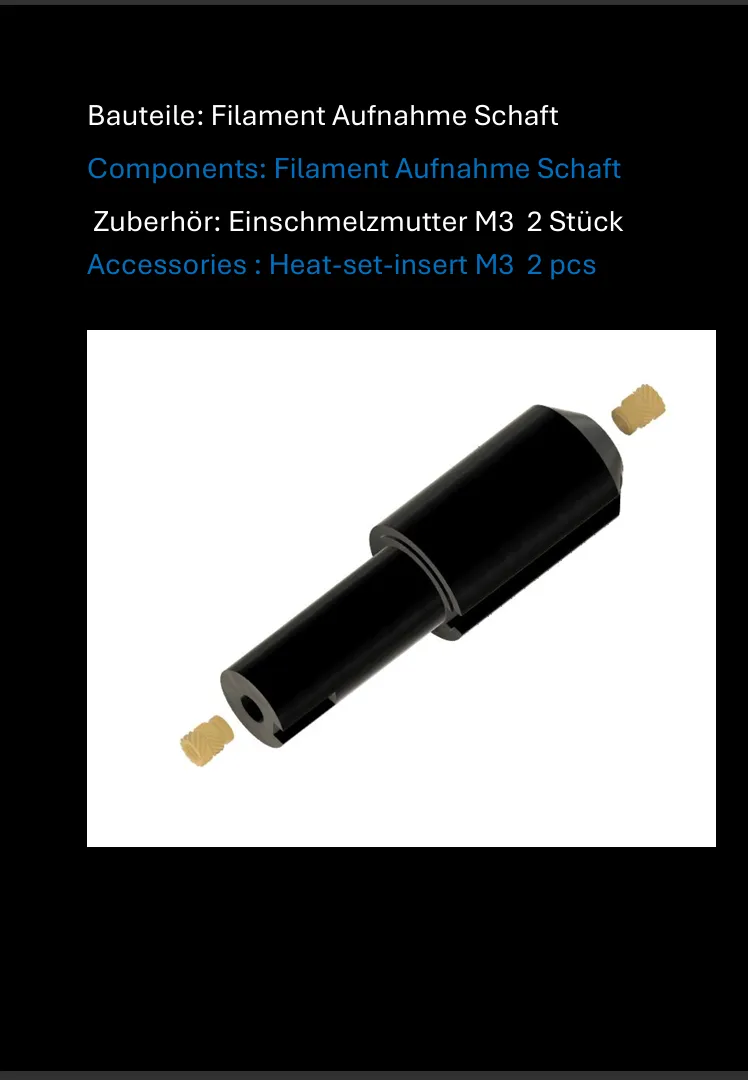

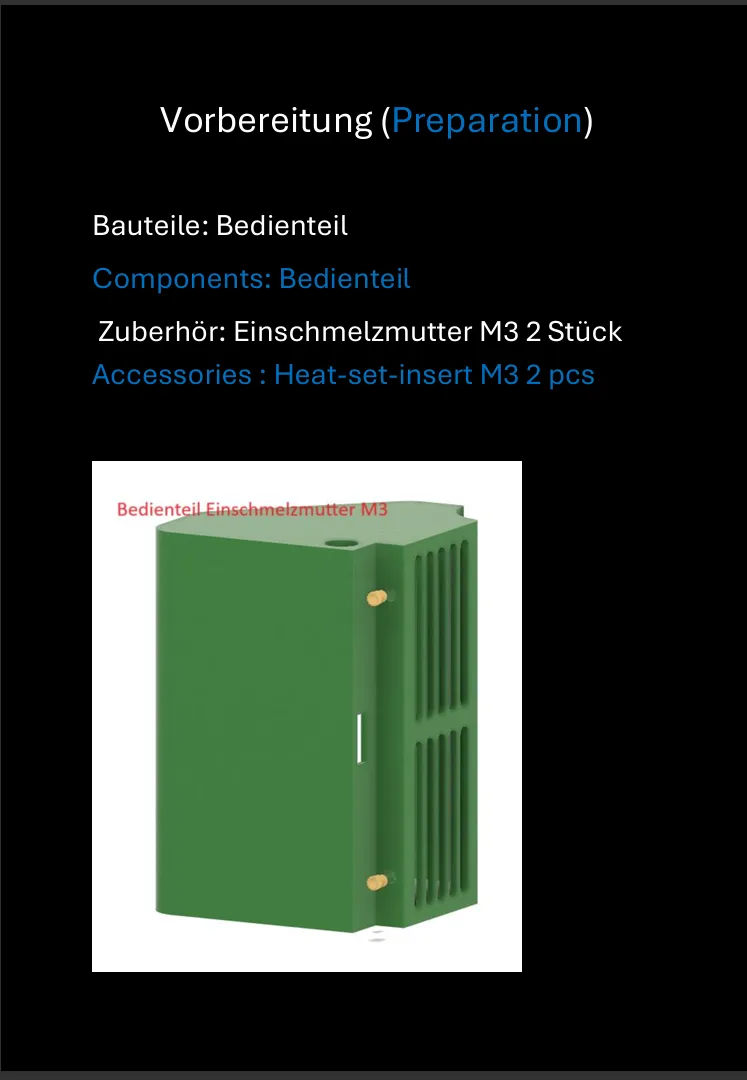

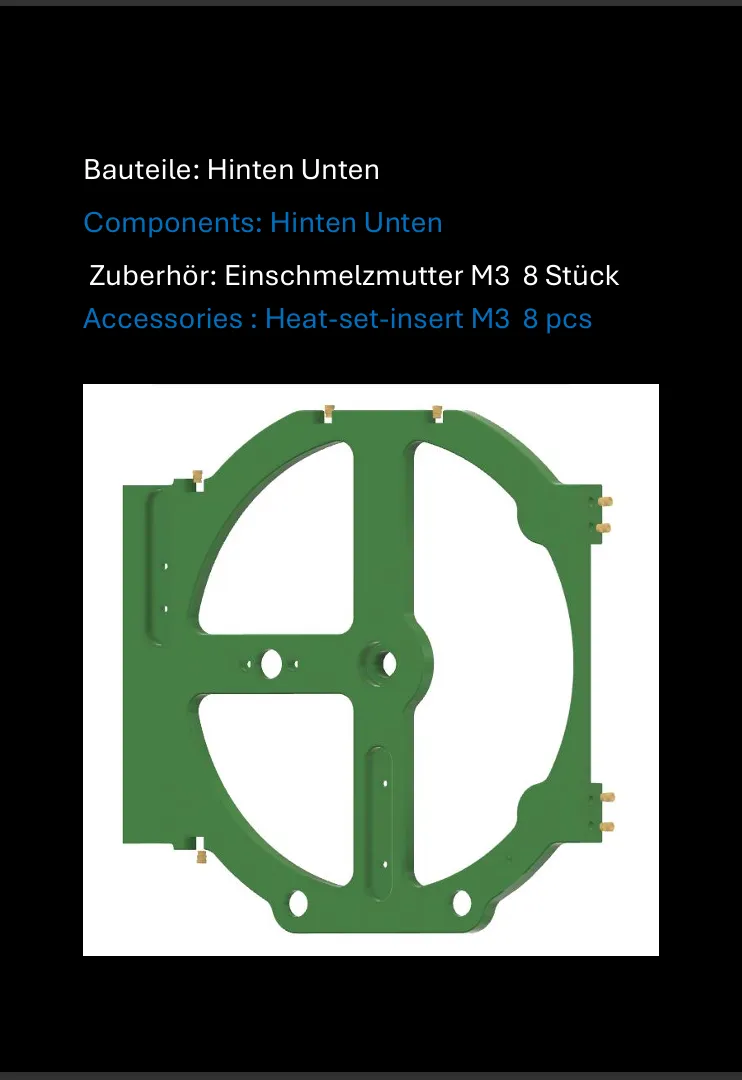

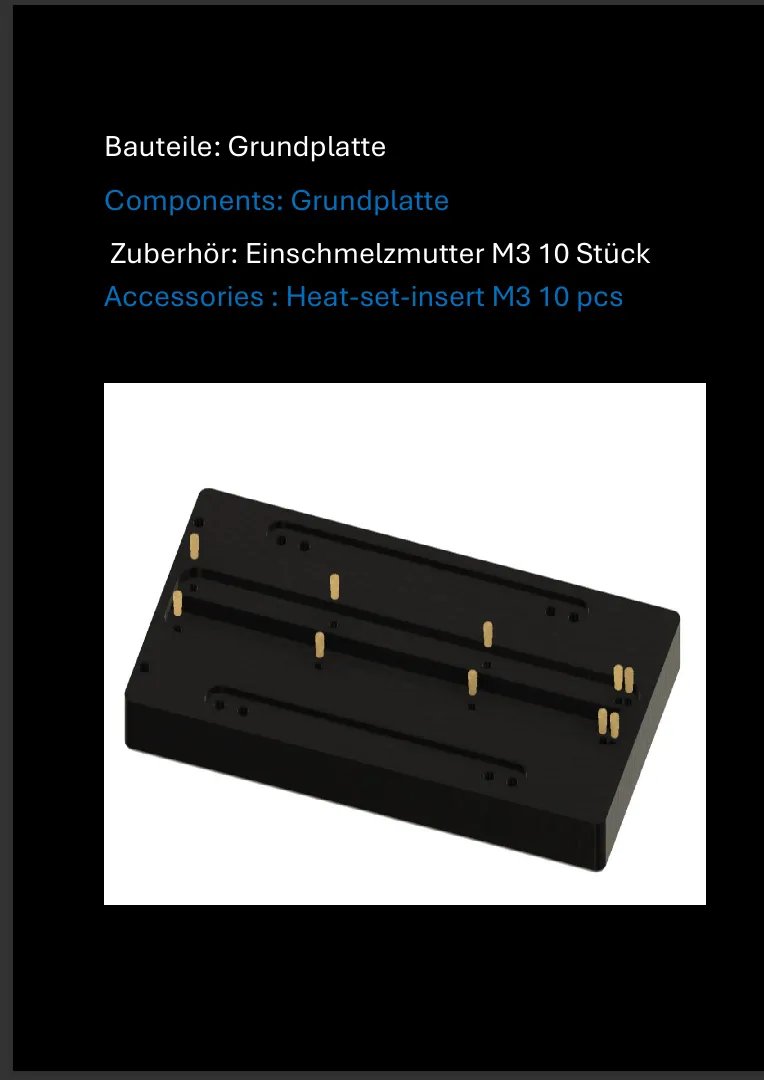

Heat-set inserts M3 36 pieces
Heat-set inserts M4 8 pieces

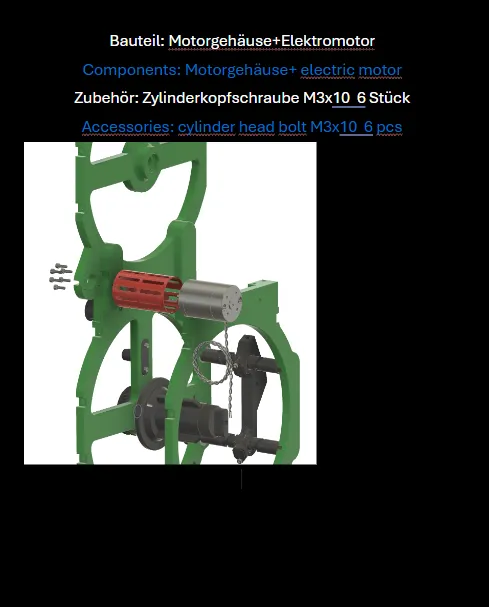

Motor: 550 Rpm
Motor:1000Rpm
Motor 550 Rpm (USA)

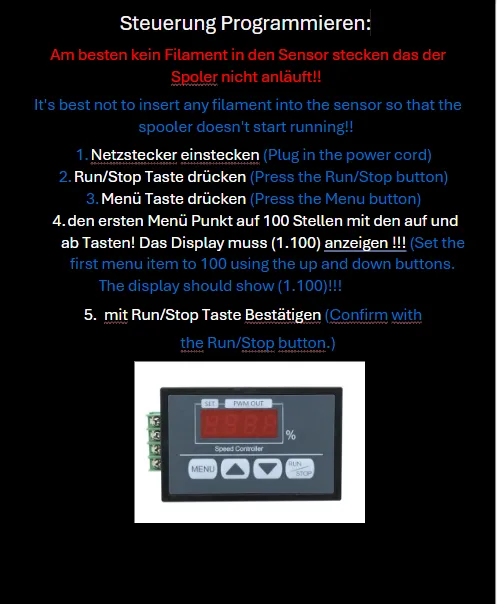

Controller:
https://amzn.eu/d/6FgrPYl
Controller USA

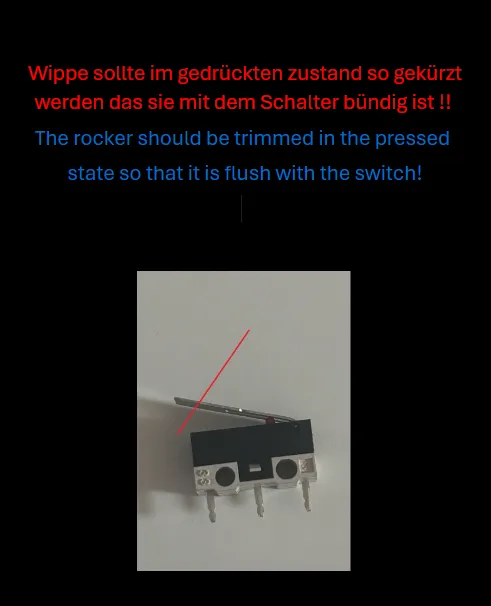

Switch:

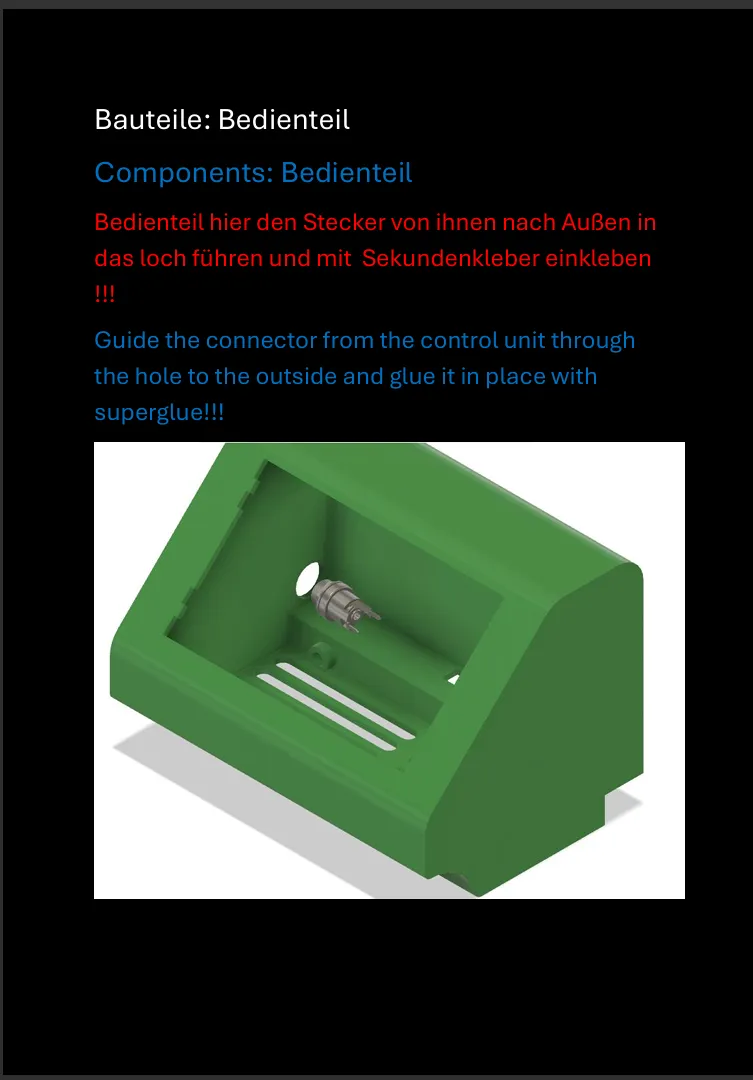

Connector
Power supply 12 Volt 5A

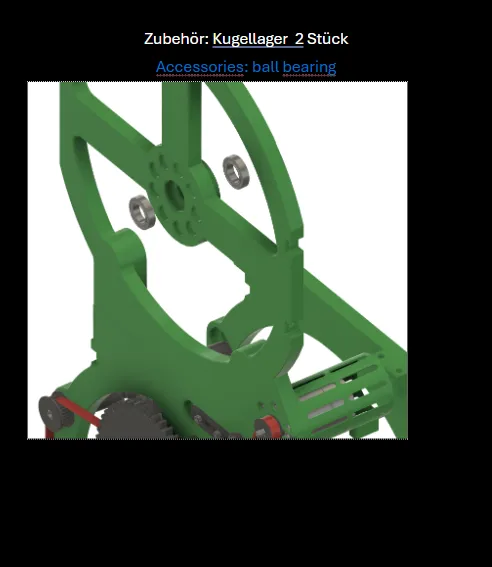

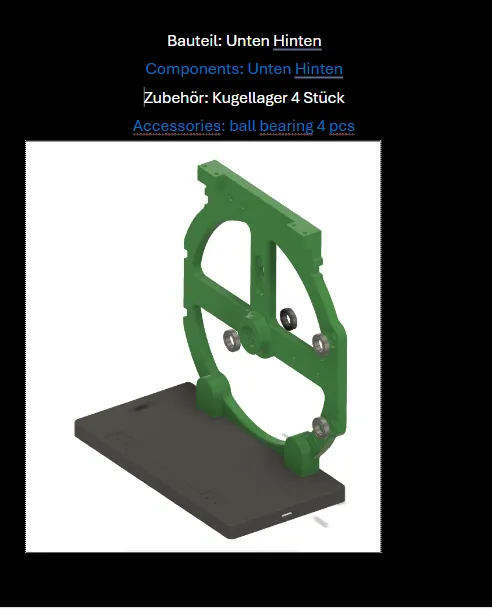

Ball bearing

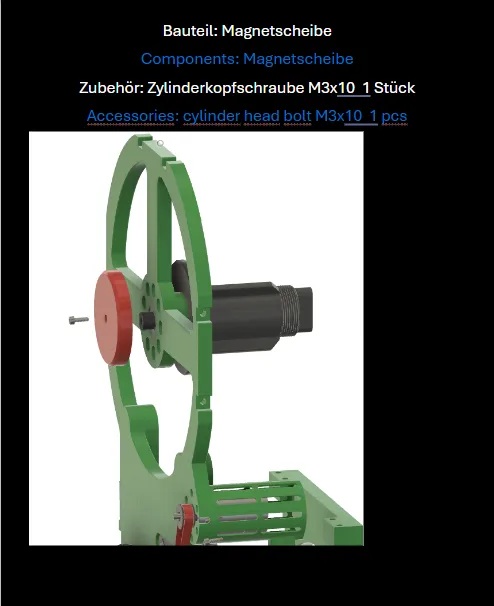

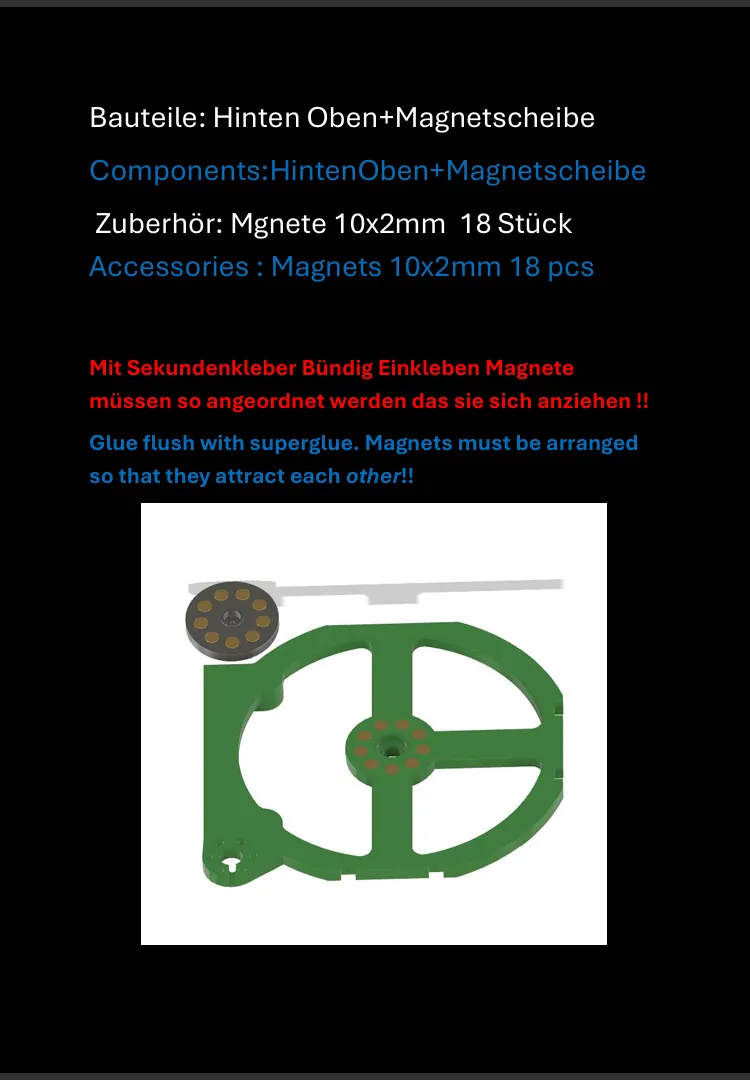

Magnets

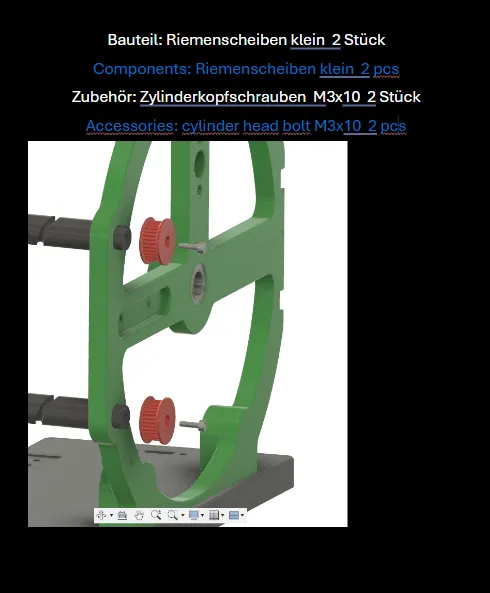

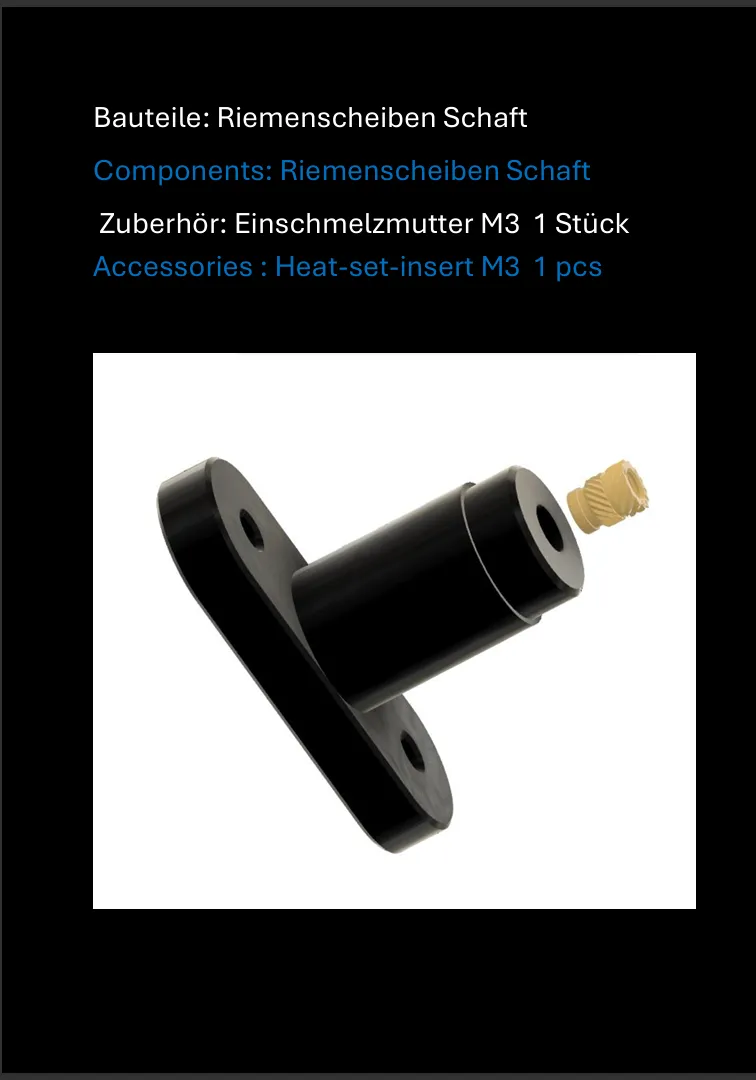

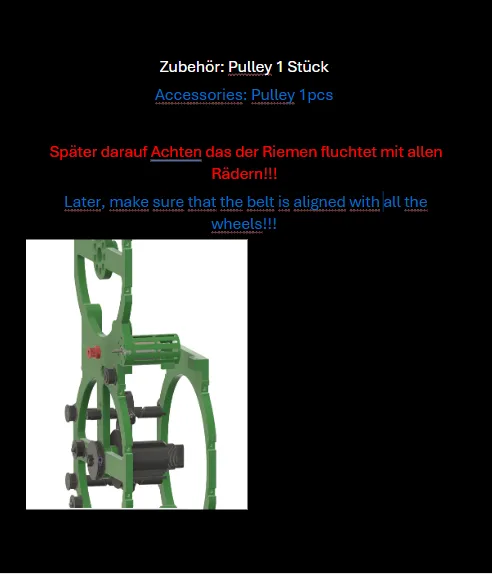

Pulley:

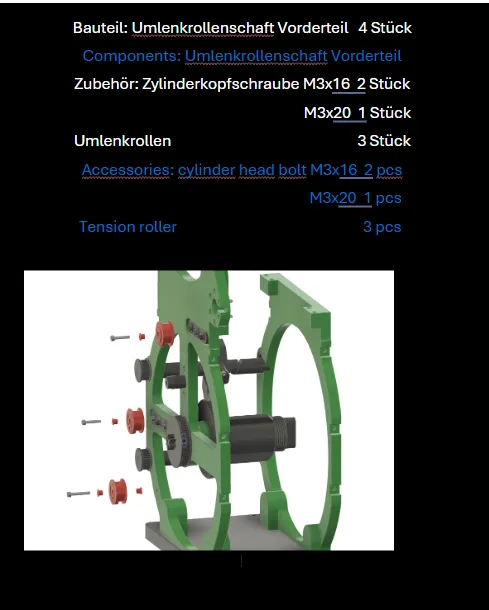

Tension roller

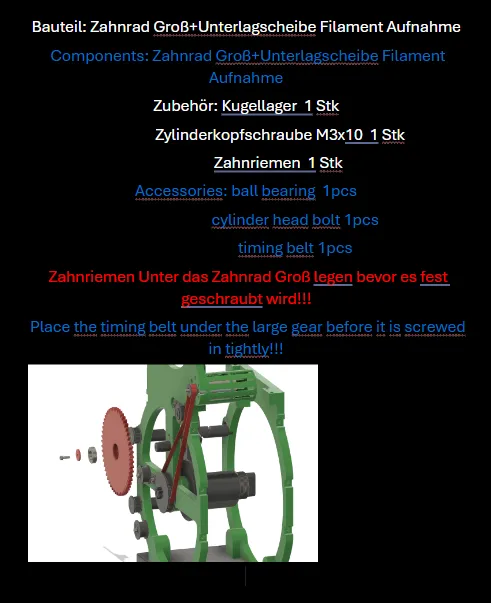

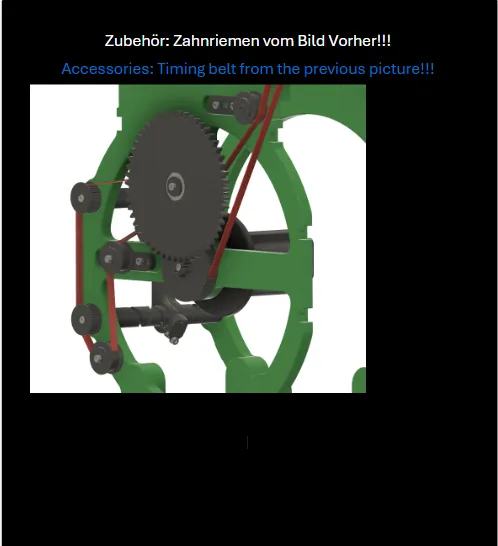

Timing belt GT2-6mmx480mm
Heat-set inserts M3
Heat-set inserts M4
A like and a comment would be greatly appreciated!
And a BOOST, of course, is welcome :-)

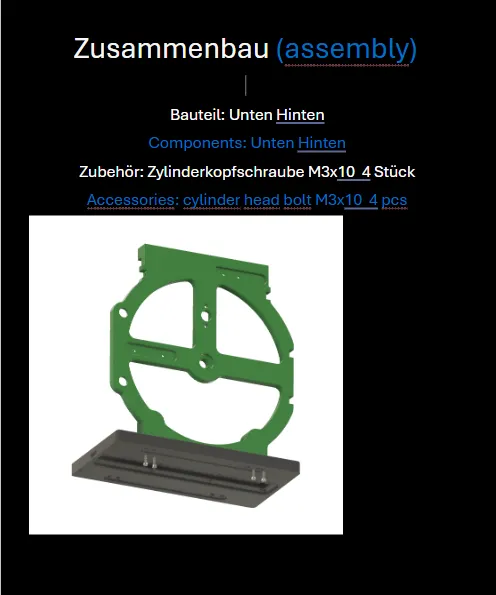

Further Links: Assembly and Speedy Spool in Action

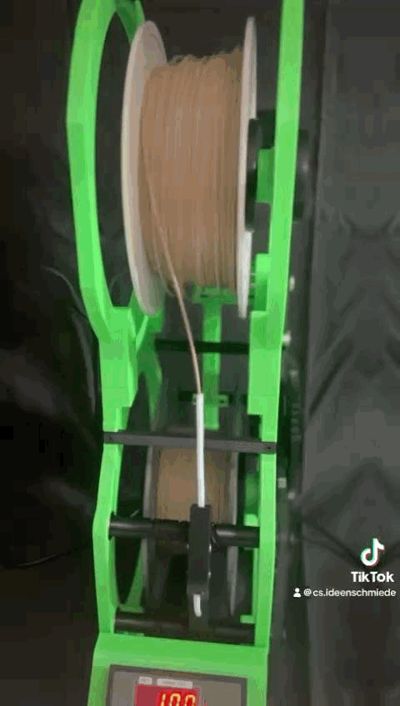

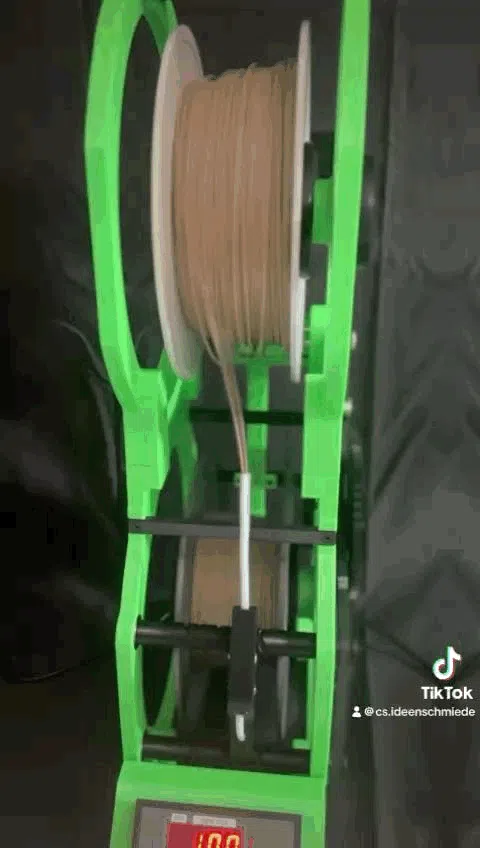

Speedy Spool in Action!
Filament Clamp Ring for Bambu Spools
UPDATE UPDATE UPDATE UPDATE!!!!!!!!!
I have constructed an adapter enabling the Speedy Spool's operation without a wall outlet!!!! This adapter is designed for standard 18-volt Makita, Bosch Professional, and Einhell batteries!!! Crucially, when using mains power, ensure no battery is connected!!!!!!!!!!!
I have built an adapter to use the Speedy Spool without a power outlet!!!! I have developed an adapter for a standard 18-volt Makita battery Bosch Professionell and Einhell!!! Important: No battery should be inserted when operating on mains power!!!!!!!!!!!
https://makerworld.com/en/models/582958#profileId-504072
https://makerworld.com/en/models/608854#profileId-531849
https://makerworld.com/en/models/608862#profileId-531857
https://vm.tiktok.com/ZGec84Kdc/
Bosch Adapter
https://vm.tiktok.com/ZGeTrwJRE/
https://www.instagram.com/reel/C_LzcbFu37G/?igsh=OG50eWF5MnJ4emNs
Einhell Adapter
https://vm.tiktok.com/ZGeTr79Fh/
https://www.instagram.com/reel/C_Ly5gpObYG/?igsh=MThwOXhjMnZjNWZpeQ==
