OpenDTU Box
IP Report
Print Profile(3)
0.2mm layer, 2 walls, 15% infill
Designer
1.9 h
1 plate
0.2mm layer, 2 walls, 15% infill
Designer
1.1 h
1 plate
All in 1 print - 0.2mm layer, 2 walls, 15% infill
2.2 h
1 plate
Open in Bambu Studio
Boost
9
15
2
3
51
28
Released
Bill of Materials
List other parts
- ESP-32 Dev Kit C V4 x 1: AZDelivery
- 0,96 Zoll OLED SSD1306 Display I2C 128 x 64 Pixel x 1: AZDelivery
- Hailege NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Modul with SMA Antenna 2.4G 1100m x 1: Amazon
Description

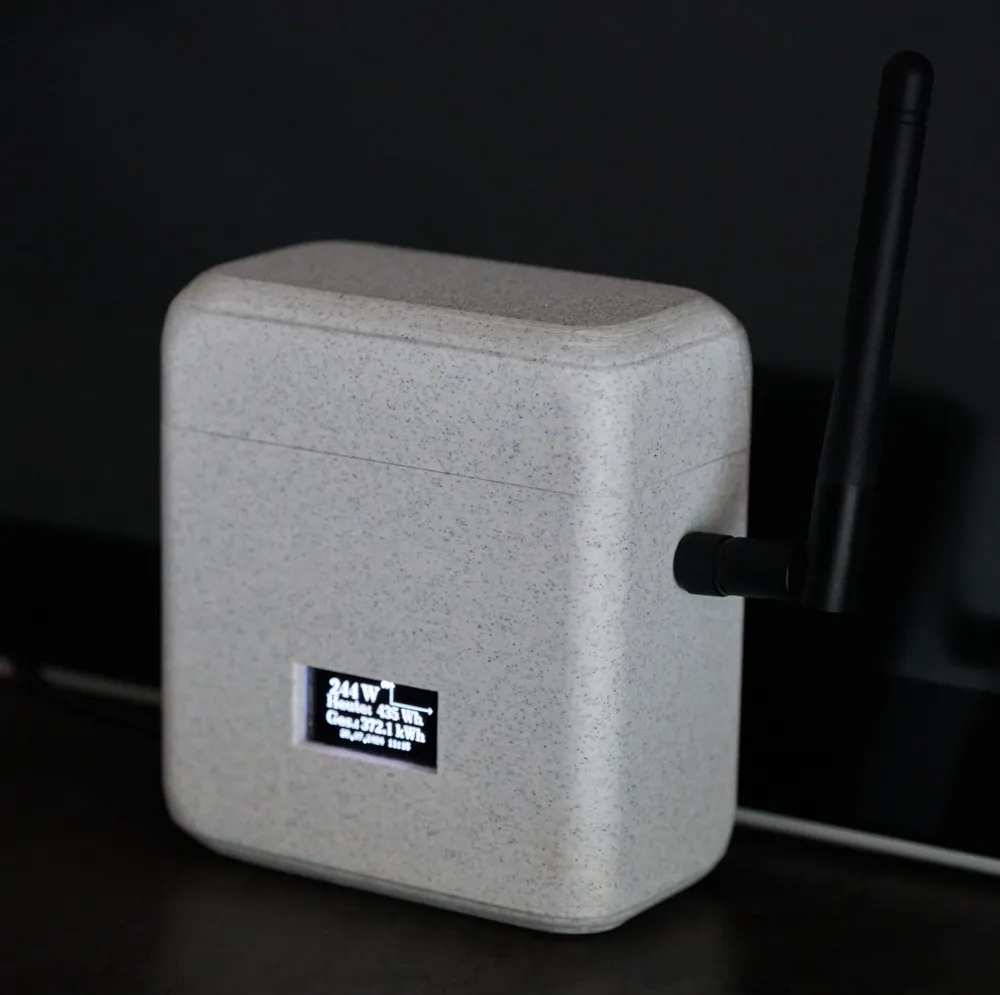

This is a box for openDTU electronic components:
- ESP-32 Dev Kit C V4
- 0,96 Zoll OLED SSD1306 Display I2C 128 x 64 Pixel
- Hailege NRF24L01 + PA + LNA Wireless Transceiver RF Transceiver Modul with SMA Antenna 2.4G 1100m

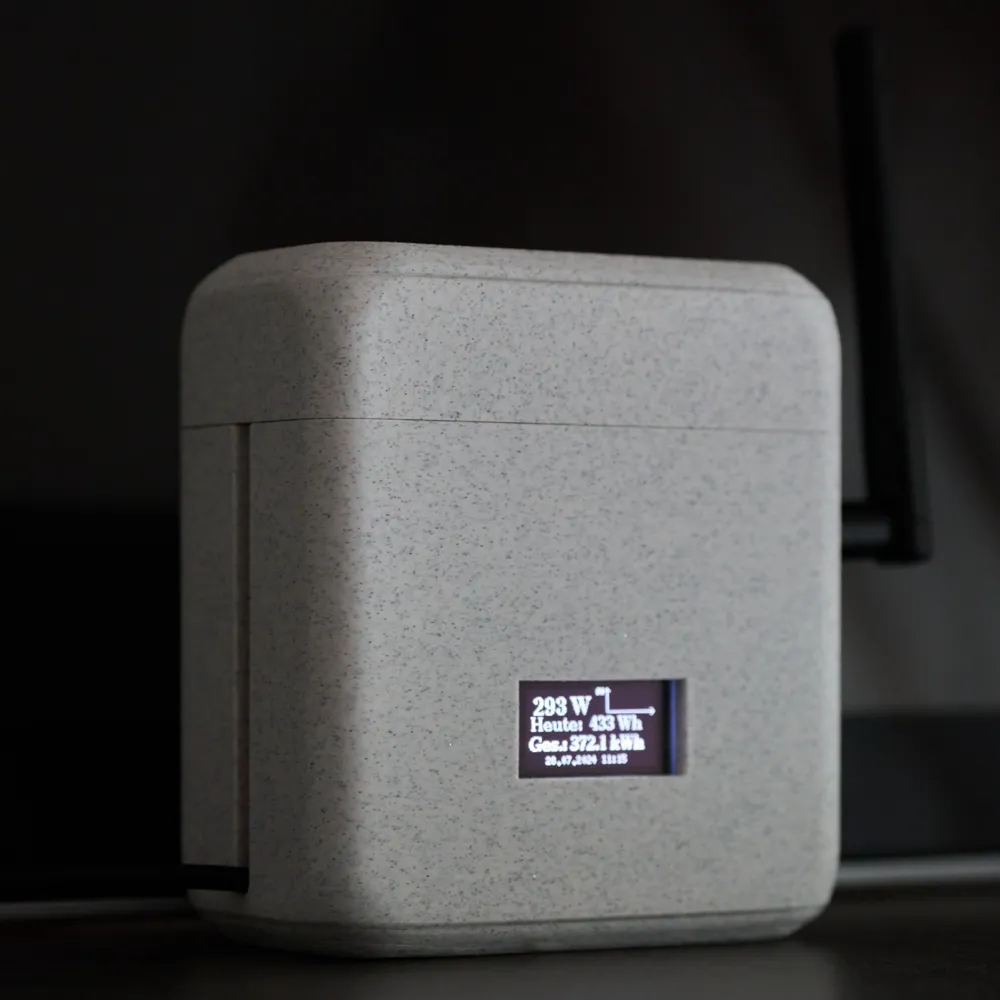

It shows the data of an Hoymiles microinverter
I have fixed the display with hot glue
