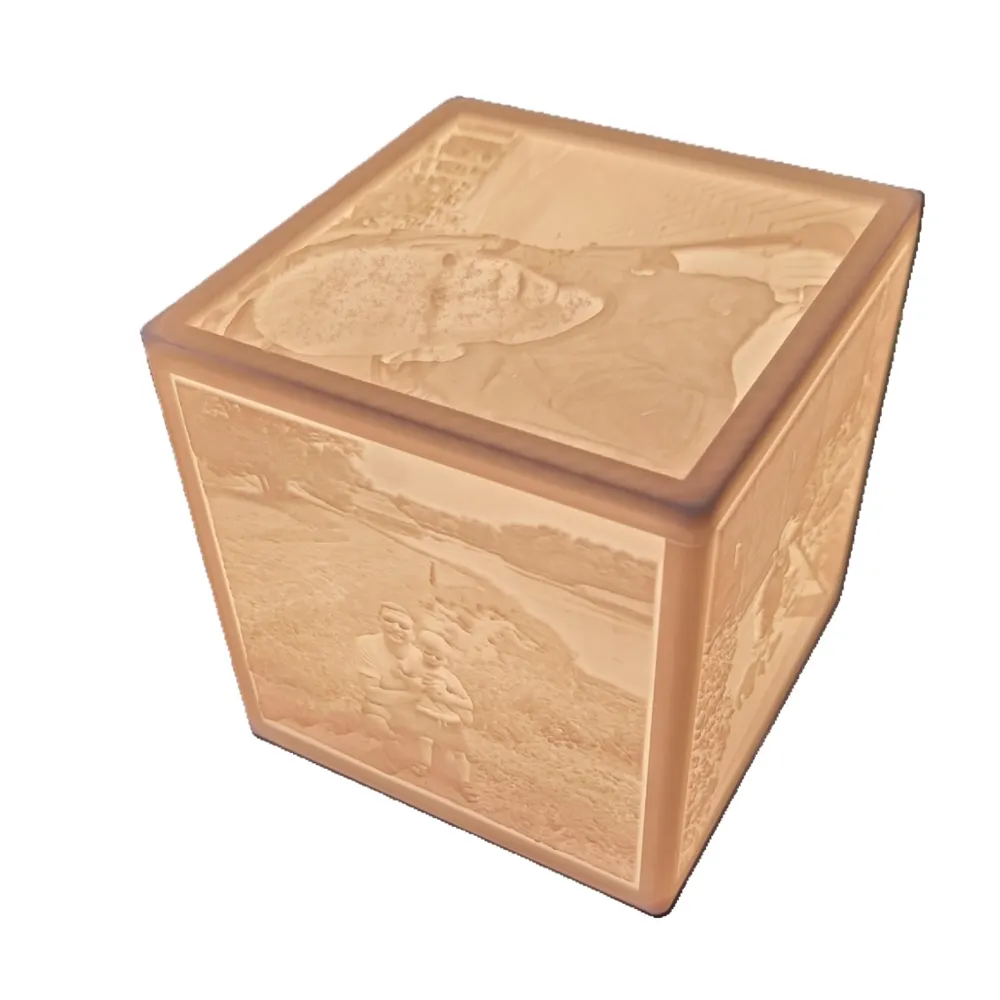

Lithophane box for removable litho's

I used https://tool.itslitho.com/CreateModel to make the litho's

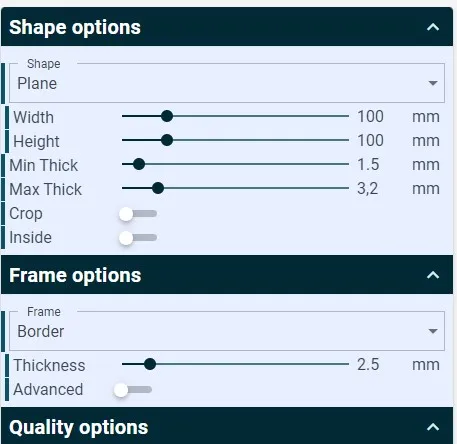

Use the following settings:

Plane

Width 100 mm
Height 100 mm
min Thick 1.5 mm
Max Thick 3.2 mm

Frame options

Border
thickness 2.5 mm

Ive added supports for the litho (some picture are top heavy and prone to fall down)

Just centre the support at the sides and join/merge them with the litho

For the lid there is a pause in the print. You can lay the top litho (with the flat side to the top) just make sure the top is flat before unpausing

Check out this base for the light

https://makerworld.com/en/models/556586#profileId-475464

but you can use any light or turntable
