wall mount for rectangular aluminum tube 20x40 mm
IP Report
GIF
Print Profile(1)
0.28mm layer, 2 walls, 15% infill
Designer
35 min
1 plate
Open in Bambu Studio
Boost
1
5
0
0
2
1
Released
Description

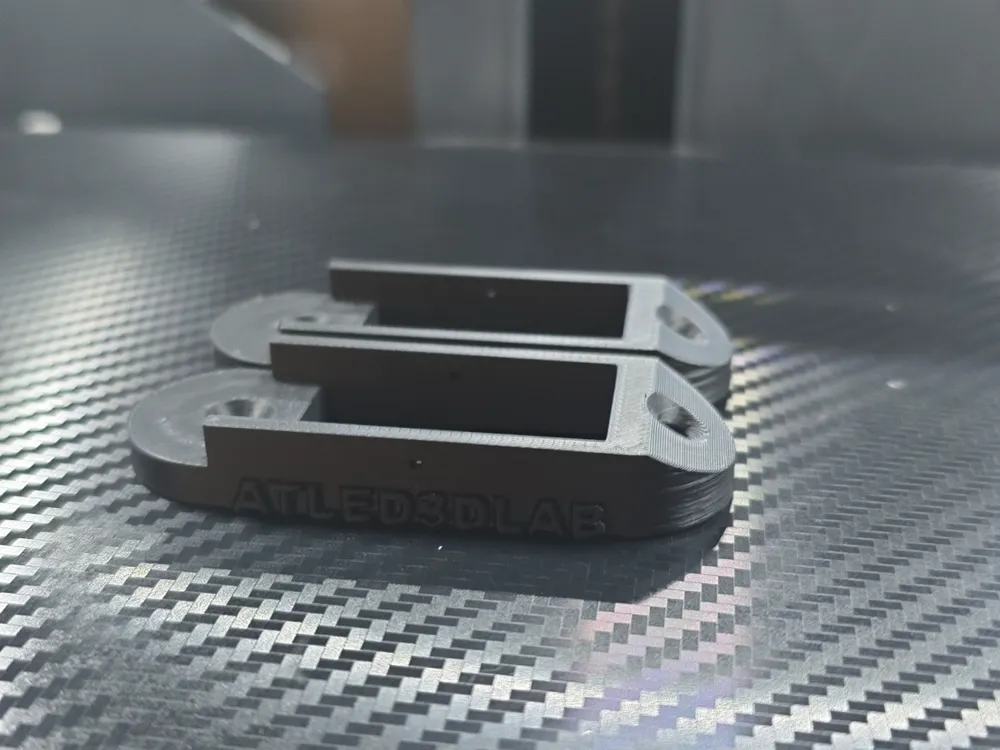

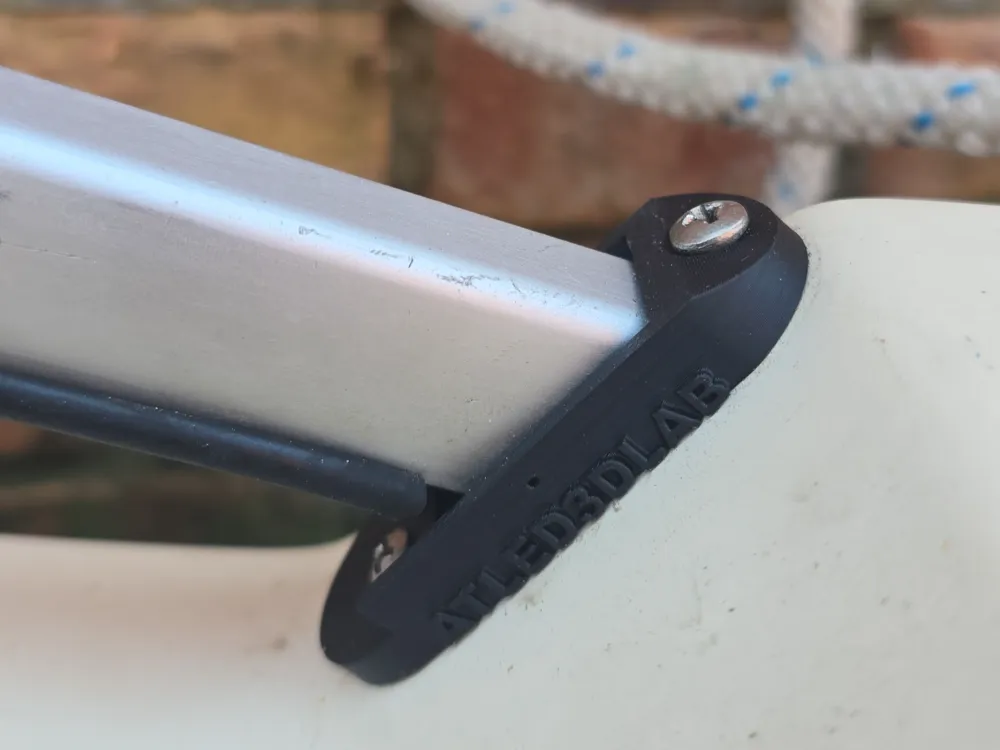

Wall mount suitable for a rectangular aluminum tube with dimensions 20 mm×40 mm and an inclination of 35 degrees. The mount will have holes for two stainless steel mounting screws (M3).
Design Description
Main Features:
- Tube Holder:
- An opening to snugly fit the 20 mm x 40 mm aluminum tube.
- The holder should securely grip the tube to prevent slipping or movement.
- The holder's opening should be inclined at 35 degrees to provide the desired orientation.
- Mounting Base:
- A flat base that attaches to the wall.
- Prepared holes for two M3 stainless steel mounting screws.
- The holes should be counterbored to allow the screws to sit flush with the mount's surface.
