Rotating table

A designed and printed rotating table to show off those printed models or to use 3D scanning with mobile.

This design uses;

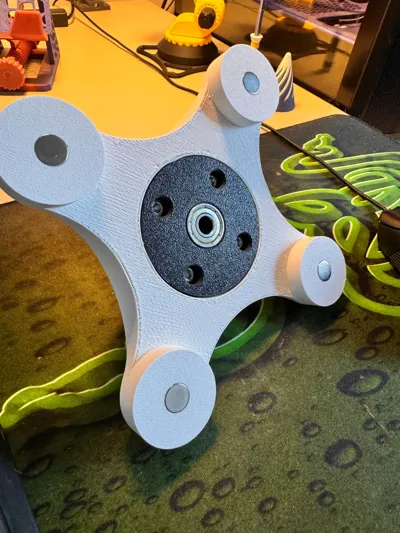

4pcs M5x25 SocketHeadCap Screws

1pcs M5x20 SocketHeadCap Screw

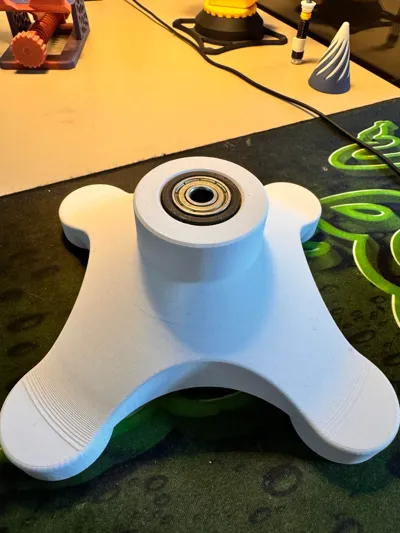

2psc of Bearing with a Ø of 22 and 7mm thickness. This has a tight fit and needs to be pressed. (These were purchased on Amazon)

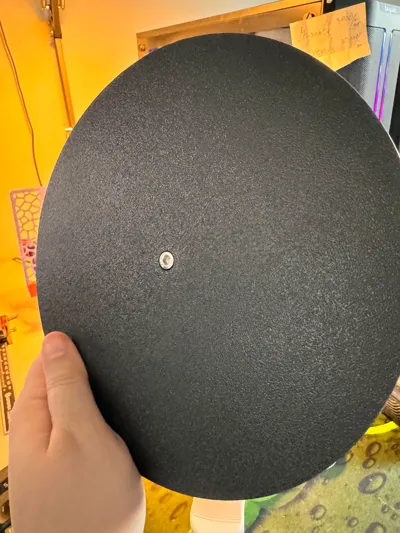

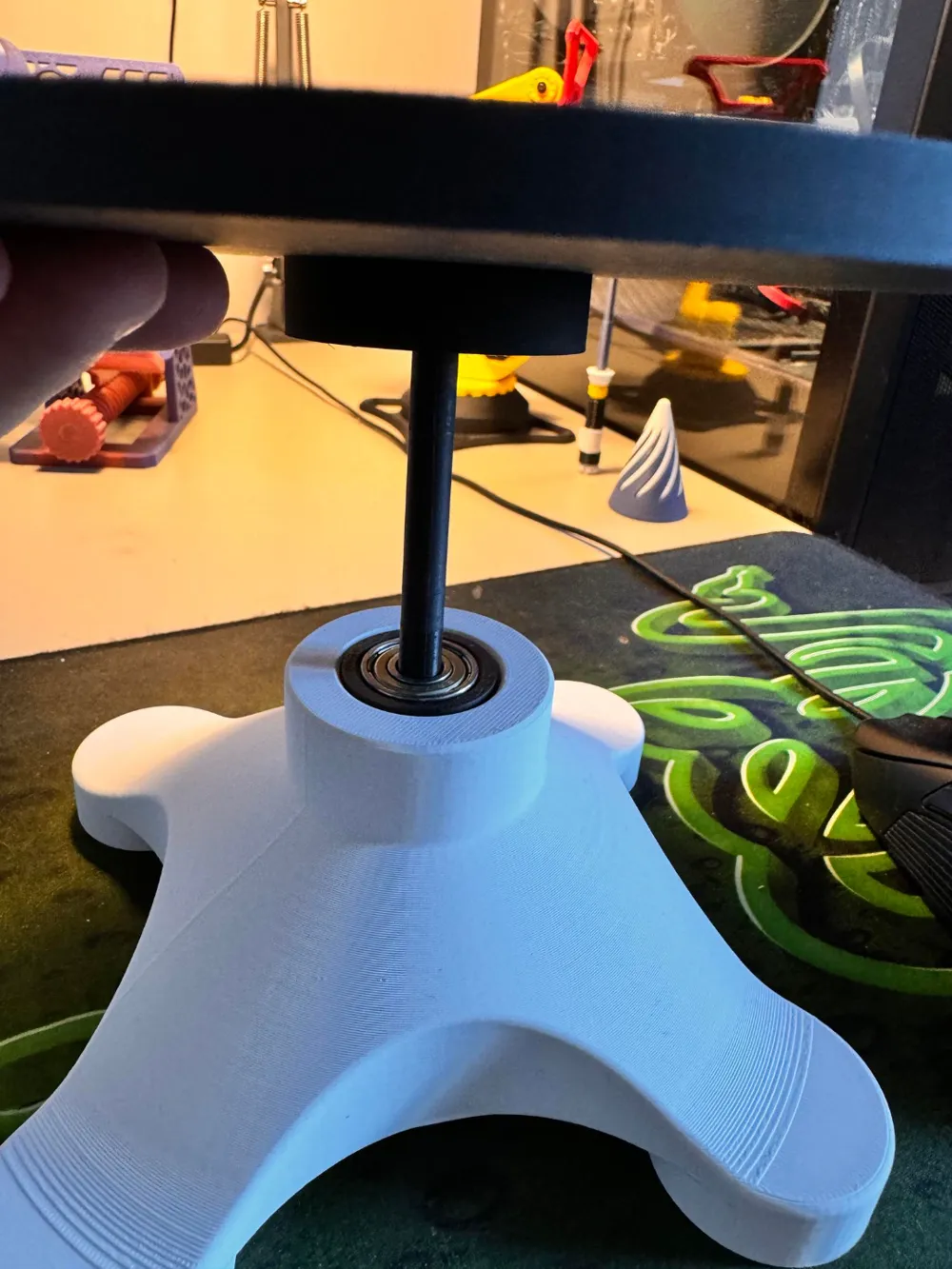

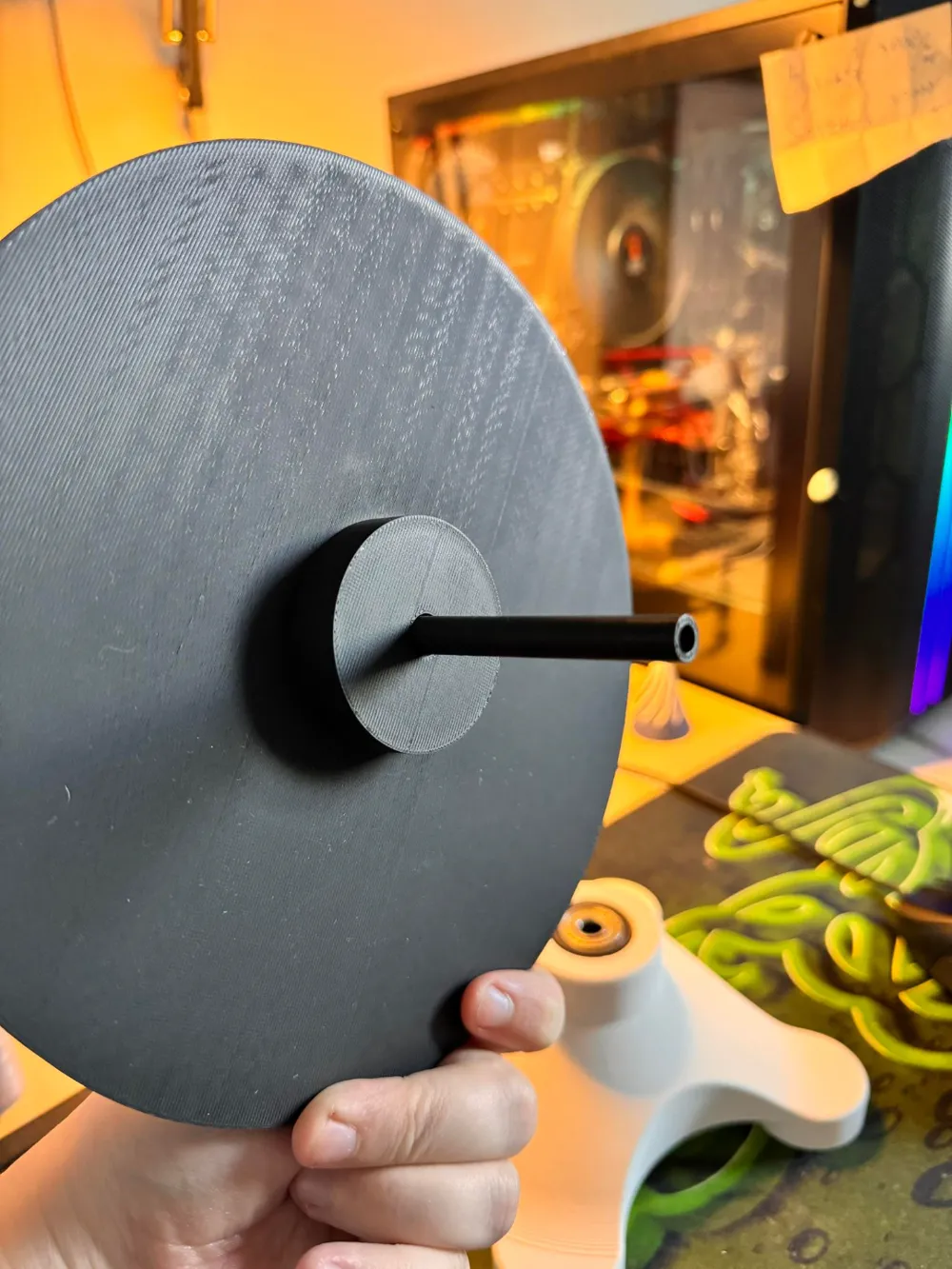

Pre-thread the Rod that is to be screwed together with the round plate to avoid damage.

ADDITIONAL INFORMATION:

I added a washer between bearing and round plate to avoid scratch noises etc.

Support: Yes, on needed areas.

Optional: 4pcs round magnets of size Ø12x2mm thickness.

Will try to add a motor to have it self-rotating in future, but need to learn abit more about that. But if you want to try, feel free to do so! :)
