Raspberry Pi OLED-mount

It has been a year or two since I actually created the design, apparently I just forgot to upload it to the respective websites.

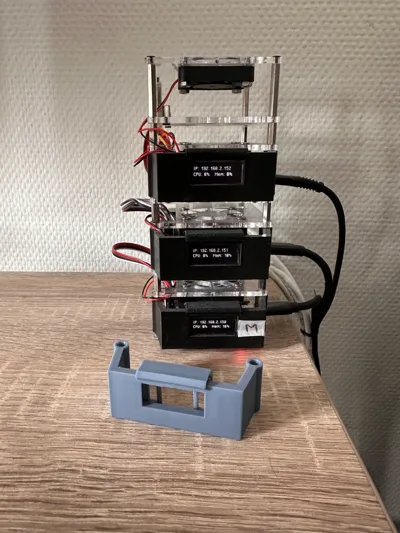

OLED Mount for Raspberry Pi Tower Case

This 3D-print model is designed to provide a convenient and secure mount for OLED screens on your Raspberry Pi tower case. The mount is compatible with the following components:

• Icy Box Raspberry Pi 4 Tower Case: Link to Product
• AZDelivery 5x 0.91" OLED Screens: Link to Product
• AZDelivery Jumper Wires: Link to Product

Features:

• Compatibility: Tailored to fit the specified Raspberry Pi tower case and OLED screens perfectly.
• Easy Installation: Includes mounting points and ample space for wiring, ensuring a straightforward assembly process.
• Neat and Professional Finish: Helps integrate the OLED display seamlessly into your Raspberry Pi setup.

Instructions:

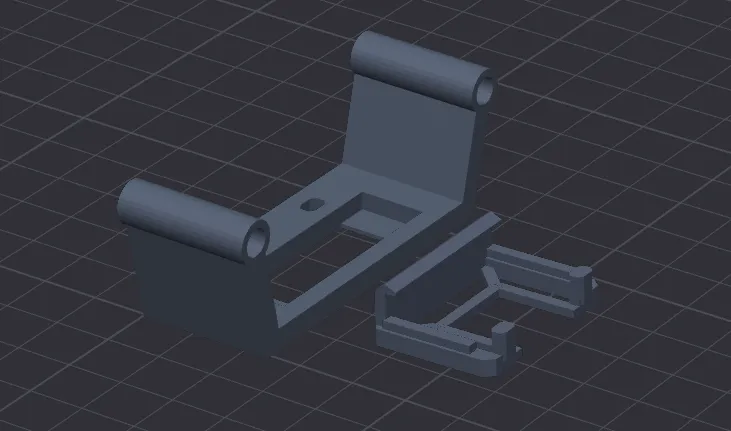

1. Print the model with supports. Ideally, print the bracket downfaced and the backplate on its back to minimize the required supports and for best result.
2. Insert the OLED screen within the bracket
3. Secure the OLED screen by attaching the backplate.
4. Attach the mount to your Raspberry Pi tower case.
5. Connect the OLED screen to your Raspberry Pi using the jumper wires.

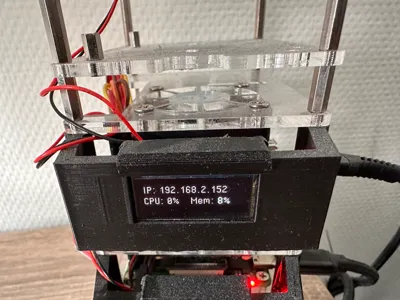

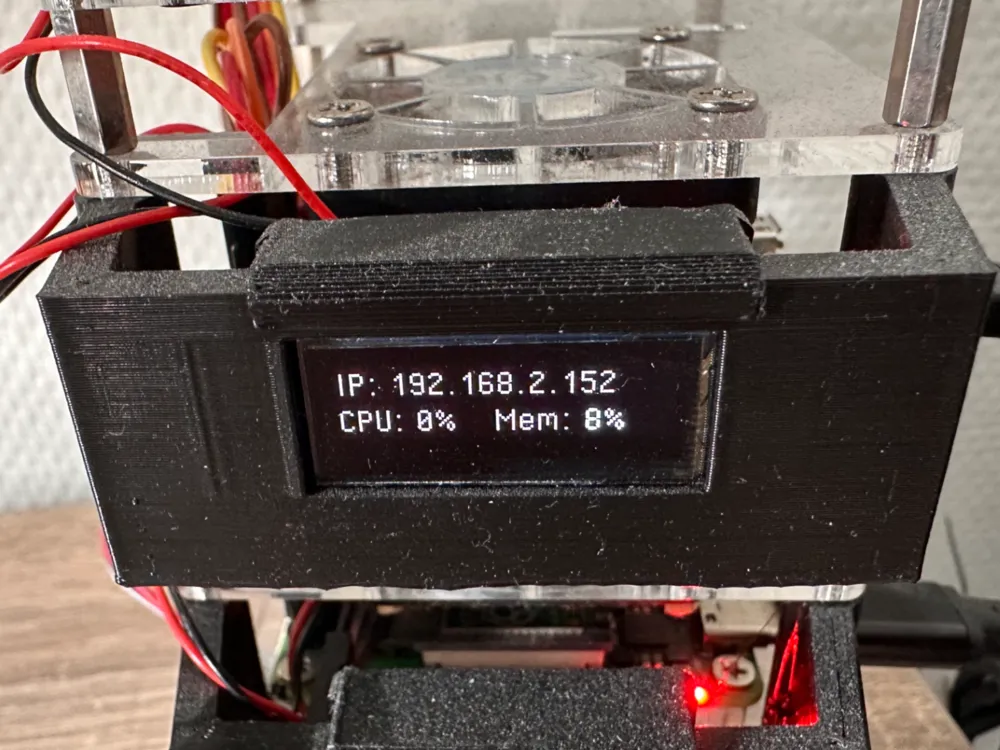

Enjoy a neat and professional-looking setup with your Raspberry Pi and OLED display.

Note: Ensure to check the compatibility of your components with the model dimensions before printing.
