The Legend of Zelda Map - Free 3D Print Model

Description

Boost Me (for free)

If you enjoy this model, your support is much appreciated!

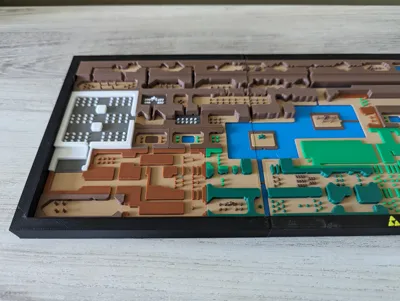

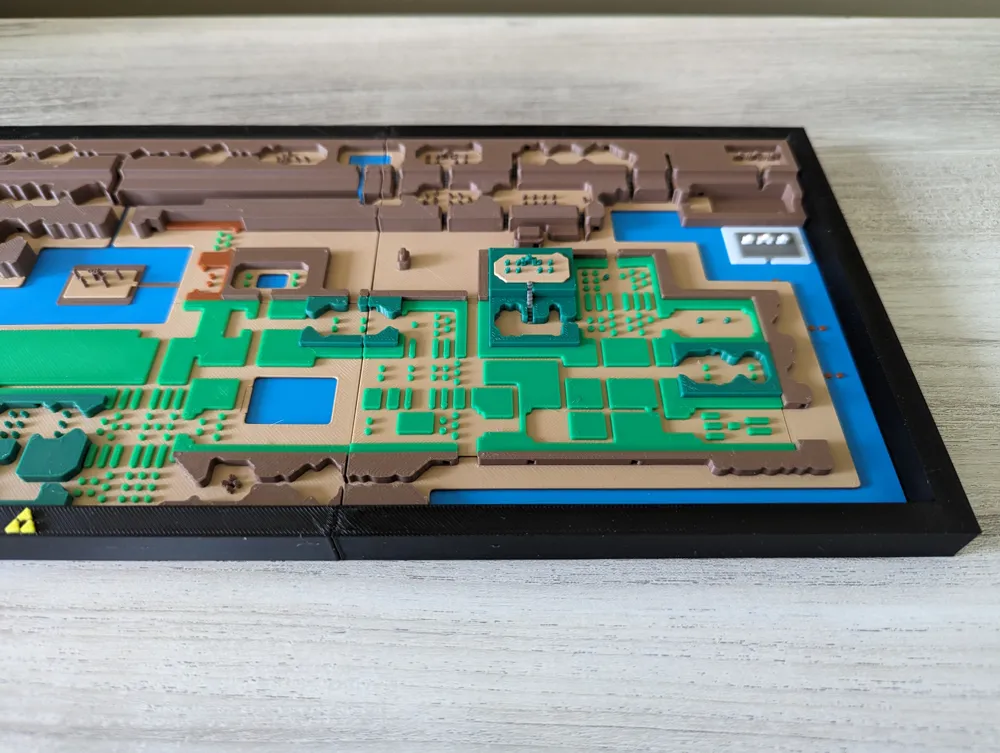

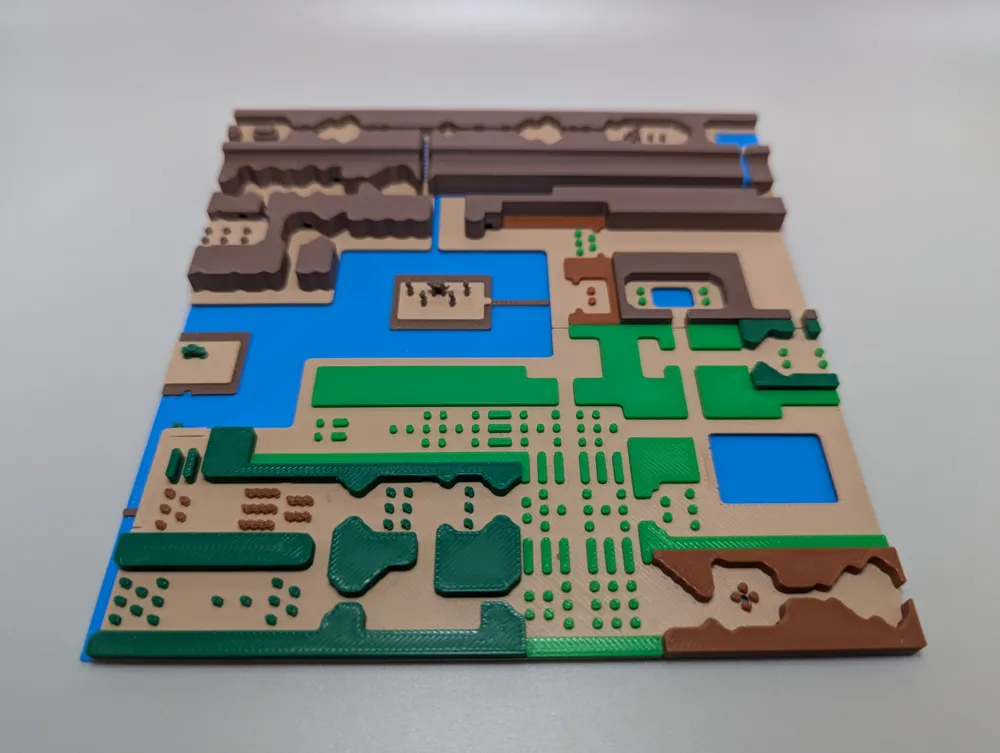

A 3D map of The Legend of Zelda. I still remember unfolding this map in the first Nintendo Power and being amazed. I tried to capture as much detail as I could while designing this for a 0.4mm nozzle to keep the print time down. The 1 AMS version proved pretty challenging, but I wanted to be able to share this with as many of you as I could. The overall size without the frame comes out to about 420mm x 140mm.

The frame is assembled using 3 pieces. I highly recommend laying them on a flat surface when connecting them as the connector on the middle part of the frame can break off. Place the middle piece on a flat surface, align the end piece with the connector and slot, and press down firmly. The connection is pretty tight to keep everything together.

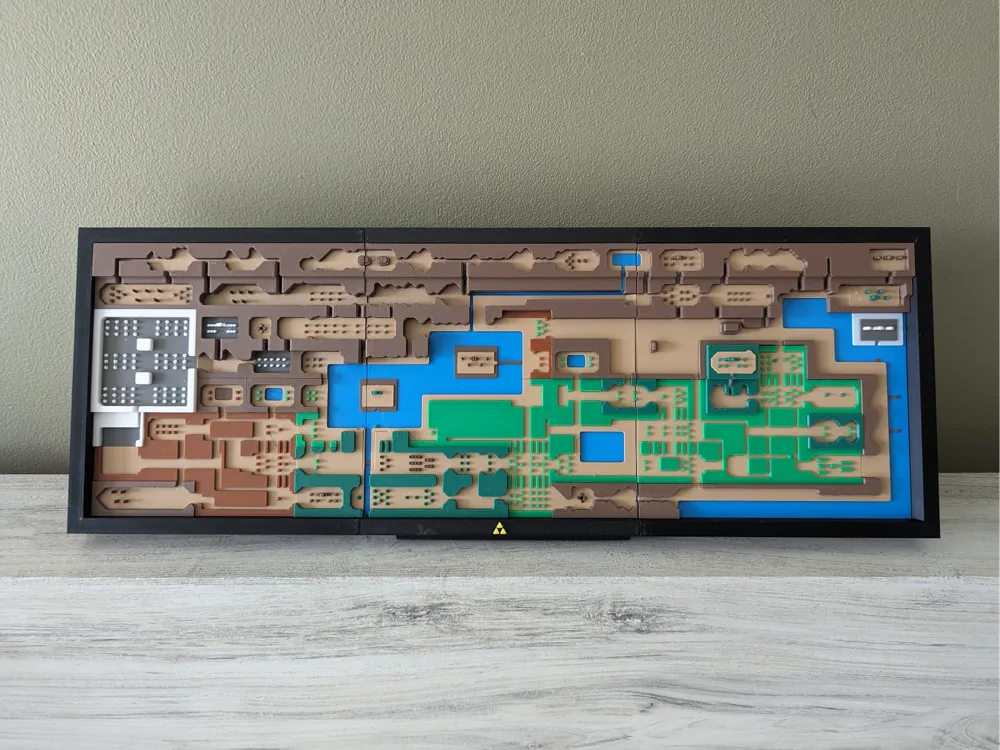

For the 1 AMS version, the pieces are designed to be pressed into place. I have thoroughly tested these models and they hold very well. The picture of this model hanging on a wall was done with the 1 AMS pieces. From my testing, glue is not required.

The photos were done without any post processing on the model. The only thing I'd recommend is to use a heat gun to remove any stringing that occurs between small details like the gravestones.

A frame stand for displaying on a bookshelf or table can be found here:

Zelda A Link to the Past Map - Frame Stand

Full Map - 2 AMS

Requires 2 AMS for 8 color printing.
Includes 3 plates for the main model.
Plates are labeled for left, right, middle

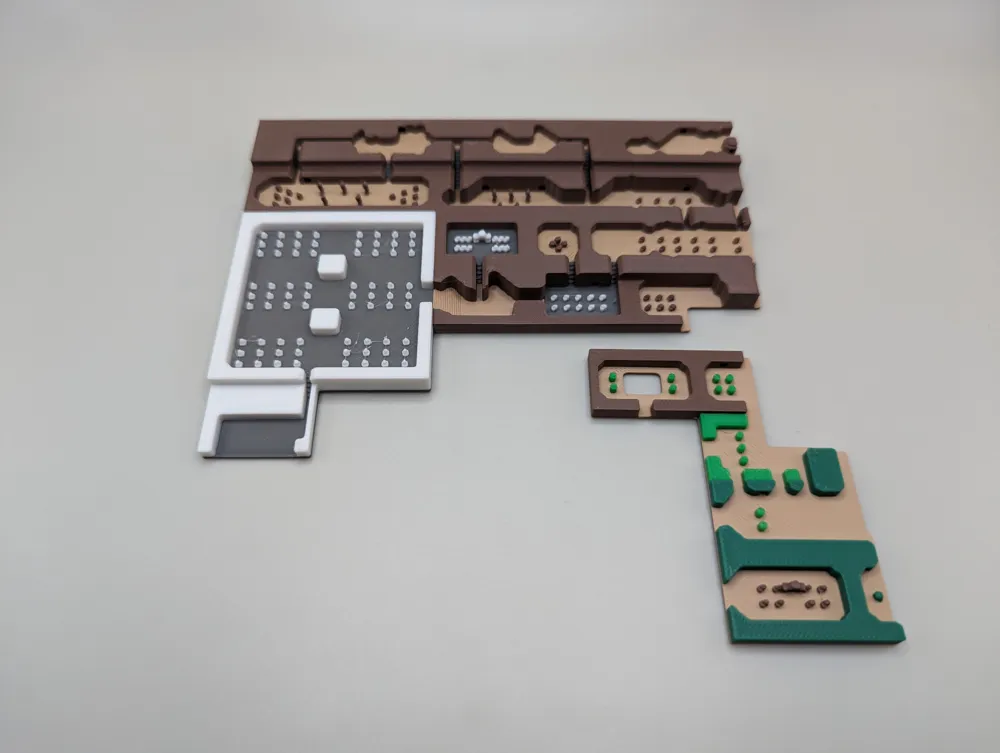

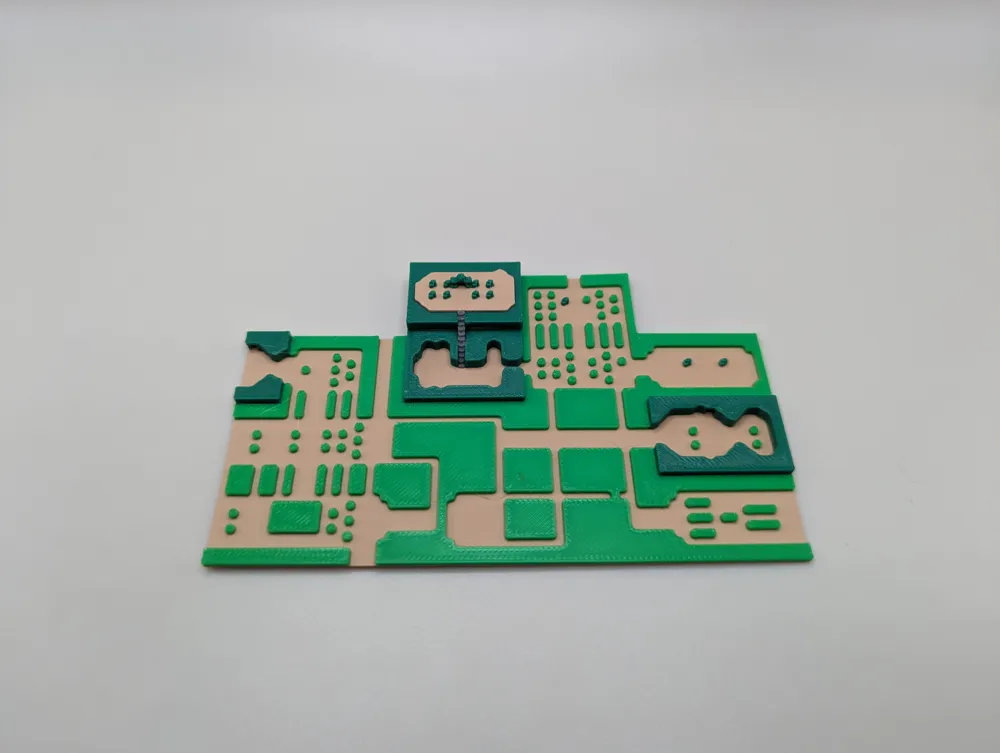

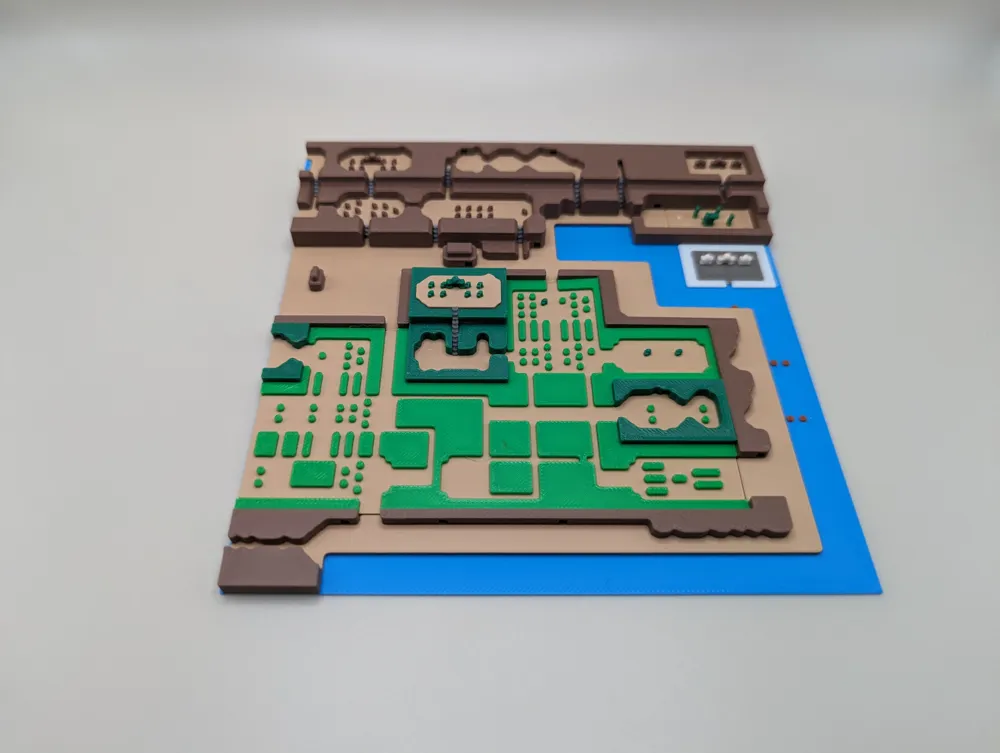

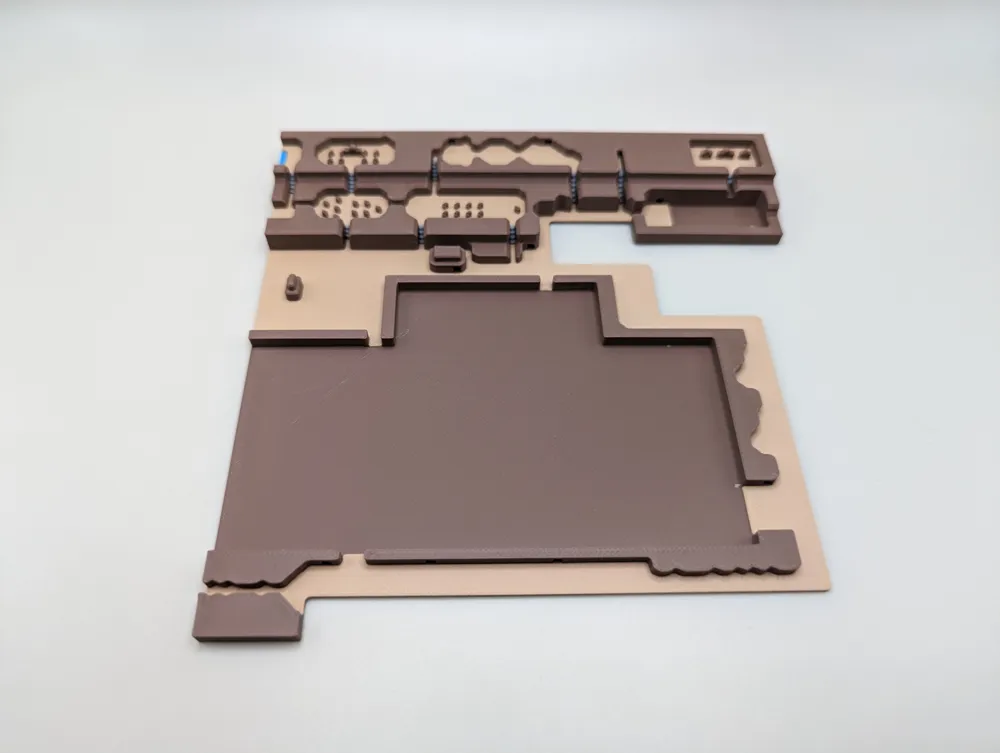

Layer Map - 1 AMS

Requires 1 AMS with push in place pieces. You can use glue to make the pieces more secure, but is not required based on my testing.
Includes 10 plates for different layers.
Plates are labeled for left, right, middle

Colors

Gray - Bambu PLA Matte Ash Grey

Light Brown - Bambu PLA Brown

Dark Brown - Bambu PLA Matte Dark Brown

Light Green - Bambu PLA Green

Dark Green - Bambu PLA Mistletoe Green

Blue - Bambu PLA Cyan

Beige - Bambu PLA Matte Desert Tan

White - Bambu PLA White

Black - Bambu PLA Black (Frame)

Yellow - Bambu PLA Yellow (Frame)
