The Wave

Hello, Glad you're here!

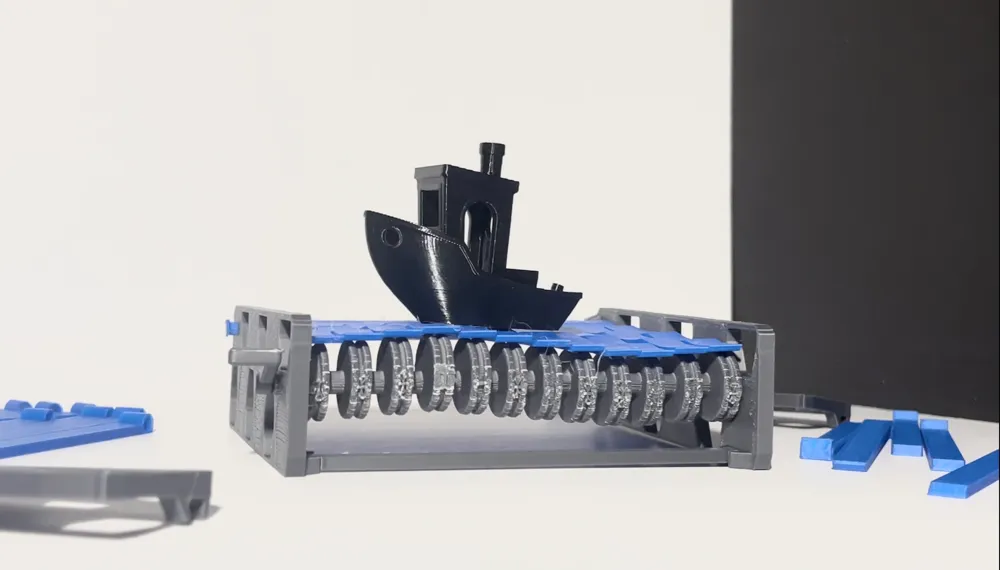

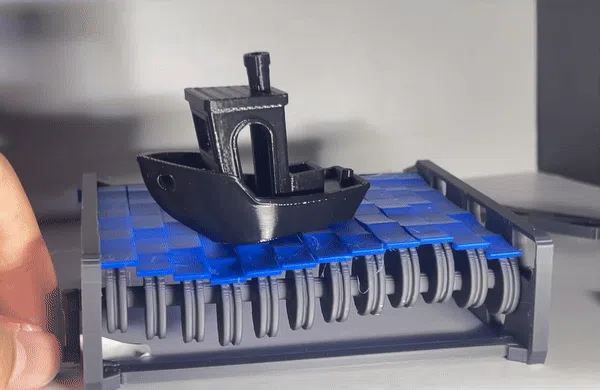

Today i present to you the Wave. The Wave mimics the lifelike appearance and the way a wave move in such a compact and small size! It can be moved around with such a sturdy design that you don't need to worry about the Wave falling apart, and the best part is that it doesn't require any tools to assemble!

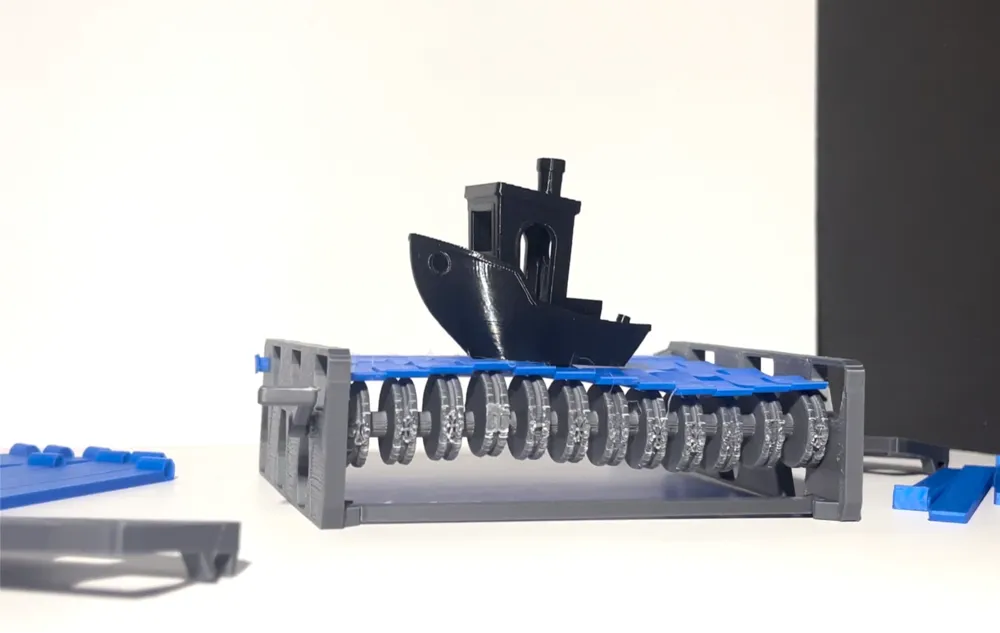

The wave is a 3D printed part to make your benchy and other boat models feel more lifelike as if they are at the ocean with waves!

Overview

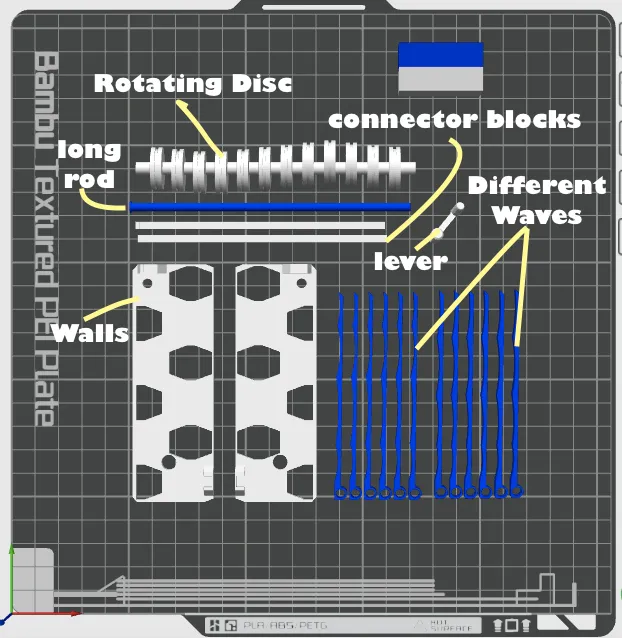

The 3D Printed Parts Are the Following:

• The waves. There are 12 waves. They look almost the same, but they are different! 6 of the waves have a distinct patter that differs from the other 6 waves!
• The Base. There are 2 walls which are mirrored from one another. There is also 2 connector blocks to connect the 2 walls together.

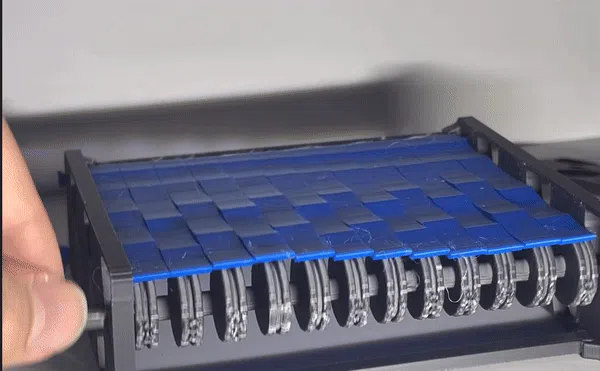

• The Rotating Disc. There is 1 rotating disc which is used to make the wave move like waves.
• The Long Rod. There is 1 long rod which is used to connect the waves together

• The Lever. There is 1 lever which will be used to turn the rotating disc.



Assembly

1. Grab one of the walls and the rotating disc and put the rotating disc into the hole in the wall
2. Grab the other wall and insert the other end of the rotating disc into the hole of the wall
3. Grab 2 of the connector blocks and insert them into the slots provided near the front and the back of the 2 walls
4. Push the long rod into the other hole of the wall and stack the waves using a 1 to 1 pattern switching from 1 wave to the other wave.
5. put the other end of the long rod into the other wall and make sure it stays there. Recheck and make sure everything stays in place.

You're interest in my project helps me to keep growing!
