Description

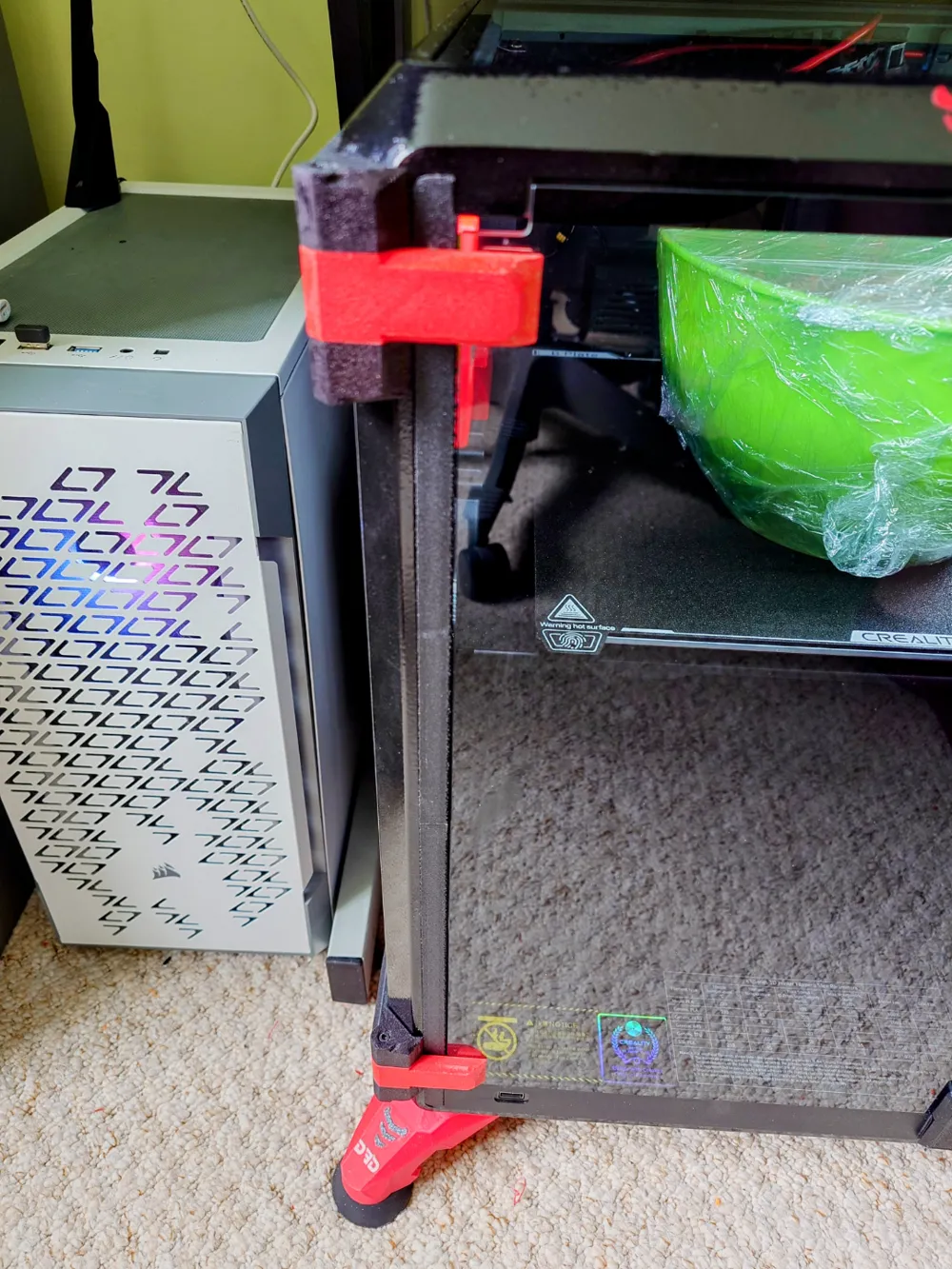

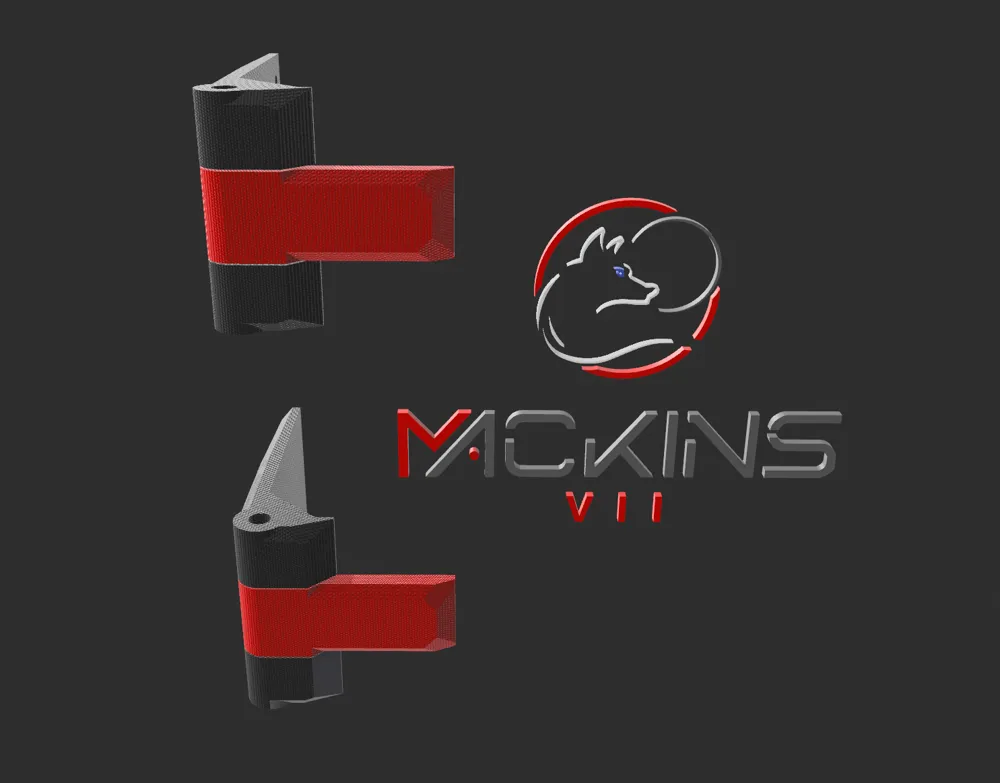

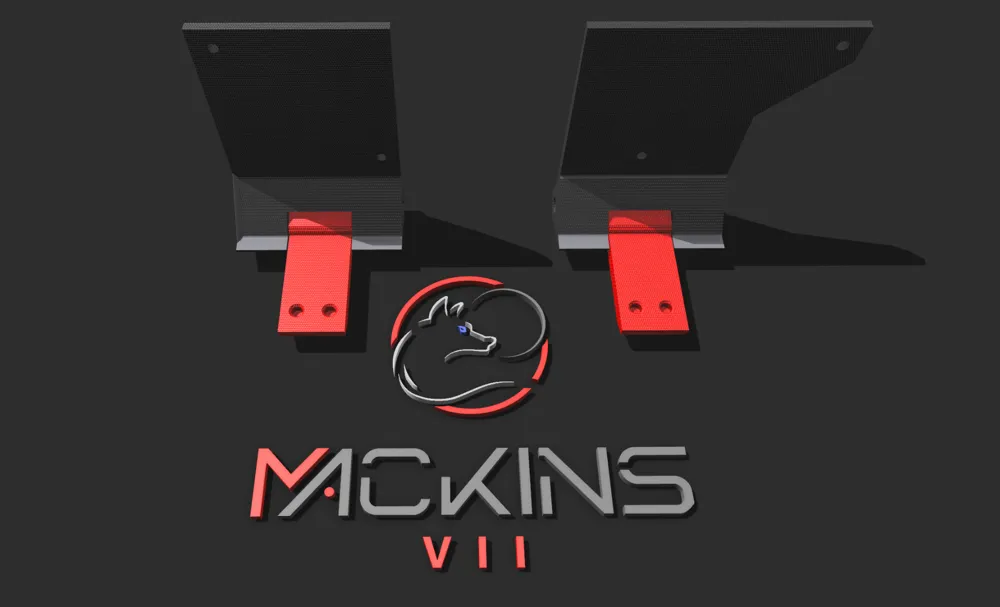

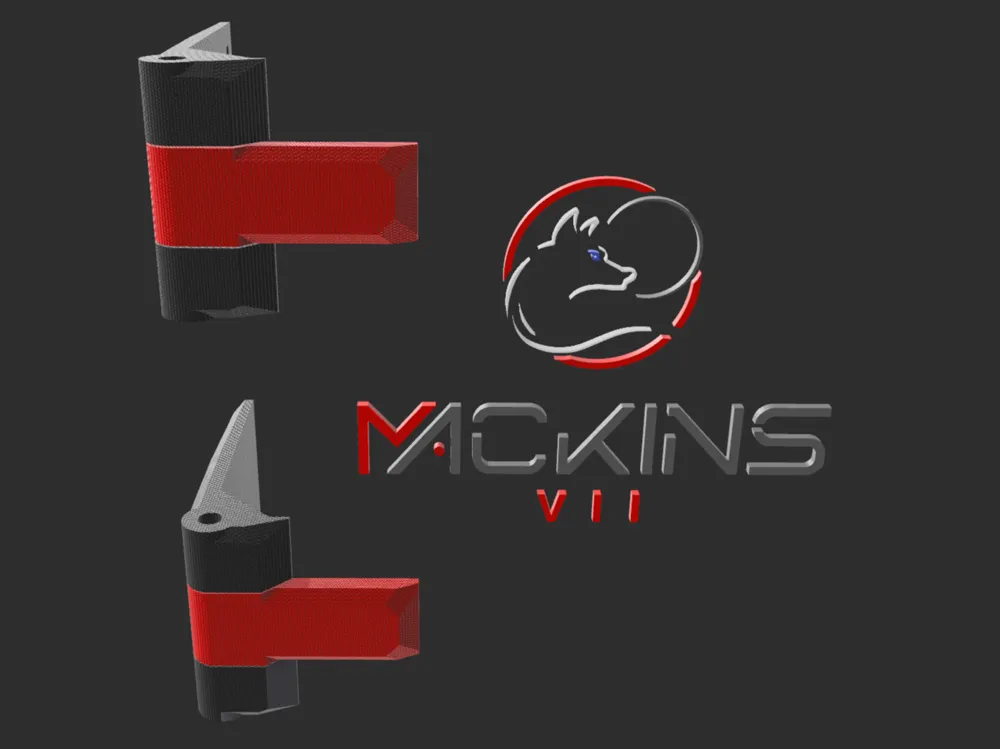

These hinges were created so I could add a new seal strip to close up the door gap for high temperature printing.
These hinges only open about 200 degrees because I don't like how far 270 hinges stick out of the side.
They use:
2X 50mm M3 machine screws
2X M3 nuts
4X 4.5mm wide, 3mm long heat inserts.
Like my work and want to support some of my further work? Buy me a Ko-Fi.
https://ko-fi.com/mackinsvii
