Broken Lamp

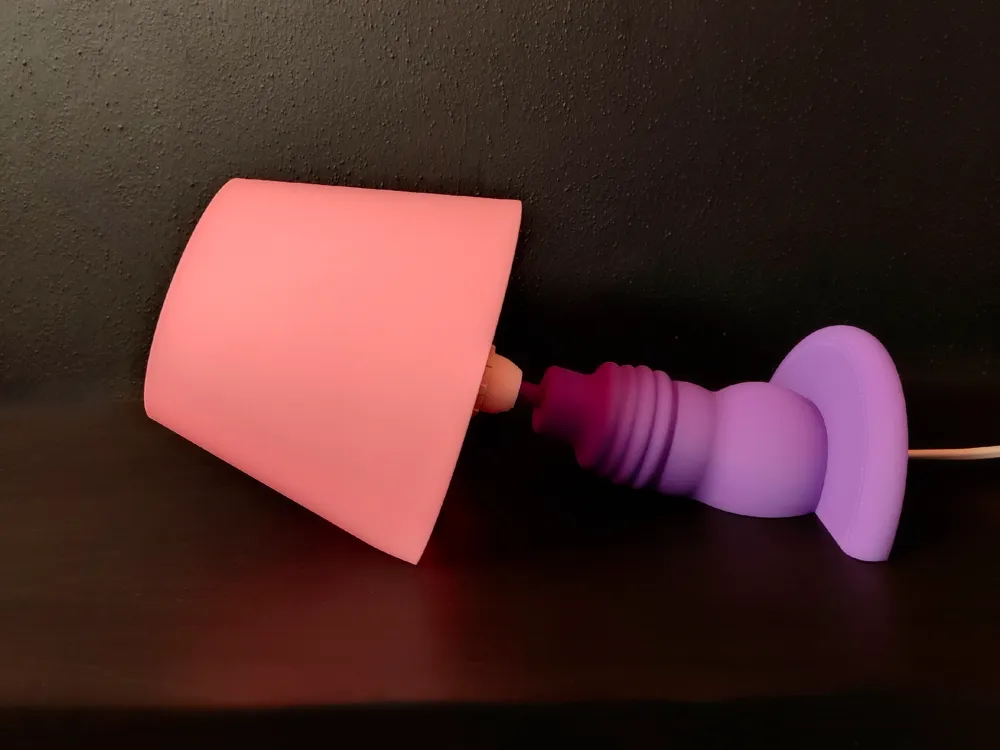

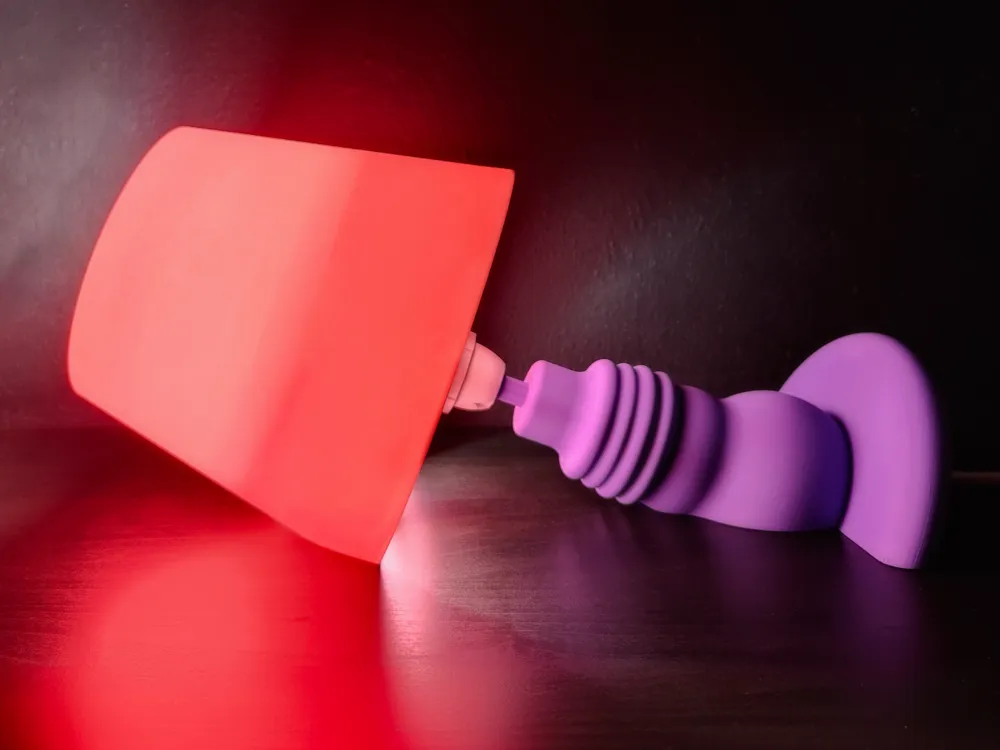

Broken Lamp is a one-of-a-kind table lamp, designed to surprise and break the mold of classic bedside or desk lamps. Measuring 28 cm in length and with a maximum diameter of 15 cm on the lampshade, this lamp immediately catches the eye with its innovative design. Unlike traditional lamps that stand upright, Broken Lamp stands out for its positioning: its main feature is the transverse cut that sharply divides the body of the lamp. This unconventional design not only offers a visually intriguing look but also invites reflection on the shapes and functionalities of everyday objects. Choosing to position the lamp horizontally rather than vertically challenges expectations and creates a unique focal point in any environment.

The lampshade of Broken Lamp is designed to accommodate E14 LED bulbs of type G45 and has been tested with 4.5 Watt smart bulbs.

Printing parameters: Nozzle 0.4, Layers 0.2, 2 walls, Infill 15%, Supports and Brim not needed.

Assembly: get an E14 lamp holder with an external thread, with M10x1 threading at the bottom, print 2 E14 rings included in the project; get a power cable with a switch; insert the cable from the bottom of the lamp and exit through the top hole, wire the lamp holder with the cable and screw it onto the threaded base support; insert the first ring, insert, secure, and adjust the lampshade, screw the second ring to lock the lampshade in place. Your Broken Lamp is ready!
